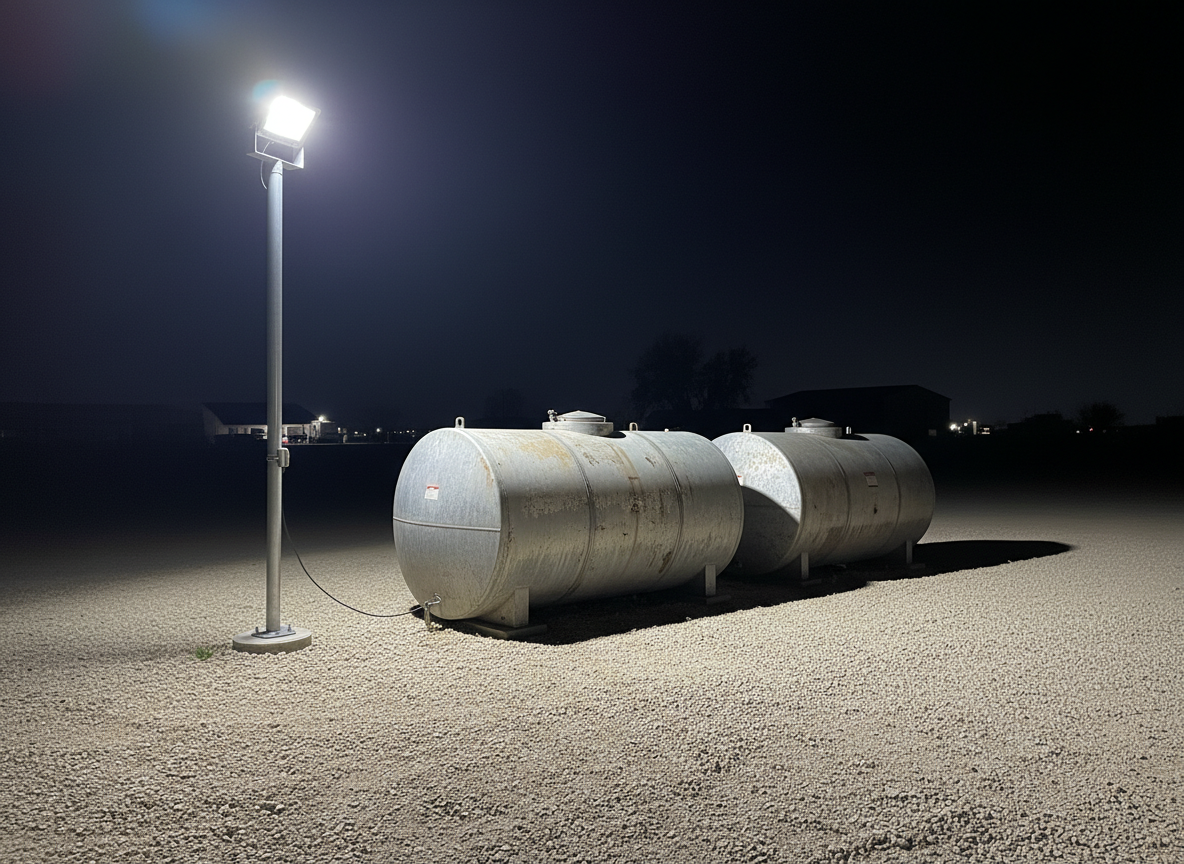

Strategic Illumination: Securing Farm Fuel Assets
Fuel theft is a significant and rising operational risk for modern agricultural enterprises. For a farm or ranch, the loss of a thousand gallons of diesel isn't just a financial hit to the balance sheet; it is a critical disruption that can halt harvesting or planting during tight weather windows. Based on our observations across dozens of rural security audits, the fuel tank is often the most vulnerable asset on the property because it is frequently located at the perimeter for easy tanker access, far from the main residence or well-lit barn.
To protect these assets, a "set it and forget it" approach with a standard barn light is insufficient. Effective security requires a pragmatic combination of verified technical specifications, strategic optical distribution, and intelligent sensor calibration. In this guide, we will break down the engineering requirements for farm fuel tank lighting, moving beyond consumer-grade aesthetics to focus on asset protection and reliability in harsh environments.
The Compliance Landscape: Standard vs. Explosion-Proof
A common point of confusion for farm operators is whether fuel tank lighting must be "explosion-proof" (Ex d/Ex t). While industrial refineries require these specialized, high-cost fixtures, the regulatory burden for farms is often different.
According to research into NFPA 30 (Flammable and Combustible Liquids Code) for farms, many small, detached farm tanks are exempted from the strictest Class I, Division 1 hazardous location rules. In non-enclosed, outdoor areas where vapors dissipate quickly, a standard industrial-grade fixture with an IP66 (Ingress Protection) rating is often a compliant and significantly more cost-effective alternative.
Engineering Ratings for Harsh Environments
When selecting a fixture, we prioritize two specific IEC 60529 (IP Ratings) and IEC 62262 (IK Ratings) standards:
| Rating | Technical Meaning | Practical Farm Application |
|---|---|---|
| IP65/IP66 | Dust-tight and protected against powerful water jets. | Prevents failure during high-pressure equipment washdowns and harvest dust storms. |
| IK08/IK10 | Protected against 5 to 20 Joules of mechanical impact. | Ensures the fixture survives accidental strikes from equipment or attempted vandalism. |
| UL 1598 | Standard for Luminaires. | The baseline safety certification required for insurance compliance and electrical inspection. |
Modeling Note (Safety Compliance): Our recommendation for IP66 fixtures assumes an outdoor, well-ventilated tank setup. If your fuel storage is inside a shed or an enclosed structure, you must consult a local electrical inspector to determine if Class I, Division 2 (hazardous location) fixtures are required under the National Electrical Code (NEC).
Optical Strategy: Why Beam Patterns Matter
The most frequent mistake we see in rural security is the use of a standard symmetric floodlight (Type V). These fixtures create a bright "hot spot" directly under the pole but fail to project light across the fuel yard. This leaves the "approach zones"—where a thief would actually park a truck or siphon fuel—in deep shadow.
Asymmetric Distribution (Type III and IV)
For perimeter security, experienced installers favor asymmetric distributions. A Type III distribution is designed to "throw" light forward and wide. When mounted at the edge of a fuel pad, it pushes the illumination across the tanks and toward the driveway, maximizing the usable light without wasting energy on the fence line behind the pole.
Lux Requirements for Security
"Sufficient illumination" is a subjective term. To provide actionable guidance, we rely on OSHA lighting requirements and IES standards to define specific Lux (lumens per square meter) targets:
- Task Lighting (Checking Gauges/Leaks): ~50 Lux. This allows an operator to read a meter or spot a small fuel leak on a fitting.
- Security Identification: 50–100 Lux at the target plane. This is the threshold required for high-quality surveillance cameras to capture identifiable facial features or license plate numbers.
- General Navigation: ~10 Lux. Minimum for walking safely around the tank area without a flashlight.
Logic Summary (Lumen Calculation): To achieve 50 Lux at a distance of 40 feet from a 20-foot pole, you typically need a fixture delivering at least 15,000 to 20,000 lumens, depending on the beam angle.
Motion Sensing and Sensor Calibration
Bright lights alone are a deterrent, but motion-activated lighting provides a psychological "jolt" to trespassers and alerts the farm owner to activity. However, poorly calibrated sensors are often disabled by frustrated users after too many false alarms from deer or wind-blown crops.
The PIR Walk-Test Heuristic
For rural areas, we recommend PIR (Passive Infrared) sensors with adjustable sensitivity.
- Mounting: Ensure the sensor is not blocked by the fixture itself or nearby trees.
- Sensitivity: Start at the mid-range setting.
- Calibration: Perform a "walk-test" at dusk. Walk toward the fuel tank from the most likely approach path. Adjust the sensitivity until the sensor triggers at approximately 50 feet for a human-sized target, but ignores smaller animals closer to the ground.
Integration with Surveillance
As noted in our Security Lighting Plan for the Modern Farmstead, lighting should be designed to optimize your camera's field of view. High-output LEDs with a high Color Rendering Index (CRI > 70) ensure that color-coded fuel caps and vehicle colors are accurately captured by digital sensors.
Installation Best Practices for Rural Reliability
Farms present unique electrical challenges, specifically long wire runs that can lead to voltage drop. If your fuel tank is 200 feet from the nearest power source, using standard 12 AWG wire may result in dimming or sensor instability.
- Wiring: For runs over 150 feet, we recommend upgrading to 10 AWG wire. This prevents a drop in voltage that can cause LED drivers to flicker or fail prematurely.
- Mounting Height: The "Sweet Spot" is 15–20 feet. This is high enough to prevent easy tampering but low enough to maintain high Lux levels on the ground.
- Angle of Attack: Tilt the fixture 15–30 degrees downward. This minimizes glare for the neighbors while maximizing the "throw" across the fuel pad.
Maintenance Checklist
Agricultural environments are notoriously dusty. A layer of harvest dust on a photocell can trick the light into staying on all day, while dust on the lens can reduce lumen output by 20% or more.
- Seasonal Cleaning: Wipe down the lens and photocell eye every spring and fall.
- Connection Check: Inspect conduit entries for rodent damage—mice are a leading cause of "mysterious" lighting failures on farms.
Maximizing ROI with DLC Premium
For B2B operators, the initial cost of high-performance lighting can be offset by utility rebates. The DesignLights Consortium (DLC) Qualified Products List (QPL) is the industry standard for energy efficiency.
Choosing a DLC Premium certified fixture doesn't just guarantee a lower electricity bill; it is often a mandatory requirement for receiving a rebate from your local utility. In many jurisdictions, these rebates can cover 40% to 70% of the fixture cost. We recommend using the DSIRE Database to look up specific incentives in your zip code.
ROI Modeling:
- Baseline: 400W Metal Halide (Traditional) = ~458W total draw including ballast.
- Upgrade: 150W LED (DLC Premium) = 150W total draw.
- Annual Savings: At $0.14/kWh and 12 hours of operation per night, the LED conversion saves approximately $188 per fixture per year. With a utility rebate, the payback period is often less than 12 months.
Technical Specifications for Professional Buyers
When comparing fixtures, look past the "wattage" and focus on the performance data found in the IES LM-79-19 report. This report is the fixture's "performance report card," verifying its actual lumen output and efficiency (lm/W).
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, modern high-performance fixtures should achieve at least 140–150 lumens per watt. Lower efficiency usually indicates cheaper internal components and a shorter lifespan.
Longevity and Thermal Management
The lifespan of an LED is determined by how well it handles heat. Ensure the manufacturer provides IES LM-80 data for the LED chips and TM-21 projections for the fixture. A high-quality fixture will maintain 70% of its initial brightness (L70) for at least 50,000 to 60,000 hours.
| Specification | Target Value | Verification Source |
|---|---|---|
| Luminous Efficacy | >140 lm/W | LM-79 Report |
| Color Temperature | 4000K or 5000K | ANSI C78.377 |
| EMI Compliance | FCC Part 15 Class B | FCC Test Report |
| Surge Protection | 4kV to 6kV | Manufacturer Spec Sheet |
Summary of Strategic Steps
Securing your farm’s fuel supply requires moving beyond simple "bright lights." By selecting fixtures with asymmetric beam patterns, ensuring IP66 durability, and properly calibrating motion sensors, you create a robust deterrent that protects your most valuable liquid assets.
For more specialized applications, such as lighting for high-vibration environments or sensor strategies for large facilities, consulting a professional lighting layout is recommended.
Disclaimer: This article is for informational purposes only and does not constitute professional legal, electrical, or safety advice. Always consult with a licensed electrician and your local building/fire department to ensure compliance with the National Electrical Code (NEC) and NFPA standards in your specific jurisdiction.
Frequently Asked Questions
Q: Can I use solar lights for fuel tank security? A: In northern latitudes, winter days are often too short to reliably charge solar batteries for all-night security. For critical assets like fuel tanks, a grid-tied or low-voltage wired system is significantly more reliable.
Q: What is the best color temperature for security cameras? A: 5000K (Daylight White) is generally preferred for security as it provides high contrast and clarity for digital sensors, making it easier to identify faces and objects.
Q: How do I know if a light is actually DLC certified? A: You should always search the DLC QPL Database using the manufacturer's model number. Do not rely solely on marketing stickers, as certification status can change.
Q: Why is my motion sensor triggering when there is no one there? A: Rural sensors often trigger due to "thermal turbulence" or small animals. Ensure your sensor is a PIR type and try lowering the sensitivity or adjusting the "on-time" delay. You can also refer to our guide on sensor control strategies for more tuning tips.
