Executive Summary: The Dual-System Strategy for Farm Security

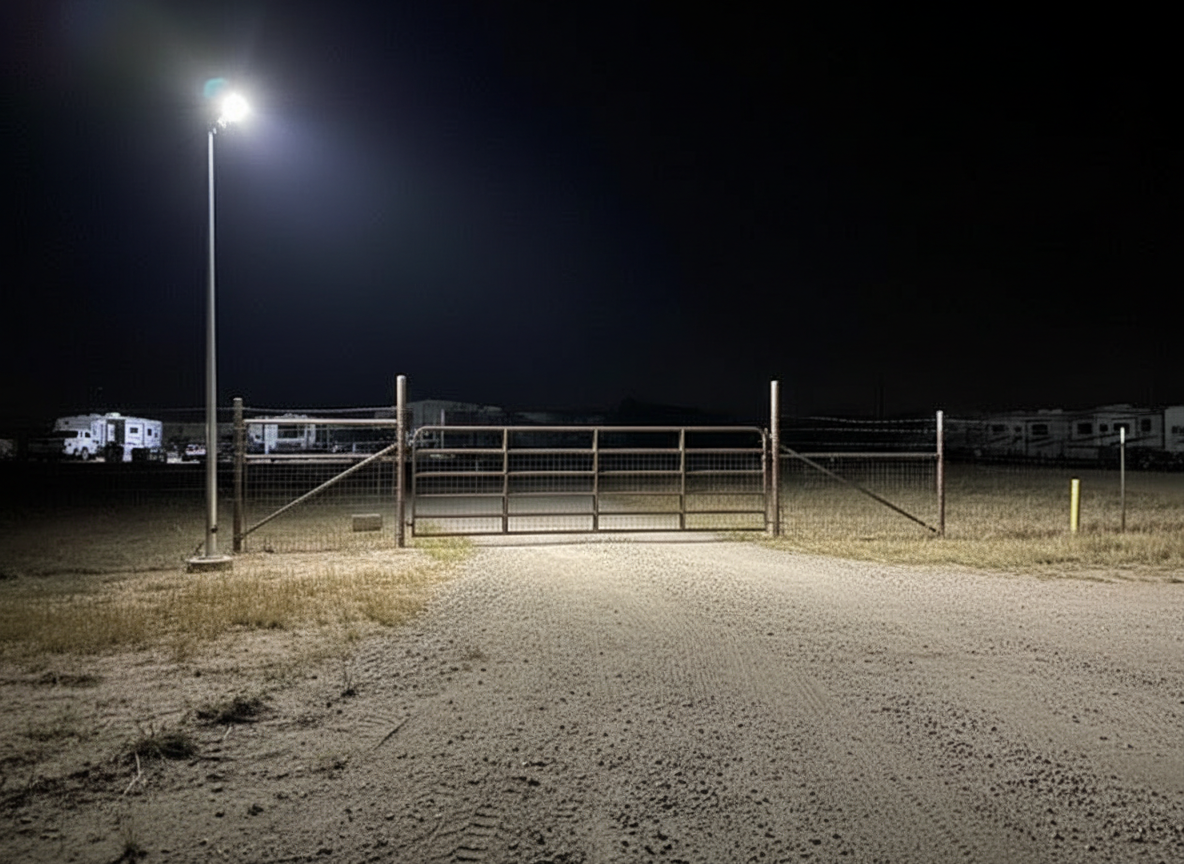

Securing a farm or ranch entrance requires moving beyond simple "dusk-to-dawn" yard lights. For professional-grade security and operational safety, the most effective approach is a dual-system strategy: permanent, high-efficacy LED area lights for long driveways and perimeter boundaries, supplemented by full-cutoff wall packs at gates and building entry points. Based on industry heuristics, achieving a minimum of 1.0 foot-candle (approximately 10 lux) at entry gates is necessary for basic safety, while driveways should maintain 0.2 to 0.5 foot-candles to prevent deep shadows that compromise surveillance.
To ensure long-term reliability on rural power grids, all fixtures should be specified with a minimum 10kV surge protection device (SPD) and carry DesignLights Consortium (DLC) Premium certification to maximize utility rebate eligibility.
The Physics of Perimeter Illumination: Beam Patterns and Foot-candles
In our experience auditing rural facilities, the most frequent error is over-lighting with wide-angle floodlights. This creates excessive glare and "light trespass," which actually diminishes security by casting deep, impenetrable shadows where the light does not reach.
Understanding Luminous Distribution
For long farm driveways, professional installers prioritize Type III or Type IV beam patterns. These are "lateral" throws—rectangular patterns that push light along the path of the road rather than in a circular pool around the pole.
- Type III (Long Throw): Ideal for perimeter fences and driveways. It projects light forward and outward, creating a "light lane."
- Type IV (Forward Throw): Best for gate entrances where the fixture is mounted on a building or post and needs to illuminate the area directly in front of the entry.
Prescriptive Light Levels
According to the IESNA RP-33-99: Lighting for Exterior Environments, different zones require specific illuminance targets to balance safety with energy conservation.
| Area Type | Recommended Foot-candles (fc) | Recommended Lux (lx) | Rationale |
|---|---|---|---|
| Residential Driveway | 0.2 – 0.5 | 2 – 5 | Basic navigation; low traffic |
| Farm Gate/Entry | 1.0 – 2.0 | 10 – 20 | Identification; security camera clarity |
| Loading/Operational Zone | 5.0 – 10.0 | 50 – 100 | Critical task safety (e.g., harvest/calving) |
| Perimeter Fence | 0.1 – 0.2 | 1 – 2 | Deterrence; motion sensor baseline |
Logic Summary: These targets assume a standard mounting height of 15–20 feet. Using these quantifiable targets prevents the "glare-blindness" often associated with unshielded, high-lumen floodlights that lack proper optics.
Engineering for Rural Resilience: Durability Specifications
Rural environments present unique challenges that standard residential lighting cannot withstand. Between dust from gravel roads, high-pressure washing of equipment, and unstable power grids, the "Solid" value of a fixture is determined by its technical certifications.
The 10kV Surge Protection Mandate
One of the most critical "gotchas" in farm lighting is the rural power grid. Inductive loads from heavy machinery (pumps, harvesters, grain dryers) create frequent voltage surges. While standard LED drivers often include 2kV or 4kV protection, this is insufficient for farmsteads.
- The Rule: Specify fixtures with a minimum 10kV SPD. This protects the sensitive LED driver circuits from catastrophic failure during grid fluctuations.
IP and IK Ratings
For fixtures exposed to the elements, an IP65 rating is the baseline, meaning the unit is dust-tight and protected against water jets. However, in areas where equipment is frequently power-washed, an IP66 rating is a pragmatic upgrade. Furthermore, for lights mounted at lower heights (under 12 feet) near gates where they might be struck by equipment, an IK08 or IK10 impact rating (measured in Joules) ensures the housing and lens can survive mechanical shocks.
Compliance and Financial Optimization: DLC and UL Standards
For farm owners, the transition to LED is often driven by the Return on Investment (ROI). To secure this, the fixture must meet two distinct tiers of certification: Safety and Performance.
Safety: UL vs. ETL
Every fixture installed on a commercial or agricultural property must be "Listed" by a Nationally Recognized Testing Laboratory (NRTL). The most common are UL Solutions (Underwriters Laboratories) and Intertek ETL. These marks prove the fixture complies with UL 1598 (Luminaires) for electrical safety. Installing non-listed fixtures can void insurance policies in the event of a fire.
Performance: The DLC QPL
The DesignLights Consortium (DLC) Qualified Products List (QPL) is the industry benchmark for high-performance lighting.
- Standard vs. Premium: DLC Premium fixtures have higher efficacy requirements (lumens per watt) and stricter lumen maintenance (longevity) standards.
- The Rebate Link: Most utility companies in the U.S. require a fixture to be on the DLC QPL to qualify for energy efficiency rebates, which can often cover 30% to 70% of the hardware cost.
Balancing Security with Dark-Sky Compliance
A common conflict arises between the need for high-output security lighting and "dark-sky" ordinances intended to reduce light pollution. In many agricultural zones, this is now a legal requirement.
Full-Cutoff Optics
To meet these standards, specify "Full-Cutoff" fixtures. These are designed so that zero light is emitted above the 90-degree horizontal plane. This keeps light on your driveway and off your neighbor's property or the night sky.
The Hybrid Approach for Critical Events
During high-activity periods like calving or harvest, permanent security lighting may be insufficient. Rather than over-lighting the property year-round, we recommend a dual-system approach:
- Permanent System: Shielded, dark-sky compliant LED wall packs and area lights for baseline security.
- Temporary System: High-output portable LED task lighting that is deployed only during operational peaks. This preserves community relations and reduces long-term energy waste.
Installation Strategy: The Contractor's Checklist
When installing entrance lighting, the physical placement is as important as the fixture's lumens. Proper planning ensures that you don't create "blind spots" for your security cameras.
Mounting Height and Spacing
For driveways, a mounting height of 15–20 feet is the "sweet spot." Mounting too low creates hot spots and glare; mounting too high reduces the foot-candle levels on the ground.
- Heuristic for Spacing: Aim for a spacing-to-mounting-height ratio of 3:1 or 4:1. If your poles are 20 feet high, they should be spaced 60 to 80 feet apart to maintain uniformity.
Wiring and Control (NEC Compliance)
All outdoor wiring must comply with the National Electrical Code (NEC) / NFPA 70. For 0-10V dimming systems—which are increasingly required by energy codes like California Title 24—ensure that Class 1 and Class 2 wiring are properly separated to prevent interference.
Verifying Performance: The LM-79 and IES Files
Before finalizing a purchase, professional facility managers request the "Performance Grade" of the fixture. This is found in two technical documents:
- LM-79 Report: The "performance report card" that verifies the actual lumen output, wattage, and efficacy (lm/W) measured in a controlled lab.
- IES File (.ies): A digital data file that allows designers to perform a photometric simulation. By importing this into software like AGi32, you can see exactly how the light will hit your driveway before a single pole is installed. This prevents costly rework and ensures you meet the 1.0 fc target at your gates.
For a deeper dive into current industry trends and high-performance specifications, consult the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Frequently Asked Questions (FAQ)
How do I wire my high-output area lights for dusk-to-dawn operation? Most professional-grade fixtures include a 3-pin or 7-pin NEMA twist-lock receptacle for a photocell. This allows the light to automatically turn on at sunset and off at sunrise. Ensure the photocell is rated for the total wattage of the circuit.
What is the difference between IP65 and IP66 for farm use? IP65 is protected against low-pressure water jets (standard rain). IP66 is protected against high-pressure water jets. If you use a pressure washer near your lights, IP66 is the safer choice to prevent internal moisture buildup.
Can I use dimmers on my outdoor security lights? Yes, provided the fixture has a 0-10V dimming driver. This is common in modern LEDs and allows you to reduce light levels during late-night hours while maintaining motion-sensor "boost" capabilities for security.
Why is color temperature (CCT) important for security? For security cameras, a CCT of 4000K or 5000K (Cool White/Daylight) is preferred. This provides better contrast and color rendering (CRI), making it easier to identify vehicle colors or clothing in surveillance footage compared to the yellow hue of older high-pressure sodium (HPS) lights.
Methodology Note: Modeling and Assumptions
The recommendations provided in this guide are based on a scenario model for a mid-sized agricultural facility (20–40 acres) with a 200-foot primary driveway.
- Model Type: Deterministic photometric analysis based on standard IES beam patterns.
- Assumptions: Mounting height of 18 ft; clean-room lumen maintenance factors; rural power grid with typical ±10% voltage fluctuations.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Target Illuminance (Gate) | 1.0 | fc | IESNA RP-33-99 Security Baseline |
| Mounting Height | 18 | ft | Optimal balance of spread and intensity |
| Surge Protection | 10 | kV | Rural grid stability requirement |
| Spacing Ratio | 3.5:1 | ratio | Uniformity heuristic to prevent shadows |
| CCT | 5000 | K | Maximizes camera sensor clarity |
Sources
- DesignLights Consortium (DLC) Qualified Products List
- IESNA RP-33-99: Lighting for Exterior Environments
- UL Solutions Product iQ Database
- Ottima Tech: 10kV Surge Protection Guide
- National Electrical Code (NEC) / NFPA 70 Overview
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Lighting requirements vary by jurisdiction and specific site conditions. Always consult with a licensed electrical contractor and review local building codes and dark-sky ordinances before beginning an installation. Improper installation can result in fire, electrical shock, or voided insurance coverage.
