The Hidden Cost of Vibration in Industrial Facilities

In heavy manufacturing environments—where stamping presses, CNC machines, and overhead cranes operate 24/7—lighting failure is rarely a matter of "burnt-out bulbs." Instead, it is a mechanical failure of the fixture’s internal architecture. For a facility manager or plant engineer, a single failed high bay located 30 feet above a live production line represents more than just a dark spot; it signifies a costly maintenance event involving scissor lift rentals, specialized labor, and potential downtime.

The primary objective when specifying lighting for high-vibration zones is to prevent the premature fatigue of electrical connections and the physical loosening of mounting hardware. Standard commercial-grade fixtures often lack the structural reinforcement required to withstand the constant micro-movements of industrial machinery. To ensure a 50,000 to 100,000-hour lifespan, professional specifications must prioritize fixtures with verified IK10 impact ratings, IP65 ingress protection, and specific internal wiring configurations designed for mechanical resilience.

As detailed in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the delta between a generic LED and a project-ready fixture lies in the engineering of its failure points. In this guide, we break down the technical requirements for specifying lighting that survives the rigors of heavy industry.

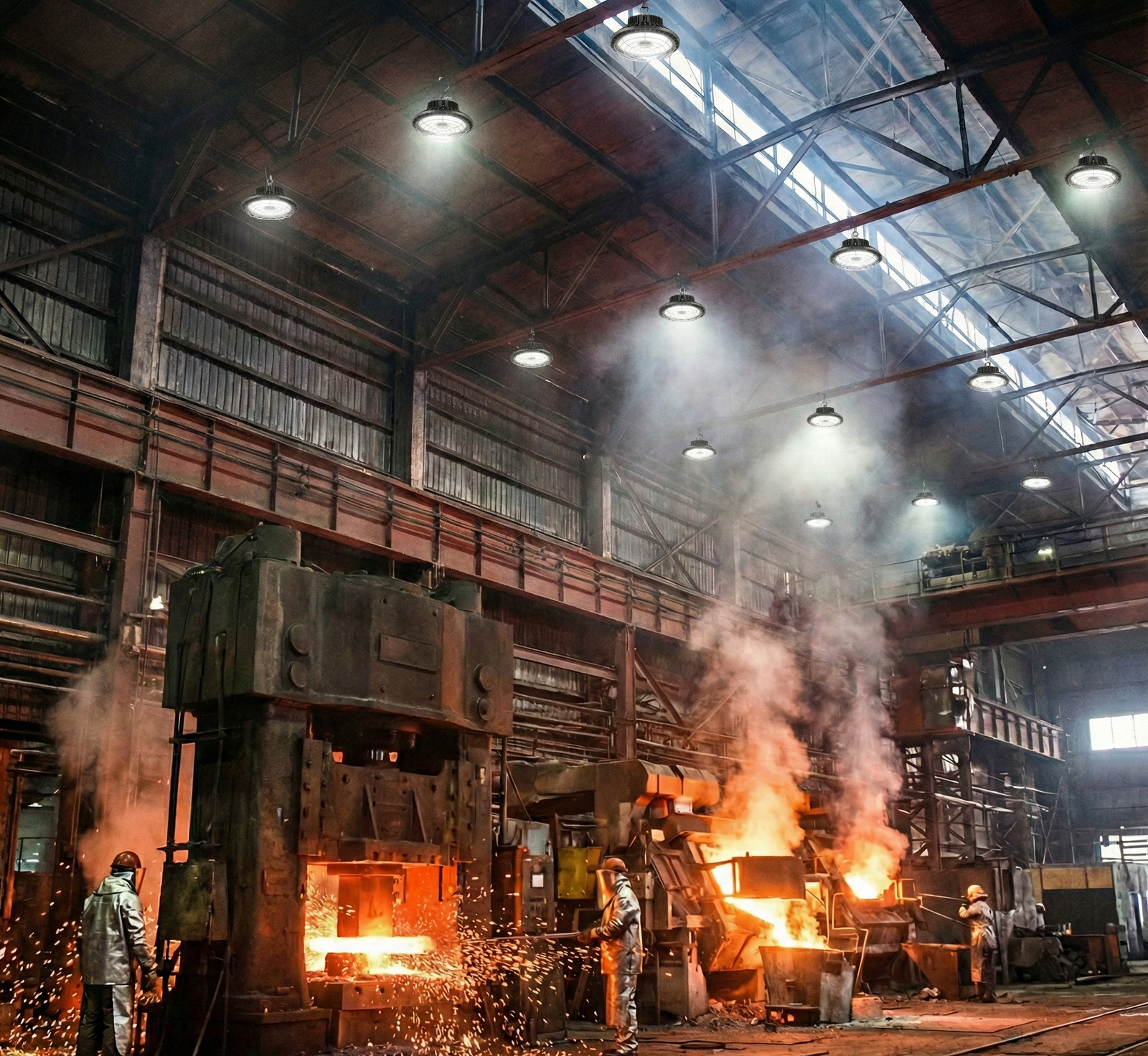

Industrial LED High Bay lights illuminating a high-ceiling metal foundry with molten-metal casting stations

Mechanical Failure Mechanisms: Why Standard LEDs Fail

In high-vibration environments, the most common point of failure is not the Light Emitting Diode (LED) chip itself, but the solder joints on the driver’s internal components and the connections between the driver and the LED board.

The Fatigue of Rigid Connections

Standard fixtures often utilize rigid, point-to-point wire connections or direct-soldered pins between the power supply and the light engine. Under constant vibration, these rigid points act as stress concentrators. Over time, micro-cracks form in the solder (solder fatigue), leading to intermittent flickering or total driver failure.

Practitioners have learned that fixtures employing short, flexible silicone-jacketed wire leads fare significantly better. These leads act as miniature shock absorbers, absorbing micro-movements rather than transferring the kinetic energy directly to the solder joints.

Thermal-Mechanical Synergy

Vibration also accelerates thermal failure. If a fixture’s heat sink is not securely mated to the LED board, vibration can create microscopic gaps in the thermal interface material (TIM). This increases the junction temperature of the LEDs, leading to rapid lumen depreciation and color shift. According to the IES LM-80-21 Standard, lumen maintenance is a function of both temperature and structural integrity.

Practitioner Observation: We often observe that "value" fixtures with thin-gauge aluminum housings fail 40% faster in stamping plants compared to those with cold-forged aluminum housings. The mass of a cold-forged housing provides natural damping against high-frequency vibrations.

Critical Durability Ratings: IK10 and IP65

When reviewing specification sheets (Spec Sheets), two international standards serve as the baseline for industrial durability: IEC 62262 and IEC 60529.

IK10: The Gold Standard for Impact Resistance

The IK Rating (Impact Protection) measures a fixture's resistance to external mechanical impacts, measured in Joules (J).

IK08: Resists 5 Joules of impact (standard warehouse).
IK10: Resists 20 Joules of impact (heavy industrial/high-vibration).

For facilities with moving machinery or low-hanging cranes, an IK10 rating is non-negotiable. It ensures the housing and lens can withstand accidental strikes and the structural stress of constant shaking. You can verify these ratings through the IEC 62262 standard.

IP65: Dust and Liquid Ingress Protection

Vibration-heavy environments are rarely clean. Dust, oil mist, and moisture are common. An IP65 rating (Ingress Protection) ensures the fixture is "dust-tight" and protected against water jets from any angle. This is critical because vibration can "pump" airborne contaminants into a poorly sealed fixture, coating the internal optics and reducing light output by up to 30% over two years.

Feature	Requirement for High-Vibration	Rationale
Housing Material	Cold-Forged Aluminum	Superior thermal mass and vibration damping.
Impact Rating	IK10 (20 Joules)	Protects against mechanical fatigue and strikes.
Ingress Rating	IP65	Prevents "vibration-pumping" of dust into optics.
Internal Wiring	Flexible Silicone Leads	Absorbs micro-movements to prevent solder fatigue.
Mounting	Anti-Vibration Grommets	Isolates the driver from the main housing.

Technician inspecting machined aluminum housings for an LED High Bay fixture on a factory bench

Scenario Analysis: The ROI of Vibration-Resistant Lighting

To justify the higher upfront cost of premium industrial fixtures, facility managers must look at the Total Cost of Ownership (TCO). In a high-vibration factory, the "maintenance avoidance" factor often outweighs the energy savings.

Case Study: 10,000 Sq Ft Stamping Plant

We modeled a retrofit scenario for a medium-sized factory bay operating two shifts (6,000 hours annually). The facility currently uses legacy 400W metal halide fixtures which suffer from frequent lamp failures due to vibration.

Modeling Note (Reproducible Parameters): This scenario assumes a deterministic model based on industrial benchmarks and common utility rebate structures.

Legacy System: 50x 400W Metal Halide (458W total system draw).
LED Upgrade: 50x 150W IK10/IP65 High-Output LED High Bays.
Operating Hours: 6,000 hrs/year (2-shift operation).
Electricity Rate: $0.16/kWh (Midwest US Industrial Average).
Maintenance: Legacy lamps fail every 8,000 hours due to vibration (standard is 15,000).

Metric	Value	Logic / Source
Annual Energy Savings	~$14,784	Delta of 308W per fixture x 50 units.
Annual Maintenance Savings	~$5,813	Avoidance of 37 lamp changes/year + labor.
HVAC Cooling Credit	~$678	Reduced heat load (COP 3.0, 0.33 factor).
Total Annual Savings	$21,274	Sum of energy, maintenance, and HVAC.
Estimated Payback	~6.5 Months	After $2,500 in utility rebates.
Carbon Reduction	~46 Metric Tons	Based on MROW grid subregion factors.

Logic Summary: The rapid payback is driven by the high electricity rate and the significant reduction in maintenance labor. In high-vibration settings, the "maintenance savings" is often 200% higher than in standard warehouses because legacy lamps fail prematurely.

Installation Rigor: Safety Cables and Mounting Heuristics

Even the most durable fixture will fail if the mounting system is compromised. Vibration acts as a constant "wrench," slowly loosening nuts and bolts over time.

The Non-Negotiable Safety Cable

In any facility with overhead vibration, using a spring-loaded safety cable in addition to the primary mount is mandatory. This prevents a catastrophic fall if the primary mounting bolt or hook vibrates loose. The safety cable should have a minimum breaking strength of 5x the fixture weight.

Anti-Vibration Grommets

A key heuristic for selection is to look for fixtures where the driver is mounted using anti-vibration grommets (rubber or silicone spacers). This allows the driver to move slightly independently from the main housing, further decoupling the sensitive electronics from the building's structural vibration.

Mounting Height and Beam Angle

For 20-foot ceilings (common in CNC shops), a 90° to 120° beam angle provides the best uniformity. However, in high-vibration zones, fixtures are often mounted to the bottom of trusses. Ensure the mount is a "fixed" type (like a pendant or surface mount) rather than a "free-swinging" hook if the vibration is lateral, as swinging can fatigue the power cord.

LED High Bay fixtures lighting a high-ceiling industrial warehouse assembly floor

Performance Verification and Compliance Standards

To ensure the fixtures meet the claims on the box, professionals rely on third-party databases and standardized testing reports.

The DLC Qualified Products List (QPL)

The DesignLights Consortium (DLC) is the authoritative database for high-performance LED lighting. For B2B projects, specifying DLC Premium is essential. This tier requires higher efficacy (>135 lm/W) and more rigorous testing for driver life. Most utility rebates are contingent on the product appearing on this list.

LM-79 and LM-80 Reports

LM-79: The "performance report." It verifies total lumens, efficacy, and color rendering (CRI). Never accept a manufacturer's claim without a corresponding LM-79 report from an accredited lab.
LM-80: The "durability report." It tracks how much light the LED chips lose over 6,000+ hours. This data is then used with the IES TM-21-21 Standard to project the $L_{70}$ life (the point where the light drops to 70% of its original output).

Safety Certifications: UL vs. ETL

Ensure every fixture is either UL Listed (Underwriters Laboratories) or ETL Listed (Intertek). These marks prove the fixture complies with North American safety standards like UL 1598 (Luminaires). This is the first thing an electrical inspector or insurance auditor will look for. You can verify UL certificates through the UL Product iQ Database.

Lighting Design for Industrial Clarity

Beyond durability, the quality of light impacts safety and productivity.

4000K vs. 5000K in Dusty Environments

While 5000K (Daylight) is popular for detail-oriented work, we recommend 4000K (Neutral White) for dusty or high-vibration environments.

Heuristic: 4000K light often appears subjectively brighter in environments with airborne particulates because it has less "blue scatter" than 5000K+.
Dust Accumulation: 4000K light shows less visual contrast against dust accumulation on the lens, maintaining a "cleaner" look between maintenance cycles.

Consistency Standards

Specify fixtures that adhere to ANSI C78.377-2017. This standard ensures that "4000K" from one manufacturer matches "4000K" from another within a specific tolerance (MacAdam Ellipses). This prevents the "patchwork" look often seen in facilities that buy cheap, non-standardized replacements.

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Implementation Checklist for Facility Managers

When preparing your next lighting RFP (Request for Proposal), use the following technical requirements to filter out low-quality options:

Verification: Direct link to the DLC QPL entry and a valid UL/ETL File Number.
Mechanical: Verified IK10 rating and IP65 (or IP66) enclosure.
Internal Build: Requirement for flexible silicone wire leads between driver and PCB (Printed Circuit Board).
Damping: Requirement for anti-vibration mounting grommets for the driver.
Safety: Inclusion of a secondary safety cable with every fixture.
Performance: Provision of IES (.ies) files for photometric modeling in AGi32 or similar software.
Efficiency: Minimum efficacy of 135 lm/W to maximize utility rebates and energy ROI.

By focusing on these "Solid" and "Bright" specifications, you protect your facility from the hidden costs of vibration and ensure a lighting system that lasts as long as the machinery it illuminates.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Always consult with a licensed electrical contractor and your local utility representative to verify code compliance and rebate eligibility for your specific jurisdiction.
