A Security Lighting Plan for the Modern Farmstead

The Foundation of Farm Security Lighting: Key Principles

Effective farm security is not about creating the brightest patch of light; it’s about strategic visibility. A single, overpowering light might seem like a powerful deterrent, but I've seen it do more harm than good. It creates blinding glare and deep, impenetrable shadows where threats can hide. The goal is to eliminate uncertainty with layers of controlled, overlapping light.

This approach moves beyond simple floodlighting and builds a cohesive system that protects your entire property, from the front gate to the most remote outbuilding.

Debunking the "Brighter is Better" Myth

A common mistake is installing the most powerful fixture available and pointing it at the middle of the yard. This creates a "stage effect"—a pool of intense light that ruins your night vision and makes the surrounding darkness even deeper. Intruders can easily watch your movements from these shadows. True security illumination is about uniformity, not intensity. The aim is to create an environment with minimal surprising variations in light, making it difficult for anyone to approach unseen.

The Layered Lighting Strategy: A Three-Tiered Defense

A robust security plan integrates three distinct layers of lighting, each serving a specific purpose:

1. General Area Lighting: This is your foundational layer. It provides broad, low-level illumination across large areas like driveways, open yards, and equipment storage zones. It’s designed to define the landscape and deter casual trespassers.
2. Perimeter & Entry Lighting: This layer focuses on the buildings themselves. It involves placing fixtures on the walls of barns, shops, and your home to illuminate doorways, windows, and the immediate perimeter, eliminating hiding spots close to structures.
3. High-Risk Zone Lighting: This is targeted, high-intensity lighting reserved for critical areas such as fuel tanks, chemical storage, and primary access gates. The goal here is maximum visibility for identification and monitoring.

Choosing the Right Fixtures and Specifications

Not all outdoor lights are created equal. For a farmstead, durability and reliability are non-negotiable. Look for fixtures built to withstand the elements and provide consistent performance.

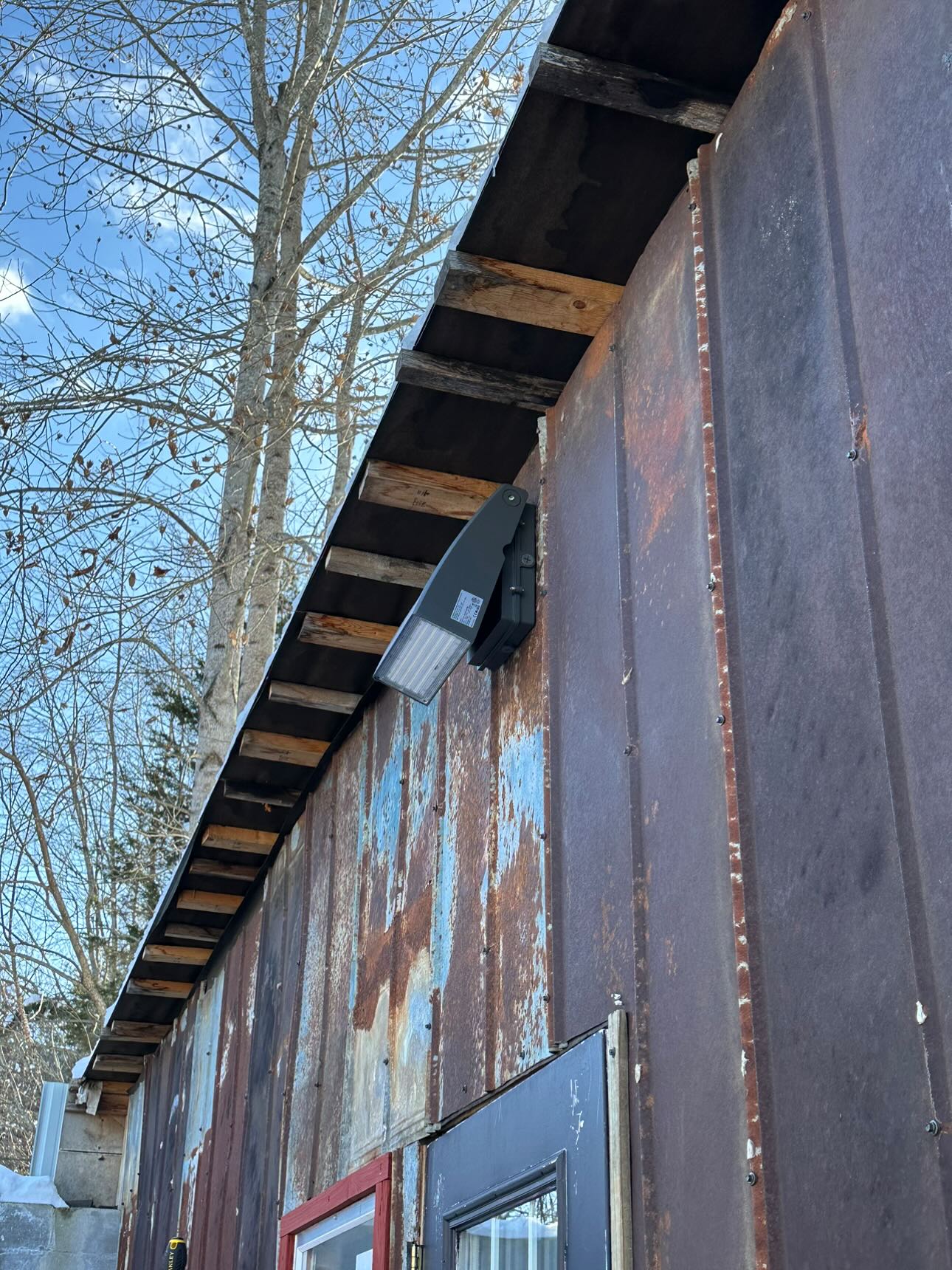

• Wall Packs: These are the workhorses for your perimeter layer. Mounted directly to building surfaces, they are ideal for washing walls and lighting up entryways and paths alongside structures.
• Floodlights and Area Lights: Best suited for your general area layer, these powerful fixtures are typically mounted on poles or the corners of tall buildings to cast light over wide-open spaces.

When selecting fixtures, pay close attention to the technical specifications. These details are what separate a professional-grade light from a consumer-grade fixture that won't last.

• Ingress Protection (IP) Rating: This two-digit number defines a fixture's resistance to solids and liquids. According to the International Electrotechnical Commission (IEC) standard 60529, the first digit represents protection against solids (like dust and dirt), and the second represents protection against water. For any outdoor farm application, an IP65 rating is the minimum. This means the fixture is "dust tight" and can withstand water jets from any direction, ensuring it survives rain, snow, and pressure washing.
• Surge Protection: The electrical grid in rural areas can be prone to fluctuations, and lightning strikes are a real threat. I always specify fixtures with built-in surge protection, typically at least 10kV/6kA, for any exterior circuit. This is especially critical for lights near fuel or chemical storage areas to prevent a power surge from creating a catastrophic failure.
• Safety Certifications: Always choose fixtures that are certified by a Nationally Recognized Testing Laboratory (NRTL) like UL (Underwriters Laboratories) or ETL (Intertek). A UL or ETL Listed mark indicates that the product has been tested and meets the stringent safety requirements of standards like UL 1598, the Standard for Safety for Luminaires. This is a crucial mark of quality and a requirement for most electrical inspections.

Designing Your Security Zones: A Practical Walkthrough

With the principles established, let's apply them to the physical layout of your farm. A zone-by-zone approach ensures no area is overlooked.

Zone 1: The Farmyard and Driveway (The Approach)

This is your first line of defense, designed to create a clear, visible deterrent for anyone approaching the property. The goal is consistent, uniform light, not harsh spotlights.

• Fixtures & Layout: Pole-mounted LED area lights (often called shoebox lights) are the ideal choice here. To avoid dark patches, a key "rule of thumb" I follow is the spacing-to-mounting-height ratio. For open areas, spacing fixtures at three to four times their mounting height (a 3:1 to 4:1 ratio) generally produces excellent, overlapping coverage. For example, a fixture mounted at 20 feet can be spaced 60 to 80 feet from the next one.
• Controls: Simple, reliable dusk-to-dawn photocells are the standard for this zone. They automatically turn the lights on at sunset and off at sunrise, providing hassle-free security every night. A small but critical tip I’ve learned is to mount the photocell on the north-facing side of the pole or building. This prevents direct sunlight at sunrise or sunset from tricking the sensor into turning the lights off prematurely.

Zone 2: Barns, Shops, and Outbuildings (The Core)

This zone secures the buildings themselves, hardening them against intrusion by illuminating potential entry points and eliminating hiding places along walls.

• Fixtures & Layout: LED wall packs are perfect for this application. They should be mounted to provide overlapping pools of light around the building's perimeter. A good starting point for spacing wall pack lights on a commercial building is to place them at a distance of one to two times their mounting height. I typically mount them between 8 and 16 feet high—high enough to create a wide beam spread but low enough for easy maintenance.
• Controls: This is where combining controls pays off. While the fixtures should be active from dusk to dawn, adding motion sensors over doorways and key entry points provides a powerful, immediate alert. When someone approaches a door, the light brightens, signaling their presence. I recommend a hold time of 30-120 seconds and a re-trigger delay of 2-5 minutes to find the sweet spot between security and nuisance trips from passing animals.

Zone 3: High-Risk Areas (Fuel & Chemical Storage)

Areas with flammable or hazardous materials demand a higher level of security. The lighting here should be designed to leave zero doubt about who is there and what they are doing.

• Strategy: Redundancy is key. I always use at least two layers of light from different angles, such as a wall pack on the nearest structure combined with a low-mounted floodlight. This technique fills in shadows and makes it nearly impossible to hide.
• Fixtures: Use fixtures with full-cutoff optics. This design directs all light downward, preventing stray light from causing glare or trespassing onto neighboring properties. A detailed understanding of floodlight optics can help prevent light trespass and glare, which is not just neighborly but also more effective for security cameras. As mentioned before, robust 10kV surge protection is non-negotiable in these zones.

Smart Controls and Maintenance for Long-Term Reliability

A security lighting system is only as good as its uptime. Choosing the right controls and committing to a simple maintenance schedule ensures your investment remains effective for years.

Control Systems Deep Dive

Automated controls are the heart of a modern lighting plan, saving energy and ensuring your lights are on when you need them.

Control Type	Best Application	Pro-Tip
Photocell (Dusk-to-Dawn)	General area and perimeter lighting	Mount on a north-facing surface to avoid false triggers from morning/evening sun.
Motion Sensor	Entryways, gates, pathways	Use a 30-120 second hold time. A longer re-trigger delay (2-5 mins) prevents constant activation from wildlife.
Wireless Systems	Large, multi-building properties	For advanced control like remote overrides or scheduling, consider systems guided by resources like the DOE's wireless sensor guide.

A Practical Maintenance Checklist

I've seen too many great lighting systems fail due to neglect. A dirty lens can cut light output by 30% or more. A failed seal can lead to water ingress and premature failure. A simple annual check-up prevents these problems.

• Annually (or as needed):

  • Clean the Lenses: Wipe down all fixture lenses with a soft cloth to remove dust, pollen, and grime. This is the single most effective thing you can do to maintain performance.
  • Check Seals and Gaskets: Visually inspect the seals around the lens and housing for any signs of cracking or degradation.
  • Test Controls: During the day, you can temporarily cover the photocell with a piece of black tape to force the lights on and confirm they all work.

• After Severe Weather:

  • Inspect for Damage: Walk the property and look for any physical damage to fixtures, poles, or mounting hardware.
  • Check for Water Ingress: Look closely for any condensation or water inside the fixture housing. If you see any, the seal has failed and the fixture may need replacement.

A technician safely on a ladder, cleaning the lens of an outdoor LED wall pack light to maintain its brightness and efficiency.

Key Takeaways: A Secure Farmstead is a Well-Lit Farmstead

Building an effective security lighting plan is about thoughtful strategy, not brute force. By thinking in layers and zones, you can create a system that deters threats, enhances safety, and provides peace of mind.

Remember these core principles:

• Aim for Uniformity, Not Intensity: Avoid harsh glare and deep shadows.
• Layer Your Lights: Combine broad area lighting with focused perimeter and high-risk zone lighting.
• Choose the Right Tools: Select durable, IP65-rated fixtures with proper safety certifications and surge protection.
• Automate with Smart Controls: Use a combination of photocells and motion sensors for an efficient, responsive system.
• Maintain Your Investment: A simple annual cleaning and inspection will ensure your system remains reliable for its full lifespan.

Start by walking your property at night. Note the dark spots, the glare from existing lights, and the critical areas that need better visibility. This simple audit is the first step toward building a truly secure farmstead.

Frequently Asked Questions (FAQ)

What's the difference between a floodlight and a wall pack? A floodlight is designed to cast a very wide beam to "flood" a large area with light and is typically mounted on a pole or at the corner of a building. A wall pack is designed to be mounted flat on a wall and typically casts light downwards and outwards to illuminate the building's perimeter and adjacent pathways.

How high should I mount my security lights? For wall packs, a mounting height of 8 to 16 feet is a common range. For pole-mounted area lights in a farmyard, heights of 15 to 25 feet are effective. The right height is a balance between creating a wide beam spread and ensuring the light is not so high that it loses its intensity on the ground.

Is 5000K or 4000K better for security lighting? 5000K, often called "daylight white," produces a crisp, high-contrast light that renders colors accurately, which is often preferred for security cameras. 4000K is a "neutral white" that is slightly less stark. Both are effective, but 5000K provides a more alert, security-focused feel. The key is color consistency, which is governed by standards like ANSI C78.377-2017 to ensure a "5000K" light looks the same from one fixture to the next.

Do I need a professional to install these lights? While some low-voltage fixtures are DIY-friendly, most high-power, line-voltage (120-277V) fixtures should be installed by a qualified electrician. This ensures the installation is safe, compliant with the National Electrical Code (NEC), and properly grounded.

How much can I save by switching to LED? According to the U.S. Department of Energy, switching from traditional lighting sources like metal halide or high-pressure sodium to LED can result in energy savings of 40% to 75% or more. LEDs also have a much longer lifespan, significantly reducing maintenance and replacement costs over time.
