Commercial loading dock lighting works best when exterior lights are planned zone by zone rather than bought as one blanket fixture order. The canopy and dock face, the dock-door threshold, the truck apron, and the trailer loading position each have a different task, sightline, and weather exposure.
This guide walks through that zone map, the placement rules that control glare and blind spots, the specifications that actually change a purchase, and the safety and code items that need a qualified reviewer before ordering or installing fixtures.
Key Takeaways
- Split the dock into four lighting zones (canopy/dock face, door threshold, truck apron, trailer position) before comparing fixtures, since each zone has a different task and sightline.
- Distribution, mounting position, and aiming control glare more than raw lumen output, especially where drivers or forklift operators face the fixture directly.
- Lumens, CCT, IP rating, safety listing, and voltage answer different purchase questions and cannot substitute for one another.
- Locally enforced electrical code editions and location classifications vary by jurisdiction, so a qualified professional or the authority having jurisdiction must confirm project-specific compliance.
- Assemble a documentation packet, including exact SKU specs and site geometry, before requesting a quote or photometric review.
Start With Four Loading Dock Lighting Zones
A loading dock is not one lighting problem. The canopy and dock face, the door threshold, the truck apron, and the trailer loading position each demand a different task, viewing angle, and exposure profile, so treat them as four separate planning inputs before shortlisting any fixture.

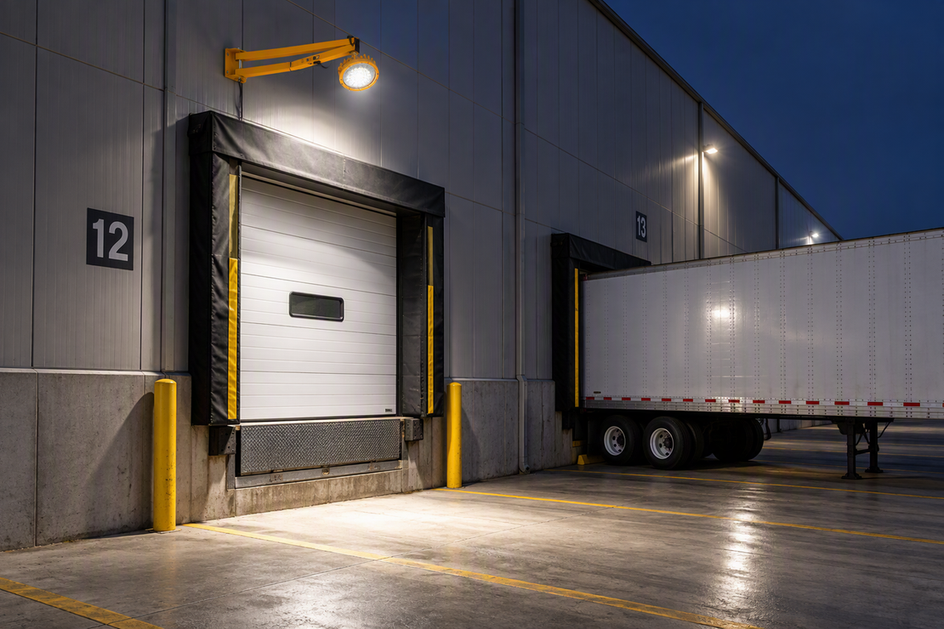

Canopy and dock face
Workers and forklifts approach the dock face directly under the canopy, so this zone needs broad, even coverage rather than a single hot spot. Check whether the canopy structure, door hardware, or a parked trailer casts shadows or bounces glare back toward the work area, since either problem can hide a load or a step-down edge.
Dock door and threshold
The dock door marks the transition between indoor and outdoor light levels, and workers inspect freight right at that line. Contrast between the dock floor, the door opening, the trailer floor, and the surrounding apron should stay low enough that nobody has to pause and let their eyes adjust mid-task.
Truck apron
The apron covers vehicle approach, turning movement, and the open pavement drivers cross before backing in. Avoid aiming bright sources at approaching drivers, and size coverage to the apron's actual footprint rather than assuming one wall-mounted fixture reaches the whole area.
Trailer loading position
This is where freight gets inspected, staged, and moved into or out of the trailer. Trailer depth and alignment change from load to load, and an exterior fixture aimed at the door does not automatically reach the back of every trailer, so this task may need its own interior lighting decision. OSHA's loading-dock guidance treats dock-edge falls, wet or icy surfaces, and obstacles near trailer exits as ongoing hazards, and notes that clear surfaces and visible dock edges remain separate controls that lighting supports but does not replace. For a fuller walk-through of matching each zone to a placement plan, see this loading dock lighting plan.
Place Exterior Lights Around the Dock
Placement, not lumen count, decides whether exterior lights help or hurt visibility at a dock. Where the fixture sits, how it's aimed, and who can see it directly all matter more than raw output once the source is bright enough for the task.
Control the view of the light source
A fixture that looks bright from the pavement can still create harsh glare for a driver or forklift operator staring straight into it. The DOE outdoor glare guide points to luminaire intensity, the number and size of luminaires, mounting height, and aiming angle as the real glare factors, and recommends using only the light needed where it's needed and controlling the source relative to its surroundings. Compare shielding, distribution, and mounting position against those factors before locking in a location.
Check coverage at the threshold and trailer
Look for contrast gaps between the dock floor, the trailer floor, the threshold, and the apron, since a dark gap between two bright areas is often worse than a uniformly dim space. Trailer alignment, open doors, parked equipment, and staged freight can all block the light path, so plan for coverage that survives a partially blocked view, not just an empty dock. For apron-specific sizing questions, this guide on truck apron floodlight sizing walks through measuring the actual footprint before choosing mounting height and spread.
Plan for service access and controls
Confirm that replacing a lamp or resetting a fixture doesn't require an unsafe vehicle move or a trailer to be pulled away first. Photocells, dimming, and occupancy controls can match lighting to the dock's actual operating pattern, but only when the fixture's control documentation confirms compatibility with the control type you're installing.
Choose Fixture Specs That Match the Zone
Lumens, CCT, IP rating, and voltage each answer a different purchase question, and none of them substitutes for another. Compare them against the zone's task and exposure rather than ranking fixtures by a single number.
Output and distribution
A higher lumen figure only helps if the beam distribution and mounting geometry actually put that light on the task area. When a project needs quantified coverage or uniformity, a photometric file tied to the exact mounting height and layout is the only way to confirm it; a lumen spec alone can't.
Color and visual conditions
Correlated color temperature (CCT) is a visual preference and sometimes a project specification, but it is not a glare fix or a safety guarantee. A cooler CCT can make a dock face look brighter without changing anything about driver-facing glare or threshold contrast.
Exposure, listings, and controls
Check IP rating, wet-location labeling, and safety listing as three separate items, then confirm voltage, wattage, controls, dimming or sensor compatibility, operating temperature range, corrosion resistance, and maintenance access from the exact product documentation. For example, one Hyperlite loading-dock configuration lists 6,600 lumens, 5,000K, 60W, AC 110-277V, an IP65 rating, ETL listing, a 45-inch arm, corrosion resistance, and a -13°F to +113°F operating range; those are the listed attributes for that specific configuration, not a claim that the fixture is suitable or code-compliant for any given site. A separate guide on commercial flood light specification walks through matching output, distribution, and controls before locking in a spec sheet, and current loading dock light specs should always be checked against the site's own conditions.
| Zone or condition | Selection concern | Why it changes the purchase | Verify before ordering |
|---|---|---|---|
| Canopy/dock face | Distribution and shadow control | Uneven coverage hides edges and freight | Layout matches canopy structure |
| Dock door threshold | Contrast between indoor/outdoor light | High contrast slows freight inspection | Fixture reaches the transition zone |
| Truck apron | Aiming away from driver sightlines | Direct glare impairs approach visibility | Mounting height and angle vs. driver view |
| Trailer position | Interior reach and alignment variation | Exterior light may not reach trailer depth | Whether interior task lighting is needed |
The table shortlists the concern by zone; the surrounding sections above cover why each concern matters and what changes the fixture choice.
Verify Safety, Ratings, and Local Requirements
No generic lighting guide can determine whether a specific dock installation meets local code or classification requirements. That determination belongs to a qualified electrical professional or the authority having jurisdiction, working from the exact site conditions and product documentation.
Confirm the locally enforced requirements
NFPA's enforcement information shows that different US states and jurisdictions adopt different National Electrical Code editions and amendments, so a generic code reference cannot establish project compliance. Have the electrical professional or authority having jurisdiction confirm the applicable edition, amendments, permits, and inspection path before ordering fixtures.
Separate ratings and classifications
An IP rating, a UL or ETL listing, DLC qualification, a wet-location label, a hazardous-location classification, and local code approval each answer a different question. Do not infer one from another, and do not generalize one model's documentation to an entire product series or brand.
Know when to stop the purchase decision
Pause the purchase and get qualified review if the area might be a classified or hazardous location, if the exact product documentation doesn't cover the site's environmental or mounting conditions, or if the control wiring compatibility is still unresolved. This guide covers purchase-level checks only; it does not cover wiring, breaker sizing, live testing, or bypassing safety devices, and none of those steps should be attempted without a licensed electrician.
Pre-Buying and Pre-Installation Checklist
Use this packet to confirm the project is ready for a quote or a professional review, not as a substitute for that review.
Site and task packet
- Zone map covering canopy, threshold, apron, and trailer position
- Measured mounting locations, door and apron geometry, trailer variation, existing-light condition, and maintenance access
- Worker, forklift, and driver sightlines, including any glare-sensitive viewpoints
Product and controls packet
- Exact SKU, current specification sheet, photometric file if quantified performance is required, and installation instructions
- Output, distribution, CCT, voltage, wattage, IP and environmental documentation, safety listing, and controls or sensor compatibility
- Confirmation that the documentation applies to the exact variant ordered, not a broader product family
Approval and handoff
- Locally adopted NEC edition, amendments, permits, and authority-having-jurisdiction contact
- Hazardous or classified-location review where the site may qualify
- A named qualified professional responsible for the final lighting, electrical, structural, and compliance decisions
Move to a quote request or professional review only once every item above is documented; an incomplete packet is a reason to keep gathering information rather than to order fixtures. If your project has complex apron geometry, variable canopy depths, or multi-bay glare constraints, we recommend requesting a layout review from an engineer or lighting specialist before purchasing hardware.
FAQs
What documents should I request before a professional loading dock lighting review?
Request the exact SKU specification sheet, the manufacturer's photometric file (IES file) if layout calculations are required, mounting and installation manuals, safety listing files (such as UL or ETL), and any environmental or ingress ratings. Combine those product documents with your site dimensions, driver sightline checks, and voltage specifications so the electrical reviewer has full context.
Does an IP65 rating automatically satisfy wet-location electrical code rules?
No. An IP65 rating identifies water and dust ingress resistance under standard test procedures, but it does not replace a wet-location or damp-location label required by electrical codes or your local authority having jurisdiction. Always verify the specific listing label on the fixture sheet alongside local inspection criteria.
How do you prevent exterior dock fixtures from blinding truck drivers during backing?
Mount fixtures with appropriate shielding, direct the beam downward toward working surfaces rather than outward across the apron, and review driver sightlines from approach angles. Choosing fixtures with controlled optical distributions and avoiding oversized raw lumen sources helps keep drivers and ground operators oriented safely.
