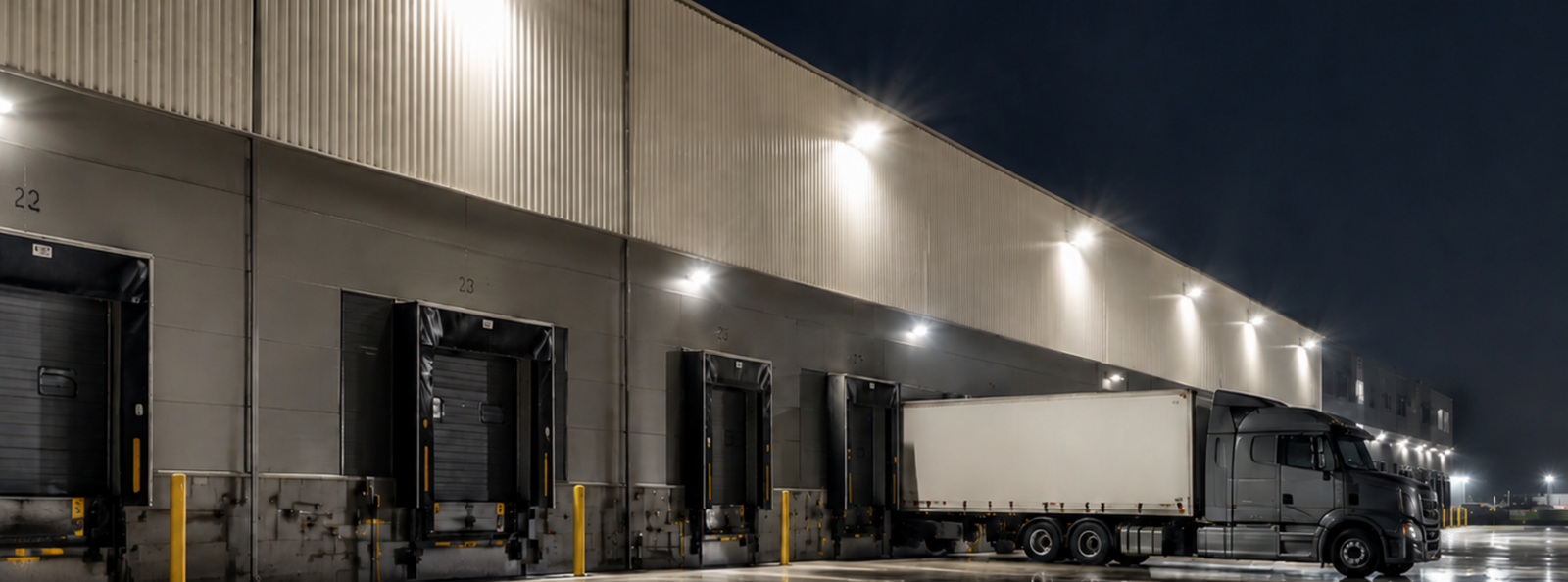

A loading dock may look bright from a distance while leaving dock plates, trailer edges, and pedestrian routes poorly defined. A building facade can appear patchy, or a yard fixture can shine into nearby windows and drivers’ sightlines. If you are preparing a lighting plan or fixture schedule, commercial LED flood lights should be specified around the site, the tasks performed there, and the electrical system. Lumen output, beam distribution, mounting height, and controls should appear together in the project documents, so the selected fixtures deliver the intended coverage after installation.
What Lighting Demands Should You Expect at Docks, Facades, and Large Work Areas?
Lighting demands change with the work performed in each zone. At a loading dock, people need to see dock edges, ramps, vehicle doors, labels, and moving equipment. The paved apron needs horizontal light, while trailer sides and personnel need enough vertical light for visibility. Commercial flood lights for building facades serve a different purpose. The beam needs to reach the upper elevation while keeping the wall evenly illuminated. A tall textured wall may need multiple fixtures with controlled overlap, since one powerful unit mounted near ground level can create a bright lower band and a dim upper section.
Record Site Conditions and Set Light Levels
Open yards, material-storage areas, and vehicle lanes require consistent coverage across a larger footprint. Set the light level around the actual work and surrounding environment: a busy loading area needs clearer visibility than a quiet side path, while sites near homes or public roads need tighter control of glare and spill light .Document the site conditions that affect fixture selection:
- Work areas, walking routes, overhead doors, ramps, loading positions, and parking edges
- Mounting surfaces, structural obstructions, and the highest practical fixture locations
- Adjacent roads, residences, windows, signage, and reflective cladding
- Operating hours, security requirements, and zones that can be switched or dimmed after business hours
Calculate Lumens, Mounting Height, and Beam Angle for the Site
A valid layout calculates light at the task area, not only the lumens listed on a product page. Lumens describe total fixture output. Footcandles and lux describe the light arriving at the pavement, wall, equipment area, or other surface that people need to see. Mark each target plane on the site plan and include it in the lighting calculation. Use a horizontal plane for the dock apron or vehicle lane and a vertical plane for a facade, trailer side, or camera-facing area. Where people and vehicles share the same space, review both planes so the fixture schedule reflects the light needed for movement, loading, and visual checks.
Balance Mounting Height and Coverage
Commercial LED flood lights also need a mounting height that suits the available structure and intended coverage. Raising a fixture broadens its footprint, reduces light intensity at the target surface, and can increase spill beyond the work area. Lower mounting can provide stronger local light, though wide fixture spacing may create bright pools and dark gaps.
Check Low Dock Canopies
For a low dock canopy, confirm that the fixture clears truck paths and structural elements. Select an optic that reaches the dock apron while keeping direct light out of drivers’ mirrors.
Set Up Wall-Mounted Facade Fixtures
For a wall-mounted facade, set the fixture setback, tilt, and output according to the wall height, surface texture, and intended brightness pattern. This supports more even coverage across the elevation.
Review High Building Corners and Poles
For fixtures mounted on high building corners or poles, review overlap between fixtures, spill light at the property boundary, and glare from the approach road.
Compare Layouts for Wide Exterior Work Areas
For a wide exterior work area, compare several moderate-output fixtures with fewer high-output units. The photometric layout should show how each option affects uniformity, shadow control, and the usable light across the work zone.
Review Beam Distribution
Beam angle is useful, yet it is not a full optical specification. Fixtures with a similar nominal beam angle can distribute light differently because of their lenses, shielding, and intensity pattern. Review the manufacturer’s IES file alongside the proposed commercial flood light mounting height, fixture spacing, and aiming angle.
Which Commercial LED Flood Light Configuration Meets the Site Requirements?
Commercial LED flood lights should be specified as a complete package: lumen output, optical distribution, mounting method, input voltage, color temperature, controls compatibility, environmental suitability, and surge protection. A detailed fixture schedule should list the fixture tag, mounting location, output, distribution, aiming direction, voltage, controls, and surge-protection requirement for every location. That gives the purchasing and installation teams a shared reference from selection through final aiming.
Set Mounting Requirements for Loading Docks
LED flood lights for loading docks often need adjustable aiming because the mounting surface may be a canopy, wall, or structural-steel member. A trunnion-mounted unit can provide that adjustment, provided the mounting hardware, junction box, and wiring method are suitable for the installation. A qualified electrician should confirm the attachment method, conductor size, grounding, circuit protection, and local code requirements.
Aim Fixtures for Building Facades
Commercial flood lights for building facades need controlled aiming and a position that limits direct view of the light source. Fixtures placed too close to the wall can create harsh brightness near the mounting point and poor coverage above it. A greater setback may produce a smoother appearance if the beam still reaches the top of the elevation.
Select Output for Tall and Wide Exterior Areas
High-output LED flood lights can suit tall mounting points and broad exterior work zones. Excess output can also create discomfort glare, reflected brightness on pale walls, and unnecessary spill light. Select the fixture output from the photometric model, then verify that the selected product supports the required voltage and mounting arrangement.
Select Voltage, Controls, and Surge Protection for the Electrical System
Verify the branch-circuit voltage before placing an order. A 120V fixture cannot be substituted for a 277V or 480V commercial circuit. Multi-voltage capability must be confirmed from the current fixture documentation and product label. Controls should match the site’s operating schedule. A photocell can switch exterior fixtures on at dusk and off at dawn. Time scheduling, occupancy sensing, or networked controls can reduce runtime in inactive areas, while loading zones and active pedestrian routes may need a separate operating sequence.
Document Controls and Surge Protection
Add a control sequence to the electrical schedule. State when each lighting zone turns on, what triggers dimming, which areas remain illuminated after hours, and which fixtures switch off. Clear control notes keep the lighting plan, controls installation, and electrical work aligned. Exterior circuits also need coordinated surge protection. Review the fixture’s listed surge protection, the distribution equipment, the grounding system, and the site’s exposure to utility disturbances or lightning. The project documents should state any additional surge-protection requirement instead of leaving the decision to field installation.
How Can You Limit Glare, Spill Light, and Shadows?
Commercial exterior flood lighting should direct light toward the work area and away from drivers’ eyes, neighboring windows, and the sky. A high mounting point alone does not eliminate glare. Fixture tilt, direct view of the LED array, reflected light from nearby surfaces, and the surrounding darkness all affect visual comfort. Use shielding, controlled optics, and conservative aiming. Review the layout from real approach directions: a truck entering the dock, a person leaving a side door, and a driver moving along the property boundary. If the LED source is prominent from those locations, revise the fixture location, output, shielding, or distribution.
Address Shadows and Commission the Layout
Shadows need the same level of review. One wall-mounted floodlight may illuminate the dock apron while leaving the far side of a trailer or stored equipment dark. A second fixture from another direction can improve visibility, though its output and aiming need to be coordinated to prevent excessive brightness or double shadows. Commission the system after dark. Compare the installed coverage with the photometric plan, inspect the property line, and adjust aiming before final handoff. Commercial LED flood lights perform far more consistently when field aiming is treated as part of the specification.
Conclusion
Bring the scaled site plan, fixture schedule, photometric files, aiming notes, and control sequence together before procurement. Each fixture entry should identify the work area, mounting location, output, distribution, voltage, and controls, creating a clear reference for installation and coverage review. For irregular facades, shared vehicle-and-pedestrian zones, or sensitive property lines, use a project-specific lighting calculation to confirm the selected commercial LED flood lights and commercial outdoor flood lights fit the approved layout and current product documentation.
FAQs
How Many Commercial LED Flood Lights Does a Loading Dock Need?
No single fixture count fits every dock. The final count comes from dock width, canopy height, truck positions, task areas, obstructions, fixture photometry, and glare limits. A photometric layout should verify coverage before purchase.
What Is a Suitable Commercial Flood Light Mounting Height?
Use the highest practical location that still provides controlled beam spread and the required light level at the target area. Review vehicle clearance, aiming access, mounting structure, and glare from approaching drivers.
How Should Flood Lights Be Specified for Coastal or Corrosive Sites?
List the site exposure in the fixture schedule. For coastal air, chemical vapors, or frequent washdown, confirm the manufacturer’s current documentation for the housing finish, fasteners, gaskets, ingress protection, and stated corrosion suitability before approving the fixture.
Can One Commercial LED Flood Light Use 120V, 277V, and 480V Power?
Only if the current product documentation explicitly lists that voltage range. Confirm the fixture label, driver rating, and branch-circuit voltage before ordering or installation.
What Should a Commercial Flood Light Specification Include?
Include lumen output, IES photometry, mounting height and method, aiming, input voltage, controls, environmental rating, surge-protection requirement, wiring details, and a scaled site plan showing work areas and property boundaries.
