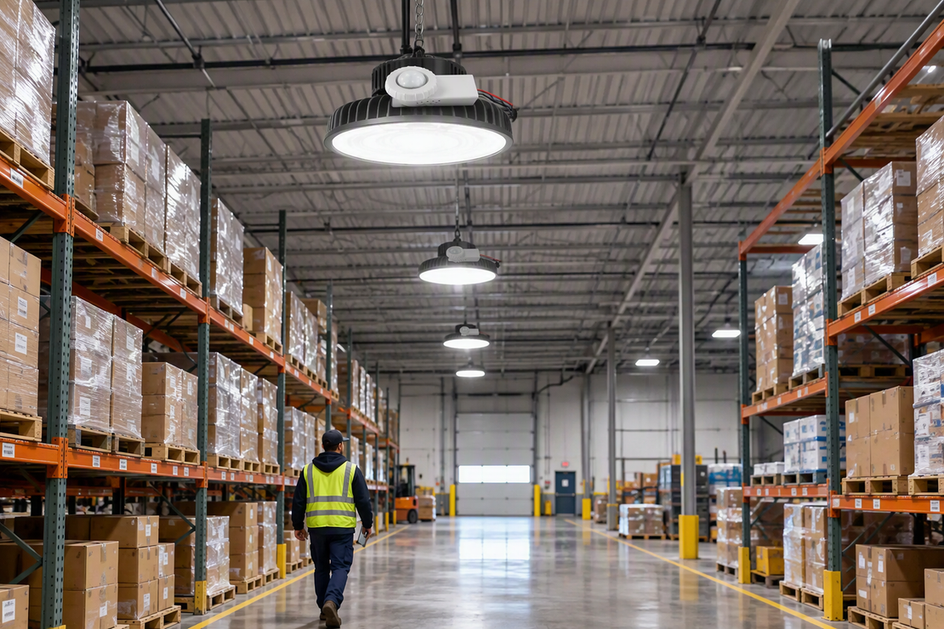

Calibrating a high-bay occupancy sensor at 20 to 30 feet is not a single sensitivity adjustment. It is a verify-adjust-test sequence: confirm the exact sensor model and its documented coverage for that mounting height, record how it currently behaves, change only the controls the manual lists, and then walk-test the real aisle before calling the job done. Both ends of the 20-to-30-foot range need this same verification, because a lens and coverage pattern that works at 20 feet is not automatically valid at 30 feet.
Key Takeaways
- Height alone does not prove a sensor will work; match the exact model, lens, and coverage diagram to the mounting height before touching any control.
- Record baseline behavior first, change one documented setting at a time, and validate on the actual worker and machinery paths, not just directly under the fixture.
- A walk test should cover near, far, cross-aisle, and slow-movement conditions, since PIR sensors respond to motion and can miss someone who stays still.
- Keep the project to documented sensor settings and observation; hand wiring, circuit, code, and unresolved compatibility questions to a licensed electrician or lighting designer.
- Treat any specific product's listed compatibility as a starting checklist item, not proof that it covers a 20-to-30-foot installation.
The calibration path for 20–30-foot ceilings
There is no universal sensitivity number that works at every mounting height. The safest path is four checkpoints applied at whichever height you have, 20 feet, 30 feet, or anywhere between.
1. Confirm the installed sensor's envelope
Start by matching the exact model number, lens type, and published coverage diagram to your installation. Manufacturers design different lenses for different mounting heights, so a 30-foot coverage pattern is not interchangeable with a 20-foot one. Treat each height as its own verification question rather than assuming the higher or lower end of the range is automatically covered by the same settings.
2. Record baseline behavior before changing settings
Before touching any control, write down what the sensor does right now. Note delayed activation, dropout during work, lights turning on from unrelated movement, and how long lights stay on after someone leaves. Also record the walking route, task speed, obstructions, and lighting conditions you tested under, since these details let you judge whether a later change actually helped.
3. Adjust only controls named by the manual
Only change a setting if the current model's manual actually documents it, such as sensitivity, time delay, photocell threshold, aiming, or an automatic-calibration mode. Change one control at a time and write down the original value before moving it. This keeps the process reversible and makes it possible to tell which change caused which result, instead of guessing after several settings have shifted at once.
4. Retest the actual task paths
A setting change is not proven until you walk the same route you recorded in step two and compare results. Classify the outcome as a pass, a retest after one more documented change, or a hold for professional review if the gap persists after reasonable adjustment. Do not treat a single successful pass directly under the fixture as confirmation for the whole zone.
Before you calibrate: the high-bay readiness checklist
Before changing any sensor setting, confirm the installation is actually ready for controlled testing. If any item below is unknown, resolve it first instead of adjusting settings blind.
- Exact model and current manual on hand — control names, indicator lights, and calibration states are model-specific, so a generic guide cannot substitute for the actual documentation.
- Installed mounting height measured at the sensor — use the real height at the fixture, not the nominal ceiling height for the building.
- Lens type and published coverage pattern confirmed — this determines whether the sensor is even rated for your mounting height.
- Obstruction map noted — racks, stored equipment, partitions, and the fixture housing itself can block or reshape the field of view.
- Ambient conditions recorded — daylight contribution, HVAC airflow near the sensor, and temperature extremes can all influence behavior.
- Representative traffic defined — know which worker paths, forklift or vehicle routes, and task zones actually need coverage.
- Safe access confirmed — you can reach the sensor and its documented controls without opening energized equipment or working from an unsafe platform.
How to walk-test coverage in a warehouse aisle or workshop zone
A walk test only tells you something useful if it follows how the space is actually used, not just a straight line under the fixture. Cover the near end, the far end, cross-aisle movement, and slower work before trusting the result.
Test the near and far parts of the zone
Walk the closest point where activity happens and the far boundary of the aisle or work zone, since these are the extremes most likely to expose an inadequate coverage pattern. If the sensor responds promptly near the fixture but is slow or silent at the far edge, that gap usually points back to the lens and mounting height match from the calibration path, not a sensitivity number.
Cross the field of view instead of walking only underneath
Add passes that cross the aisle from the directions workers, carts, or vehicles actually approach from, not just a straight walk beneath the sensor. Watch for racks, stacked inventory, or the luminaire housing itself creating a blind spot in one direction even when detection looks fine from another. The DOE review of sensor test methods notes that actual installed aisle conditions, including ceiling height, ambient conditions, and obstructions, can change performance beyond what a simplified coverage diagram shows. If your zone runs long or serves multiple work areas, reviewing how to judge whether a high-bay sensor zone is sized correctly can help before you keep adjusting settings.
Add slow-motion and task-specific observations
Test the pace of the real task, including any stationary work, not just a normal walking speed. A dropout during slow or still work is a symptom worth investigating rather than automatic proof that sensitivity needs to be maximized; the next section explains why that specific pattern points to how the sensor detects motion in the first place.
Troubleshoot high-bay sensor behavior safely
Match the symptom you observed to a likely cause and a safe next check you can perform without opening wiring or energized equipment. Treat these as starting points for a model-specific investigation, not a universal diagnosis.
| Symptom | Likely cause | Safe next check |
|---|---|---|
| Delayed activation | Setting mismatch or obstruction in the field of view | Confirm documented delay setting and recheck the obstruction map |
| Dropout during slow movement | Motion-oriented detection missing a still or slow subject | Retest the exact task pace and review the sensor's documented motion behavior |
| Unintended activation | Movement from an unexpected source entering the field of view | Observe what triggers the event; adjust only a documented sensitivity or aiming control |
| Lights remain on longer than expected | Timeout setting or ongoing activity in the zone | Compare against the documented timeout value before assuming a fault |
| Localized blind area | Coverage pattern not matched to this mounting height or layout | Recheck the lens and coverage diagram against the installed height |
The slow-motion dropout row deserves its own explanation. PIR sensors detect motion rather than continuous presence, so a worker who stays still can appear to disappear from the sensor's perspective even though nothing is wrong with the wiring or the setting. If a task genuinely requires detecting stillness, the fix is usually to confirm the sensor type and documented behavior for that scenario, not to push sensitivity to its maximum value.
When sensor settings are not the problem
Some issues are not settings issues at all. Knowing where the boundary sits keeps you working safely and avoids wasted adjustment cycles.
Settings work is not the same as electrical work
Everything in this guide assumes you are working with documented, accessible sensor controls in a safe, de-energized or manufacturer-approved state. It does not cover opening energized equipment, altering wiring, selecting breakers, or performing live testing. Electrical work can be dangerous, including shock, fire, and explosion risks, which is why those tasks belong with a licensed electrician rather than a settings adjustment.
Use a professional when the decision exceeds observation
Route circuit changes, wiring questions, and local code compliance to a licensed electrician, and route photometric planning or project-wide detection performance to a lighting designer or engineer, especially if lighting design support is available for the broader layout. A persistent blind spot on a worker or machinery path after a documented adjustment and retest is a reasonable point to stop guessing. Before contacting anyone, keep the exact model, the settings you changed, the test route, the symptoms, and the result on hand so the next reviewer does not have to start over.
