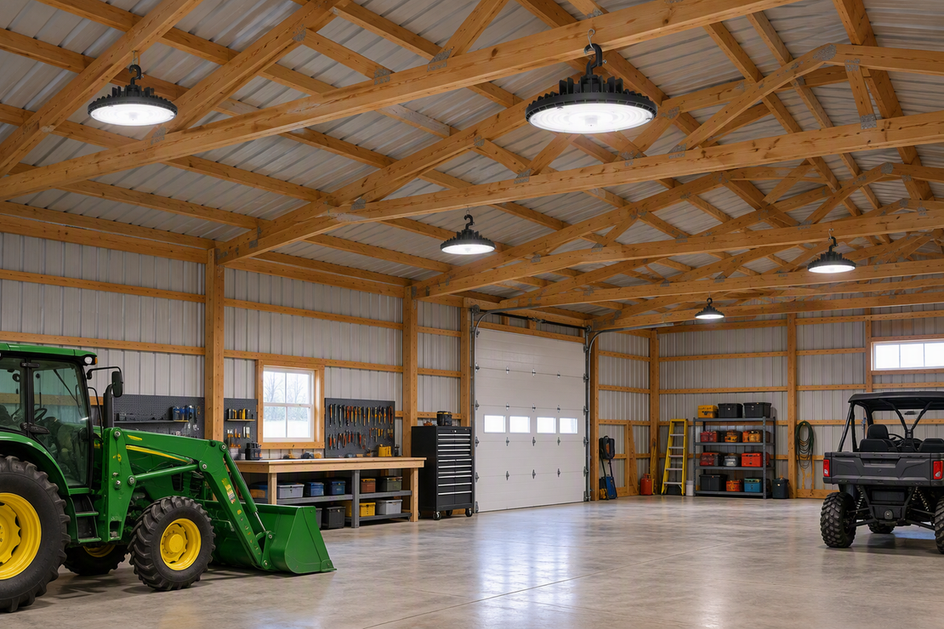

Neither 120V nor 277V is the universal right answer for a pole barn or shop. The correct choice is whichever voltage your building's documented electrical service actually supplies and your exact fixture's labeled input range accepts. When planning 120V vs 277V for pole barn and shop lighting, start with documented supply before reviewing wiring distance, voltage drop, and driver compatibility.
Long feeder runs to a detached shop and mixed control setups (dimmers, sensors) add real complexity, but they don't override the first rule: match the documented supply to a fixture rated for it, then verify the rest.
120V vs 277V: Match the Documented Supply to the Project
Both 120V and 277V are only usable project inputs when your building's electrical service and circuit design already provide them. A fixture's marked input range has to include whichever one you actually have.
The Choice Starts with Available Service
| Configuration | Use when | Purchase implication |
|---|---|---|
| 120V configuration | Your documented, existing or planned branch circuit is 120V line-to-neutral | Choose a fixture whose labeled input range includes 120V; no service upgrade assumed |
| 277V configuration | Your building has a documented 277V line-to-neutral supply that a licensed electrician has reviewed | Choose a fixture whose labeled input range includes 277V; confirm circuit design before ordering |
A commercial-style high bay listing doesn't tell you which supply your pole barn has. That comes from your panel, service entrance, and circuit documentation, not the fixture's marketing copy. Evaluating 120V vs 277V commercial lighting requires checking the actual supply lines first.
What Neither Voltage Proves by Itself
Don't treat 277V as automatically better for every shop; it's only relevant where that supply already exists and has been reviewed for the intended circuit. Likewise, a matching line-voltage label doesn't resolve controls, load, or code questions on its own. Before purchasing or connecting fixtures, stop and have a licensed electrician verify the available service and intended circuit. Don't rely on a fixture title or an assumed voltage to make that call for you.
How Wiring Distance and Load Change Voltage-Drop Planning
A long lighting run makes voltage-drop review more important, but distance alone can't select a voltage, wire size, or circuit layout. Proper pole barn lighting voltage wiring calculations require the electrician to have the full project input set before any run length analysis is complete.
Inputs That Change the Calculation
- Circuit voltage – sets the baseline the drop is measured against.
- Fixture load and amperage – total wattage across all fixtures on the run, including any selectable wattage setting you plan to use.
- Feeder or branch-circuit length – the actual distance from the panel to the farthest fixture, not a rough estimate.
- Conductor data and phase arrangement – resistance or k-factor figures and whether the circuit is single-phase or three-phase.
According to IAEI voltage-drop formula guidance, a proper review needs the k-factor, the feeder or branch-circuit length, the circuit's amperage load, and the circuit voltage together, not distance in isolation.
Why Distance Alone Is Not a Design Answer
A 150-foot run to a detached shop flags that a calculation matters, but it doesn't independently pick 120V over 277V, a wire gauge, or a circuit layout. Your electrician applies the actual load, conductor, and phase data to that specific run. No universal distance threshold or code conclusion is supported here, so give the electrician your fixture count, exact wattage setting, supply voltage, and available conductor information rather than asking for a generic rule of thumb.
How to Verify LED Driver Input and Controls
A fixture can carry the correct line-voltage label and still fail a project if its driver arrangement or controls don't match. Verify line voltage and controls as two separate checks, using the exact SKU's current documentation each time.
Verify the Exact Input Range
- Read the purchased SKU's label and current specification sheet, not a general category description. You can read the spec sheet to see which fields matter most for this check.
- Confirm the documented AC input range explicitly includes your intended supply voltage.
- Don't extend one series or variant's stated range to a different model, even within the same product line.
Line voltage, driver arrangement, dimming method, and sensor compatibility are treated as separate fixture-selection checks in DOE LED retrofit guidance, which distinguishes branch-circuit line voltage from internal and external driver setups. A wide input range on paper, such as a documented 120-277V AC driver example described in DOE-hosted technical materials, is only meaningful when your exact fixture's own documentation states that range.
Check Controls Separately from Line Voltage
- Confirm whether the driver is internal or external and whether that affects your installation requirements.
- Match 0-10V dimming or any other control method to both the fixture and your control equipment; line-voltage compatibility does not guarantee control compatibility.
- Verify sensor options and their ratings in the exact documentation for your SKU, not a general product description.
Our HPHB01 series is one conditional candidate for projects needing this flexibility: the specified record lists an AC 120-277V input range, selectable 60W/90W/120W/150W wattage, and 0-10V dimming from 10% to 100%. We built it as a 120-277V HPHB01 high bay for projects where the documented supply and control plan align with those attributes. Confirm your purchased SKU's current documentation still matches before you order, since this record applies to this series and not to every fixture we carry.
Before Buying or Installing: One Verification Path
Work through buyer checks first, then hand the remaining questions to a licensed electrician and your local authority having jurisdiction before anything gets connected.
Buyer Checks Before Ordering
- Document the available supply voltage and the intended fixture's input requirement.
- Record the exact SKU, wattage setting, total fixture count, and current driver or control documentation.
- Confirm the input range, dimming method, sensor option, and installation requirements match your project brief. Stop and request updated documentation from the seller if any of these is missing for your exact SKU.
Electrician and AHJ Checks Before Connection
- Review the building's service and circuit design against the load you plan to add.
- Calculate voltage drop using your actual circuit voltage, load, run length, conductor data, and phase arrangement.
- Review local permit, inspection, and installation requirements, along with any control or installation specifics the driver documentation calls out.
If your project still has unresolved fixture, control, or photometric planning questions once you've completed these checks, our Electrician Support page is a reasonable next stop before you order or connect anything.
FAQs
Is 277V always the better choice for a pole barn or shop?
No. The right choice depends on which supply your building actually has and whether your exact fixture's documented input range and driver support it. A 277V line often serves larger loads, but it's only relevant where that supply exists and a licensed electrician has reviewed the circuit.
Does a "120-277V" label on a fixture guarantee it will work with my supply?
No. That wording is only meaningful when the exact SKU's current specification sheet states the applicable input range. Verify the purchased model's documentation rather than relying on a series-wide description or a similar-looking listing.
Does a long wiring run automatically mean I need a 277V supply?
No. Distance is one input among several, including circuit voltage, load amperage, conductor data, and phase arrangement. A long run signals that a voltage-drop calculation matters, but the electrician needs the complete input set to reach a project-specific answer.
If the line voltage matches, do I still need to check dimming or sensors separately?
Yes. Line-voltage compatibility and control compatibility are separate checks. A fixture can accept your supply voltage while its 0-10V dimming range, driver arrangement, or sensor rating still doesn't match your control equipment or installation plan.
When should I bring in a licensed electrician or the local AHJ?
Before you connect any fixture, whenever service capacity, circuit design, the voltage-drop calculation, control compatibility, permits, or local code requirements remain unresolved. These decisions fall outside what a spec sheet or product listing alone can confirm.
