A warehouse can look well lit from its main aisle while the actual work zones tell a different story. The open floor may be bright under ceiling fixtures, yet a packing table below the mezzanine, the bottom of a stairway, and labels on lower storage shelves can remain in shadow. High bay LED lights belong in the tall, open volume, but a mezzanine requires a second lighting layer below the deck. A useful plan separates these two jobs before fixtures are selected or ordered.
Treat a Mezzanine as Two Different Lighting Zones
The upper warehouse volume includes receiving lanes, open staging areas, clear rack aisles, and floor space with a direct view of ceiling-mounted fixtures. The lower zone includes the space below the mezzanine deck, which may hold packing stations, shelving, service corridors, or returns processing. These areas have different ceiling heights, physical obstructions, work surfaces, and operating hours.
Map Work Activity Before Choosing Fixtures
Record the tasks performed in each zone. A forklift lane needs useful light along the travel route, a packing station needs direct coverage at the table, and a storage bay needs light on shelf faces and labels. This map turns warehouse mezzanine lighting into a task-based plan instead of an attempt to spread one fixture type across every level.
Assign Each Lighting Layer a Clear Job
The upper system should serve the open warehouse volume. The lower system should provide direct light where the deck blocks the ceiling fixtures, including packing, picking, storage access, and employee circulation. Treating the levels separately prevents the common mistake of increasing upper-fixture output in an effort to solve a shadowed lower area.
Identify Where High Bay LED Lights Can Deliver Useful Light
Measure roof or truss height, mezzanine top and bottom elevations, deck footprint, rack height, beams, and suspended equipment. These measurements show where high bay LED lights can shine directly onto the main-floor work area. They also show where the mezzanine deck, beams, or stored materials will block the light before it reaches a table, aisle, or shelf.
Mark Open and Screened Areas on the Drawing
High bay lights above mezzanine structures can illuminate open floor space beside the platform, receiving areas, aisle ends, and clear staging zones. The mezzanine deck blocks direct light below its footprint, while cross-bracing, conveyors, tall shelving, and stored cartons can create additional shadows. Mark those screened locations so they receive a dedicated lower-level fixture layout.
Review the Mezzanine Edge as a Transition Area
The mezzanine perimeter is often where employees experience the sharpest change in brightness. A fixture row positioned too close to the platform can brighten the adjacent open floor while leaving the lower entry zone dim. Review the fixture spacing, distribution, and structural shadows around stairs, platform gates, and under-deck access routes.

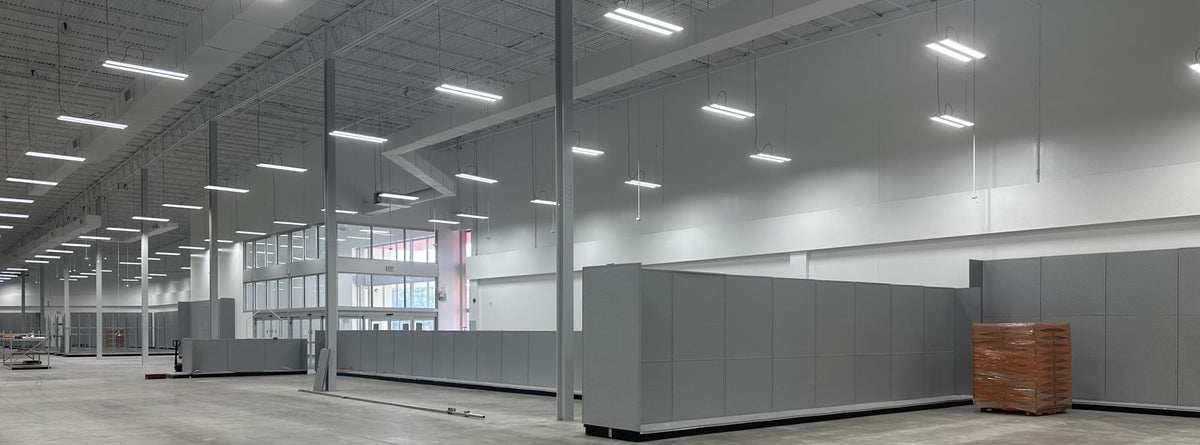

Plan the Upper-Level High Bay Lighting Layout
Place high bay LED lights above usable aisles, receiving lanes, open storage areas, and staging zones instead of following the structural grid automatically. Fixture positions should reflect the actual target surfaces and the clear volume beneath the roof. A platform work area may receive useful light from the upper layer if it remains open to the ceiling fixtures.
Check Coverage Near the Platform Perimeter
Employees can move from an open aisle to a stair, platform entrance, or shaded lower corridor within a few steps. Review the fixture row nearest the mezzanine for dark strips, concentrated bright patches, and shadows from beams or racking. This helps the upper layout cover its intended open area without being treated as the sole source of light for the space under the deck.
Use Photometric Data for the Actual Mounting Condition
A lumen rating tells you how much light a fixture produces, but it does not show where that light will land in your warehouse. An IES photometric file shows the fixture’s light pattern, which helps you review mounting height, spacing, and coverage at the actual work surface. Use that information for the upper volume, then evaluate the lower zone independently because the mezzanine changes the available light path.
Add Dedicated Lighting Below the Mezzanine
Under-mezzanine lighting should be designed from the lower ceiling height to the work surface. Lower-mounted fixtures can provide direct coverage for packing tables, storage bays, service areas, and travel corridors. Fixture spacing should account for shelf shadows, beam spread, available mounting clearance, and the movement of carts, pallets, or lifts.
Match Lower Fixtures to the Work Performed
A packing table needs direct light at the work surface and on carton labels. A storage bay may need illumination along shelf fronts and the access aisle. A service corridor needs continuous light along the walking route. These uses can share a control zone, although they may require different fixture locations.
Keep Lower Fixtures Clear of Impacts and Blockage
Review every lower mounting point against rack uprights, stored materials, ducts, and structural bracing. Keep fixtures out of likely forklift impact paths and allow room for routine maintenance. Wall-mounted or task-focused fixtures may be appropriate where the lower ceiling offers limited mounting area.
Use a Two-Layer Layout Example to Test the Plan
A warehouse with an open receiving area beside a mezzanine can use a simple division of responsibility:
- High bay lights cover the open receiving lane, main-floor staging area, and clear aisle ends above the mezzanine footprint.
- Lower-mounted linear or surface fixtures provide direct light over under-mezzanine packing tables and storage access aisles.
- Dedicated fixtures illuminate stair treads, landings, and the platform entry.
- Upper and lower zones use separate controls so each area can operate according to its work schedule.
Use this example to divide the project into upper, lower, stair, and control zones before selecting fixtures. The final fixture count and placement still require the warehouse dimensions, deck height, task locations, available voltage, rack layout, and the selected fixture’s light pattern.
Review Platform Workstations Separately
A mezzanine used for order processing, inspection, or small-part handling should be reviewed at the actual desk, bench, or shelf. Brightness visible from the warehouse floor does not confirm useful light at the platform work surface. Add dedicated platform or task lighting if the upper fixture layer does not provide adequate direct coverage.
Address Glare at the Platform Level
Workers on a raised mezzanine can be closer to ceiling fixtures than workers on the main floor. Platform workstations also need a review for glare at mezzanine workstations, especially when employees spend long periods looking across the platform or toward ceiling fixtures. Check fixture brightness, light distribution, and normal sightlines before finalizing the upper layout. Use it alongside the two-layer plan where employees spend extended time on elevated work platforms.
Convert the Layout Into a Fixture and Control Plan
A complete fixture schedule should include the information needed to assign each fixture a clear purpose:
- Upper ceiling height, lower-deck height, and mezzanine dimensions
- Deck construction, beams, racks, suspended equipment, and storage obstructions
- Task locations, travel routes, stairs, loading points, and platform workstations
- Available voltage, circuit capacity, mounting locations, and electrical access
- Operating schedules, occupancy patterns, control needs, and maintenance access
Turn the Survey Into Procurement Decisions
Use the site survey to document task area, mounting location, output, distribution, voltage, switching method, and control zone for every fixture. The upper schedule should identify high bay lights above mezzanine-adjacent open areas. The lower schedule should identify fixtures serving packing, storage, travel, and service work below the deck.
Separate Controls by Work Pattern
Separate controls give the open warehouse volume and under-mezzanine area independent operating schedules. Receiving activity may require light in the upper open zone while lower packing or service work follows a different shift. Sensor locations also need a field review because racks, beams, and stored inventory can obstruct their detection coverage.
Submit the Right Details for a Layout Review
A buyer seeking a project recommendation should provide a scaled floor plan, ceiling and deck heights, fixture mounting points, electrical supply, rack layout, task locations, and photographs of the mezzanine edge and stair areas. Projects with several obstructions, work zones, or changing rack layouts benefit from a warehouse lighting layout review before equipment is ordered. Submit the floor plan, mounting heights, task areas, electrical information, and site photos so the upper and lower fixture layers can be evaluated together.
Conclusion
High bay LED lights are well suited to the open volume of a warehouse with a mezzanine when mounting height, output, voltage, and distribution match that space. The area beneath the deck needs its own lighting layer for packing, storage, stairs, and employee routes. A complete multi-level warehouse lighting plan assigns each level a clear task, separates controls by use, and validates fixture positions before purchase.
FAQs
Should Upper and Lower Zones Use the Same Color Temperature?
Often, yes. A consistent color temperature across adjacent upper and lower areas can create a more unified visual experience as employees move between levels. Task needs, existing fixtures, material colors, and the facility’s visual preference should be reviewed before final selection.
What Should a Mezzanine Lighting Drawing Include?
Include the deck outline, upper and lower mounting heights, fixture locations, rack and beam obstructions, stairs, workstations, circuits, and control zones. Show the intended work surfaces and travel routes so the layout can be reviewed against how the warehouse actually operates.
Can Occupancy Sensors Be Used Under a Mezzanine?
Yes. Sensors can serve intermittently occupied storage or service areas below a mezzanine, provided their coverage is not blocked by racks, beams, or stored inventory. Confirm sensor type, placement, delay settings, and required light availability for the specific area.
What Should Trigger a Lighting Layout Review After Installation?
A layout review is appropriate after adding taller racks, conveyors, enclosed storage, new packing stations, or new work shifts. These changes can create shadows, block sensors, or move tasks outside the original fixture coverage.
Who Should Review the Final Electrical and Lighting Plan?
A qualified electrician should review circuit capacity, voltage, hardwired connections, and applicable local requirements. A lighting professional or project designer should review photometric data, fixture positions, and expected coverage at upper and lower work surfaces.
