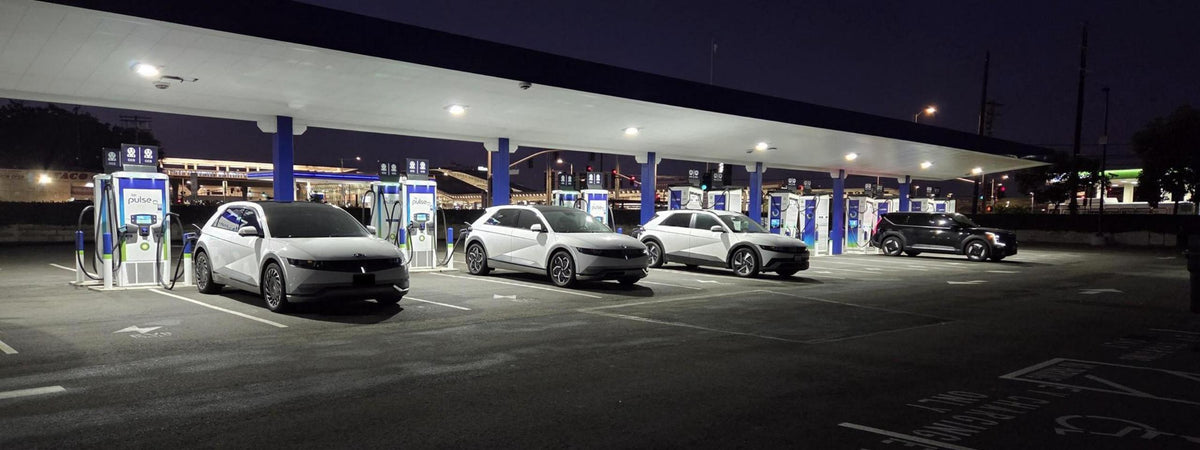

An EV charging area can look bright from across the lot yet still leave a cable, raised curb, charger screen, or camera view hard to read. LED parking lot lights for EV charging stations need to support the full sequence: approach, park, connect, charge, disconnect, and leave. This article focuses on open exterior charging bays. Lighting supports visibility, but it does not replace site-specific electrical, accessibility, traffic-control, or code review. The finished project should produce a lighting layout and fixture schedule tied to the objects people and drivers must see.
Build the Visibility Checklist Before Choosing a Fixture
Map the bay as drivers and users actually experience it. Record the vehicle approach, parking angle, charger cabinet, connector location, expected cable reach, pedestrian path, curb or wheel stop, stall markings, nearby travel lane, and camera frame. A pole position that lights open pavement may still leave the charger face or cable-return point in shadow.
LED parking lot lights should be evaluated against these tasks before a fixture is selected. That process gives the electrical contractor and property team a usable record of where light is needed, where it may create glare, and what must be checked after dark.
Create a Charging-Area Check Table
Use the table below during design review and the nighttime walk-through. It keeps the discussion tied to visible tasks instead of treating the charging area as one uniform rectangle of pavement.
| Zone | User or Vehicle Position | Object That Must Be Visible | Shadow or Glare Risk | Camera View | Nighttime Verification Method |
|---|---|---|---|---|---|
| Bay approach | Driver in travel lane | EV-only marking, curb, bay entrance | Pole glare or a hidden curb edge | Vehicle entering bay | Drive the normal approach after dark |
| Charger side | User beside vehicle | Connector, cable, holster, payment instructions | Body shadow or cabinet shadow | User at charger | Connect and return the cable |
| Pedestrian route | User walking to entrance | Sidewalk, curb ramp, wheel stop | Parked-vehicle shadow | Route to building | Walk the route at normal pace |
| Stall interior | Driver parking or backing out | Stall boundaries and adjacent lane | Glare in mirrors or windshield | Vehicle movement | Test with parked vehicles present |
| Camera zone | Camera’s actual field of view | Charger face and approach path | Lens glare, backlighting, blocked view | Nighttime video feed | Review recorded and live footage |
Keep Cables and Pedestrian Routes Visible
Cable visibility matters most where a driver removes the connector, walks around the vehicle, and returns the cable to the charger. Review the ground beside the charging port, the cable’s likely path, and the area around the charger base. The check should include a long charging cable positioned as it would be during actual use, not neatly stored in its holster.
An LED parking lot lights plan should identify the pedestrian route between the parked vehicle, charger, accessible path, and nearby building entrance. Light falling only in the middle of the stall can leave the edges of that route unclear.
Check Ground-Level Shadows
Charger cabinets, bollards, parked vehicles, pole bases, and landscaping can create dark pockets at the exact places people step. Inspect these conditions from both sides of the vehicle. A fixture aimed for broad lot coverage may need a revised pole location, distribution pattern, or companion fixture to keep the charging task visible.
During the review, check these conditions:
- A user standing between the fixture and charger
- A vehicle with its charging port on the opposite side from the charger
- A cable crossing the normal walking route
- A bollard or charger cabinet blocking light near the base
- A curb or wheel stop beside a fully occupied bay
What Must Drivers See When They Turn Into an EV Charging Bay?
Drivers must be able to see the bay entrance, curb edges, wheel stops, EV-only markings, stall boundaries, crosswalks, and adjacent travel lanes from the driver’s seat. A layout can look acceptable while standing in the parking lot but still hide a curb or faded stripe beneath the hood line of a vehicle.
Review vehicle and pedestrian sightlines from every real approach direction. Include the turn into the bay and the view while backing out. The review should also account for headlights, reflections from wet pavement, and parked vehicles that block low-angle light.
Run a Vehicle-Based Review
Use at least one sedan and SUV for a typical site review. Add a delivery vehicle when the charging area is near a loading zone, grocery storefront, hotel entrance, or mixed-use property. The larger vehicle may create different sightlines and shadows than passenger cars.
Review each vehicle position for:
- Bay markings visible before the turn begins
- Curb, wheel-stop, and charger-bollard visibility at parking speed
- Clear separation between the charging bay and travel lane
- Glare on the windshield, side mirror, or rearview camera
- Visibility while leaving the bay with nearby stalls occupied
Can Drivers Read the Charger Screen Without Glare?
Yes. Drivers and passengers need to read the charger display, connector instructions, payment or access prompts, and nearby wayfinding signs. Pavement brightness alone does not make a vertical screen readable. A charger face needs light from a useful angle while avoiding a bright source in the user’s normal line of sight.
Review the charger from the height and distance of a person using it. The best screen test happens with the display operating at night, using its normal brightness setting and interface.
Check Reflections and User Shadows
A bright fixture can reflect in a glossy screen, especially after rain or when the display is tilted upward. Some LED parking lot lights also create visual discomfort if the source is directly above the driver’s approach or in front of the user at the charger.
Stand where a user would scan a payment prompt, remove a connector, and read status information. Then stand between the fixture and charger. If your body blocks the needed light, revise the aiming or placement before assuming extra output will solve the problem.
Protect Camera Views From Shadows and Lens Glare
Lighting placement should support the camera’s nighttime field of view, not simply brighten the pavement beneath it. Check the live camera feed with a vehicle entering, a user at the charger, and a person walking from the building or sidewalk. Review both broad coverage and the portions of the frame where faces, clothing, charger activity, and vehicle movement must remain visible.
Backlighting behind a vehicle can leave the person at the charger too dark for useful detail. A fixture pointed toward the camera may create a bright flare, lower contrast across the image, or make the charger cabinet difficult to see.
Separate Visibility Support From Security Claims
Lighting can improve the usable image from a properly placed camera, but it cannot guarantee recognition of a person, vehicle, or license plate. Camera position, lens, exposure settings, scene contrast, weather, and the vehicle’s direction all affect the result.
Coordinate the lighting review with the security team or camera installer. Test the real equipment at its normal operating settings after dark, then document any required changes to fixture aiming, camera placement, or surrounding obstructions.
Choose and Test LED Parking Lot Lights After Dark
After the site map is complete, compare LED parking lot lights matched to the EV charging area’s actual layout. Record the pole location, mounting method, fixture distribution, mounting height, input voltage, output, controls, aiming direction, and any surge-protection requirement in the project schedule.
Keep the fixture choice tied to the charger layout. A wide parking area, a row of chargers near a storefront, and a compact charging island beside a travel lane can require different distribution and aiming decisions. Confirm the available electrical conditions, mounting interface, and current fixture specifications before purchasing.
Walk the Finished Area After Dark
The same field-walk discipline used for parking garage lighting can help teams check EV charging bays from real driver, pedestrian, and device positions. Complete this review after the chargers, striping, curbs, signage, cameras, and lighting controls are in their normal operating condition.
Use the walk-through to verify:
- Approach and parking visibility from each expected direction
- Cable handling and return to the charger holster
- Charger-screen readability without direct glare
- Curb, wheel-stop, crosswalk, and stall-marking visibility
- Camera framing with people and vehicles in the actual scene
The EV charging-site planning resources from the U.S. Department of Energy also cover project considerations outside lighting, including equipment and installation planning. Include the qualified project professionals needed for electrical, accessibility, traffic, and local approval requirements.
Conclusion
EV charging-area lighting should make each step readable: approach, park, connect, charge, disconnect, and leave. LED parking lot lights provide useful coverage only when the layout accounts for cables, curbs, charger screens, pedestrian paths, vehicle sightlines, and camera views. Complete the final check in the finished charging area after dark, then update the fixture schedule or aiming plan before treating the project as complete.
FAQs
What Should LED Parking Lot Lights Reveal in an EV Charging Area?
They should reveal the bay entrance, curb edges, wheel stops, stall markings, connector, cable path, charger instructions, pedestrian route, and relevant camera view. Check these items from driver and user positions after dark.
How Can Lighting Reduce Cable Trip Risks at EV Chargers?
Lighting can make the cable route and surrounding walking surface easier to see. Review the area while the cable is connected to a parked vehicle, then correct shadows created by the charger cabinet, bollards, or vehicle body.
Why Should Curbs and Stall Markings Be Checked From the Driver’s Seat?
From the driver's seat, the driver sees the bay through the windshield at a low angle, with the hood, reflections, headlights, and nearby vehicles affecting the view. A standing inspection cannot confirm that curbs and markings remain visible during the actual turn into the bay.
Can Lighting Improve a Charger Screen’s Readability at Night?
Yes. Light directed from a useful angle can make the display and instructions easier to read. Test the screen in its installed position, since direct fixture glare, reflections, and a user’s body shadow can interfere with readability.
How Should Parking Lot Lighting Be Tested With Security Cameras?
Review the real nighttime camera feed with vehicles and people in the charging area. Check for backlighting, dark areas near the charger, lens glare, and blocked views, then coordinate any changes with the camera installer or security team.
