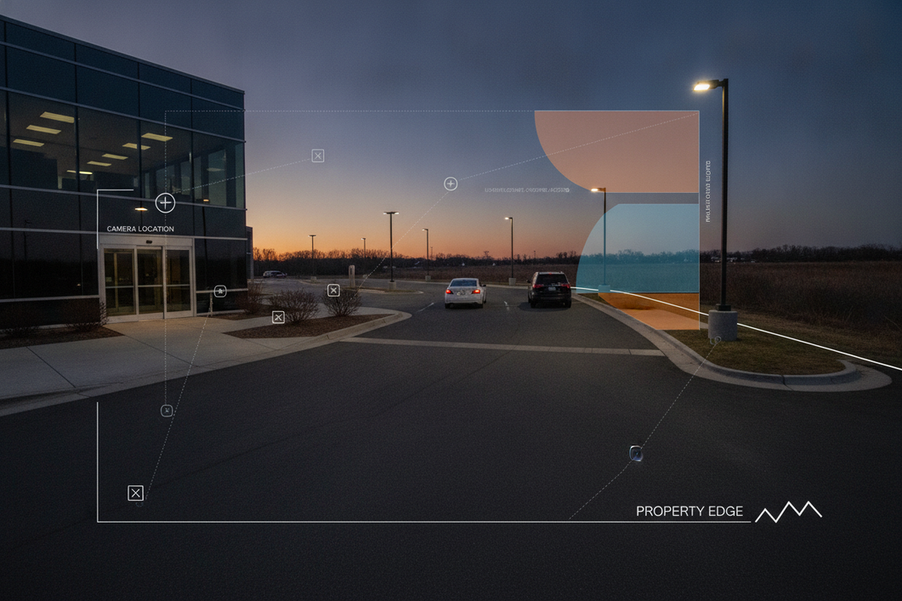

Start with an annotated entrance map before choosing parking lights. Trace vehicle and pedestrian movement, mark doors and cameras, document pole or wall-mount options, and identify the property edge where light must stop. Then compare area, flood, wall-pack, and canopy coverage based on the entrance condition, not brightness alone. This approach can improve the transition into the lot without automatically adding output, glare, or spill light.
Map Vehicle and Pedestrian Movement Before Choosing Parking Lights
The first step is to create a field map showing movement, sightlines, mounting constraints, and sensitive edges. DOE planning guidance recommends documenting existing luminaires, mounting heights, entrance conditions, and nearby building conditions before selecting a lighting approach.
- Trace vehicle movement. Mark the approach from the roadway, turning paths, entry lanes, merge points, stop areas, and any location where drivers must read a sign or see a crossing.
- Mark pedestrian movement. Add sidewalks, crossings, waiting areas, walking routes, storefront doors, and the point where pedestrians leave the lot or approach the building.
- Plot mounting opportunities. Record existing poles, possible new pole locations, building walls, canopy structures, and façade edges. Include mounting height and the direction each location can reasonably aim.
- Add cameras and boundaries. Mark camera viewpoints, property lines, roadways, sidewalks, neighboring buildings, residences, sensitive windows, and other areas where spill or glare could create a problem.
- Photograph the entrance after dark. Label bright backgrounds, direct glare, dark transitions, deep shadows, and places where the pavement looks visible but a door, sign, façade, or approaching object does not.
This map changes the buying question. A single-driveway entrance with a nearby walkway may need a different review than a wide, multi-lane entrance with several turning paths. A building-side or covered transition brings doors, façades, cameras, and canopy structure into the decision. A sensitive property edge makes aiming and optical control just as important as coverage area. If you need help organizing the inputs, use these photometric planning inputs rather than relying on square footage or a desired fixture count alone.
Choose Coverage by the Entrance Condition
Choose the coverage family based on where light needs to go and where it can be mounted. DOE guidance treats luminaire distribution and layout as design inputs alongside output and efficiency, so the table below is a first-pass selector, not a final product specification.
| Coverage family | Entrance condition it may address | Checks before selection |
|---|---|---|
| Area | Open approach pavement where a pole can support controlled distribution | Distribution across lanes, mounting height, aiming, driver glare, pedestrian route, and edge spill |
| Flood | A directional gap or a specific approach, turn, sign, or transition needing focused coverage | Beam direction, source visibility, background contrast, shadows, camera view, and spill beyond the target |
| Wall-pack | A building-side entrance, doorway, façade, or short transition beside a wall | Door and sidewalk visibility, wall-mount height, direct glare, vertical coverage, and camera contrast |
| Canopy | A covered driveway, drop-off, or transition beneath a canopy structure | Mounting clearance, underside distribution, vehicle approach, pedestrian route, camera view, and darker exits |
Use area coverage as the leading option when the main problem is controlled distribution across approach pavement and the pole position supports the geometry. Use flood coverage when the map shows a directional gap that needs a focused solution. Use wall-pack coverage when the problem is tied to a building-side door or façade. Use canopy coverage when the transition is physically covered and the structure determines where a fixture can go.
These categories do not establish suitability by name alone. For each family, compare the actual distribution, mounting position, aiming range, source visibility, pavement transition, vertical visibility, camera viewpoint, and property-edge condition. If you are ready to browse a category after documenting those requirements, the LED parking lot light range can serve as a product-navigation path. For broader selection context, see this selection guide. Neither destination replaces a site-specific layout review.
The practical decision rule is simple: choose the family that can place useful light on the mapped target while keeping the source, darker transition, and property boundary under control. If a proposed family only works by increasing output, moving glare into a driver’s or pedestrian’s viewpoint, or accepting spill onto a sensitive edge, return to the mounting and distribution question.
Coordinate Driver Sightlines, Crossings, Doors, and Cameras
A good entrance layout reviews each important viewpoint separately. Pavement that appears bright from one position does not prove that a driver, pedestrian, door user, or camera receives a usable scene.
Check Vehicle and Pedestrian Sightlines
Review the forward vehicle approach, turning movement, crossing, waiting area, and walking route as separate sightlines. Drivers may look toward the entry from a moving vehicle, while pedestrians move more slowly and can face the source from another angle. DOE pedestrian-lighting research notes that pedestrians can experience glare from different angles than drivers and for a longer period because they move more slowly. That makes the walking route a separate part of the layout, not an automatic result of lighting the driveway.
Mark where a driver needs to read a sign, notice a person crossing, or see the lot transition. Then mark where a pedestrian approaches a door, crosses the drive, or looks toward an approaching vehicle. Compare source position, bright backgrounds, dark edges, and façade visibility from both routes. Record each conflict as a question about aiming, mounting, shielding, or supplemental coverage.
Protect Camera and Door Views
Review cameras, doors, façades, signs, and other vertical features separately from the pavement. DOE guidance notes that more light does not automatically mean better quality. Uniform lighting may help people and camera viewing, but camera results still depend on the actual camera, background, exposure, fixture distribution, and aiming. The same guidance supports checking vertical elements because a parking lot luminaire can light the horizontal surface while leaving a façade, sign, or approaching object less readable.
Look for direct glare into the lens, bright backgrounds behind people or vehicles, deep shadows at doors, and abrupt changes between the driveway and the building. A bright surface can still leave a disconnected doorway or camera scene. The right response may be a different aiming angle, mounting point, shield, distribution, or supplemental coverage. It is not automatically more output.
Control Pole Placement and Light Spill at the Property Edge
Treat pole location as a design constraint, not just a convenient place to reuse hardware. Plot the intended boundary at the property line, roadway, sidewalk, neighboring building, residence, or sensitive window, then compare that boundary with the movement and viewpoint map.
Spill light and glare are separate checks. FHWA defines spill light as light falling outside the intended area, while glare is light viewed at the source that reduces visibility in its lighting handbook. A fixture can create one problem, the other, or both. Review mounting position, distribution, aiming, shielding, and other verified optical controls together instead of treating a fixture label as proof of local compliance.
The edge-control rule is to balance the boundary with useful visibility at the driveway, roadway, and sidewalk transition. FHWA cautions that reducing spill should not take precedence over useful roadway visibility. In practice, aggressive shielding can create an abrupt dark edge, while an easy-to-aim pole may send glare toward drivers or light toward a neighbor. Test both conditions in the review.
If the entrance cannot be covered without unacceptable glare or spill, revisit the coverage family or mounting position rather than simply increasing output. Local ordinances, property-line limits, and project approvals remain jurisdiction-specific decisions for the applicable authority and qualified design team. If you need a broader browsing path after defining the edge condition, review these outdoor lighting options, but do not treat a collection page as evidence of cutoff, shielding, or compliance.
Request a Photometric Review With the Entrance Map
Send the reviewer a documented entrance brief, not just lot square footage or a preferred fixture count. A qualified lighting designer, contractor, or supplier can use the information to compare plausible coverage families against the actual geometry.
- Site dimensions: Include the driveway width, approach length, turning areas, sidewalks, crossings, doors, building edges, canopy dimensions, and relevant grade or roadway transitions.
- Movement paths: Show vehicle lanes, turning directions, pedestrian routes, waiting areas, and locations where drivers or pedestrians need to read the scene.
- Mounting constraints: List existing poles, possible pole locations, wall mounts, mounting heights, canopy structure, aiming limits, and any locations that cannot be used.
- Viewpoint information: Mark cameras, doors, façades, signs, bright backgrounds, neighboring windows, property lines, roadways, and sidewalks. Attach after-dark photos.
- Review questions: Ask the reviewer to compare distribution, aiming, glare, darker transitions, vertical visibility, camera viewpoints, and edge spill for the most plausible area, flood, wall-pack, or canopy family.
- Assumptions and next action: Request the assumptions behind the layout and calculations. The IES recommended-practice framework identifies parking facilities, crosswalks, field measurements, obtrusive light, and camera-related analysis as relevant standards context, but it does not make this article a compliance determination.
Once those requirements are documented, use a wattage guide only as a supporting calculation resource. Wattage or fixture count should follow the layout and distribution requirements, not replace them. Request the site-specific review before buying, especially when the entrance combines multiple lanes, pedestrian crossings, doors, cameras, fixed poles, or a sensitive property edge.
The answer is to map the transition first, then choose the coverage family that fits its movement, viewpoints, mounting, and boundary. Assemble the annotated map and after-dark photos, and send them for a site-specific photometric review before selecting fixtures.
FAQs
Use these questions to apply the entrance-mapping process to common site conditions.
Where should entrance fixtures be placed?
Place them according to the mapped vehicle approach, walking route, doors, cameras, mounting opportunities, and property boundaries. There is no universal pole location that fits every entrance. Compare each possible position from the driver and pedestrian viewpoints, then review how its distribution reaches the transition without creating direct glare or unwanted spill.
How do you light a driveway entrance?
Start by tracing vehicle and pedestrian movement, then mark crossings, doors, cameras, poles, property edges, bright backgrounds, and dark transitions. Compare area, flood, wall-pack, and canopy coverage against those conditions. The next step is a site-specific review that documents aiming, distribution, glare, vertical visibility, and edge control before purchase.
Should a driveway entrance use flood or area coverage?
Area coverage is a leading option for controlled distribution across approach pavement when the mounting position and geometry support it. Flood coverage may fit a directional gap, while wall-pack coverage may fit a building-side door zone and canopy coverage a covered transition. The mapped target, mounting position, aiming, and edge condition determine which family is worth pursuing.
How can entrance lighting reduce glare without leaving dark spots?
Review source position, distribution, aiming, shielding, driver and pedestrian viewpoints, camera contrast, and edge transitions together. Lowering output alone can leave a dark transition, while adding output can worsen source glare or spill. If the family cannot cover the target while preserving usable transitions, change the mounting or coverage approach.
What information is needed for an entrance lighting plan?
Provide site dimensions, vehicle and pedestrian paths, crossings, doors, canopy details, existing and possible mounting points, camera viewpoints, property boundaries, sensitive neighbors, and after-dark photos. Include specific questions about distribution, aiming, glare, vertical features, darker transitions, and spill so the proposed layout can be evaluated against the entrance rather than against square footage alone.
