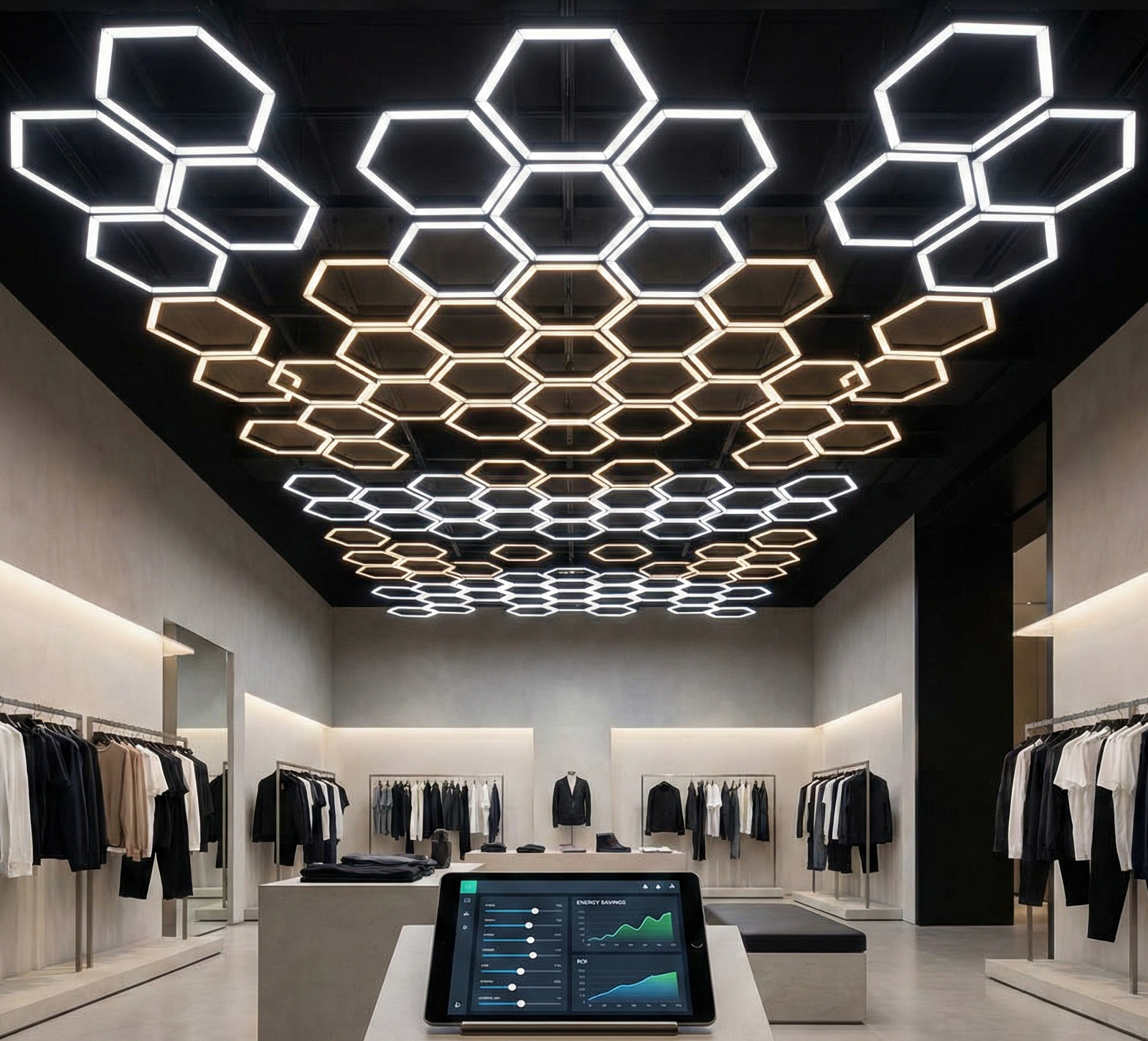

Implementing zonal dimming in boutique retail environments transforms lighting from a static utility into a dynamic strategic asset. For small business owners and commercial installers, the conclusion is clear: a modular hexagon LED grid equipped with zonal controls offers a potential return on investment (ROI) in as little as 0.22 years (approximately 2.6 months) when accounting for energy savings, maintenance avoidance, and utility rebates. By segmenting a retail space into ambient, accent, and task zones, operators can shift from a "high-output work mode" during stocking hours to a "premium ambient mode" for evening customer experiences, all while adhering to stringent energy codes like California Title 24 and ASHRAE 90.1.
The Financial Case for Zonal Control
The transition from legacy lighting systems, such as halogen track lights, to high-efficiency LED hexagon grids is driven by significant operational cost reductions. In a simulated high-end boutique scenario (1,000 sq. ft. with 5,000 annual operating hours), the integration of zonal controls and high-efficiency fixtures yields the following estimated financial impacts.
| Metric | Estimated Annual Value | Logic/Mechanism |
|---|---|---|
| Annual Energy Savings | $8,976 | Reduction in lighting power density (LPD) and usage of dimming schedules. |
| Maintenance Savings | $9,900 | Elimination of frequent bulb replacements associated with 2,000-hour halogen lifespans. |
| HVAC Cooling Credit | $423 | Reduced heat load from LED fixtures (33% interactive factor). |
| Total Annual Savings | $19,299 | Combined operational efficiency. |
| Payback Period | 0.22 Years | Calculated after typical utility rebates (~$10/fixture). |
These figures demonstrate that for boutique operators, the "Value-Pro" strategy—balancing professional-grade controls with aesthetic design—is a matter of fiscal responsibility. Beyond the direct savings, Designing a High Bay Layout for Warehouse Safety provides a baseline for how structured lighting improves overall operational safety, a principle that translates directly to the retail floor.
Compliance Frameworks: DLC Premium and Energy Codes
To secure the rebates that drive the rapid payback periods mentioned above, products must typically be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). The DLC 5.1 standard is the current benchmark for high-performance commercial lighting, mandating specific thresholds for efficacy (lumens per watt), color quality, and—critically—dimming capability.
Navigating ASHRAE 90.1 and IECC 2024
Most US jurisdictions adopt building codes based on ASHRAE Standard 90.1 or the International Energy Conservation Code (IECC). The 2024 editions have expanded requirements for:
- Occupancy Sensing: Mandatory in corridors and storage areas, often requiring a reduction in power by at least 50% within 20 minutes of vacancy.
- Daylight Responsive Controls: Required for fixtures located within "daylight zones" (near windows or skylights) to automatically dim when natural light is sufficient.
- Zonal Dimming: The ability to control groups of fixtures independently to meet specific Lighting Power Density (LPD) limits.
California Title 24 Requirements
For projects in California, the Title 24, Part 6 Building Energy Efficiency Standards are even more rigorous. Retail spaces must implement multi-level lighting controls. This means a hexagon grid cannot simply be "on" or "off"; it must have intermediate dimming steps or continuous dimming to comply with state law.
The 60-30-10 Rule: Engineering a Visual Hierarchy
Effective retail lighting design uses zonal control to guide the customer's eye. A common heuristic for high-end boutiques is the 60-30-10 distribution rule for total lumens:
- Ambient Lighting (60%): Provides the base level of illumination for safe movement. In a hexagon grid, this is often the central array dimmed to 50-70% during normal hours.
- Accent Lighting (30%): Focuses on featured products or displays. This zone should be noticeably brighter than the ambient surroundings to create contrast.
- Task Lighting (10%): Concentrated at point-of-sale (POS) counters, fitting room entries, or repair stations.
According to the Illuminating Engineering Society (IES) RP-7-21 Recommended Practice, maintaining proper contrast ratios is essential for visual comfort. Over-lighting a space (creating a "flat" light environment) can lead to customer fatigue, whereas zonal control allows for "visual drama" that highlights brand value.
Technical Implementation: 0-10V Dimming and Wiring Logic
Professional-grade hexagon grids utilize 0-10V DC dimming, a low-voltage control protocol that is more reliable than traditional phase-cut (triac) dimming for commercial loads.
The Mechanism of 0-10V Dimming
In a 0-10V system, the LED driver receives two sets of wires: the standard AC line voltage (120-277V) and a pair of low-voltage control wires (typically purple and gray/pink).
- 10V Signal: The driver operates at 100% brightness.
- 1V Signal: The driver operates at its minimum dimmed level (usually 1% or 10%).
- 0V Signal: The fixture typically turns off or enters a "sleep" mode.
Expert Insight: A frequent error in zonal setups is mismatching the driver protocol with the controller. Using a 0-10V controller with a Pulse Width Modulation (PWM) dimmable driver can result in flickering or non-linear dimming (where the light level jumps abruptly). Always verify the dimming type on the product's IES LM-79-19 report, which serves as the "performance report card" for the fixture.
Power Injection and Circuit Loading
For large hexagon arrays, installers must adhere to the National Electrical Code (NEC) 80% continuous load rule. If a grid is powered by a 20A circuit at 120V, the maximum continuous load is 1,920W.
Furthermore, modular systems have a "daisy-chain" limit (often 440W per power feed). In a high-density 1,000 sq. ft. boutique with a total load of 3,850W, the installer would require:
- Multiple Circuits: At least two dedicated 20A circuits.
- Power Injection Points: Approximately 9 separate injection points to ensure no single string of hexagons exceeds the 440W limit. This prevents voltage drop and ensures uniform brightness across the entire grid.
Performance Verification: LM-79, LM-80, and TM-21
Authoritative documentation is the primary differentiator between professional "Value-Pro" systems and consumer-grade alternatives.
- LM-79 Reports: Verified by UL Solutions, these reports confirm total luminous flux, electrical power, and efficacy. Retailers should demand these to ensure the "5000K Daylight" they purchased actually meets ANSI C78.377-2017 chromaticity standards.
- LM-80 and TM-21: While LM-80 measures how the LED chips degrade over 6,000+ hours, the IES TM-21-21 Technical Memorandum provides the mathematical projection for long-term lifespan. A claim of "L70 @ 60,000 hours" means the fixture will retain 70% of its original brightness after 60,000 hours of use. This is critical for boutiques where dimming is used frequently, as operating at lower power can actually extend this lifespan.
Troubleshooting Common Dimming Issues
Even with high-quality components, real-world physics can introduce friction points during installation.
The "Dead Travel" and "Pop-On" Effect
Lower-cost or mismatched 0-10V drivers often exhibit "dead travel"—a phenomenon where moving the dimmer slider from 0% to 10% results in no light, followed by a sudden "pop-on" at 11%. To avoid this, installers should test the full dimming range (100% down to 1%) before finalizing the ceiling closure. If dead travel is present, the low-end trim on the controller must be adjusted to match the driver's threshold.
Flicker and Stroboscopic Effects
Flicker is often caused by electromagnetic interference (EMI) or poor driver shielding. Ensure all drivers comply with FCC Part 15 regulations. In retail environments with security cameras, stroboscopic flicker can cause "banding" on video feeds. High-frequency drivers (Flicker-Free) are essential for any space where digital content or social media photography is expected. For more on combining different fixture types, see Hybrid Garage Lighting: UFO & Hex for Task & Ambient.
Jarring Transitions
For a premium customer experience, scene transitions (e.g., shifting from "Day Mode" to "Evening Mode") should not be instantaneous. Programming a fade time of 2-3 seconds creates a sophisticated, "theatrical" feel that is less jarring to customers than an abrupt shift in light levels.
Implementation Checklist for Commercial Installers
To ensure a successful zonal control project, follow this technical sequence:
- Photometric Simulation: Utilize IES files in software like AGi32 to verify that the proposed layout meets target foot-candle levels for each zone.
- Verify Driver Compatibility: Cross-reference the 0-10V sink/source current of the controller with the driver's spec sheet.
- Plan Power Injections: Calculate total wattage per zone and ensure no single run exceeds the 440W safety limit.
- Wiring Separation: Maintain physical separation between Class 1 (Line Voltage) and Class 2 (0-10V Control) wiring to prevent interference, as mandated by the NEC.
- Bench Test: Wire one hexagon segment to the controller on the ground to calibrate the dimming curve before mounting the entire grid at height.
Designing for Longevity and Trust
In the boutique retail sector, lighting is a high-visibility investment. By adhering to UL 1598 safety standards and utilizing zonal controls, business owners protect their assets while enhancing the shopper's journey. For those scaling from a small shop to a larger facility, understanding 100W vs. 150W UFO: Sizing the Right Light for a 2-Car Garage provides additional context on how wattage and mounting height influence light distribution.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or financial advice. All electrical installations must be performed by a licensed professional in accordance with local building codes and the National Electrical Code (NEC). Consult with a tax professional regarding specific utility rebate eligibility.
