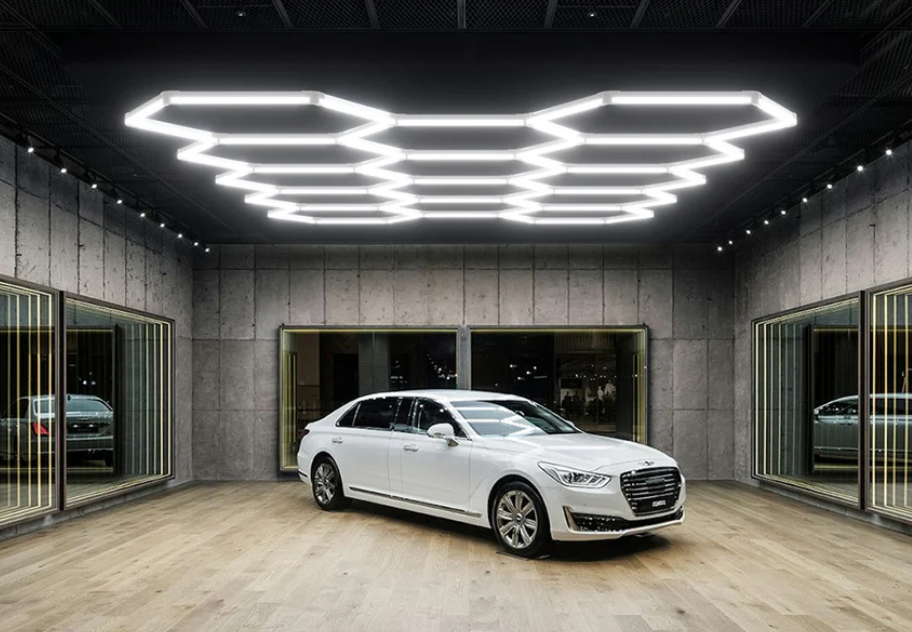

Imagine it’s Saturday morning. You’ve just pulled your project car into the center of the garage. You need every ounce of brightness to spot that hairline swirl in the paint or to thread a needle-thin wire behind the dash. You flip the switch, and your modular hexagon lighting floods the space with crisp, daylight-white brilliance.
Now, fast-forward to 7 PM. The tools are put away. You’ve swapped the grease rags for a yoga mat or a weight bench. That same stadium-level brightness that was perfect for detailing now feels a bit like a surgical suite. You want to focus, but the glare is intense. This is where the magic of a dimmable driver changes everything. With a simple slide of a switch, you drop the intensity to a comfortable glow, transforming your high-octane workshop into a focused home gym or a chill hangout spot.
Dimmable hexagon lighting isn't just about "vibes"—though it certainly delivers those. It’s a technical upgrade that solves the "one-size-fits-all" lighting problem while extending the life of your equipment and putting money back in your pocket.
The Multi-Purpose Garage: Why Flexibility is the New Standard
The modern American garage has evolved. It’s no longer just a graveyard for cardboard boxes and lawnmowers. According to trends tracked by the American Lighting Association (ALA), consumers are increasingly demanding "layered" lighting in residential spaces to support diverse activities.
When you install a fixed-output lighting system, you are locked into a single lumen level. If you choose a system bright enough for professional detailing, it’s often too bright for general tasks. If you choose a "comfortable" level, you’ll find yourself squinting under a hood. Dimmable kits bridge this gap.
The "Task vs. Atmosphere" Balance
- High Intensity (100%): Essential for "Critical Vision" tasks. This includes automotive detailing, woodworking, or intricate electronics repair. High brightness helps reduce eye strain by increasing contrast.
- Medium Intensity (40-60%): Perfect for a "Garage Gym" session. You need enough light to see your form in the mirror and stay safe, but you don't need the blinding glare of a showroom when you're doing floor work.
- Low Intensity (10-20%): Ideal for "Ambient" use. If you’re hanging out with friends or just need to grab a drink from the garage fridge, a soft glow is welcoming and energy-efficient.
The Technical Edge: Understanding the Dimming Mechanism
To appreciate the advantage of a dimmable kit, we have to look under the hood at how the electricity is managed. Most high-quality modular hexagon kits utilize TRIAC dimming (also known as leading-edge dimming).
In simple terms, a TRIAC dimmer "chops" the AC sine wave, reducing the amount of power that reaches the LED driver. The driver then converts this into a lower output for the LED tubes. This is different from the 0-10V dimming often found in massive industrial warehouses, which requires a separate set of low-voltage wires. For a DIYer, TRIAC is the gold standard because it usually works with standard household wiring.
Why Certification Matters
When you are dimming LEDs, you are essentially asking the electronics to perform a complex dance. This is why looking for UL Solutions or Intertek ETL certification is non-negotiable.
- UL 1598: This is the core safety standard for fixed luminaires. It ensures the housing can handle the heat.
- UL 8750: This specifically covers the LED "Light Engines" and drivers. It ensures that when you dim the light, the driver doesn't overheat or create a fire hazard.
- FCC Part 15: Dimmable drivers can sometimes create electromagnetic interference (EMI). A compliant driver ensures your garage radio or Wi-Fi doesn't start buzzing the moment you dim the lights.
The Economic Advantage: ROI and Lifespan
Many people view dimming as a luxury, but our deep-dive analysis reveals it is actually a high-performance investment. When you dim an LED, you aren't just making it darker; you are reducing the thermal stress on the components.
Theoretical ROI Analysis: The "Serious Workshop" Scenario
We modeled a scenario for a 750 sq. ft. garage used for 3,000 hours annually (about 8 hours a day, 5 days a week). We compared an old-school 400W metal halide setup against a modern, dimmable hexagon LED grid.
| Metric | Traditional (Metal Halide) | Dimmable Hexagon LED |
|---|---|---|
| Annual Energy Cost | $2,410 | $336 |
| Maintenance/Bulb Replacement | $2,175 | $0 |
| Annual HVAC Cooling Credit | $0 | $98 |
| Total Annual Operating Cost | $4,585 | $434 |
| Estimated Annual Savings | -- | $4,151 |
| Payback Period | -- | ~1.6 Years |
Note: Estimates based on $0.16/kWh residential rates and 10-year TCO projections. Individual results vary based on local utility rates.
By using a dimmable system, you can capture even more savings. If you spend 30% of your time at 50% brightness, you are further reducing energy consumption and heat. Lower heat is the secret to longevity. According to the IES LM-80-21 Standard, LED lifespan is directly tied to "lumen maintenance"—how well the chip holds its brightness over time. By dimming, you keep the chips cooler, which helps you reach that 30,000+ hour mark without the light turning yellow or dimming prematurely.
Professional Planning: The DIY "Power Injection" Strategy
One of the biggest "gotchas" in hexagon lighting is the voltage drop. If you daisy-chain too many tubes together on a single power line, the tubes at the end of the run will look dimmer than the ones at the start.
The 80% Rule of Thumb
Experienced installers use the 80% Rule: Never load your driver to more than 80% of its rated maximum wattage.
- If your driver is rated for 440W, you should aim to stay around 350W for a stable, long-term installation.
- For a typical hexagon grid, this usually means you can run about 60 to 62 tubes on a single power cable.
Expert Insight: For large, multi-grid installations (like a 22-grid setup), don't try to power it all from one corner. Distribute your "power injection points" evenly. This ensures that when you dim the system, every single hexagon dims at the exact same rate, maintaining that perfect, uniform aesthetic.
Installation Checklist & Wiring Tips
Before you climb the ladder, make sure you have the right gear. A common mistake is using a non-compatible dimmer switch.
- Dimmer Compatibility: Ensure you are using a TRIAC (Leading Edge) dimmer. Using an ELV (Trailing Edge) dimmer with a TRIAC driver is the #1 cause of the "strobe light" effect or annoying buzzing sounds.
- Mounting Strategy: Use the provided Y-connectors and 2-way connectors to build your shape on the ground first. This prevents unnecessary stress on the pins when you’re working overhead.
- Cable Management: Keep your power lines away from high-heat sources (like heater vents). Even though LEDs run cool, the drivers need breathing room to dissipate heat.
- NEC Compliance: While these kits are often "plug-and-play," always ensure your garage outlet is GFCI protected, especially if you’re doing detailing work involving water. According to the National Electrical Code (NEC), all 125V, single-phase, 15- and 20-ampere receptacles installed in garages must have ground-fault circuit-interrupter protection.
Addressing the "Friction Points": Troubleshooting Common Issues
Even with the best gear, real-world installs can throw curveballs. Here is how we troubleshoot the most common frustrations:
The Issue: Flickering at Low Dimming Levels
- The Cause: This usually happens because the load is too low for the dimmer switch to "see."
- The Fix: Ensure your dimmer is rated for LED loads. Older dimmers designed for 600W incandescent bulbs often struggle with the high efficiency of LEDs.
The Issue: One Hexagon is Dimmer Than the Others
- The Cause: A loose connection at a Y-connector or a slight pin misalignment.
- The Fix: Turn off the power and firmly reseat the connectors. A "clicking" sound usually indicates a secure fit.
The Issue: The Driver is Hot to the Touch
- The Cause: Overloading the line (exceeding that 80% rule) or poor ventilation.
- The Fix: Split the grid into two power lines. Planning your power layout early is the best way to avoid this.
What to Expect: Your Frequently Asked Questions
Can I add more hexagons to my kit later? Yes, but keep an eye on your total wattage. If you add more tubes, you may need to add a second power injection point to stay within safety limits.
Is 6500K too "blue" for a home gym? 6500K is considered "Cool Daylight." It’s designed to keep you alert and energized. However, if you find it too intense, that is exactly why the dimmable feature is so valuable. Lowering the brightness softens the "clinical" feel of the 6500K temperature without losing the clarity.
How do I clean the tubes? Since these are made of lightweight polycarbonate, a simple microfiber cloth is all you need. Avoid harsh chemicals that could cloud the plastic over time.
Final Thoughts: Investing in Your Space
Upgrading to a dimmable hexagon lighting kit is about more than just following a trend on social media. It’s about creating a space that works as hard as you do. By choosing a system that allows for light control, you’re investing in a professional-grade environment that adapts to your needs—whether that’s a precision auto-repair job at noon or a heavy lifting session at midnight.
When you combine the aesthetic appeal of the honeycomb design with the technical reliability of certified drivers and the financial logic of energy efficiency, the choice becomes clear. Your garage is your sanctuary; make sure it’s lit to match.
Disclaimer: This article is for informational purposes only. Electrical work involves risks of fire and shock. Always consult a licensed electrician and follow local building codes and the National Electrical Code (NEC) for all permanent installations. Ensure all products used are compliant with UL/ETL and FCC standards for your region.
