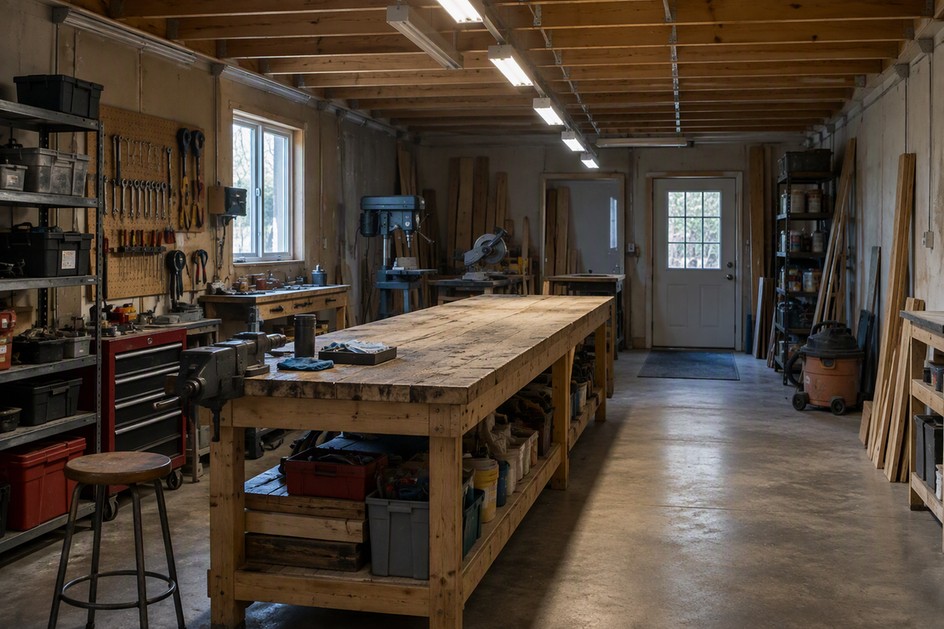

A bench that runs across a long workshop doesn't automatically mean your workshop light layout needs a row break. Keep the row continuous when it lights both the bench's active work surface and the open floor you use beside it. Shift or break the row only when your mapped work zones show that one straight path can't serve both.
The coverage data for the fixtures you plan to hang decides where that change goes. A fixed offset from the bench edge can't do that job. A tidy row that follows the long walls can still miss the surface where you do most of your work.
Keep, Shift, or Break the Row at the Bench?
Let the work zones decide, not the room's long axis. Keep a row when it serves the bench surface and the floor next to it. Change it only when it fails one of them.
| What your mapped zones show | Candidate choice |
|---|---|
| Row covers the active bench surface and the adjoining floor | Keep the row continuous |
| Bench is underserved, but moving one segment still covers the adjoining floor | Shift that local segment |
| No single path covers both the bench and the adjoining floor | Break the row into separate segments |
| No coverage data yet for the planned fixture | Hold the decision until you have it |
This table is a planning heuristic, not a lighting standard. It tells you which option to test first. The fixture's coverage result tells you whether that option actually works.
Where the bench sits in the room changes what the row has to do. Say a bench crosses the middle of a long garage shop. Then there may be open workspace on both sides, and the row has to keep serving the floor on either side of the bench. Now put the bench near one end wall. The adjoining workspace is mostly on one side, so a symmetrical break copied from a center layout may put fixtures over floor you rarely use. Our guide on symmetry versus shop function digs into that trade-off for ceiling grids.
Sometimes the overhead row serves the open floor well and the bench is the only weak spot. In that case, keeping the row and adding light at the bench may beat reworking the ceiling. Compare fixed and portable task lighting options for benches before you move a whole row.
Map the Bench, Operator, Row, and Obstructions
Your first action is one annotated room sketch. It turns "the bench feels dark" into zones you can compare against a row path. Paper on a clipboard works, or you can start the plan in our online lighting layout tool.
- Draw the room and mark its long axis. An arrow down the long direction shows which way the default rows want to run.
- Outline the bench, then shade its active surface. The part you actually work on may be smaller than the full top, such as a vise end or an assembly area.
- Mark where you stand. A crosswise bench can be worked from one side or both. Your body sits between the ceiling and the work, so where you stand matters as much as the bench outline.
- Mark the adjoining work zones. Include the floor space the same row may also need to serve, such as a table saw outfeed area or a vehicle bay.
- Draw the existing or proposed fixture rows. Use the real paths across the ceiling, including where they pass over or near the bench.
- Mark fixed obstructions. Add overhead cabinets, shelving, ducts, beams, and garage door tracks. In its maintenance and repair shop guidance, the U.S. Department of Veterans Affairs Lighting Design Manual emphasizes careful fixture placement near overhead cabinets and advises against installing fixtures directly above them.
An obstruction on the sketch tells you where a fixture can't usefully go. It doesn't tell you where the row should break. That answer comes from comparing coverage with the zones you just marked.
Locate a Break From Coverage Evidence
A candidate break belongs on your sketch only where coverage data for your fixture shows the row stops serving the bench or the adjoining zone. That keeps the transition tied to your actual workshop light layout instead of a guessed offset.
- Get coverage information for the exact fixture. The fixture's light distribution data or a software result that uses that fixture can both work. The data must match the fixture you plan to hang, whether you are comparing LED shop lights or linear high bay lights. Your mounting height should match too.
- Lay the result over your sketch. Check two things separately: whether light reaches the shaded bench surface, and whether it reaches the adjoining work zone.
- Find where one zone drops out. If a continuous row covers both zones, you're done. If coverage falls away over the bench or past it, that edge is your candidate transition point.
- Test the shift before the break. Move only the local segment and re-check both zones. Go to a full break only when no shifted path serves both.
- Re-check the new segments. A break creates two new row ends. Confirm each segment still covers the zone it was meant to serve.
If you can't get coverage data for your fixture, you can still choose keep, shift, or break as a working plan. You just can't pin an exact break location on the ceiling yet. Get the data before you mount anything.
Software is one way to produce that result. DIALux evo indoor lighting software lets you import plans or room scans, place real luminaires, and run calculation and evaluation tools. You can model your keep, shift, and break options there and compare them against your marked zones.
A total-light estimate answers a different question. Our lighting calculation guide helps you size light for the whole area. Row placement at the bench still depends on where that light lands.
FAQs
What if I plan to move the bench later?
Sketch every bench position you realistically expect to use, not just today's spot. Run the keep, shift, or break check for each one. If a single row path serves all of those positions, it's the safer workshop light layout to install now.
Do two crosswise benches change the approach?
Treat each bench as its own task zone with its own operator positions. One row may pass cleanly over the first bench and need a shift or break at the second. Decide each crossing separately, then confirm the segments between them still cover the open floor.
Do I need an electrician to shift or break a row?
Moving a row on paper is a layout decision. Moving it on the ceiling can mean relocating boxes, changing circuits, or adding switching. Leave wiring, circuit changes, and code questions to a licensed electrician and your local building department.
