When facility managers, contractors, and specifiers compare UFO vs. linear high bays, the real question is not “which fixture is cheaper?” but “which configuration delivers the lowest 10‑year total cost of ownership (TCO) for a given space and task.

This guide breaks down that TCO in a structured way: first by clarifying when each form factor is technically appropriate, then by walking through a numeric 10‑year model that includes energy, maintenance, access equipment, and rebate impacts. The goal is to help you defend your recommendation to finance, safety, and the AHJ (authority having jurisdiction) with standards‑backed numbers, not marketing claims.

---

1. What Actually Drives 10‑Year TCO for High Bays?

For both UFO and linear high bay LED luminaires, 10‑year TCO is dominated by five components:

1. Fixture acquisition cost – luminaires, controls, and any accessories.
2. Energy cost – driven by wattage, operating hours, and energy price.
3. Maintenance and access – driver/board replacements, cleaning, and any lift/scaffolding.
4. Compliance and rebates – whether you qualify for utility incentives and pass plan review.
5. Risk factor – failure rates, warranty support, and documentation gaps.

A key gap in most vendor blogs is that they stop at fixture price and wattage. They rarely quantify lift rental, driver replacement, or failure rates over time, even though these dominate lifecycle cost in tall spaces. This guide closes that gap.

1.1 Technical baselines and standards

To keep comparisons fair and defensible:

• Performance metrics such as luminous flux, lumens per watt (lm/W), correlated color temperature (CCT), and power factor should be taken from an LM‑79 photometric report. The IES LM‑79‑19 standard defines how total lumens, efficacy, CCT, and CRI must be measured, so both UFO and linear high bays are tested under identical conditions.
• Lifetime and lumen maintenance should be based on LED package/module testing per LM‑80 and extrapolation via TM‑21. The IES LM‑80‑21 standard specifies 6,000+ hours of testing at controlled temperatures; TM‑21‑21 then limits lifetime projections to no more than 6× the test duration.
• Safety compliance for luminaires is generally demonstrated via UL 1598 or an equivalent NRTL listing. UL notes that UL 1598 covers fixed luminaires up to 600 V, including typical high bays. For LED drivers and modules, UL 8750 defines core electrical and thermal safety.
• For energy performance, many institutional buyers align with the U.S. Department of Energy’s FEMP LED luminaire guidelines, which set minimum efficacy thresholds by luminaire type.

Any credible TCO comparison between UFO and linear high bays should either reference these documents directly or link to the underlying reports (LM‑79, LM‑80/TM‑21, UL/ETL file numbers, and DLC listings).

1.2 Key usage assumptions for 10‑year models

In most industrial and warehouse projects, TCO modeling uses these working assumptions:

• Operating hours: 3,000–6,000 hours/year. This guide will show examples at 4,000 h/year (two shifts) and 5,000 h/year (nearly continuous retail/warehouse).
• Electricity cost: $0.08–$0.18/kWh is common for North American commercial tariffs. This guide will use $0.12/kWh as a base and a 2–3% annual escalation to be conservative.
• Lumen maintenance factor: practitioners often assume 0.90 at year 1, then degrade toward 0.70–0.75 by year 10, unless LM‑80/TM‑21 data support better performance.
• Maintenance access cost: elevated access typically runs $75–$150 per fixture per visit once lifts, labor, and safety overhead are included. A single unscheduled trip can erase modest fixture savings.
• Failure and replacement: conservative models set 0.5–2% annual failure rates, with driver replacement treated as a mid‑life cost if commodity (non‑project‑grade) drivers are used.

These assumptions are not regulatory; they are practical baselines used in many AGi32‑driven lighting calculations and facility planning models.

---

2. UFO vs. Linear: Optical Performance and Layout Economics

Before touching dollars, decide which form factor actually fits the space. Photometric behavior and mounting drive how many fixtures are needed and where they go, which in turn controls both capex and opex.

2.1 Beam distribution and spacing

Experience across dozens of layouts shows a useful heuristic:

• UFO high bays – ideal for open areas (assembly floors, open warehousing, aircraft hangars, barns). A good starting spacing‑to‑mounting height ratio (S/M) is 0.8–1.2.
• Linear high bays – ideal for racked aisles or long, narrow spaces. Typical S/M ratios run 1.2–1.6 along the aisle, with closer spacing across the aisle for uniformity.

The ANSI/IES RP‑7 guideline on industrial lighting emphasizes matching luminaire distribution to the task and space geometry to achieve recommended illuminance and uniformity while controlling glare. In practice, that translates to:

• UFOs with wide beams (90–120°) for square grids over open floor.
• Narrow‑beam linear high bays for “bow‑tie” patterns down aisles, minimizing light wasted on the tops of racks or into voids.

If you use UFOs in tall, narrow aisles, you often end up oversizing the system (extra fixtures or higher wattage) just to meet minimum horizontal foot‑candles in the aisle center. That shows up immediately in both capex and energy lines of your TCO model.

2.2 Glare, visual comfort, and task quality

Glare is not just a comfort issue; it affects productivity and safety. For specifiers targeting low unified glare rating (UGR) or visually demanding tasks, optics matter.

• UFOs typically have compact, high‑brightness emitting surfaces. Without reflectors or diffusers, they can produce higher high‑angle luminance, which is noticeable when operators look up toward cranes or stacked inventory.
• Linear high bays spread LEDs over a longer aperture and can integrate lenses or diffusers for better longitudinal glare control, especially valuable in aisles.

For a deeper dive into glare control and UGR considerations in high‑bay design, see the dedicated discussion in the guide on low‑UGR high bay lighting.

From a TCO perspective, poor glare control drives hidden costs: complaints, re‑aiming, and in some cases additional shielding or retrofits.

2.3 Controls compatibility and code compliance

High bays are increasingly judged by how well they support controls, not just raw efficacy. Newer energy codes such as ASHRAE 90.1‑2022 and IECC 2024 require occupancy sensing and daylight‑responsive controls in many commercial spaces. The ASHRAE 90.1‑2022 overview highlights tightened lighting power density (LPD) limits and mandatory automatic shutoff and partial‑off control.

Both UFO and linear high bays can ship with 0–10 V (or 1–10 V) dimming drivers and integrated or remote sensors, but linear runs often make:

• Zoning along aisles easier (continuous rows on a single control zone).
• Sensor coverage more predictable in racked spaces, aligning detection patterns with the aisle geometry.

If you miss these requirements in the design stage, you risk rework or failed inspections—a non‑trivial TCO impact.

---

3. 10‑Year TCO Model: UFO vs. Linear in Two Realistic Scenarios

This section steps through pragmatic 10‑year calculations. Values are generalized composites based on current project‑grade product tiers and common utility‑rebate baselines; they are not a substitute for project‑specific quotations and photometric layouts.

3.1 Core formula

For each option (UFO vs. linear), 10‑year TCO per fixture can be expressed as:

TCO₁₀ = Purchase + Energy₁₀ + Maintenance₁₀ − Rebates

Where:

• Purchase = fixture + mounting + sensor (if not separate).
• Energy₁₀ = Σ (W × hoursᵧ × tariffᵧ / 1000) for years 1–10, with tariff escalation.
• Maintenance₁₀ = planned cleanings, driver/board replacements, plus unscheduled failures (including lift and labor).
• Rebates = upfront incentives based on DLC listing and controls.

3.2 Scenario A: 30‑ft open warehouse (UFO‑favored)

Space: 20,000 ft², 30 ft mounting height, open floor (no tall racking). Target 30–40 fc average.

Typical layout and performance assumptions:

• UFO high bays, 200 W nominal, 140 lm/W, ~28,000 initial lumens.
• S/M ratio ~1.0 → ≈20 ft spacing grid → ~50 fixtures.
• Linear high bays, 165 W nominal, 150 lm/W, ~24,750 lumens.
• To achieve the same average illuminance and uniformity in open floor with linears, you need slightly more fixtures—assume 60 fixtures at 165 W.

Capex comparison (per project):

Item	UFO High Bay	Linear High Bay
Fixtures required	50	60
Purchase price per fixture (indicative)	1.00× baseline	1.15× baseline
Relative fixture cost index	50 × 1.00 = 50	60 × 1.15 = 69

In open areas, UFOs generally deliver the required illuminance with fewer fixtures, and linear housings tend to be slightly more expensive per unit because of larger steel bodies and more complex packaging. Even if the linear is marginally more efficient (150 vs. 140 lm/W), that does not fully offset the additional fixture count in this geometry.

Energy comparison (per project, 10 years):

Use 4,000 h/year, $0.12/kWh, 2% annual escalation.

• UFOs: 50 × 200 W = 10,000 W = 10 kW connected load.
• Linears: 60 × 165 W = 9,900 W ≈ 9.9 kW.

Connected loads are effectively equal. Over 10 years, with escalation, total energy cost for both systems is similar—within a couple of percent. The minor efficacy edge of the linears is overshadowed by the extra fixtures.

Maintenance comparison:

Assume both product families are LM‑80/TM‑21 backed to at least L70 @ 50,000+ hours, operation at 4,000 h/year (40,000 h in 10 years), and similar driver quality.

• Planned maintenance: one major elevated visit around year 7–8 for cleaning, plus spot driver replacements. Using the $75–$150 per‑fixture visit cost range, a single project‑wide cleaning event can cost $3,750–$7,500 for 50 UFOs vs $4,500–$9,000 for 60 linears.
• Failures: At 1% annual failure rate, expect ~5 failures/year for UFOs and ~6/year for linears. Because each visit to a given bay carries a large fixed cost (lift mobilization, lockout/tagout, etc.), systems with fewer total fixtures experience slightly lower total maintenance overhead over 10 years.

Rebates and compliance:

• Both UFO and linear high bays can hit DLC 5.1 Premium efficacy thresholds when designed at 140–150+ lm/W.
• The DesignLights Consortium Qualified Products List is the definitive source utilities use to verify eligibility; missing entries or mismatched model numbers are common rebate killers.
• When both options carry DLC Premium and 0–10 V dimming, rebate dollars are typically similar per kW or per fixture. Total rebate payout may be slightly higher for the linear system due to the higher fixture count, but not enough to overcome the higher capex and maintenance.

Scenario A takeaway: For large, open 30‑ft spaces, UFO high bays generally win on 10‑year TCO because they:

• Use fewer fixtures to achieve target illuminance.
• Have similar or only slightly lower efficacy.
• Pay less in aggregate for lift‑based maintenance over the decade.

This aligns with the practical trend discussed in many field reports: open warehouses and arenas are now dominated by UFO‑form high bays.

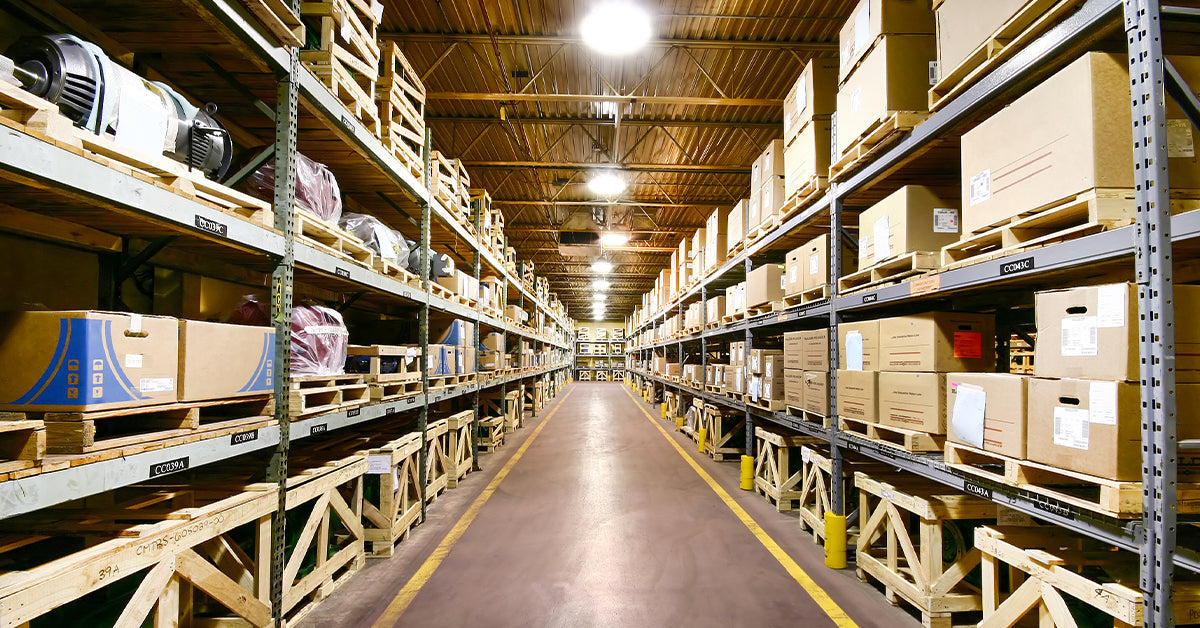

3.3 Scenario B: 30‑ft racked warehouse aisles (linear‑favored)

Space: Same 20,000 ft² shell, now built out with 28‑ft high pallet racking and 12‑ft aisles. Target 20–30 fc in aisles, good vertical illuminance on rack faces, limited glare.

Layout and performance assumptions:

• UFOs, 150 W, 140 lm/W, 21,000 lumens each, wide beam.
• To maintain aisle illuminance and vertical light, but avoid excess light on rack tops and cross‑aisle glare, designers often use two staggered rows of UFOs per bay, resulting in more total fixtures. Assume 80 UFOs.
• Linears, 130 W, 150 lm/W, 19,500 lumens, 110° beam, run continuously down the centerline of each aisle with optimized optics.
• Because the light is directed exactly where needed, you typically achieve the same lighting performance with about 60 linear fixtures.

Capex comparison (per project):

Item	UFO High Bay	Linear High Bay
Fixtures required	80	60
Purchase price per fixture (relative)	1.00× baseline	1.15× baseline
Relative fixture cost index	80 × 1.00 = 80	60 × 1.15 = 69

In aisle applications, even though linear fixtures may cost more individually, their more efficient light distribution often means fewer fixtures overall than a UFO layout. Here, the linear system actually reduces total fixture capex by ~14% relative to UFOs (80 vs. 60 units at the given price index).

Energy comparison (per project, 10 years):

Use 5,000 h/year and $0.12/kWh, 2% escalation.

• UFOs: 80 × 150 W = 12,000 W = 12 kW.
• Linears: 60 × 130 W = 7,800 W = 7.8 kW.

Year‑1 energy costs:

• UFOs: 12 kW × 5,000 h × $0.12 ≈ $7,200.
• Linears: 7.8 kW × 5,000 h × $0.12 ≈ $4,680.

That’s a 35% reduction in annual energy cost. Over 10 years with 2% escalation, the cumulative savings typically land in the 30–40% range depending on actual hours and tariffs.

This aligns with the broader savings ranges reported by DOE’s Solid‑State Lighting solutions guidance, which notes that well‑designed LED systems with appropriate controls can reduce lighting energy use by 40–60% compared with legacy systems. Here, we are looking at savings between two LED options; distribution‑driven efficiency gains alone can still be substantial.

Maintenance comparison:

• Planned maintenance events still occur once or twice in the decade for both systems.
• UFOs: 80 fixtures × $75–$150 per elevated visit → $6,000–$12,000 per event.
• Linears: 60 fixtures × $75–$150 → $4,500–$9,000 per event.

In constrained aisles, lift work is slower, and access windows are shorter; this amplifies labor cost differences. Over 10 years, the linear layout’s reduced fixture count and centralized aisle mounting translate into lower service cost and less disruption to operations.

Rebates and compliance:

• Both options can be DLC Premium if they meet the efficacy thresholds.
• However, linears with integrated or field‑installed occupancy sensors per aisle are often easier to document for advanced controls rebates.
• Many utility programs (complementing the DSIRE incentives database) pay extra for bi‑level or networked controls; these add further TCO advantage to linear aisle systems whose control zones align naturally with the geometry.

Scenario B takeaway: In racked aisles, linear high bays typically deliver lower 10‑year TCO because they:

• Need fewer fixtures to light the working plane and vertical faces.
• Use less connected watts due to directional optics and slightly higher lm/W.
• Are simpler to zone and sensitize with occupancy/daylight controls for extra savings.

---

4. Structured Comparison: When to Use UFO vs. Linear High Bays

The following table summarizes how the main TCO drivers play out for typical applications.

4.1 Pros/cons and TCO impact

Factor	UFO High Bays	Linear High Bays
Best applications	Open warehouse, gyms, arenas, barns, hangars, large shops	Racked warehouses, long aisles, supermarkets, line production, big‑box retail
Typical S/M ratio	0.8–1.2 in open areas	1.2–1.6 along aisles (tighter across aisle)
Fixture count vs. open floor	Fewer fixtures in open areas	More fixtures in open areas at same illuminance
Fixture count vs. aisles	Often more fixtures needed to cover aisles uniformly	Fewer fixtures in aisles due to directional distribution
Installed cost per fixture	Often slightly lower for comparable lm/W	Often slightly higher (larger housings, more steel)
Energy efficiency (lm/W)	130–150+ lm/W for project‑grade models	140–160+ lm/W for project‑grade models
Glare control in aisles	Higher risk of high‑angle glare without accessories	Better longitudinal glare control with lenses/diffusers
Controls integration	Good for zone‑based high‑bay sensors; harder to zone by aisle	Very strong for aisle‑based zoning and continuous rows
Maintenance access	Point fixtures; easy in open floors	Still straightforward; centralized above aisles
10‑year TCO in open spaces	Usually lower (fewer fixtures, similar energy)	Usually higher (more fixtures for same fc)
10‑year TCO in aisles	Usually higher (more fixtures, more watts)	Usually lower (fewer fixtures, less watts, better controls)

4.2 Pro Tip: Don’t ignore beam angle and racking height

A recurring mistake is treating UFO vs. linear as purely a “shape preference” decision. Field analysis shows that beam angle mismatch is one of the largest hidden TCO drivers:

• Wide‑beam UFOs in tall, narrow aisles throw large fractions of light onto the tops of racks and into voids—wasted lumens that still generate energy and glare.
• Conversely, narrow‑optic linears in a low, open shop can create striping and high contrast, pushing you to add fixtures to smooth it out.

Before finalizing fixture type, always:

1. Confirm rack height, aisle width, and future storage plans.
2. Check the IES file (per IES LM‑63 photometric file format) in AGi32 or another tool.
3. Validate that the resulting layout meets RP‑7 recommended illuminance and uniformity with minimal waste.

This extra hour of photometric work often shifts the specification decisively toward UFOs or linears and locks in thousands of dollars in avoided lifetime cost.

---

5. Building Your Own 10‑Year TCO Model

Every project is different, but a consistent modeling framework helps you explain choices to stakeholders. The steps below are tuned for professionals who have access to LM‑79 reports, DLC listings, and at least one layout iteration.

5.1 Step‑by‑step checklist

1. Define the application and code context.

   • Open floor vs. racked aisles, mounting height, target fc/lux, and local adoption of ASHRAE 90.1, IECC, and (for California) Title 24. The Title 24 2022 lighting controls guide shows how aggressively some jurisdictions require multi‑level dimming and occupancy/daylight controls; design your baseline accordingly.

2. Gather technical documentation for each candidate fixture family (UFO and linear).

   • LM‑79 report (for lumens, lm/W, CCT, CRI, PF).
   • LM‑80/TM‑21 summary (for L70 life).
   • UL/ETL file numbers referencing UL 1598 and UL 8750 compliance.
   • DLC QPL listing URL (confirm version and category) from the DLC QPL database.

3. Run one photometric layout per option.

   • Use real IES files per LM‑63 spec.
   • Optimize fixture spacing using S/M ratios (0.8–1.2 for UFO, 1.2–1.6 for linear aisles) and check uniformity and glare.
   • Record the final fixture count and wattage per fixture.

4. Compute connected load and annual energy.

   • Connected kW = (fixture count × W per fixture) / 1,000.
   • Annual kWh = connected kW × operating hours.
   • Annual energy cost = kWh × tariff.
   • Project 10‑year total with 2–3% tariff escalation.

5. Quantify maintenance and failure costs.

   • Estimate planned cleanings/inspections: usually 1–2 elevated visits in 10 years.
   • Use $75–$150 per fixture per elevated visit as a realistic installed cost for high‑bay access.
   • Apply a 0.5–2% annual failure rate for drivers/boards, multiplied by per‑fixture service cost.

6. Apply rebates and incentives.

   • Confirm DLC Premium status and controls capabilities.
   • Use DSIRE or utility‑specific rebate tables (for example, those linked from the DSIRE database) to estimate per‑fixture or per‑kW incentives.
   • Subtract these from upfront cost.

7. Run sensitivity bands.

   • Vary electricity price by ±30% and operating hours by ±20%.
   • Identify whether your choice is robust: in many retrofits, these parameters alone can flip payback between two options.

5.2 Myth‑busting: “Higher lm/W always wins TCO”

A common myth is that the highest lm/W fixture always delivers the lowest TCO. Real‑world modeling shows this is not accurate for high bays:

• A slightly less efficient UFO that needs 40 fixtures to hit your fc target can beat a more efficient linear that needs 60 fixtures in an open floor.
• In aisles, a mid‑range linear with the right optic may reduce fixture count and watts by 30–40% compared to a higher‑efficacy UFO that sprays light in all directions.

Efficacy is important, and thresholds like those in the DOE’s FEMP LED luminaire specification are good guardrails. But within that high‑efficacy band, optics and layout dominate TCO.

---

6. Expert Warning: Don’t Ignore Maintenance Access and Documentation

Many blog‑level comparisons of UFO vs. linear high bays focus on qualitative pros and cons—“UFOs are compact,” “linears spread light better”—and then stop. A more rigorous view highlights two underestimated TCO levers.

6.1 Maintenance access is often the largest hidden cost

For high‑ceiling spaces, every elevated visit matters:

• Lift rental, delivery, and pickup.
• Safety setup (cones, floor protection, lockout/tagout).
• Actual labor time to access the fixture, troubleshoot, and replace components.

When these are fully burdened, it is realistic to budget $75–$150 per fixture per elevated visit. Over 10 years, even small differences in fixture count or failure rates between UFO and linear designs translate into thousands of dollars.

When comparing options, always:

• Count how many fixtures are in hard‑to‑reach locations (above critical equipment, congested aisles, or obstructions).
• Discount fixtures with well‑documented LM‑80/TM‑21 and robust drivers: these tend to fail less and need fewer visits.

6.2 Documentation gaps can kill rebates and delay projects

Another underappreciated TCO driver is documentation quality:

• If the DLC QPL listing does not match the exact model on the submittal, utility programs can deny or reduce rebates.
• Missing LM‑79 or LM‑80 summaries make it hard to satisfy owner or engineer requirements and can trigger redesigns.
• Absent UL/ETL listing references cause delays in electrical inspections.

Before locking a UFO or linear family into your TCO model, verify that the manufacturer can provide:

• Direct DLC QPL links for the exact catalog numbers you intend to use.
• LM‑79 reports that demonstrate lm/W and CCT compliance with ANSI C78.377 chromaticity quadrangles.
• LM‑80/TM‑21 data to justify lifetime assumptions.
• UL/ETL listing evidence against UL 1598 and UL 8750 (or equivalent).

These documents are not just “nice to have”; they are often the difference between collecting thousands in rebates or receiving none.

---

7. Putting It All Together: Fast Decision Framework

When you need a quick, defensible recommendation on UFO vs. linear high bays for 10‑year TCO, use this framework.

7.1 Decision checklist

1. Is the space primarily open or racked?

   • Mostly open, 25–40 ft mounting height, few tall obstructions → UFO high bays are usually the TCO leader.
   • Mostly racked aisles, or long process lines with equipment → Linear high bays are usually the TCO leader.

2. Can both options meet or exceed FEMP/DLC efficacy thresholds?

   • If either option falls below the high‑efficacy band defined by FEMP and DLC, drop it; long‑term energy and code risks outweigh small capex savings.

3. Which option uses fewer fixtures for a compliant layout?

   • Run a quick AGi32 layout per IES RP‑7 targets using supplied IES files.
   • Prioritize the layout with fewer fixtures at acceptable uniformity and glare.

4. Which option is more controls‑friendly?

   • For aisles, continuous linear rows with integrated sensors usually yield lower TCO.
   • For open areas, zone UFOs with high‑bay occupancy sensors and daylight harvesting where possible.

5. How do maintenance and access differ?

   • Compare the number of fixtures in difficult locations between layouts.
   • Multiply that by realistic per‑visit costs and failure rate assumptions.

6. Do both fixture families have complete documentation?

   • If documentation is thin or inconsistent, treat that as a TCO penalty due to rebate risk and project friction.

7.2 Where to go deeper

If you are designing specifically for:

• Warehouse safety and egress, consult the guide on designing high bay layouts for warehouse safety, which ties illuminance and uniformity targets to common accident scenarios.
• Fine mechanical or automotive work in open shops, see why many mechanics lean toward UFO layouts in the article on UFO high bays for task lighting.
• Advanced controls and zoning for high bays (especially in high‑rate energy markets or Title 24 jurisdictions), the guide on zoning UFO high bay dimming controls provides wiring and strategy examples.

---

Key Takeaways for 10‑Year TCO

• Form factor follows geometry. UFO high bays dominate 10‑year TCO in open, high‑ceiling spaces; linear high bays shine in racked and aisle‑heavy layouts.
• Efficacy is necessary but not sufficient. Once both options clear high‑efficacy thresholds (DLC/FEMP levels), fixture count and optical distribution drive more of the TCO difference than lm/W alone.
• Access and maintenance costs are non‑negotiable. Budget $75–$150 per fixture per elevated visit and explicitly model failure rates; ignoring these figures undermines the comparison.
• Documentation and compliance are part of TCO. LM‑79, LM‑80/TM‑21, UL/ETL listings, and DLC QPL entries directly impact rebate eligibility and approval timelines.
• Run sensitivity bands. ±30% swings in energy price and ±20% in operating hours are common; test both UFO and linear options across these bands to ensure your choice remains robust.

By following this framework, contract buyers, facility managers, and electrical contractors can move beyond sticker‑price arguments and select UFO or linear high bays based on quantified, standard‑backed 10‑year ownership costs.

---

Safety & Compliance Disclaimer:

This article is for informational purposes only and does not constitute engineering, electrical, legal, or code‑compliance advice. Always consult a licensed professional engineer or qualified electrician and review applicable standards and local codes (including NEC/NFPA 70, ASHRAE 90.1, IECC, Title 24, and local amendments) before designing, installing, or modifying any lighting system.
