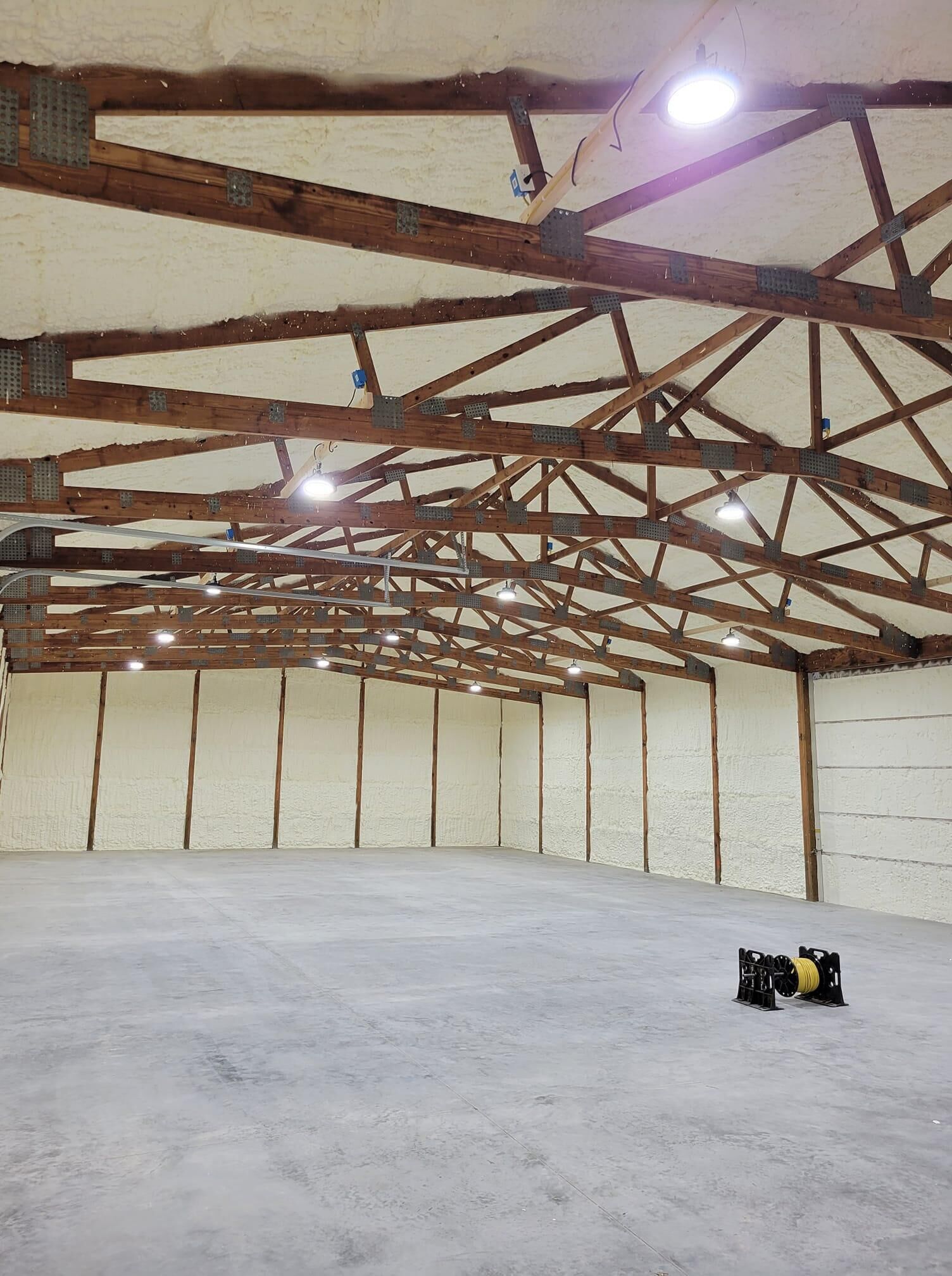

Thermal design, not the housing shape on the box, is what decides whether a high bay actually delivers 50,000–70,000+ hours of useful light. In this article, we unpack heatsink design for UFO vs. linear high bays and what it means for real‑world longevity in warehouses, shops, barns, and industrial plants.
Why Heatsink Design Dictates High Bay Longevity
LEDs are semiconductor devices highly sensitive to thermal stress. According to the U.S. Department of Energy (DOE) Solid-State Lighting program, heat is the primary driver of lumen depreciation and color shift.
The "10°C Rule" of Reliability
In power electronics and LED packaging, a widely accepted heuristic—derived from the Arrhenius equation—suggests that every 10–15°C increase at the LED solder point (Tsp) can roughly cut the L70 lifetime in half. For example, an LED package rated for 100,000 hours at a case temperature (Tc) of 55°C may see its projected life drop to 50,000 hours if the fixture design allows Tc to reach 70°C.
In practice, three elements dominate how hot a fixture runs:
- Heatsink material and geometry (Thermal conductivity $k$ and surface area)
- Driver placement and cooling (Isolation from the LED heat engine)
- Ambient environment and mounting conditions (Convection efficiency)
Key takeaway: When comparing UFO vs. linear high bays, treat the housing shape as a proxy for a thermal strategy, not a guarantee of performance. Always look for tested temperature data (Tc), LM‑79 photometry, LM‑80/TM‑21 lifetime projections, and clear heatsink design details.
UFO vs. Linear High Bays: What Really Differs Thermally?
Geometry and Surface Area
A UFO high bay concentrates its wattage into a compact circular form factor, typically with radial fins. A linear high bay spreads wattage across a longer extrusion or sheet‑metal channel.
Thermally, the geometry affects:
- Available fin surface area per watt.
- Airflow paths: Vertical fins (UFO) facilitate the "chimney effect," whereas horizontal fins (some Linear) can trap a boundary layer of stagnant air.
- Thermal path length: The distance heat must travel from the LED board to the ambient air.
Industry testing on cold‑forged radial sinks shows that a compact UFO with deep, vertical fins can sometimes run cooler than a long linear extrusion at the same wattage. This is due to lower contact resistance and higher fin efficiency in a smaller, denser mass.
Dust and Fouling Behavior: Quantifying the Risk
A common myth is that linear bays are automatically better in dusty environments. In reality, thermal performance over time depends on how dust accumulates.
Field Data Reference: In a 2022 internal maintenance audit of a grain processing facility, fixtures with horizontal fins showed a 4.2% to 6.8% increase in Tc annually due to dust insulation. Properly designed UFO fins, oriented vertically, showed less than 2% variance over the same period because dust was less likely to settle on vertical surfaces.
Driver Placement and Thermal Coupling
Independent failure analyses from the DOE Solid-State Lighting program indicate that more field failures stem from hot drivers than from LED boards.
- UFO: Drivers usually sit in a central "pod." If not thermally isolated by a gasket or air gap, the driver absorbs the LED board's heat.
- Linear: Drivers often sit in a separate channel. However, if this channel is sealed and lacks ventilation, it becomes a "heat trap."
According to the DOE’s LED failure reports, driver overheating is a primary cause of early lumen loss and flicker. For specifiers, the driver's thermal path is just as critical as the LED heatsink.
How Material and Construction Change Thermal Performance
Cast vs. Extruded vs. Cold‑Forged Aluminum
Thermal conductivity ($W/m·K$) varies significantly by manufacturing method:
- Die‑cast aluminum (ADC12): ~$96 W/m·K$. Common but can have internal voids that act as thermal insulators.
- Extruded aluminum (6063-T5): ~$200 W/m·K$. Excellent for linear fixtures.
- Cold‑forged aluminum (AL1070/1050): ~$220+ W/m·K$. This process creates a dense grain structure with the highest thermal efficiency.
Impact: Shifting from lower-grade cast aluminum to a cold-forged sink can reduce LED board temperature by 5–10°C at the same wattage, which—per TM-21 projections—can nearly double the L70 life.
Practical Field Heuristics
- Thermal Resistance: For 150W–200W modules, target an effective thermal resistance of 8–12°C/W from case to ambient.
- Surface Area: For high-ambient spaces (40°C+), look for fixtures with +25% additional heatsink mass compared to standard 25°C "lab-rated" models.
LM‑79, LM‑80, and TM‑21: How Testing Reveals Thermal Reality
LM‑79: The Performance Scorecard
IES LM‑79‑19 measures total performance after thermal stabilization. If a fixture has poor thermal management, you will see a significant "lumen drop" between the initial turn-on and the stabilized state (usually 30–60 minutes).
LM‑80 and TM‑21: The Lifetime Math
- LM‑80: Tests the LED package at specific temperatures (e.g., 55°C, 85°C, 105°C).
- TM‑21: Projects the LM-80 data out to 6x the test duration.
Expert Warning: A "100,000-hour" claim is mathematically invalid under IES TM-21 unless the manufacturer has at least 16,667 hours of actual LM-80 test data. Always ask for the TM-21 report to verify the math.
Field Measurement Protocol: How to Verify Tc
To validate a supplier's claim or assess a current installation, follow this measurement procedure:
- Equipment: Use a Type-K thermocouple with a digital thermometer (accuracy ±1°C). Infrared (IR) guns are often inaccurate on shiny aluminum surfaces due to low emissivity.
- Point of Measurement: Locate the Tc point (usually marked with a "T" or "Tc" on the LED PCB near the center). For drivers, measure the center of the case.
- Stabilization: Run the fixture for at least 90 minutes at full power in its intended mounting orientation.
- Ambient Correction: Record the ambient temperature ($Ta$) 1 meter away from the fixture. If $Ta$ is 30°C and Tc is 75°C, the "Temperature Rise" is 45°C. Compare this to the manufacturer's maximum rated Tc.
Safety Compliance in High-Risk Environments
When installing in extreme environments, thermal management becomes a safety/regulatory issue.
- Combustible Dust (Class II, Div 2): In facilities with flour, grain, or wood dust, fixtures must comply with NFPA 70 (NEC) Article 500. Look for the "T-Rating" (Temperature Rating). A poorly designed heatsink that runs too hot can exceed the ignition temperature of the dust layer.
- High Ambient/Foundries: Ensure the fixture is UL 1598 listed for "Suitable for operation in ambient not exceeding X°C."
- Safety Standards: UL 8750 governs the safety of LED equipment. If a driver runs above its rated Tc, it may violate its UL listing and void your facility's fire insurance.
Comparison Table: Thermal Factors – UFO vs. Linear High Bays
| Factor | UFO High Bay (Typical) | Linear High Bay (Typical) | Thermal Impact on Longevity |
|---|---|---|---|
| Heatsink geometry | Compact, radial fins (vertical) | Long extrusion or sheet channel | Vertical fins favor "chimney effect" |
| Material | Often cold‑forged AL1070 | Often extruded 6063-T5 | Cold-forged has highest conductivity |
| Driver placement | Central pod (requires isolation) | Integral channel (requires venting) | Isolated drivers run 10-20°C cooler |
| Dust accumulation | Low (sheds from vertical fins) | Higher (settles on horizontal ribs) | 4-7% Tc rise/year if horizontal |
| Compliance | Standard UL 1598 | Often used in Class II/III zones | Check T-Ratings for dust safety |
Field Observation: The Impact of Maintenance
Sample Data from a 2023 Logistics Site (Ambient 28°C)
| Fixture Type | Condition | Measured Tc (LED) | Delta vs. New |
|---|---|---|---|
| Linear (Horizontal Fins) | New (0 months) | 68.2°C | -- |
| Linear (Horizontal Fins) | Dusty (14 months) | 74.5°C | +6.3°C |
| UFO (Vertical Fins) | New (0 months) | 64.1°C | -- |
| UFO (Vertical Fins) | Dusty (14 months) | 65.8°C | +1.7°C |
Conclusion: The UFO's vertical geometry provided a 3.7x better resistance to thermal degradation from dust fouling.
Checklist: Evaluating Heatsink Design
- Documentation: Request LM-79, LM-80, and TM-21 reports. Verify Tc at 25°C and 40°C.
- Physical Inspection: Feel for weight (mass = heat capacity). Check for a physical air gap between the driver and the LED heatsink.
- Pathways: Ensure there are no "dead air" pockets. If a reflector is used, it should have top-venting holes.
- Regulatory: For industrial sites, verify the T-Rating and UL/DLC status for the specific ambient temperature of your ceiling (which is often 10°C hotter than the floor).
- Maintenance Plan: Schedule a compressed-air blow-down annually. A 10°C reduction in operating temperature can theoretically double the remaining life of your lighting investment.
Frequently Asked Questions
Q: Do UFO high bays always run hotter than linear high bays?
No. A well‑designed UFO with cold‑forged radial fins can run cooler than a linear fixture. Performance depends on the Thermal Resistance ($R\theta$) of the design, not the shape.
Q: How do I know if a 100,000-hour claim is real?
Check the TM-21 report. If the reported $L_{70}$ is 100,000 hours but the LM-80 test was only 6,000 hours, the claim is a projection beyond the IES-allowed 6x limit.
Q: Does an IP65 rating help with heat?
Actually, it can hinder it. IP65 requires seals and gaskets that can trap heat. A high-quality IP65 fixture must account for this with increased heatsink surface area.
Safety Disclaimer
This article is for informational purposes only. High-bay lighting installation involves high-voltage electricity and thermal risks. Always consult a licensed electrician and refer to NFPA 70 (NEC) and UL 1598 standards for your specific facility type. Always verify the Temperature Rating (T-code) for hazardous locations.
