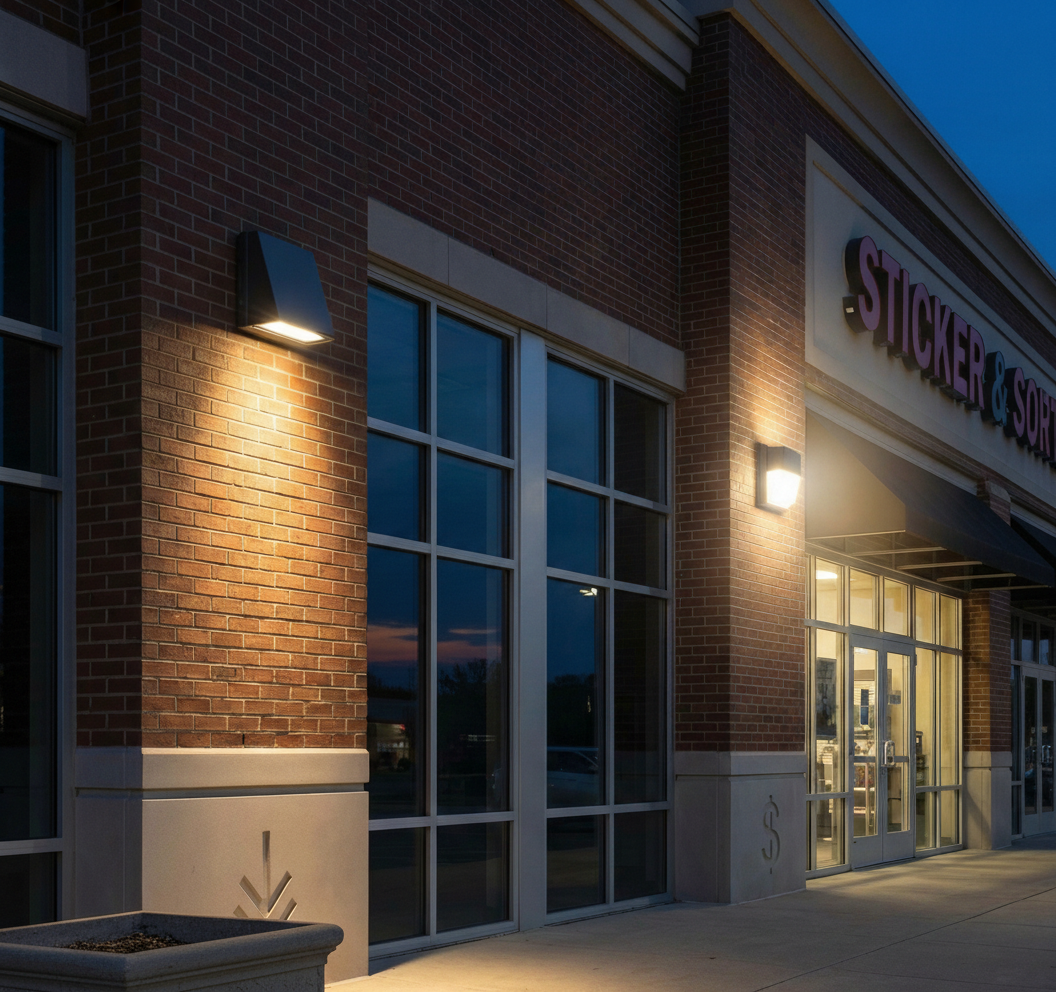

Navigating Title 24 Compliance for Outdoor Wall Packs
Meeting California's Title 24, Part 6 Building Energy Efficiency Standards is no longer just a matter of regulatory adherence; it is a critical strategy for maximizing operational ROI (Return on Investment). For commercial facility managers and electrical contractors, the integration of motion sensors into outdoor wall packs represents the most effective path toward compliance. When executed correctly, these systems slash energy consumption by over 60% while satisfying the mandatory multi-level control requirements for building perimeters and parking areas.
As detailed in our 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the industry is shifting toward "Value-Pro" solutions—fixtures that combine professional-grade durability with verifiable compliance artifacts. This guide provides the technical framework for adding motion sensors to outdoor wall packs, focusing on IP-rated (Ingress Protection) integrity, electrical safety standards, and real-world installation challenges in high-corrosion environments.
The Regulatory Framework: Title 24 and IECC 2024
In California, Title 24, Part 6 mandates that outdoor luminaires mounted below 24 feet must be controlled by motion sensors if the fixture wattage exceeds a specific threshold (typically 40W for most commercial applications). These sensors must be capable of reducing lighting power by at least 50% to 90% during unoccupied periods.
Furthermore, the International Energy Conservation Code (IECC) 2024 has expanded these requirements globally, lowering the Lighting Power Density (LPD) limits and emphasizing automated controls. For professionals, the goal is to ensure that every fixture on the Bill of Materials (BOM) carries a DLC (DesignLights Consortium) Premium listing. This certification is the industry's benchmark for high-performance SSL (Solid-State Lighting) and is often a prerequisite for utility rebates.
Core Compliance Requirements for Outdoor Sensors
- Multi-Level Control: Sensors must provide at least two levels of light output: a high state (occupied) and a low state (unoccupied).
- Automatic Shut-off: Systems must automatically return to the low state within 15 minutes of the last detected motion.
- Manual Override: Per Title 24 2022 Application Resource, inspectors now routinely verify that sensors have a manual override capability for maintenance and emergency access.
Logic Summary: Our compliance heuristics are based on the 2022 Title 24 update and IECC 2024 drafts. We assume a 15-minute timeout window as the standard operational baseline for commercial security lighting.
Technical Integration: Maintaining IP and IK Integrity
The primary challenge in adding sensors to wall packs is maintaining the fixture’s environmental seal. Outdoor wall packs are typically rated IP65 or IP66 according to IEC 60529. An IP65 rating indicates the housing is "dust-tight" and protected against water jets from any angle.
When installing an external sensor via a 1/2" NPT (National Pipe Thread) knockout, the integrity of the gasket is paramount. We have observed that the most common cause of premature sensor failure is not the electronic component itself, but moisture migration through the conduit.
Critical Hardware Specs for Outdoor Reliability
| Feature | Standard | Requirement |
|---|---|---|
| Ingress Protection | IEC 60529 | IP65 minimum for wet locations |
| Impact Resistance | IEC 62262 | IK08 or IK10 for high-traffic or low-mount areas |
| Safety Listing | UL 1598 | Mandatory for general luminaire safety |
| LED Driver Safety | UL 8750 | Required for the internal power supply components |
Field-Proven Installation Strategies
Drawing from extensive field experience in California coastal projects, successful Title 24 compliance requires more than just "plug-and-play" components. Environmental stressors in regions like Long Beach or the San Francisco Bay Area can degrade standard hardware in under two years.
1. The Drip Loop and Compression Connectors
Installers frequently underestimate how condensation travels through vertical conduit runs. To prevent water from entering the sensor housing, always install a drip loop below the conduit entry point. Furthermore, use sealed compression connectors rather than standard set-screw types. This creates a mechanical barrier against moisture migration, which we have identified as the #1 cause of sensor "ghosting" or total failure.
2. Marine-Grade Hardware Selection
For any installation within 5 miles of the coast, standard 304 stainless steel hardware will exhibit tea-staining and pitting within 12–18 months. We recommend 316 stainless steel or aluminum-bronze hardware. While this adds approximately 15% to the initial installation cost, it prevents the structural failure of the sensor mounting bracket over the fixture's 50,000-hour rated lifespan.
3. PIR vs. Microwave Sensors
- PIR (Passive Infrared): Best for areas with direct line-of-sight. They are less prone to "seeing through" thin walls but require protection from direct sunlight to prevent false triggers.
- Microwave Sensors: These perform better in windy conditions as they are not affected by air temperature changes. However, they require careful sensitivity calibration to avoid interference from moving vegetation or heavy rain.
Methodology Note: These practitioner observations are derived from recurring patterns in warranty claims and field audits of coastal commercial facilities (not a controlled laboratory study).
Economic Analysis: ROI and TCO Modeling
For a 25,000 sq. ft. facility, the transition from legacy 400W Metal Halide (MH) wall packs to 180W LED units with integrated motion sensors offers a compelling financial case. In California, where electricity rates often exceed $0.28/kWh, the energy savings alone often pay for the retrofit in less than a year.
Scenario: 25,000 Sq Ft Coastal Warehouse Retrofit
We modeled the Total Cost of Ownership (TCO) for a facility utilizing 40 wall packs. This model includes the "Interactive HVAC Credit," as LED fixtures produce significantly less waste heat, reducing the load on exterior-mounted cooling units.
| Metric | Value | Logic / Source |
|---|---|---|
| Annual Energy Savings | ~$13,600 | 40 fixtures × 278W reduction × 4,380 hrs @ $0.28/kWh |
| Annual Maintenance Savings | ~$5,300 | Avoided HID relamping + labor ($125/hr rate) |
| Annual HVAC Cooling Credit | ~$385 | 11.1kW reduction × 0.33 interactive factor / 3.2 COP |
| Total Annual Savings | ~$19,300 | Combined energy, maintenance, and thermal savings |
| Project Payback Period | ~0.5 Years | (Cost - $8,000 Utility Rebate) / Annual Savings |
Method & Assumptions: Warehouse Motion Intelligence Model
This scenario represents a deterministic parameterized model for a high-corrosion coastal environment.
- Model Type: Deterministic sensitivity analysis.
- Key Assumptions: 12-hour daily operation; PG&E commercial rate schedule; 5-year planning horizon.
- Boundary Conditions: Model assumes full capture of local utility rebates via DSIRE Database verification. Results may vary if sensors are not commissioned for optimal "low-state" dimming.
Commissioning and Compliance Documentation
A common pitfall in Title 24 projects is failing the final inspection due to poor commissioning. Inspectors now verify that the installed sensor’s actual coverage pattern matches the manufacturer’s submitted IES RP-7 photometric data.
The Twilight Commissioning Rule
Systems should always be commissioned during twilight hours. Many installations pass daytime "walk tests" but fail during the critical dusk-to-dawn transition. This is when the handoff between the photocell (dusk-to-dawn) and the motion sensor (occupancy) occurs. If the photocell threshold is set too high, the motion sensor may not trigger the "high state" until it is already pitch black, creating a security risk.
Verifying Performance Data
To ensure your project qualifies for utility rebates, you must provide verifiable performance data. This includes:
- IES LM-79-19 Reports: The "performance report card" verifying total lumens and efficacy (lm/W).
- IES LM-80/TM-21 Data: Proving long-term lumen maintenance ($L_{70}$ life).
- FCC Part 15 Compliance: Ensuring the LED drivers do not interfere with other sensitive electronic equipment on-site.
Maximizing Long-Term Reliability
Adding motion sensors to outdoor wall packs is a high-impact upgrade that balances regulatory necessity with massive energy savings. By selecting fixtures that meet ANSI C78.377 for color consistency and ensuring all components are UL Listed, you protect your investment from both environmental and legal risks.
For professionals navigating these requirements, the priority should be "Solid" engineering: 316 stainless hardware, proper drip loops, and DLC Premium certified fixtures. These details are the difference between a system that passes inspection and one that performs reliably for the next decade.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering, legal, or financial advice. Always consult with a licensed C-10 electrical contractor and your local Authority Having Jurisdiction (AHJ) to ensure full compliance with California Title 24 and local building codes.
