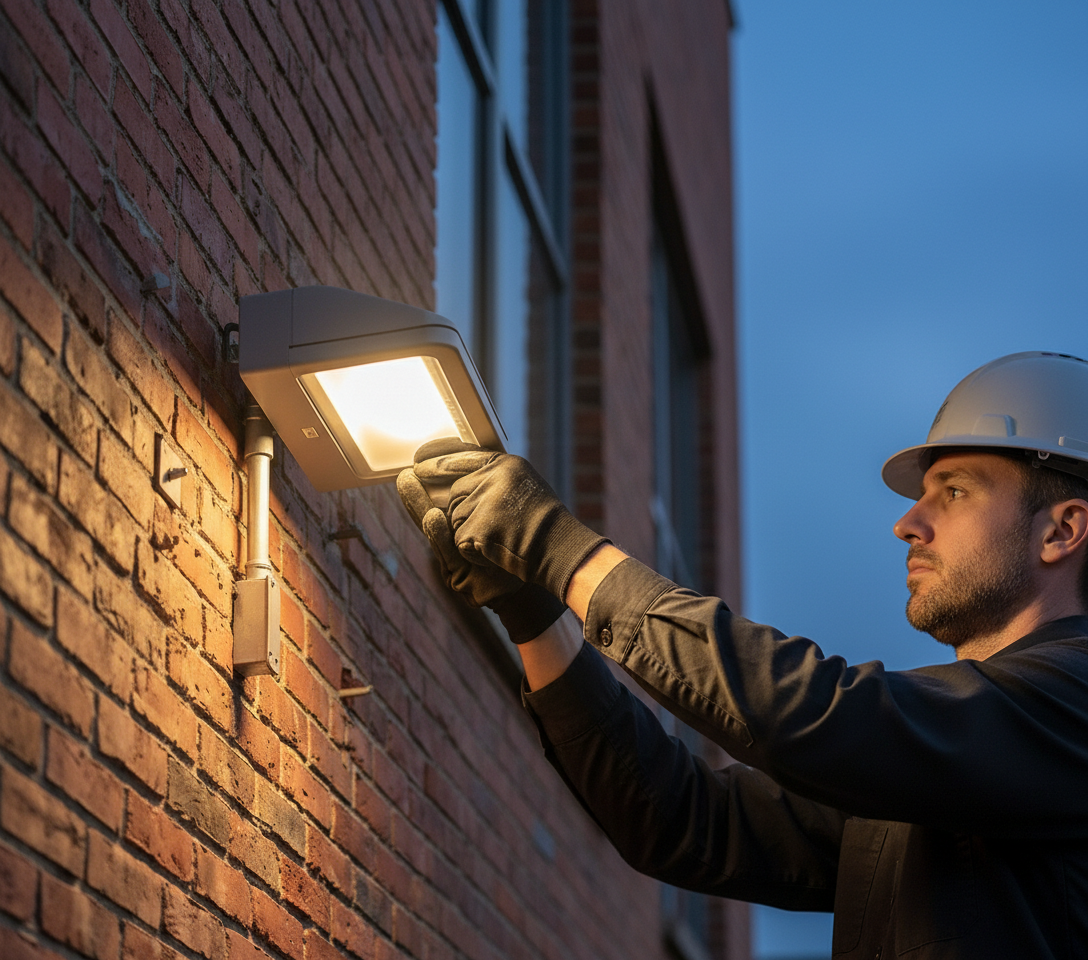

The Hidden Complexity of HID-to-LED Wall Pack Retrofits
For many facility managers and electrical contractors, the transition from legacy High-Intensity Discharge (HID) wall packs to modern LED systems is often framed as a simple "one-for-one" swap. However, field data from our technical support team suggests that over 75% of commercial HID fixtures require significant ballast bypass or re-wiring, which can add between $50 and $150 per fixture in labor and materials. Beyond the electrical wiring, the most critical—and frequently overlooked—point of failure is the mechanical interface between the new fixture and the legacy junction box (J-box).
In the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, we emphasize that a "pro-grade" installation is defined by its ability to maintain environmental integrity over a 10-year horizon. When retrofitting, you are essentially mating two different generations of hardware. Old metal junction boxes, often weathered and slightly warped from decades of thermal stress, rarely provide a perfectly flat mounting surface for new aluminum LED housings. Failure to address this mismatch leads to water ingress, which remains the leading cause of premature LED driver failure in exterior applications.
Methodology Note (Field Observation): The insights regarding retrofit failure rates and labor costs are based on common patterns observed in customer support logs and warranty claim reviews (not a controlled lab study). These figures represent typical industrial scenarios where legacy infrastructure meets modern solid-state lighting.
Footprint Mismatch: Why Legacy Junction Boxes Fail Modern Fixtures
Legacy HID wall packs were designed with larger, deeper housings to accommodate heavy magnetic ballasts and large reflectors. Modern LED wall packs are significantly more compact and efficient, but this change in geometry creates two primary challenges: footprint coverage and thermal draw.
- Exposed Footprints: New LED fixtures often have a smaller footprint than the HID units they replace. This leaves "ghosting" on the building facade—areas of unpainted or weathered masonry that were previously covered. More importantly, it may leave portions of the legacy J-box or its mounting holes exposed to the elements.
- Pressure Differentials: LED retrofit kits and fixtures have different heat sink geometries that alter airflow patterns. According to observations from our repair bench, the specific thermal profile of high-output LEDs can create a slight vacuum effect within the J-box during cooling cycles. If the seal is not airtight, this pressure differential can actually "siphon" moisture through microscopic gaps that were never an issue for the hotter, less airtight HID fixtures.
To mitigate these risks, professional installers should utilize specialized adapter plates with integrated gaskets. These plates bridge the gap between the building’s existing J-box and the new fixture, ensuring that the IP65 or IP66 rating of the luminaire is actually maintained in the field.
The Physics of the Seal: Thermal Cycling and Material Expansion
The most common retrofit failure occurs at the interface between old metal J-boxes (often steel or cast iron) and new aluminum LED housings. These materials have different coefficients of thermal expansion. For every 1°C temperature variation, metal expands approximately 0.000012 inches per inch.
In a typical 12-inch junction box, a seasonal temperature swing of 40°F (approx. 22°C) can create a cumulative 0.014-inch gap if the sealing material is not sufficiently resilient. This is why standard foam gaskets often fail after a single season; they lack the "elastic memory" to fill the gap created by thermal contraction during winter months.
The 30-40% Compression Rule (Heuristic)
To ensure a watertight seal that survives thermal cycling, we recommend the following sealing heuristic:
- Gasket Choice: Use a high-density butyl rubber gasket.
- Compression Target: The gasket should be compressed to 30-40% of its original thickness.
- Verification: If the gasket is compressed less than 30%, it may not fill surface irregularities in the masonry. If compressed more than 50%, the material may undergo "compression set," losing its ability to expand back when the metal contracts.
Modeling Note: This 0.014-inch gap calculation is a deterministic model based on the linear thermal expansion coefficient of aluminum ($\alpha \approx 23 \times 10^{-6} / K$) and steel ($\alpha \approx 12 \times 10^{-6} / K$). Actual field gaps may vary based on the specific alloy composition and mounting rigidity.
The "Gold Standard" Two-Layer Sealing Protocol
Based on field experience with coastal industrial retrofits, we advocate for a two-layer sealing approach. This method provides redundancy against both wind-driven rain and the micro-gaps caused by thermal movement.
Step 1: The Primary Gasket Seal
Apply the butyl rubber gasket to the back of the fixture or adapter plate. Ensure the gasket is continuous with no gaps at the corners. When mounting the fixture to the J-box, use a star-pattern torque sequence. Much like tightening the lug nuts on a vehicle wheel, tightening opposite bolts progressively achieves 15-20% better gasket compression uniformity than sequential tightening. This reduces the likelihood of "puckering" at the seal edges.
Step 2: The Perimeter Secondary Seal
After the fixture is securely mounted, apply a perimeter bead of silicone. Critical Warning: You must use neutral-cure silicone, not acetic-cure (which is identifiable by its strong vinegar-like smell). Acetic-cure silicones release acetic acid during the curing process, which aggressively corrodes aluminum housings and galvanized steel J-boxes. Neutral-cure silicone remains flexible and does not react with the metals, ensuring the seal remains intact for the life of the LED.
| Sealing Material | Pros | Cons | Best Use Case |
|---|---|---|---|
| Butyl Rubber Gasket | High UV resistance; excellent "memory" | Requires precise compression | Primary interface seal |
| Neutral-Cure Silicone | Non-corrosive; high flexibility | Longer cure time | Perimeter bead; conduit entries |
| Acetic-Cure Silicone | Fast cure; cheap | Corrodes Metals | Avoid for LED retrofits |
| Foam Gaskets | Inexpensive | Low resilience; degrades in UV | Temporary/Indoor only |
Electrical Code Compliance and Wire Management
Retrofitting often involves cramming modern LED drivers and control circuitry into J-boxes originally sized for simple HID lamp leads. This can lead to violations of the National Electrical Code (NEC) regarding box fill capacity.
According to NFPA 70 (NEC), the volume of the junction box must be sufficient for the number of conductors, clamps, and devices contained within. Overfilling a box creates two major risks:
- Heat Accumulation: LED drivers are sensitive to ambient heat. While LEDs are efficient, the driver itself generates heat that must dissipate. An overfilled box restricts airflow, potentially leading to driver "thermal throttling" or premature failure.
- Mechanical Strain: Forcing a large bundle of wires into a small space can compromise wire nuts or strain relief, leading to arcing or short circuits.
When selecting a wall pack for a retrofit, verify that the unit is UL 1598 listed, which ensures the luminaire meets safety standards for fixed mounting. If you are using a retrofit kit (replacing the internals but keeping the HID housing), ensure the kit is UL 1598C classified, specifically for retrofit applications.
Financial and Performance Modeling: A Coastal Industrial Case Study
To demonstrate the ROI of a properly sealed, high-efficiency retrofit, we modeled a scenario for a coastal industrial facility replacing 50 HID wall packs. This model includes not just energy savings, but also maintenance avoidance and HVAC interactive effects.
Scenario Modeling: 50-Fixture Retrofit
- Legacy System: 400W Metal Halide (458W total with ballast losses).
- New System: 150W LED Wall Pack (DLC Premium Certified).
- Environment: Coastal (high salt spray, 40°F seasonal variation).
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Annual Operating Hours | 4,380 | hrs/yr | 12 hours/day, 365 days |
| Electricity Rate | $0.18 | /kWh | Coastal industrial average |
| Maintenance Savings | $2,135 | /yr | Avoided lamp/ballast replacements |
| HVAC Cooling Credit | $715 | /yr | Reduced heat load in cooling season |
| Total Annual Savings | ~$15,000 | USD | Combined energy, maint, and HVAC |
| Payback Period | ~9 Months | Years | Total investment vs. annual savings |
Logic Summary: Our analysis assumes a Coefficient of Performance (COP) of 3.2 for the facility's HVAC system. Because LEDs emit significantly less infrared heat than HID lamps, the cooling system does not have to work as hard during the 2,500 annual cooling hours typical of a coastal climate. This "cooling credit" offsets the "heating penalty" experienced during winter months.
Environmental Impact (ESG Scorer)
Based on EPA eGRID subregion SRTV factors, this 50-fixture retrofit reduces annual CO2 emissions by approximately 26 metric tons. Over a 10-year horizon, this is equivalent to the carbon sequestered by 4,290 tree seedlings grown for a decade. For facility managers, these numbers provide vital data for corporate sustainability reporting.
Regulatory Landscape: DLC 5.1, Title 24, and IECC 2024
When specifying fixtures for a retrofit, compliance with the DesignLights Consortium (DLC) Qualified Products List (QPL) is non-negotiable for projects seeking utility rebates. The current DLC 5.1 Standard/Premium requirements mandate higher efficacy (lumens per watt) and improved color quality.
Furthermore, state-specific codes like California Title 24 and the IECC 2024 are increasingly mandating integrated controls. Modern wall packs should be "sensor-ready," allowing for the easy addition of occupancy sensors or daylight harvesting photocells. In our experience, adding basic photocell control to a wall pack can extend the fixture's lifespan by 20-30% by ensuring it only operates when necessary, thereby reducing the total "on-time" and thermal wear on the LED chips (as measured by IES LM-80 data).
Troubleshooting and Field Verification
Even with a perfect installation protocol, field verification is essential. We recommend the following post-installation checklist for contractors:
- Visual Gasket Inspection: Use a flashlight to inspect the perimeter. You should see a uniform "bulge" of the gasket, indicating even compression.
- Drain Hole Check: Most IP65 wall packs have a small "weep hole" or "drain plug" at the bottom of the housing. Ensure this is not blocked by silicone. This hole allows any internal condensation (caused by the J-box "breathing") to escape.
- Thermal Scan: After 2 hours of operation, use an infrared thermometer to check the housing temperature. If one fixture is significantly hotter than the others, it may indicate a driver issue or poor heat sink contact.
- Voltage Verification: Ensure the supply voltage matches the driver rating (typically 120-277V). Fluctuating voltage in industrial environments is a common cause of flickering, which can be diagnosed using IES LM-79 reports to verify the fixture's power factor and total harmonic distortion (THD).
Frequently Asked Questions
Q: Can I just use a lot of silicone instead of a gasket? A: We do not recommend this. Silicone alone is a "static" seal. As the building moves and the metal expands, a thick block of silicone can pull away from the surface, creating a "pocket" that actually traps water against the J-box. Always use a compressed gasket as your primary seal.
Q: Why does my LED wall pack flicker when it's cold outside? A: This is usually a driver compatibility issue. Ensure your fixture is rated for the minimum ambient temperature of your region (typically -40°F for industrial units). High-quality drivers are tested per UL 8750 to ensure stable performance across wide temperature ranges.
Q: How do I know if my old J-box is too small for the new wires? A: Check the volume marking inside the J-box (usually in cubic inches). Use the NEC Box Fill table to calculate the required volume for your wire count. If the box is too small, you must install a "J-box extension ring" to stay in compliance.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or financial advice. All electrical installations must be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building regulations. Improper installation of high-voltage lighting equipment poses significant risks of fire, electrocution, and property damage. Always consult with a qualified engineer or certified lighting specialist before beginning a commercial retrofit project.
