The 15-Degree Heuristic: Balancing Floodlight Lifespan and Mounting Angle

In commercial exterior lighting, the decision that often determines long-term reliability is not just which fixture to buy, but how you mount and aim it. While standard field practice frequently involves tilting floodlights at 30° to 45° to maximize on-the-ground coverage, field failures and basic mechanical reasoning suggest a tradeoff: more aggressive tilt can increase the risk of water ingress for many IP-rated luminaires.

A commonly used practical guideline is to treat ~15 degrees from vertical as a conservative maximum tilt for typical IP65 and IP66-rated floodlights in exposed locations. This rule-of-thumb is not a code requirement, but a conservative engineering heuristic that tries to balance coverage with gasket compression and material creep. In demanding environments, keeping tilt modest and designing coverage with mounting height, beam selection, and fixture quantity can help many fixtures reach or approach their rated service life, instead of failing early under harsh conditions.

Scope Note: The 15° guideline below is a conservative heuristic based on general gasket behavior, wind-driven rain exposure, and common failure patterns in standard commercial/IP65–IP66 products. It may not apply to fixtures with specialized marine-grade housings, dual-gasket systems, or manufacturer-validated “any-angle” mounting.

The Engineering Conflict: Coverage vs. Seal Integrity

The primary purpose of an outdoor floodlight is to provide uniform illumination across a parking lot, loading dock, or building perimeter. Achieving this often pushes designers toward wider beam spreads and more aggressive aiming angles. At the same time, maintaining ingress protection (IP) depends on gasket compression, housing flatness, and how water interacts with the enclosure over years of service.

According to the IEC 60529 (IP Ratings) standard, an IP66 rating means the enclosure is protected against powerful water jets under defined test conditions. These certifications are typically conducted on fixtures in their intended “test position,” often close to vertical or in a manufacturer-declared orientation. When a fixture is tilted significantly beyond that position, gravity and wind-driven rain can change how water sheds across the lens and housing, sometimes leading to a "pooling" effect near the gasket interface.

The Mechanics of Gasket Degradation

Most commercial floodlights rely on silicone or elastomeric gaskets to maintain their seal. Over time, these materials experience "creep"—a slow deformation under constant mechanical stress. When the housing and lens are assembled with reasonably uniform compression (which is more likely near the test orientation), the gasket tends to age more predictably.

As tilt increases and the lens mass shifts relative to gravity, the combination of:

uneven mechanical loading,
thermal cycling,
and water pooling at low points

can lead to localized areas where gasket compression is lower than intended. In those areas, microscopic channels may form between the gasket and mating surfaces.

In coastal or high-wind areas, dynamic pressure from wind-driven rain can be substantially higher than the static conditions used in many lab tests. This added load tends to concentrate at specific points on the enclosure, so failures often follow patterns aligned with prevailing wind and runoff paths rather than appearing randomly over the gasket.

Heuristic Summary: For typical single-gasket IP65–IP66 area luminaires, increasing tilt tends to reduce effective sealing pressure non-uniformly. In this guide, we reference an illustrative case where moving from a modest tilt (~15°) to a more aggressive tilt (~30°) is modeled as reducing effective sealing pressure on the “low” side of the gasket by roughly 20–30%. This value is an engineering approximation for illustration, not a universal constant.

Modeling Gasket Stress: Using a Moore-Garg–Style Index as a Heuristic

To make the tradeoffs more concrete, this guide adapts the structure of the Moore-Garg Strain Index (SI)—originally a biomechanical model for evaluating repetitive strain—to illustrate relative stress levels on a fixture’s sealing system under different mounting and environmental scenarios.

This is not the original, validated use of the Moore-Garg SI. Here it functions as an analogous scoring framework to compare scenarios, not as a standards-based IP design tool. Treat the numbers below as a relative risk heuristic, not as a certified failure probability.

Simplified Heuristic Stress Model

The original Moore-Garg SI computes an index based on multiple task factors (intensity, duration, posture, etc.). In this adaptation, we define a simplified index:

Heuristic SI = Intensity Factor × Posture Factor × Duration Factor

Where, for gasket stress under wind-driven rain:

Intensity Factor represents relative water impact pressure (function of wind speed, rain rate, and angle of incidence).
Posture Factor represents how favorable the gasket compression and housing orientation are (near-uniform vs. highly uneven). Lower tilt and well-distributed compression correspond to a lower factor.
Duration Factor represents the fraction of operating time spent under significant rain and wind exposure.

For clarity, we normalize the 15° scenario to a reference range. The goal is to compare relative values between scenarios, not to claim absolute failure rates.

Gasket Stress Comparison Table (Illustrative)

Mounting Scenario	Intensity Level (Water Pressure)	Posture Quality (Compression)	Heuristic SI Score*	Risk Category
15° (Conservative Heuristic)	Moderate (normalized to 1×)	Good (factor ~1×)	4.5	Within Reference Range
30° (More Aggressive Tilt)	High (≈2× relative to reference)	Poor (factor ≳2×)	18.0	Above Reference
30° + Coastal Wind	Extreme (≈3×+ relative to reference)	Poor (factor ≳3×)	43.2	Critical-Risk Heuristic

Modeling Note (How to Reproduce / Adjust):

Model Type: Deterministic, parameterized heuristic inspired by Moore-Garg SI (not a validated IP design standard).

Inputs:

Intensity Factor: proportional to dynamic pressure from wind-driven rain (can be approximated from wind speed and rain rate; users may substitute their own multipliers).

Posture Factor: user-assigned multiplier based on how far the mounting angle and gasket compression deviate from the manufacturer’s tested position.

Duration Factor: fraction of annual hours with significant wind + rain (e.g., 0.1–0.3 for exposed coastal sites; adjust for local climate).

Reference Choice: The 15° case is treated as a baseline with a heuristic SI ≈4–5. Other scenarios scale from this baseline using the multiplicative factors above.

Sensitivity Check: If you halve or double any one factor (e.g., consider a milder climate or better housing support), the SI score scales proportionally. This means the 9.6× difference between mild and extreme scenarios is illustrative, not a universal multiplier.

Boundary Conditions: This heuristic is intended for typical single-gasket, aluminum-housing IP65–IP66 floodlights in exposed environments. It may not apply to marine-grade fixtures, dual-gasket systems, or products that the manufacturer has explicitly qualified for high-tilt or inverted operation.

Under the assumptions above, a 30° mounting angle in a coastal zone produces a heuristic score that is roughly an order of magnitude higher than the modest-tilt reference case. This helps explain why products that pass lab tests in a controlled orientation may still exhibit higher field failure rates when installed at aggressive angles in harsh, wind-driven rain environments.

Adjustable LED flood lights mounted on masonry and concrete for commercial outdoor lighting — LED flood light, outdoor LED wall pack

The Financial Reality: TCO and ROI of Mounting Strategy

For facility managers, a failed floodlight is more than a technical nuisance; it can become a recurring cost driver. When a fixture fails early due to water ingress or related mechanical issues, the Total Cost of Ownership (TCO) rises because of truck rolls, emergency labor, access equipment, and fixture replacement.

10-Year Cost Impact: Example Scenario

The cost impact below is an illustrative scenario, not a universal forecast. It shows how mounting strategy and environment could influence maintenance frequency and cost over a 10-year horizon for a coastal facility.

Scenario Assumptions (User-Adjustable):

Number of fixtures: 50 perimeter floodlights
Environment: coastal, exposed to wind-driven rain
Nominal rated life: 50,000–60,000 hours (per manufacturer data)
Fixture cost (material only): $300 per unit (example)
Labor rate: $125/hour (loaded cost for licensed electrician + lift)
Average service time per fixture visit: 1.5 hours
Analysis window: 10 years, continuous nighttime operation

Using these assumptions, we can sketch two contrasting maintenance strategies:

Scenario A – More Aggressive Mounting (≈30°+ in harsh exposure):
- Field life assumption: fixtures often need replacement or major service around 2 years under harsh, high-tilt conditions.
- Approximate annual maintenance impact (material + labor, averaged over the period) in this example works out to roughly $30,000–$32,000 per year.
Scenario B – Conservative Mounting (~15° heuristic + attention to sealing):
- Field life assumption: fixtures reach closer to 5 years or more before major service in similar conditions when mounted more conservatively and installed carefully.
- Approximate annual maintenance impact under the same cost assumptions is on the order of $12,000–$13,000 per year.

If you carry these annualized impacts over a decade, the difference between the two scenarios is roughly $180,000–$200,000 in this specific illustrative setup.

Calculation Sketch (Adjustable):

Let:

N = number of fixtures

C_f = fixture cost ($ / unit)

C_l = labor rate ($ / hour)

T_s = service time per fixture visit (hours)

L_eff = effective field life (years) under given mounting/environment

Y = analysis period (years)

Then an approximate annualized maintenance cost can be expressed as:

Annual Cost ≈ (N / L_eff) × (C_f + C_l × T_s)

Use this as a planning formula, not a guarantee. Replace inputs with your own fixture price, labor rate, and realistic field life estimates from maintenance records.

Under the sample values above (N=50, C_f=$300, C_l=$125, T_s=1.5 h), choosing assumptions of L_eff ≈ 2 years versus ≈5 years yields annualized values broadly consistent with $31,705 and $12,682 respectively. The exact figures will vary with your costs and actual field life, so facility managers should plug in their own data or historical maintenance logs.

By designing lighting layouts to prioritize reliability (tilt, housing orientation, shielding from direct wind-driven rain) rather than squeezing every last lumen out of each fixture, you can often reduce unplanned outages and keep lifecycle costs closer to budget.

Compliance and Safety Standards

To ensure your project meets building codes and insurance requirements, verify that your floodlights adhere to relevant safety and performance standards.

UL 1598 (Luminaires): Core safety standard for fixed-site luminaires, covering construction, electrical safety, and certain environmental tests.
UL 8750 (LED Equipment): Addresses safety of LED drivers and modules. Listings can be checked via the UL Solutions Product iQ Database.
DLC Premium 5.1: Efficiency-focused qualification. Use the DesignLights Consortium (DLC) QPL to confirm fixtures that may qualify for utility rebates and meet certain performance criteria.

Title 24 and ASHRAE 90.1

For projects in California or those following ASHRAE Standard 90.1-2022, mounting height and tilt angle also influence light trespass and glare. Excessive tilt can push more light above the horizontal cutoff, increasing uplight and spill onto neighboring properties. This may conflict with local ordinances or project-specific lighting control requirements, even when the luminaire itself remains mechanically sound.

Pole-mounted LED flood lights illuminating an industrial storage yard at night — bright security lighting for parking lots and outdoor facilities.

Professional Installation & Maintenance Checklist

Experienced contractors recognize that preserving IP integrity is a combination of product selection, mounting geometry, and attention to installation details. The checklist below is intended as a practical field aid.

1. Verify Gasket Compression

Before finalizing the mounting, check the uniformity of gasket compression along the lens and housing interface. Many seasoned installers use simple feeler gauges or visual checks to confirm that there are no gaps or “soft spots” where the seal meets the housing.

Ensure all screws or clamps are tightened to the manufacturer’s recommended torque, tightening in a cross pattern where applicable.
Inspect for casting irregularities or debris that could prevent full gasket contact.

2. Monitor for Early Warning Signs

Water ingress is typically a gradual process of seal degradation. During scheduled inspections (especially in coastal or high-rainfall regions), look for:

Edge Condensation: Light fogging at the lens edge (not the optical center) that recurs after dry-out. This can appear months before full failure.
Corrosion Powder: White or greenish powder around mounting hardware, conduit entries, or seams, indicating repeated moisture presence or salt interaction.
Gasket Creep or Sagging: Visible thinning or displacement of the gasket at the lowest point of the tilt, particularly on fixtures with long lenses.

3. Use Strategic Placement and Layout

If a 15° aiming limit does not provide the required illuminance or uniformity in your layout software, consider alternatives rather than simply increasing tilt:

Use higher-output fixtures (within glare and code limits).
Increase the number of mounting locations to cover critical areas with more conservative aiming angles.
Adjust mounting height and optics selection (e.g., narrower beams at higher poles) to achieve coverage at lower tilts.

This "reliability-first" approach helps keep the system closer to its intended 50,000–60,000-hour rated life in many applications, rather than sacrificing longevity to achieve marginal gains in coverage from each individual luminaire.

Cool-white LED wall pack security lights illuminating a commercial building parking lot at dusk

Addressing Common Installation "Gotchas"

Even with conservative aiming, certain installation practices can compromise a fixture’s long-term performance.

Thermal Cycling Stress: Mounting a floodlight very close to a heat-reflective surface (like bare metal cladding) can induce rapid expansion and contraction. Over years, this thermal cycling can “pump” moisture through gaskets and vents. Field experience and basic materials behavior suggest that this may noticeably shorten the effective IP life compared with pole-mounted or better-ventilated installations, though the exact percentage will depend on the product and site conditions.
Conduit Entry Points: Water frequently enters not through the lens, but via electrical conduit or junction boxes. Use appropriately rated fittings, drain holes (where allowed), and drip loops in your wiring so that water naturally falls away from the fixture body, and seal as required with outdoor-rated compounds following the manufacturer’s instructions.
Torque Specifications and Housing Flatness: Over-tightening mounting or housing bolts can warp the fixture, leading to uneven gasket pressure. Follow the manufacturer’s torque specifications in the installation manual, and re-check gasket contact if the housing appears distorted.

Technical Documentation and Layout Planning

Before purchasing, professional specifiers should request complete technical documentation so they can model light distribution and verify acceptable performance at conservative mounting angles.

IES Files (.ies): Allow lighting designers to simulate photometric performance (illuminance, uniformity, glare) at candidate mounting heights and tilt angles using tools such as AGi32 or similar software.
LM-79 Reports: Provide independently measured optical and electrical performance data (e.g., total lumens, efficacy) under defined conditions.
TM-21 Lifetime Projections: Use LM-80 LED package data to project long-term lumen maintenance. Treat very long-hour claims cautiously if not backed by TM-21-compliant calculations.

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Summary of Best Practices

Feature	Professional Recommendation (Heuristic)	Rationale
Mounting Angle	Design around ≤ ~15° from vertical for typical IP65–IP66 floodlights in harsh exposures, unless the manufacturer validates higher tilt	Reduces water pooling risk and helps maintain more uniform gasket stress.
Inspection Cycle	Quarterly (coastal / high-exposure); Semi-annual (more sheltered inland sites)	Increases chances of catching condensation, corrosion, or gasket creep early.
Verification Tool	Feeler gauge or equivalent contact check	Helps confirm uniform gasket compression during install.
Compliance	Confirm UL 1598 (and UL 8750 where applicable) and check DLC listing if rebates matter	Supports safety, code alignment, and potential rebate eligibility.
Design Software	Use AGi32 or similar with .ies files at realistic angles and heights	Validates coverage and glare control at conservative aiming angles before construction.

FAQ: Professional Guidance for Floodlight Maintenance

Can I apply extra silicone sealant around the lens to stop leaks?
This is generally discouraged for most commercial fixtures. Many outdoor luminaires are designed to "breathe" slightly through vents to manage internal pressure changes. Adding external sealant around the lens can trap moisture or interfere with these vents, and may void the manufacturer’s warranty. It is usually more effective to review mounting orientation, gasket compression, and conduit sealing.

What should I do if I see condensation inside the lens?
Minor, temporary condensation at the edges may be an early sign of seal degradation or pressure imbalance. Check the mounting angle, gasket compression, and conduit entries. If water is visibly pooling at the bottom of the lens or condensation persists and worsens, the fixture may be approaching a critical failure point and should be evaluated or replaced before it compromises electrical safety.

Does a higher IK rating help with weatherproofing?
Not directly. The IK Rating (IEC 62262) describes mechanical impact resistance (e.g., IK08 corresponds to a defined impact energy). While a robust housing can be beneficial overall, the IK rating does not measure water ingress protection and should not be treated as a substitute for IP ratings.

How do I find local rebates for my floodlight project?
You can check the DSIRE Database (Database of State Incentives) or use your utility’s rebate finder tools. Many exterior LED floodlights qualify for incentives if they appear on the DLC Qualified Products List; always verify current eligibility and criteria before specifying products based on expected rebates.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, structural, or financial engineering advice. Site conditions, product designs, and local regulations vary widely. Always consult with a licensed electrician or engineer and follow the National Electrical Code (NEC), local building codes, and manufacturer instructions for your specific project.

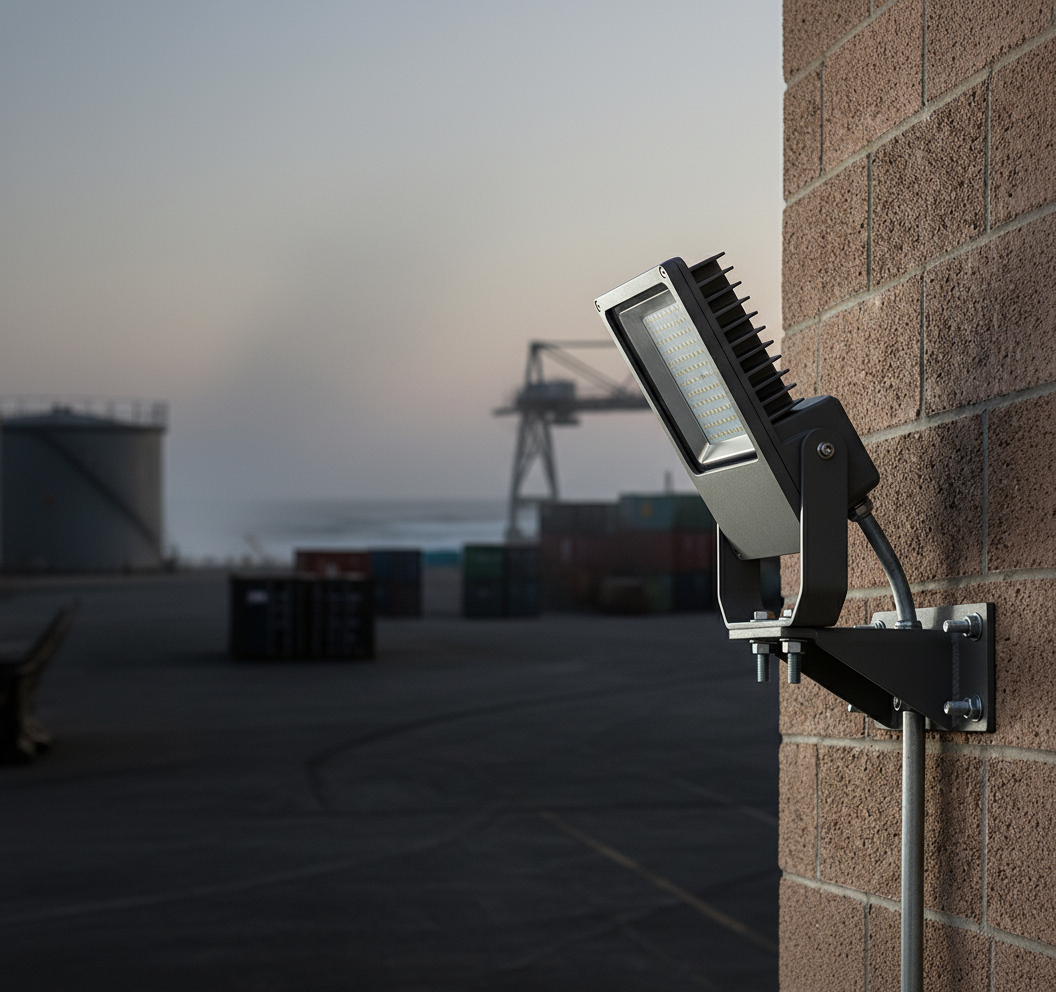

Floodlight Mounting: Balancing Aiming Angles and IP Integrity
