Quick Guide: Multi-Zone Garage Integration
For those looking for immediate technical parameters, the table below summarizes the critical constraints for syncing Linear High Bays (LHB) and Hexagon grids.
Key Takeaways & Capacity Template
| Parameter | Practical Threshold | Action/Requirement |
|---|---|---|
| Circuit Capacity | 80% of Breaker Rating | 1,440W for a 15A circuit; 1,920W for 20A. |
| Control Run Length | > 25 Feet | Use shielded 18/2 AWG cable to prevent EMI flickering. |
| Signal Stability | 0-10V DC | Ensure signal remains within ±0.1V at the furthest fixture. |
| Power Injection | Every 62 Hex Tubes | Limit to ~440W per power feed to prevent voltage drop. |
| Inrush Management | 20x–40x Multiplier | Use high-inrush relays or staggered "Scene" activation. |

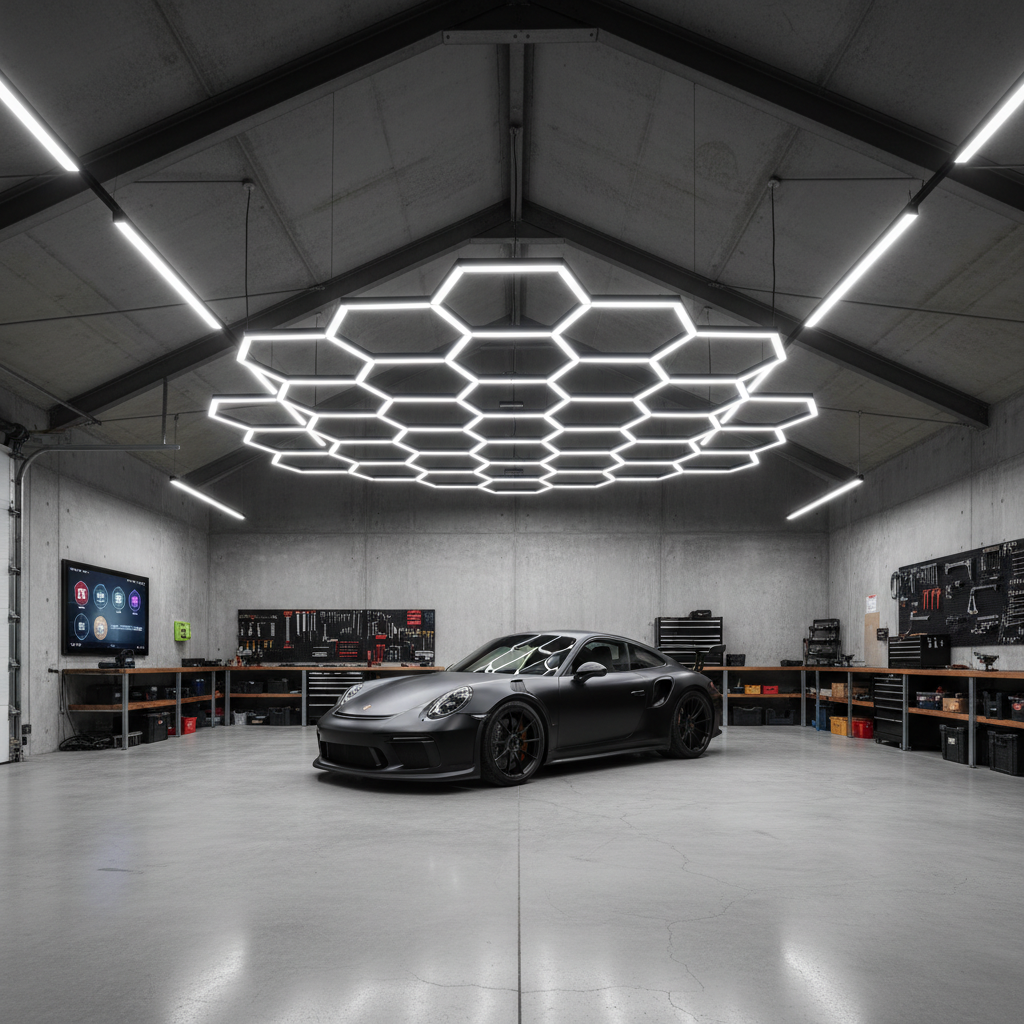

The Architecture of a Modern Hybrid Garage
We are observing a fundamental shift in how professional workshops and high-end residential garages are designed. The traditional approach—a few scattered shop lights—is being replaced by a sophisticated, two-tier ecosystem: high-output task lighting and high-aesthetic ambient grids. Specifically, the integration of Linear High Bays (LHB) for raw industrial performance and Hexagon LED kits for shadowless, detailed work is becoming a popular benchmark for "Value-Pro" setups.
However, the real challenge is often synchronization. To create a truly automated environment, you must bridge the gap between commercial-grade 0-10V dimming systems and consumer-friendly smart home ecosystems. According to the industry outlook in the Guide to Project-Ready High Bays & Shop Lights, the ability to zone and automate these disparate systems is what differentiates a professional-grade facility from a basic DIY project.
In this guide, we will break down the technical requirements for syncing LHBs and Hex lights, addressing common "gotchas" like inrush current and signal propagation delays that we frequently see in customer support logs.
Understanding the Hardware: LHBs vs. Hex Lights
Before diving into automation, we must define the components. In the professional lighting sector, LHB is industry shorthand for Linear High Bay fixtures. These are commercial-grade LED luminaires designed for high-ceiling spaces, typically producing 15,000 to 30,000 lumens with a 120° beam angle. They are the workhorses of the garage, providing the primary illumination needed for heavy mechanical work.
On the other hand, Hexagon Lights, such as the Hyperlite Hexagon Garage Lights Gen 2 - 18 Grid (15.9 x 7.6 ft), provide a modular, high-CRI (Color Rendering Index) light source that helps eliminate the harsh shadows often found under single-point fixtures. While LHBs provide the "punch," Hex grids provide the "wrap," which is highly beneficial for car detailing and precision fabrication.
Expert Insight: It is important to distinguish between decorative LED kits and industrial-grade measurement systems. In high-end manufacturing, "Hexagon" often refers to Hexagon AB. For garage applications, we focus on high-performance LED kits that meet UL Solutions safety standards for residential and commercial use.
The Technical Core: 0-10V Dimming and Smart Integration
The most effective way to sync these fixtures is through 0-10V dimming. Unlike standard Phase-Cut or Triac dimming, 0-10V uses a separate pair of low-voltage wires to send a DC signal to the LED driver. 10V represents 100% brightness, while 0V (or 1V) represents the minimum dimmed level.
The Shielded Cable Requirement
A common mistake we see in support logs is the use of unshielded wire for long control runs. If your control wires run over 25 feet alongside AC power lines, electromagnetic interference (EMI) can induce a voltage on the dimming circuit, which can lead to visible flickering or "ghosting" where lights won't turn off completely.
- Heuristic: Use shielded 18/2 AWG cable for any dimming run exceeding 25 feet.
- Why: This helps isolate the DC dimming signal from 60Hz AC "hum."
- Verification: If flickering occurs, use a multimeter to measure the DC voltage at the furthest fixture; it should be stable within ±0.1V.
Signal Rise-Time and Capacitance
In large multi-zone setups, 0-10V signals can experience a perceived "ripple" effect when multiple zones are commanded to dim simultaneously. This is often due to cable capacitance (a typical 18/2 AWG cable may have ~20pF/ft). Over a 100-foot run, this capacitance can slow the signal's rise time by approximately 2–5ms. While subtle, this can cause zones to appear slightly out of sync during rapid dimming transitions. To mitigate this, we recommend using signal amplifiers or localized smart relays for each major zone.
Managing Electrical Loads: The 80% Rule and Inrush Current
When automating a garage with dozens of hexagon tubes and multiple LHBs, you must account for Inrush Current. LED drivers contain capacitors that draw a significant spike of current—often 20 to 40 times the steady-state current—for 1 to 2 milliseconds upon power-on.
If you sync 30 fixtures to turn on at the exact same millisecond via a single smart switch, you risk tripping a 15A or 20A breaker, even if the total running wattage is well within limits.
Load Calculation Example for a Professional Shop
Based on common patterns from customer support and scenario modeling for a 6,000 sq ft facility, here is a typical load breakdown:
| Parameter | Value | Unit | Logic/Assumption |
|---|---|---|---|
| Fixture Count (LHB) | 30 | units | Professional 6-bay layout |
| Steady-State Wattage | 150 | W | Per Hyperlite LHB spec |
| Total Running Load | 37.5 | A | At 120V (must be spread across circuits) |
| Estimated Inrush Spike | 750+ | A | ~20x spike for 1.5ms (heuristic) |
| Breaker Rating | 20 | A | Standard commercial branch |
Heuristic for Safety: To prevent nuisance tripping from inrush, we recommend staggered activation (e.g., 500ms delays between zones) or using high-inrush rated smart relays.
For the decorative side, a kit like the Hyperlite Hexagon Garage Lights Gen 2 - 5 Grid (7.3 x 5.1 ft) draws about 144W. However, for massive lounge grids, observe the 440W limit. This is a practical safety threshold for modular connectors; we recommend splitting power injection points for any grid exceeding 62 tubes to prevent voltage drop and ensure consistent brightness.
Automation Strategies: Scenes and Zoning
The goal of multi-zone automation is to provide the right light for the task. We suggest creating three primary "Scenes" in your smart hub (e.g., Alexa, Google Home, or Home Assistant):
- Detail Mode: Hex lights at 100%, LHBs at 30%. Provides high-contrast light for paint correction without the glare of full high-bay output.
- Work Mode: LHBs at 100%, Hex lights at 50%. Prioritizes overall ambient brightness for mechanical repairs.
- Showroom Mode: Hex lights at 100%, LHBs OFF. Highlights the vehicle's lines for photos or social gatherings.
Calibration of Dimming Curves
Linear High Bays and Hexagon kits often use different LED drivers with varying dimming curves (Linear vs. Logarithmic).
- Pro Tip: Use a smart hub that allows for individual fixture calibration. Set the "floor" and "ceiling" for each device type so they ramp in visual harmony. The Dimmable Hexagon Garage Lights Gen 2 - 11 Grid (10.0 x 7.3 ft) features an updated driver that simplifies this by maintaining the last brightness setting when toggled.
Compliance, Safety, and Estimated ROI
For professional facility managers, automation can significantly impact the bottom line. Integrating occupancy sensors is often a requirement under ASHRAE Standard 90.1-2022 and California Title 24.
Financial Impact Model
We modeled the potential ROI for a professional auto shop replacing legacy 400W Metal Halide fixtures with 150W LEDs and smart controls.
Formula used: (Baseline Watts - New Watts) * Fixtures * Annual Hours * Utility Rate / 1000
| Metric | Estimated Range | Unit | Assumptions |
|---|---|---|---|
| Annual Energy Savings | $6,800 – $7,800 | USD | 30 fixtures, 5,000 hrs/yr, $0.16/kWh |
| Maintenance Savings | $1,800 – $2,400 | USD | Reduced bulb/ballast replacements |
| HVAC Cooling Credit | $350 – $450 | USD | 0.33 interactive factor (less heat load) |
| Total Annual Savings | $8,950 – $10,650 | USD | Scenario-based result |
| Payback Period | 6 – 9 | Months | Includes estimated utility rebates |
Note: Actual results vary based on local electricity rates and DSIRE Database rebate availability.
Verifying Certification
To ensure your project passes inspection, always verify that your LHBs are on the DesignLights Consortium (DLC) Qualified Products List (QPL). DLC Premium certification is often a prerequisite for the highest utility rebates. Additionally, ensure all components, including the Hyperlite 50ft Construction LED String Work Lights, carry the ETL Listed Mark or UL certification.
Implementing the Setup: A Step-by-Step Checklist
- Map Your Zones: Identify areas for task-specific LHBs and aesthetic Hex grids.
- Calculate Circuit Capacity: Ensure total wattage (including inrush) doesn't exceed 80% of the breaker rating for continuous use per the National Electrical Code (NEC).
- Install 0-10V Control Lines: Use shielded cable for runs over 25ft. Keep control lines physically separated from AC lines by at least 6 inches where possible.
- Integrate Smart Relays: Choose relays compatible with your smart home hub (Zigbee, Z-Wave, or Matter).
- Calibrate Dimming: Adjust min/max brightness levels in your software to sync different fixture types.
- Set Automation Triggers: Use occupancy sensors for auto-off functionality to meet energy codes.
For more detailed strategies, see our guide on Hybrid Garage Lighting: UFO & Hex for Task & Ambient or learn How to Zone UFO High Bay Dimming Controls.
Final Considerations
Automating a multi-zone garage is a strategic investment that balances technical precision with functional beauty. By understanding the underlying mechanisms—from signal shielding to inrush management—you can build a system that is both reliable and efficient.
Always prioritize fixtures that provide IES LM-79-19 reports and LM-80 lumen maintenance data. This documentation ensures that performance is backed by scientific testing.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or legal advice. All electrical installations should be performed by a licensed professional in accordance with local and national codes (NEC).
