The Power of Programmed Atmosphere: Why Dimming Matters in Multi-Use Spaces

Modern garages and commercial facilities are no longer single-purpose environments. A space that serves as a high-precision automotive workshop at 10:00 AM may need to transform into a high-intensity interval training (HIIT) zone by 5:00 PM and a recovery-focused yoga studio by 7:00 PM. Transitioning your garage from a bright workshop to a moody home gym automatically is the hallmark of a "Value-Pro" setup—one that balances industrial-grade performance with consumer-level intelligence.

The core decision for any gym operator or DIY homeowner is moving beyond simple "On/Off" switches. By integrating Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V with automated dimming profiles, you unlock the ability to synchronize your environment with your physical needs. This isn't just about aesthetics; research into circadian-aligned lighting shows that exposure to bright, cool light (~5000K, 1000 lux) acutely increases alertness, heart rate, and metabolic rate, while warm, dim light post-workout aids parasympathetic recovery.

Bright LED shop lights for garage lighting illuminating a two-bay workshop with vehicle lift

Technical Foundation: Understanding 0-10V Dimming Protocols

To achieve professional-grade automation, you must understand the 0-10V dimming protocol. Unlike residential incandescent dimmers that "chop" the AC voltage (triac dimming), 0-10V is a low-voltage DC control signal.

The Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V uses a 1-10V dimming driver as a standard feature. In this system, the driver provides a 10V signal; as the controller reduces that voltage toward 1V, the light output drops to 10%. If the signal hits 0V, the fixture typically enters a "sleep" mode or turns off entirely, depending on the driver's internal logic.

Wiring Specification Callout

Control Wires: Typically purple (DIM+) and gray or pink (DIM-).
NEC Compliance: Under the NFPA 70 – National Electrical Code (NEC), dimming circuits are classified as Class 1 or Class 2. For most retrofits, keeping control wires in the same conduit as power wires requires Class 1 insulation ratings on all conductors.
Voltage Drop Heuristic: For runs under 50 feet, use a minimum of 18 AWG wire. For longer runs, consider a 0-10V signal booster to prevent inconsistent dimming across a large bank of fixtures.

Logic Summary: Our recommendation for 18 AWG wire is a practical shop baseline derived from common patterns in customer support and electrical troubleshooting (not a controlled lab study). It ensures signal integrity over typical garage/gym distances.

Scenario Modeling: The ROI of Automated Gym Lighting

For small business owners, the shift to automated LED lighting is a strategic financial move. We modeled a 2,000 sq ft commercial gym in California operating 12 hours daily to determine the tangible impact of upgrading from legacy 400W metal halides to 150W Linear High Bays with smart sensors.

Modeling Note (Reproducible Parameters)

Parameter	Value	Unit	Rationale
Fixture Count	30	units	Based on 2,000 sq ft at 50-70 foot-candles
Electricity Rate	0.18	$/kWh	Average California commercial rate
Annual Hours	4,380	hrs	12 hours/day, 365 days/year
Occupancy Savings	15%	%	Estimated via sensor-driven dimming
Rebate	50	$/unit	Typical DLC Qualified Products List (QPL) utility incentive

The Results:

Annual Total Savings: ~$9,579 (Energy + Maintenance + HVAC credit).
Payback Period: ~0.53 years (roughly 6 months) after factoring in $1,500 in utility rebates.
Environmental Impact: Avoids ~9.9 metric tons of CO2 annually, equivalent to planting 164 tree seedlings and growing them for 10 years.

Methodology Note: This is a scenario model, not a controlled lab study. Results assume full utility rebates and consistent operating hours. Carbon reductions are planning-level estimates based on EPA eGRID national averages.

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Programming Your Scenes: HIIT to Yoga

The power of the Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V lies in its Adjustable CCT (Correlated Color Temperature) and 1-10V dimming. Below is a recommended scene structure for a multi-functional fitness space.

1. The "Power Zone" (HIIT & Heavy Lifting)

Brightness: 100%
CCT: 5000K (Daylight)
Objective: Maximize alertness and safety. High-lumen output ensures no shadows are cast during complex movements like cleans or snatches.
Automation Trigger: Voice command "Start Workout" or motion detection during peak hours.

2. The "Steady State" (Cardio & General Training)

Brightness: 60-70%
CCT: 4000K (Cool White)
Objective: Energy efficiency without sacrificing visibility. This setting aligns with the ASHRAE Standard 90.1-2022 goals for reducing Lighting Power Density (LPD).

3. The "Zen Mode" (Yoga & Recovery)

Brightness: 10-20%
CCT: 4000K (Dimmed)
Objective: Promote parasympathetic nervous system activation. Low light levels help reduce visual over-stimulation during stretching and meditation.
Automation Trigger: Scheduled "Cool Down" timer 45 minutes after workout start.

Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V

Integration Guide: Connecting to Smart Home Ecosystems

To automate these scenes, you need a bridge between the 120-277V power and the 0-10V dimming wires.

The Smart Relay Approach

Using a standards-agnostic smart relay (such as a Zigbee or Z-Wave 0-10V controller) allows you to decouple the lighting hardware from proprietary fitness apps. This is critical for future-proofing your facility.

Common Pitfall: Many DIYers attempt to use a standard smart switch designed for resistive loads on a 0-10V circuit. This can damage the driver. Always use a dedicated 0-10V smart dimmer module.

Steps for Integration:

Install the Fixture: Mount the Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V using the default steel wire rope or optional pendant kits.
Wire the Relay: Connect the AC line voltage to the relay and the 0-10V control wires (Purple/Gray) to the relay’s dimming terminals.
Pair with Hub: Connect the relay to your hub (Alexa, Google Home, or a Matter-enabled bridge).
Define Scenes: Use the hub’s app to create the HIIT, Cardio, and Zen scenes described above.

For a deeper dive into industrial-grade setups, consult the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.

Compliance and Quality Assurance

When selecting lighting for a commercial gym, compliance isn't optional—it's a liability shield.

Safety: Ensure fixtures are UL Listed or ETL Listed. This proves the product meets North American safety standards, which is the first point of verification for insurance and building inspectors.
Efficiency: Look for DLC 5.1 Premium certification. This is the prerequisite for most utility rebates found in the DSIRE Database.
California Title 24: If your gym is in California, Title 24, Part 6 requires specific occupancy sensing and multi-level dimming controls for commercial spaces.

Performance Documentation

Professionals should always request the IES LM-79-19 report, which acts as the product’s "performance report card," detailing total lumens, efficacy (lm/W), and CCT accuracy. For long-term reliability, the LM-80 and TM-21 reports provide the mathematical foundation for lifespan claims (e.g., L70 @ 50,000 hours).

Maintenance and Troubleshooting

Even the best automated systems require occasional oversight.

Flickering during dimming: This is often caused by EMI (Electromagnetic Interference). Ensure your drivers comply with FCC Part 15. If flickering persists, check for loose neutral connections in the dimming circuit.
Latency in Scene Activation: If your lights take several seconds to change after a voice command, the issue is likely Wi-Fi signal strength at the smart hub, not the fixtures themselves.
Dust Accumulation: Gyms are high-dust environments. Periodically clean the optics of your Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V to maintain the 150LM/W efficacy.

Summary Checklist for Gym Lighting Automation

Step	Action Item	Technical Detail
1	Verify Compatibility	Ensure 0-10V controller matches driver input.
2	Check Rebates	Search DSIRE for DLC 5.1 Premium incentives.
3	Plan Layout	Use IES LM-63 (.ies) files for AGi32 modeling.
4	Install Controls	Use 18 AWG wire for dimming runs to prevent signal drop.
5	Program Logic	Set HIIT (100%), Recovery (50%), and Night (10%) scenes.

By treating your garage gym lighting as a performance-enhancing tool rather than a utility, you create a space that adapts to your rhythm. Whether you are a small business owner looking for a sub-one-year ROI or a homeowner seeking the ultimate DIY sanctuary, the integration of Linear High Bays with smart dimming is the most effective way to upgrade your training environment.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or financial advice. Always consult with a licensed electrician and local building codes (such as the NEC or Title 24) before performing electrical installations.

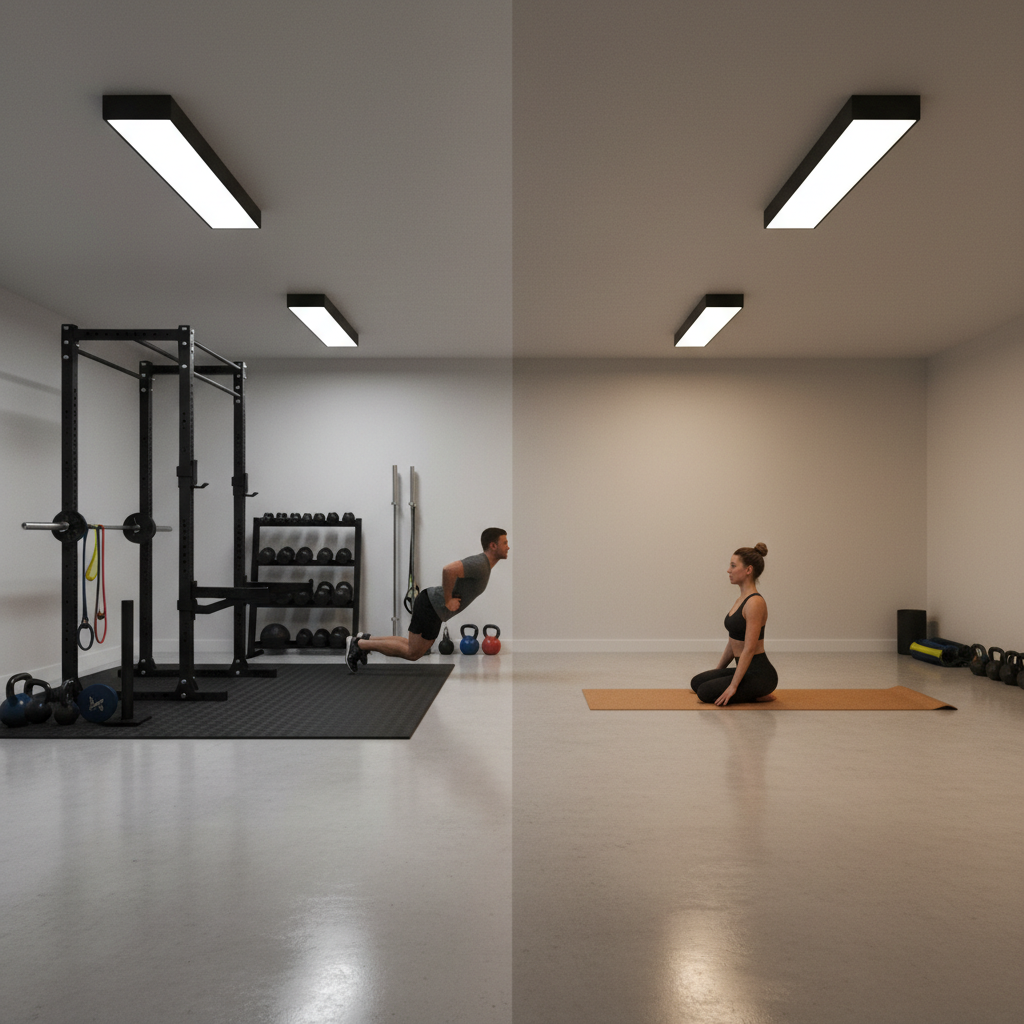

Automated Dimming: Setting LHB Scenes for Home Gyms
