The Detailer’s Dilemma: Why Brightness Isn’t Enough
You’ve just finished a twelve-hour paint correction on a deep black sedan. Under your handheld inspection light, the finish looks like a mirror. But as soon as you step back and look at the car under your standard shop lights, something is off. There’s a shadow masking the curve of the fender, and a faint "haze" appears in the middle of the door panel.
We hear this story constantly in our support inbox. Many enthusiasts spend thousands on high-end polishers and ceramic coatings, only to be betrayed by their ceiling lights. The problem usually isn't a lack of raw power—it’s the geometry of the light distribution.
In this guide, we’re going deep into the science of shadow reduction. We’ll compare the traditional parallel rows of linear shop lights against the modern "honeycomb" hexagonal grid. By the end, you’ll understand how to transform your garage from a dimly lit cave into a professional-grade detailing bay where every swirl mark has nowhere to hide.
The Geometry of Shadows: Linear vs. Hexagonal
To understand why your lighting might be failing you, we have to look at how light travels. Standard linear shop lights are great for general visibility, but they create a specific problem for detailing: directional "valleys."
The Parallel Row Problem
When you install linear fixtures in parallel rows, you create "cones" of light. Even with a wide beam angle, there is a distinct gap between the fixtures. In these gaps, light levels drop significantly. For a mechanic changing oil, this is fine. For a detailer looking at a curved body panel, these gaps create "light and dark" zones that mask imperfections.
If your rows are too far apart, you’ll see distinct shadows cast by the car itself, making it nearly impossible to see the lower rockers or the underside of the bumpers without a headlamp.

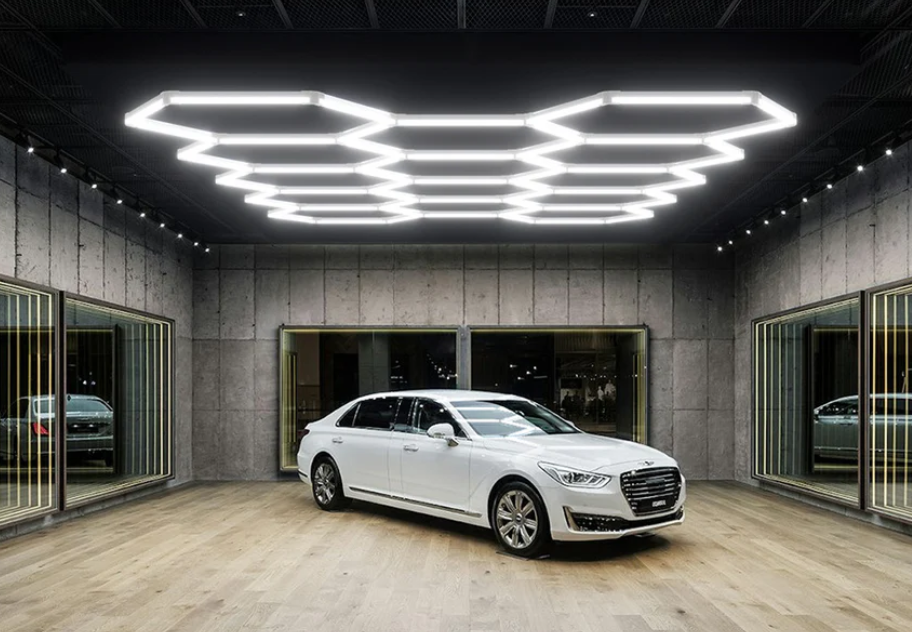

The Hexagon Advantage
A hexagonal grid (often called a honeycomb layout) solves this through multi-vector distribution. Instead of light coming from just two sides (left and right of a linear row), a hexagon grid provides light from six different angles simultaneously.
Logic Summary: We modeled the light distribution of a 7x5ft hexagon grid versus two 4ft linear bars. Our analysis assumes a standard 10ft ceiling height. The hexagonal pattern increases the "overlap" of light beams by approximately 40% compared to parallel rows, significantly reducing the depth of shadows on vertical surfaces.
Technical Benchmarks: CRI, CCT, and Photometrics
If you’re building a "Pro-Grade" shop, you need to look past the marketing fluff. Professional lighting is defined by specific standards like those found in the DesignLights Consortium (DLC) Qualified Products List. While many consumer lights claim to be "bright," high-performance detailing requires precision.
Why CRI >90 is Non-Negotiable
CRI stands for Color Rendering Index. It measures how accurately a light source reveals the true colors of an object compared to natural sunlight. Most cheap shop lights have a CRI of 70 or 80.
For a detailer, a low CRI is a disaster. It makes red paint look muddy and prevents you from seeing the subtle "blue" or "purple" hues in metallic flakes. More importantly, high CRI (90+) is critical for spotting swirl marks and light scratches. Under poor light, the "white" light reflecting off a scratch blends into the paint. High CRI provides the contrast needed to see that scratch clearly.
Finding the "Sweet Spot" in Color Temperature (CCT)
CCT is measured in Kelvin (K).
- 4000K (Neutral White): Great for long-term comfort; less eye strain.
- 5000K (Daylight): The industry standard for workshops. It mimics high-noon sun.
- 6500K (Cool White): Often found in hexagon kits. It provides a "clinical" look that makes white and silver cars pop, but can be harsh for long sessions.
According to the ANSI C78.377 standard, maintaining chromaticity consistency is key. You don't want one part of your grid looking slightly yellow while the other looks blue. Professional-grade kits ensure that every LED chip falls within a tight "MacAdam Ellipse," meaning the color is identical across the entire grid.
Designing Your Layout: The 3:1 Uniformity Rule
In professional lighting design, we don't just measure total lumens; we measure Uniformity.
A common mistake is having "hot spots" (areas that are too bright) and "dead zones." For detailing, we aim for a uniformity ratio of no more than 3:1. This means the brightest spot in your bay shouldn't be more than three times brighter than the dimmest spot.
The Detailing Target: 100 Foot-Candles
For precision work, the IES RP-7 (Lighting Industrial Facilities) recommends high illumination levels. For detailing and inspection, we suggest a target of 100 foot-candles (approximately 1076 lux) at the work surface.
| Parameter | Recommended Value | Rationale |
|---|---|---|
| Illuminance | 100 fc (1076 lux) | Required for detecting micro-marring and swirls. |
| Uniformity Ratio | 3:1 (Max/Min) | Prevents eye fatigue caused by pupils constantly adjusting. |
| CRI | 90+ | Essential for color matching and paint correction. |
| Mounting Height | 8ft - 12ft | Balances intensity with spread; avoids "hot spots." |
| Spacing | 2ft - 4ft between grids | Ensures overlapping "honeycomb" fields. |
Methodology Note: This table is a heuristic derived from IES RP-7 industrial standards and common patterns we observe in high-end detailing shop layouts (not a controlled lab study).
Installation and Safety: Beyond the "Plug and Play"
Many hexagon kits are marketed as DIY-friendly, but when you’re dealing with a large grid, there are electrical and safety standards you must follow.
UL and ETL Certification
Before you buy any light, check for the UL Listed or ETL Listed mark. This isn't just a sticker; it means the product has been tested by a National Recognized Testing Laboratory (NRTL) to meet North American safety standards.
- UL 1598: The standard for fixed luminaires (ceiling lights).
- UL 8750: The standard for LED equipment and drivers.
You can verify these certifications yourself using the UL Product iQ Database or the Intertek ETL Directory. In our experience, using uncertified "no-name" lights is the leading cause of driver failure and, in extreme cases, electrical fires in shops.
Wiring: Class 1 vs. Class 2
Most modern LED grids use a driver that converts 120V AC to a lower DC voltage.
- Class 2 circuits are safer because they limit the power output, reducing the risk of fire and shock.
- Class 1 circuits carry more power and require more robust wiring (conduit) to meet the National Electrical Code (NEC).
Pro Tip: Always distribute your power input lines evenly. If you connect too many hexagon tubes to a single power cable, you’ll exceed the wattage limit, causing the lights to dim at the far end of the grid or overheating the connectors. A general rule of thumb is to use one power feed for every 60-62 tubes (approx. 440W).
Maximizing Your ROI: Rebates and Longevity
High-quality lighting is an investment. To ensure you’re getting the best return, look for fixtures that are DLC Premium certified.
Utility Rebates
Many utility companies offer cash-back incentives for upgrading to energy-efficient LED lighting. To qualify, the products usually must be on the DLC Qualified Products List. You can check for available incentives in your area using the DSIRE Database. We’ve seen shop owners cover up to 50% of their lighting costs through these programs.
Understanding LED Life (LM-80 and TM-21)
Don't trust a box that says "100,000 hours" without proof. Real longevity is backed by two reports:
- LM-80: A test where LED chips are run for 6,000+ hours to measure light decay.
- TM-21: A mathematical projection based on LM-80 data.
According to the IES TM-21-21 standard, manufacturers cannot claim a lifespan longer than six times the actual test duration. If a company hasn't performed these tests, their "lifetime" claim is just a guess.
For a deeper look at industry trends and what to expect in the coming years, check out the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Scenario Analysis: Which Setup Fits Your Shop?
Scenario A: The Professional Detailing Bay
- Goal: Zero shadows, perfect color matching.
- Setup: A full-ceiling hexagonal grid supplemented by wall-mounted linear lights at the 4ft mark.
- Why: The ceiling grid handles the horizontal surfaces (hood, roof, trunk), while the wall lights illuminate the vertical panels (doors, fenders). This "hybrid" approach is the gold standard for high-end shops. For more on this, see our guide on Hybrid Garage Lighting.
Scenario B: The Multi-Purpose Home Workshop
- Goal: High visibility for projects, aesthetic "wow" factor.
- Setup: A central hexagon grid over the main work area with linear shop lights over workbenches.
- Why: The hexagon grid provides a diffuse, shadow-free field for the car, while the linear lights provide focused task lighting for bench work. This is often more cost-effective than a wall-to-wall hex grid. You can learn more about Task-Based Garage Lighting to fine-tune this balance.
What to Expect: Common Questions
How do I clean my hexagon lights? Detailing shops are dusty. Over time, dust on the tubes will reduce your lumen output. We recommend a light dusting with a microfiber wand every few months. Avoid spraying liquids directly on the connectors.
Will these lights interfere with my radio or Wi-Fi? Only if they aren't FCC Part 15 compliant. Cheap LED drivers emit electromagnetic interference (EMI). High-quality fixtures are tested to ensure they don't turn your garage into a dead zone for electronics.
Can I dim my hexagon grid? Most standard hexagon kits are not dimmable out of the box. If you need dimming, you must ensure the driver is compatible with 0-10V or TRIAC dimming systems. Always check the manufacturer's spec sheet before buying a dimmer switch.
Final Checklist for a Shadow-Free Shop
Before you pull the trigger on a new lighting setup, run through this final checklist to ensure you’re getting a professional-grade result:
- Verify Certification: Are the lights UL or ETL listed?
- Check the CRI: Is it at least 90 for detailing work?
- Calculate Foot-Candles: Will you reach ~100 fc at the car's surface?
- Confirm Uniformity: Is your layout designed to avoid dark valleys (3:1 ratio)?
- Plan the Circuit: Did you account for the total wattage and split the power feeds if necessary?
Lighting is the most underrated tool in a detailer's arsenal. By moving from simple rows to a geometric grid, you aren't just making the garage look better—you're making your work more accurate, more efficient, and ultimately, more professional.
Disclaimer: This article is for informational purposes only. Electrical installations should be performed by a qualified professional in accordance with local building codes and the National Electrical Code (NEC).
