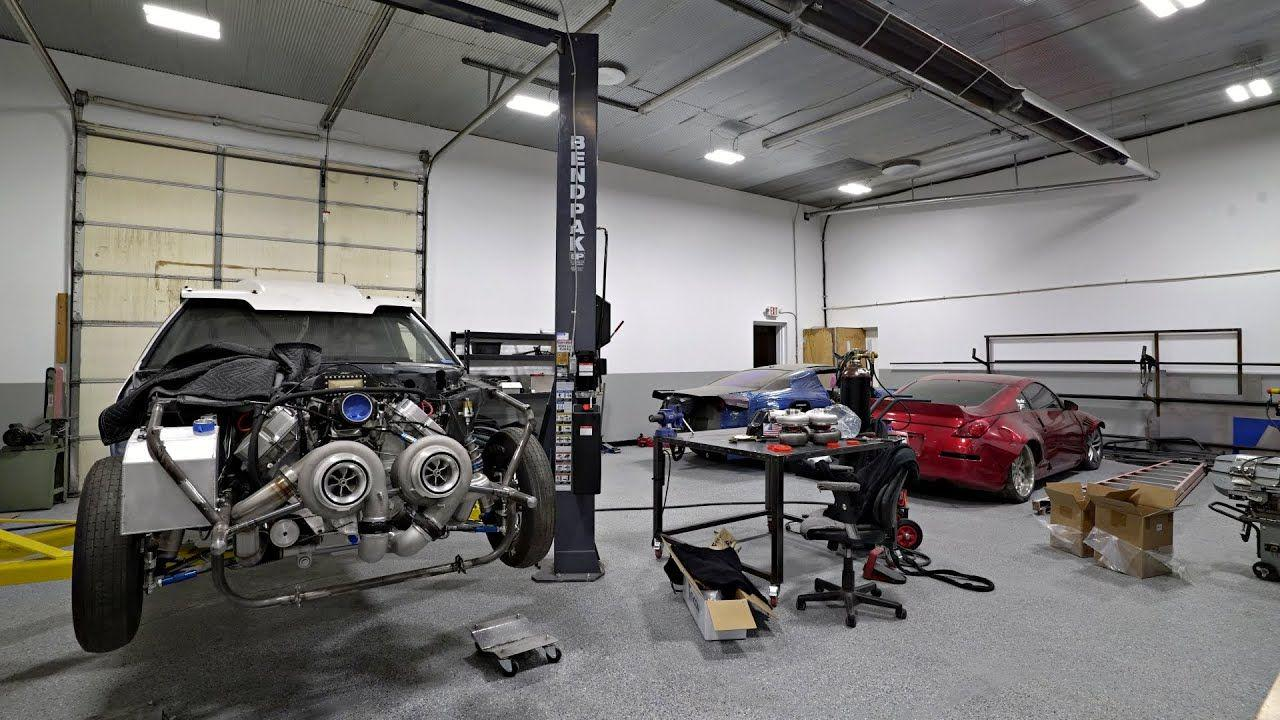

Matching the Light to the Work: A Pro's Guide to Garage Lighting
Disclaimer: This guide is for general information only and does not replace local codes or professional advice. Any wiring, new circuits, or modifications to existing electrical systems should be designed and/or installed by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations. Working at height and with electricity can be dangerous—if you are not fully confident in your skills, hire a qualified professional.
The quality of your work is directly tied to the quality of your light. In a garage or workshop, poor lighting can lead to mistakes, eye strain, and unsafe conditions. I’ve seen countless workshops where a single, dim bulb hangs in the center of the room, casting shadows over every critical surface. The solution isn't just more light, but the right kind of light, delivered by the right fixture. Different tasks—from automotive detailing to woodworking—have different illumination needs.
This guide provides a practical comparison of three highly effective fixture types for modern workshops: UFO high bays, linear fixtures, and modular hexagon grids. We’ll move beyond simple specifications and into real-world application, helping you build a lighting plan that matches your specific workflow. We’ll look at how ceiling height, task sensitivity, and desired light quality influence your choice, so you can cut shadows, reduce eye strain, and work more safely.
The Foundation: Core Metrics of Workshop Lighting
Before comparing fixtures, it's essential to understand the language of light. Three key metrics determine the performance and suitability of any light source for a task-oriented space. Getting these right is the first step toward a professionally lit workshop.
Illuminance: How Much Light Reaches Your Work Surface
Illuminance is the measure of how much light actually falls on a surface, quantified in foot-candles (fc) or lux. This is one of the most critical factors for safety and precision. The Illuminating Engineering Society (IES) provides recommended practices for various environments, and in practice, workshop tasks often fall into these tiers:
- General Assembly & Storage (~30–50 fc / ~300–500 lux): For general movement, parking vehicles, and non-detailed tasks, this range provides safe, comfortable visibility.
- Detailed Bench Work (~50–95 fc / ~500–1000 lux): For tasks like woodworking, metal fabrication, or mechanical assembly, higher illuminance helps you see fine details, read measurements accurately, and reduce errors.
- Color-Critical Tasks & Finishing (~95+ fc / ~1000+ lux): Automotive painting, detailing, and finishing benefit from intense, high-quality light to reveal surface imperfections and support color checks.
A common mistake is to only consider the fixture's lumen output. The real measure of success is the foot-candles delivered to the workbench or vehicle, which depends on lumens, beam angle, mounting height, and layout.
Simple illuminance check example
You don’t need lab gear to sanity-check your setup. A basic workflow many DIYers use is:
- Install your planned fixtures.
- Use a simple lux meter or a phone app (as a rough check) at your main work surface.
- Compare against the ranges above.
For example, in a 20×20 ft, 10 ft–ceiling garage with four linear LED fixtures (each ~5000–6000 lumens), measurements at bench height often land in the 300–600 lux range, which lines up with general to detailed work. If your readings are much lower, you can either add fixtures or move them closer to the work zone.
Color Temperature (CCT): The "Feel" of the Light
Correlated Color Temperature (CCT) describes the color appearance of the light, measured in Kelvin (K). This choice impacts visual acuity and mood. For workshops, the debate is typically between 4000K and 5000K.
- 4000K (Neutral White): A balanced, clean white light that’s comfortable for long periods. It renders colors well without the harsh, bluish tint of higher CCTs. It’s an excellent all-around choice for a multi-purpose workshop.
- 5000K (Cool White/Daylight): A brighter, crisper light that many people associate with daylight. It can help with focus and is often preferred for highly detailed tasks and inspection areas. Standards like ANSI C78.377-2017, which define color specifications for LEDs, emphasize consistency so that a 5000K light from one source visually matches another within a tolerance.
For most garages, 4000K or 5000K is the practical range. Warmer light (below ~3500K) can feel softer but may reduce apparent contrast, while very cool light (above ~5500K) can increase perceived glare and eye fatigue for some users.
Color Rendering Index (CRI): The "Truth" of the Light
The Color Rendering Index (CRI) measures a light source's ability to reveal the colors of an object compared to a reference source. On a scale of 0 to 100, a higher CRI generally means better color fidelity.
I’ve seen woodworkers struggle with stain matching and auto detailers miss paint swirls, largely because their lights had a low CRI (commonly below 80). For any task involving color matching, painting, wiring, or finishing, aiming for a CRI of 90 or higher is a solid professional-grade target. It helps ensure that the red wire looks distinctly red, not muddy, and that the paint finish you see in the shop is closer to what you’ll see in natural light.
Fixture Face-Off: UFO vs. Linear vs. Hexagon
With the core metrics established, we can compare the hardware. Each fixture type excels in specific environments. Your job is to match its light distribution to your ceiling height and primary tasks.
Note on product examples: Any specific products or series mentioned below (including Hyperlite fixtures) are shown as examples to illustrate concepts. They are not the only suitable options—comparable lights from other reputable manufacturers can work as well.
UFO High Bay Lights
UFO high bays are powerhouses, designed to throw a high volume of light from a single point. Their circular shape and focused optics create a potent, cone-shaped distribution that works best in open areas with higher ceilings.
- Best Application: Ceilings around 14 feet and higher. Think pole barns, agricultural shops, and commercial-style garages.
- Light Distribution: Concentrated and powerful. They’re designed to push light down efficiently over distance. A common rule-of-thumb for layout is to space them up to about 2–2.5 times their mounting height. For a 16-foot ceiling, that suggests a maximum spacing on the order of 30–40 feet between fixtures, depending on your illuminance target.
- Common Pitfalls: A frequent issue is installing UFOs in a standard residential garage with a ~9–10-foot ceiling. The light source is too intense and concentrated at that height, creating harsh glare and deep shadows between the pools of light. They are tools for height, not for low-clearance spaces. For more detailed lumen planning in large spaces, a warehouse lumens guide can be a useful reference.
Linear High Bay Fixtures
Linear fixtures are the versatile workhorses of the lighting world. They provide broad, even illumination that is well suited to rectangular spaces and task areas. Their elongated shape creates a wide, soft-edged light pattern that reduces hard shadows.
- Best Application: Ceilings from roughly 10 to 20 feet. This covers most residential garages, workshops, and small commercial bays.
- Light Distribution: Wide and uniform. They are excellent for lighting workbenches, assembly lines, and general floor areas. A practical heuristic for placement is a spacing-to-mounting-height ratio of roughly 0.8 to 1.2. For a 12-foot ceiling, that often means placing linear fixtures about 10 to 14 feet apart to create overlapping fields of light and avoid dark spots.
- Product Example: Fixtures like the Linear High Bay LED Lights - HPLH01 Series illustrate this category's flexibility, often offering adjustable wattage and CCT so you can fine-tune the light for different tasks.
Hexagon LED Grids
Hexagon grids are a newer category that has become popular for both their visual impact and functional advantages. Composed of interconnected linear bars, they create a large, diffuse light source that blankets an area in uniform, low-shadow light.
- Best Application: Ceilings under roughly 12 feet, particularly over specific task zones like a detailing bay or assembly table.
- Light Distribution: Extremely wide and diffuse. Because the light originates from many points spread across a wide grid, it wraps around objects and greatly reduces shadows. This can be a big upgrade for tasks like vehicle detailing or electronics assembly where seeing surface texture matters.
- Common Misconception: Many people write off hexagon lighting as purely cosmetic. While they are visually striking, their main functional benefit is strong shadow reduction in near-field applications.
- Installation Note: The Hyperlite Hexagon Garage Lights Gen 2 are one example of this style. A common installation error is creating a single, massive grid powered from one end, which can create a single point of failure and voltage drop issues. It’s usually better to break the layout into multiple smaller, interconnected arrays with power feeds distributed around the grid.
Task-Specific Lighting Blueprints
Let’s apply this knowledge to create lighting plans for three common workshop archetypes.
Measurement note: The numeric targets below are practical ranges based on common recommendations and field experience. Treat them as starting points, not rigid rules—your ideal level may vary with age, task type, and wall/ceiling reflectance.
Blueprint 1: The Automotive Detailing Bay
For the auto enthusiast, controlling shadows is a top priority. The goal is to create a "light tunnel" that reveals swirls, scratches, and surface imperfections on a vehicle.
- Primary Fixture: A hexagon grid is extremely effective here. A grid mounted directly above the vehicle creates a near-shadowless environment around the horizontal surfaces.
- Secondary Fixture: Supplement the grid with linear fixtures along the perimeter of the bay or on side walls. This adds ambient light and fills in vertical surfaces and lower body panels. This type of hybrid garage lighting setup combines grid uniformity with broader room coverage.
- Metrics: As a working target, aim for roughly 1000+ lux (around 95+ fc) on vehicle surfaces in the main work area. Use a CCT around 5000K and a CRI of 90+ to support color inspection and polish checks.
Quick example: Single-bay detail space
For a roughly 12×22 ft bay with a 9–10 ft ceiling:
- One medium hex grid centered over the vehicle can typically provide several hundred lux on horizontal panels.
- Adding two to four 4 ft linear fixtures on the sides (mounted just above vehicle height and angled slightly toward the panels) often bumps measurements into the higher ranges needed for serious correction work.
Fine-tune by measuring at hood and door-panel height and adjusting fixture angles or counts.
Blueprint 2: The Woodworking & Fabrication Shop
Woodworkers and metalworkers need crisp, clear light focused on their machinery and assembly tables. The key is preventing shadows from your body or equipment from falling on the cut line.
- Primary Fixture: Linear fixtures are the go-to choice. Mount them directly over key workstations like the table saw, miter saw, and primary workbench. Orient them parallel to the long edge of the bench to cast light evenly across the work surface.
- Layout: Use roughly a 1:1 spacing-to-mounting-height ratio for even coverage across the shop, then add extra fixtures over particularly critical stations. This helps you avoid walking from a bright zone into a dark one while carrying materials.
- Metrics: As a general range, target about 500–1000 lux (50–95 fc) on work surfaces. A CCT around 4000K is often preferred for its balanced, natural feel, which many people find less fatiguing over long sessions. A CRI of 90+ is very helpful for accurate stain and finish work.
Example: 20×20 ft hobby shop
In a 20×20 ft shop with a 10 ft ceiling, a common pattern is:
- Two rows of 3–4 linear fixtures running front to back, spaced about 8–10 ft apart.
- An extra fixture or two over the main bench or assembly table.
Measured at bench height, this type of layout often lands in the mid-range for detailed work. If your readings are low, consider adding fixtures closer to the walls or above specific machines.
Blueprint 3: The General Purpose & High-Ceiling Garage
For large, open spaces like a pole barn or a multi-bay garage used for vehicle storage and general maintenance, the goal is broad, cost-effective illumination.
- Primary Fixture (Ceilings ≳ 14 ft): UFO high bays are an efficient solution. Their output can cover a large floor area from a single mounting point, reducing the number of fixtures and simplifying wiring.
- Primary Fixture (Ceilings below ~14 ft): A grid of linear fixtures provides excellent, uniform coverage for a standard two- or three-car garage without the glare issues that high-intensity point sources can create at low heights.
- Metrics: A target range of about 300–500 lux (30–50 fc) supports general visibility. A CCT of 4000K or 5000K works well. CRI is less critical here than in finish work, but 80+ is still a sensible minimum for basic task clarity.
Installation and Control Considerations
Proper installation is just as important as fixture selection. All wiring should comply with the NFPA 70 National Electrical Code (NEC) and any local regulations.
Safety checks before you start
Before you drill, cut, or pull wire, run through a simple safety checklist:
- Power off and verify: Turn off the correct breaker and verify with a non-contact voltage tester that the circuit is de-energized before touching any conductors.
- Support and fall protection: Use a stable ladder or platform for high mounting points, and follow basic fall protection practices. Don’t overreach—reposition the ladder instead.
- Box and conductor ratings: Make sure junction boxes, wire gauges, and overcurrent protection are appropriately sized for the load and comply with code.
- Grounding and bonding: Confirm that all metal fixtures and boxes are properly grounded according to code and manufacturer instructions.
- When in doubt, stop: If you’re unsure about any part of the wiring or load calculation, bring in a licensed electrician.
Controls and dimming
For professional-grade control, 0–10V dimming is a standard feature on many commercial-quality linear and UFO fixtures. This allows for smooth dimming and integration with occupancy or daylight sensors, which can be required to meet some energy codes such as California's Title 24.
When installing dimmers or control systems:
- Always follow both the fixture and control manufacturer’s wiring diagrams.
- Verify that the driver in the fixture is compatible with the dimmer protocol you plan to use.
- Test for flicker or strobing at multiple light levels before closing up junction boxes or finishing ceilings. A mismatch between the driver and the wall control is a common cause of troubleshooting calls.
Wrapping Up: Your Fixture Decision Framework
Choosing the right light starts with defining your primary use case. There is no single "best" fixture—only the best fixture for your ceiling, your tasks, and the way you like to work.
| Feature | UFO High Bay | Linear Fixture | Hexagon Grid |
|---|---|---|---|
| Ideal Ceiling Height | ~14 ft and higher | ~10–20 ft | Under ~12 ft |
| Light Distribution | Concentrated cone | Wide & even | Diffuse & low-shadow |
| Best For | High-ceiling barns, open storage | Workbenches, general shops | Auto detailing, assembly zones |
| Primary Weakness | Can create harsh glare in low ceilings | Can create parallel shadows if poorly placed | Higher cost, more complex install |
| CRI/CCT Focus | General purpose (80+ CRI) | Task-oriented (often 90+ CRI) | Color- and detail-critical (90+ CRI) |
By investing in a task-appropriate lighting system, you create a safer, more efficient, and more enjoyable workspace. Analyze your needs, sketch your layout, sanity-check with simple measurements, and choose the right mix of fixtures for the job.
Commercial disclosure: This article uses product links and examples from our own catalog to demonstrate concepts. These are not the only suitable options on the market. Always compare specifications, warranties, and reviews across multiple brands to find the best fit for your space and budget.
Frequently Asked Questions (FAQ)
What's the difference between 4000K and 5000K for a garage?
4000K provides a neutral white light that’s comfortable for general use and long hours. 5000K is a cooler, daylight-like light that can enhance contrast and is often preferred for very detailed mechanical or inspection work. The choice is largely personal preference, but both CCTs are commonly used in workshops.
How many lumens do I need for my garage?
This depends on the size of your garage, surface reflectance, and the tasks you perform. Instead of focusing only on lumens, aim for an illuminance range at your work surfaces. For general use, aim for roughly 30–50 foot-candles (about 300–500 lux). For detailed workbenches, a range around 50–95 foot-candles (about 500–1000 lux) is a useful target.
Can I put a UFO high bay in my 10-foot ceiling garage?
It’s generally not recommended. UFO high bays are optimized for higher ceilings (around 14 ft and above). In a low-ceiling environment, their intense, concentrated light can create significant glare and harsh shadows, which is uncomfortable and less effective for detailed work.
Are hexagon lights difficult to install?
They are more complex than a single fixture because they involve connecting multiple light bars and connectors. Most systems are designed with plug-and-play components, but planning your layout and power distribution before you start is important. If the installation requires new circuits, in-ceiling wiring, or you’re unsure about the load, have a licensed electrician handle the electrical side.
Do I need a 90+ CRI light?
If you do painting, finishing, auto detailing, or work where color judgment matters, a CRI of 90+ is very helpful. For general mechanical work, storage, or basic maintenance, a CRI of 80+ is usually adequate.
Safety reminder: Electrical work and working at height carry real risks. When in doubt, consult a licensed electrician or qualified professional before modifying your lighting circuits or adding new loads.
