The Critical Role of the Setpoint in Daylight Harvesting

In industrial lighting control, the setpoint is the single most influential variable determining the return on investment (ROI) of a daylight harvesting system. It is the target illuminance level—measured in lux or footcandles—that the control system aims to maintain by dimming or brightening artificial fixtures in response to available natural light.

Setting the correct setpoint is not merely a matter of compliance; it is a balance between energy cost avoidance and operational productivity. A setpoint that is too high wastes energy by over-lighting a space already saturated with sun; a setpoint that is too low triggers occupant dissatisfaction and manual overrides, effectively neutralizing the system's benefits. For facility managers and electrical contractors, mastering setpoint logic is the difference between a high-performance facility and a failed commissioning project.

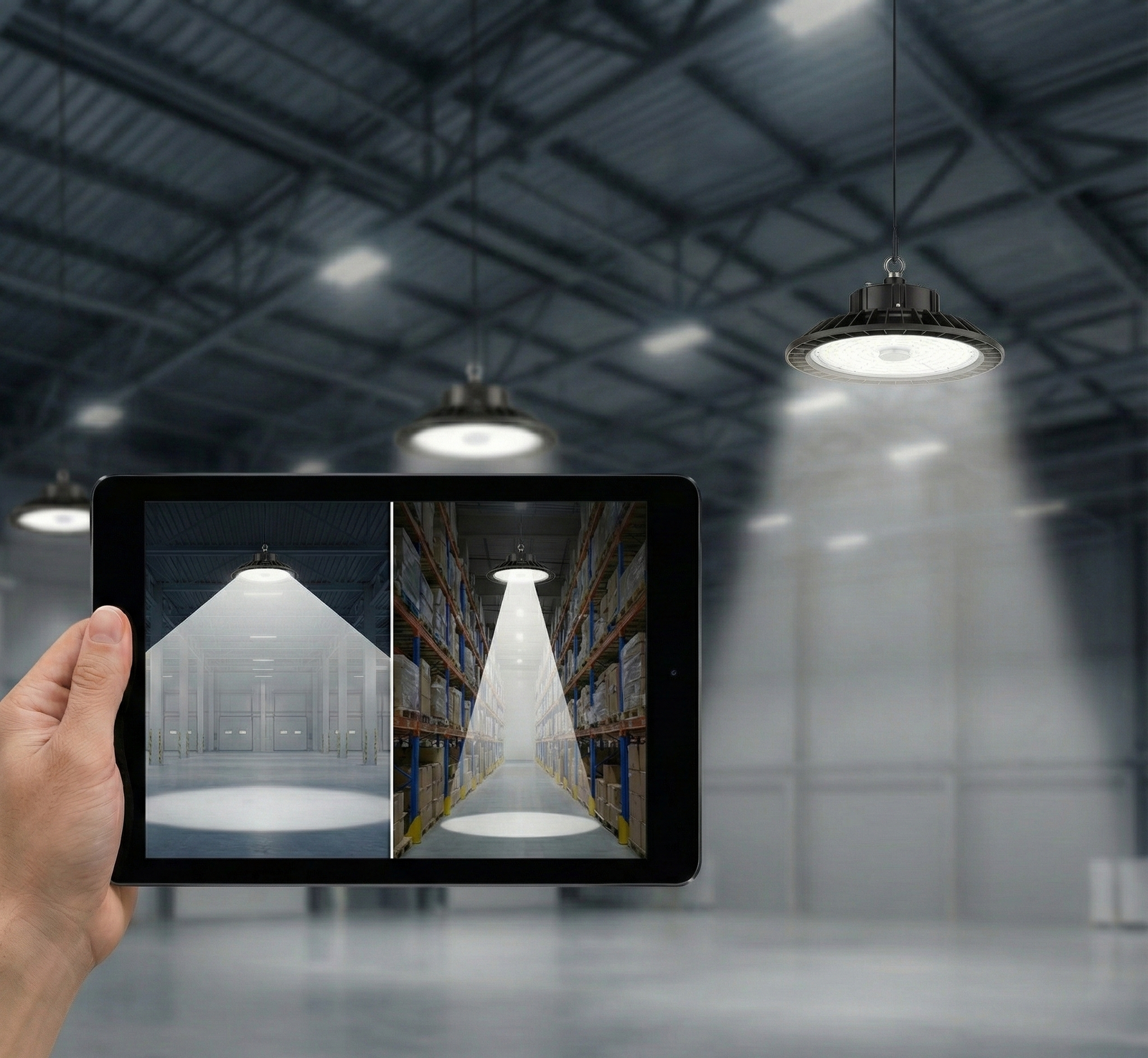

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Understanding Sensor Logic: Open-Loop vs. Closed-Loop

To establish a functional setpoint, one must first understand how the sensor "sees" the environment. Industrial systems typically utilize one of two logical architectures:

1. Open-Loop Systems

Open-loop sensors are mounted to face the light source (usually a skylight or window). They measure only the incoming daylight, not the light produced by the fixtures.

Logic: The system assumes a linear relationship between the external light and the internal brightness.
Setpoint Application: The setpoint is often a threshold. Once the sensor detects X amount of daylight, it dims the fixtures to a predetermined percentage.

2. Closed-Loop Systems

Closed-loop sensors are mounted facing the task area (the floor or work surface). They measure the total combined light (daylight + artificial light).

Logic: This is a "feedback loop." If the sensor detects 50 footcandles (fc) on the floor and the setpoint is 40 fc, it will dim the LEDs until the 40 fc target is reached.
Setpoint Application: This is more precise but susceptible to "interference" from reflective surfaces (e.g., a white forklift passing under the sensor).

Logic Summary: Our technical preference for warehouse environments usually leans toward closed-loop systems for their ability to maintain a constant "maintained illuminance," provided the sensors are calibrated to ignore transient reflections.

Determining the Ideal Lux Level: Standards vs. Reality

The baseline for any setpoint should be the ANSI/IES RP-7-21 - Lighting Industrial Facilities. This standard provides recommended maintained illuminance levels based on task complexity.

Task Category	Recommended Illuminance (IES RP-7)	Typical Setpoint (Pragmatic)
Bulk Storage (Inactive)	5–10 fc (50–100 lux)	8 fc
Warehouse Aisles (Active)	20–30 fc (200–300 lux)	25 fc
Fine Manufacturing	50–100 fc (500–1000 lux)	75 fc
Loading Docks	20–30 fc (200–300 lux)	25 fc

The Occupant Preference Gap

While standards like IES RP-7 provide a legal and engineering baseline, field observations from our customer support and commissioning teams reveal a common pitfall: occupant preference often deviates from prescriptive standards by 30% or more.

This is largely due to pupillary miosis—the natural reduction in light intake as the eye ages. A 50-year-old worker may require significantly more light than a 20-year-old to perform the same task with equal cognitive speed. Setting a "compliant" setpoint based strictly on the lower end of the IES scale can lead to a 5–15% reduction in attention-demanding task performance (based on cognitive performance research).

The Engineering Heuristics of Calibration

In practice, setting the correct setpoint is often more art than science. Based on patterns from industrial field service, we recommend the following heuristics for a stable, high-efficiency system.

The 10–15% Buffer Rule

A common mistake is using the IES-recommended maintained illuminance directly as the setpoint. Experienced integrators set the target 10–15% below the IES level.

Why: This accounts for Light Loss Factors (LLF) over time (dirt accumulation, lumen depreciation) and provides a buffer that prevents the system from "hunting" at the very edge of the target.

Deadband Settings: Preventing "Hunting"

The "deadband" is the range where no dimming occurs. If your setpoint is 40 fc and your deadband is too narrow (e.g., 2%), the fixtures will constantly adjust their output in response to every passing cloud. This "hunting" behavior:

Disturbs occupants.
Shortens the lifespan of the LED driver.
Increases energy spikes.

Heuristic: A deadband of 15–20% of the setpoint is recommended for stable operation. This ensures the light level must change significantly before the system initiates a dimming cycle.

Minimum Dimming Levels and the "Jump"

When integrating with dimmable high bays, ensure the driver’s minimum dimming level is below 10%. Some lower-grade drivers cut off or "pop" at 20%, creating a visible and distracting jump in light levels rather than a smooth transition. For precision environments, a driver that supports 1% or 10% dimming is essential for seamless daylight harvesting.

Technicians servicing LED High Bay and LED shop lights in a high-ceiling warehouse

Sensor Placement and Environmental Pitfalls

Even the most accurate setpoint logic will fail if the sensor is poorly placed. According to NEMA LSD 64-2012 - Lighting Controls Terminology, the photocell must represent the average light level of the controlled zone.

Avoid South/West Exposure: Direct sunlight hitting a sensor causes drastic, rapid dimming cycles. If only south/west exposure is available, practitioners use a shading coefficient or aim the sensor at a 45-degree angle away from direct sunlight.
The North-Facing Ideal: Mounting a photocell on a north-facing wall or skylight well provides the most stable, diffused light readings.
The "Shadow" Trap: Ensure sensors are not mounted where structural beams or HVAC ducts will cast shadows on the photocell as the sun moves throughout the day.

Economic Modeling: The 24/7 Warehouse Scenario

To demonstrate the tangible impact of setpoint optimization, we modeled a retrofit for a 24/7 cold storage logistics center. In this environment, every watt saved has a 3x impact due to continuous operation and the interactive cooling load.

Scenario Model: 50 LED High Bays in 24/7 Operation

Baseline: 400W Metal Halide (458W total system draw).
Upgrade: 150W LED High Bay with integrated Daylight Harvesting and Occupancy Sensors.
Utility Rate: $0.12/kWh.

Metric	Estimated Value	Logic / Assumption
Annual Energy Savings	~$16,188	ΔWatts × 8760h × Rate
Annual Maintenance Savings	~$5,110	Avoided lamp/ballast labor and material
HVAC Cooling Credit	~$610	Reduced heat load in refrigerated space
Total Annual Savings	~$21,908	Combined energy, maintenance, and HVAC
Simple Payback	~3.7 Months	(Project Cost - Rebates) / Annual Savings

Modeling Note: This scenario assumes a 24/7 operation (8,760 hours/year). For a standard 8-hour shift, the payback would extend to approximately 1.5–2 years. The HVAC credit assumes a COP of 3.0 for the cooling equipment and a 33% interactive factor.

The Rebate Multiplier

By specifying fixtures that are DLC Premium Qualified, facility managers can unlock significant utility rebates. In many jurisdictions, adding daylight harvesting controls increases the rebate by $20–$50 per fixture, often covering the entire cost of the control hardware itself.

Compliance and Standards Checklist

When designing your setpoint and control logic, ensure alignment with these three major regulatory frameworks:

ASHRAE 90.1-2022: Requires automatic daylight-responsive controls for any space with more than 24 ft² of glazing (windows) or 5 ft² of skylights.
California Title 24, Part 6: Mandates multi-level dimming and specific "Daylit Zone" logic. For more detail, see our guide on Title 24 Controls for Warehouse High Bay Lighting.
IECC 2024: The latest International Energy Conservation Code has lowered Lighting Power Density (LPD) limits, making daylight harvesting a functional necessity to meet building codes in new construction.

Implementing the Logic: A Step-by-Step Approach

Audit the Space: Determine the task requirements using IES RP-7.
Select the Hardware: Ensure fixtures have 0-10V dimming drivers with a low minimum dim (10% or less).
Placement: Install sensors in diffused light zones (North-facing).
Commissioning: Set the target illuminance 10% below the desired level to account for Light Loss Factors.
Validation: Use a hand-held light meter to verify the floor-level lux during both peak daylight and nighttime hours.

For a broader look at how these systems fit into the current market, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.

Summary of Practical Takeaways

Effective daylight harvesting is not a "set it and forget it" technology. It requires a pragmatic understanding of how humans perceive light versus how sensors measure it. By applying a 15–20% deadband and accounting for the 10–15% light loss factor in your setpoint, you can eliminate the "hunting" and "flickering" that plague poorly commissioned systems.

Ultimately, the goal is Lighting Uniformity. When the setpoint logic is sound, the transition between natural and artificial light becomes invisible to the worker, while the energy savings become highly visible to the CFO.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. All electrical installations should be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building regulations.
