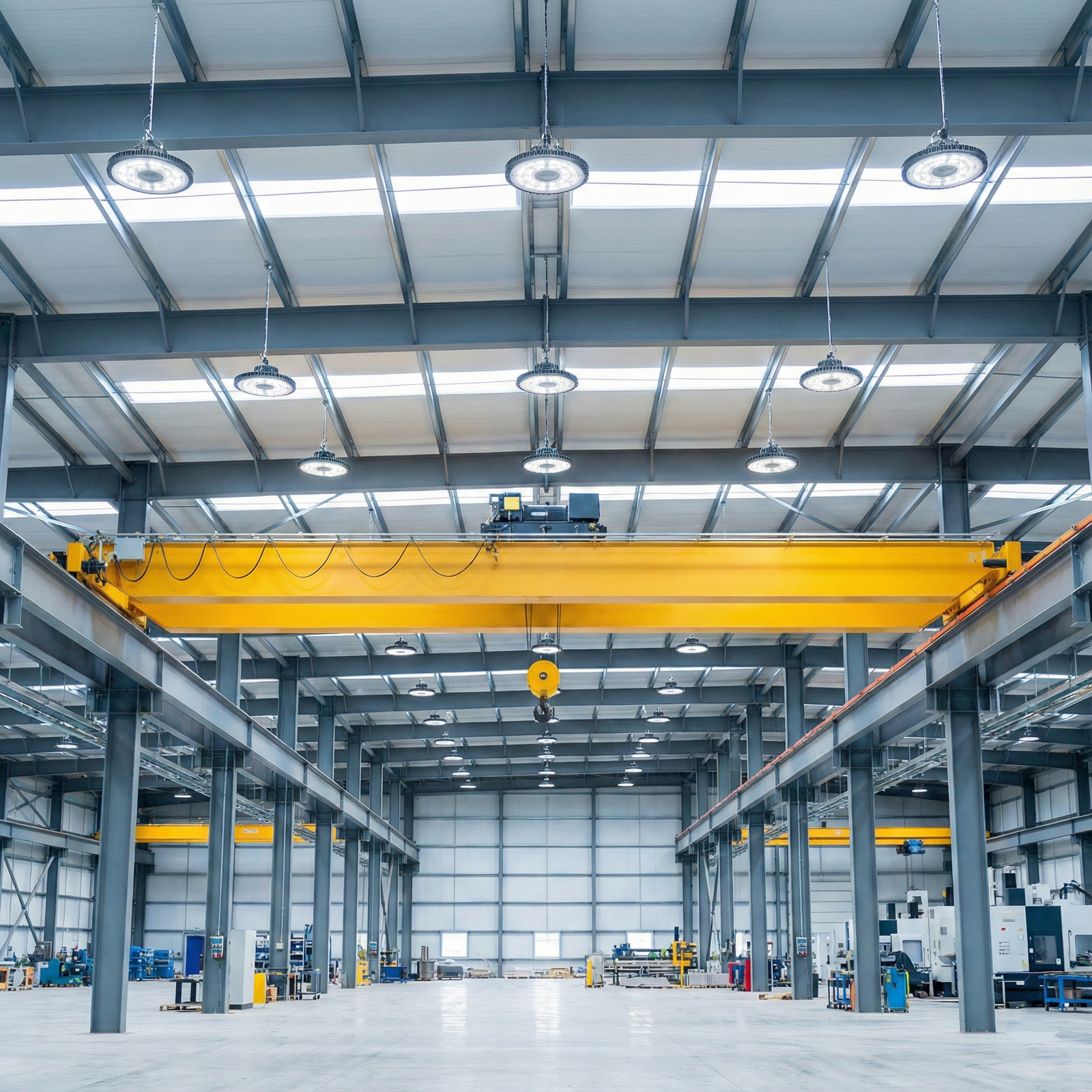

Open-Loop vs. Closed-Loop Daylight Harvesting Logic
For facility managers and lighting designers, daylight harvesting is no longer a luxury—it is a regulatory and economic necessity. Driven by standards like California Title 24, Part 6 and ASHRAE Standard 90.1-2022, modern industrial spaces must integrate natural light with artificial illumination to reduce energy consumption. However, the effectiveness of these systems hinges on the control logic: open-loop versus closed-loop.
Choosing the wrong logic for a specific building geometry, such as a high-ceiling warehouse versus a windowed perimeter office, can lead to system "hunting" (rapid, disruptive dimming cycles), inaccurate light levels, and significant maintenance overhead. This guide provides a technical deep dive into these two control architectures, grounded in real-world performance data and scenario modeling.
The Fundamental Distinction in Control Logic
Daylight harvesting relies on photosensors to detect ambient light and signal a 0-10V dimming driver to adjust output. The primary difference lies in what the sensor "sees."
1. Open-Loop Logic: External Reference
In an open-loop system, the photosensor is positioned to measure only the incoming daylight, typically by facing a window or being mounted on the roof. Crucially, the sensor does not see the light produced by the fixtures it controls.
- Mechanism: The system assumes a direct correlation between the measured exterior/window light and the resulting light level on the interior workplane.
- Best Use Cases: Warehouses with extensive skylights, atrium spaces, and parking garages.
2. Closed-Loop Logic: Feedback Reference
A closed-loop system places the photosensor where it can see both the natural daylight and the artificial light from the fixtures. It measures the total illuminance on the workplane.
- Mechanism: The controller continuously adjusts the fixture output to maintain a constant, pre-defined "setpoint" (e.g., 30 foot-candles). If clouds move in, the sensor detects a drop in total light and signals the driver to increase output.
- Best Use Cases: Multi-zone offices, classrooms, and manufacturing labs where precise workplane illuminance is critical.
Technical Comparison: Performance and Maintenance
While closed-loop systems are often marketed as more "intelligent," field experience suggests that complexity does not always equal reliability.
| Feature | Open-Loop Control | Closed-Loop Control |
|---|---|---|
| Primary Input | Daylight only (Exterior/Window) | Total Light (Daylight + LED) |
| Accuracy | High for large areas | High for localized task zones |
| Commissioning | Simplified; requires one-time calibration | Complex; requires precise setpoint tuning |
| Maintenance | Low; sensors less affected by interior dirt | High; sensors prone to interior dust/obstruction |
| System Stability | Stable; no feedback loop to cause "hunting" | Prone to hunting if response time is too fast |
| Typical ROI | Rapid (0.3–1.0 years) | Moderate (2.0–5.0 years) |
Modeling Note: Our comparison assumes a standard industrial 0-10V dimming architecture and DesignLights Consortium (DLC) Premium certified fixtures. Accuracy and ROI estimates are based on typical facility patterns observed in customer support and field auditing (not a controlled lab study).
Scenario Modeling: High-Ceiling Warehouse (50,000 sq. ft.)
To understand the financial impact of these systems, we modeled a 50,000 sq. ft. warehouse with 30-foot ceilings, currently utilizing legacy 400W Metal Halide (MH) fixtures. This scenario evaluates a retrofit to 150W LED high-bays integrated with daylight harvesting controls.
Quantitative Insights (TCO & ROI Analysis)
Our analysis indicates that a transition to project-ready LED high-bays with controls delivers substantial operational savings.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Legacy System Load | 458 | W | 400W MH + 15% ballast factor |
| LED System Load | 150 | W | Standard 150W high-performance LED |
| Annual Energy Savings | $23,654 | USD | Based on $0.16/kWh and 6,000 hrs/year |
| Annual Maintenance Savings | $7,440 | USD | Labor/lift costs for MH lamp replacements |
| Net HVAC Cooling Credit | $1,084 | USD | Reduced heat gain (0.33 interactive factor) |
| Simple Payback Period | ~0.3 | Years | After $4,000 in utility rebates |
Logic Summary: This deterministic model assumes a Midwest grid region (MROW) and industrial electricity rates. The HVAC credit is calculated using a 3.0 Coefficient of Performance (COP) for rooftop units, following the MA Lighting Interactive Effects Study.
The "Hidden" Open-Loop Advantage in Warehouses
Conventional wisdom suggests closed-loop is always superior for energy savings. However, in high-ceiling environments (30+ ft), closed-loop photosensors are prone to inaccurate readings due to distance from the workplane and dirt accumulation. According to industry field observations, dirt on interior sensors or skylights can degrade performance by 15–30% within a year if not maintained.
In contrast, a sophisticated open-loop system using real-time solar irradiance modeling or an exterior IES LM-79 compliant photosensor can achieve comparable energy savings (20–60%) with far lower maintenance costs. This is because the control logic is not reactive to localized shadows or interior dust, which often trigger false dimming in closed-loop setups.
Practical Heuristics for Sensor Placement
Even the best control logic will fail if the sensor is poorly placed. Based on standard field service recommendations, practitioners should follow these rules of thumb:
- Workplane Height: For closed-loop systems, calibrate sensors at representative points in the occupied zone, typically at a height of 30–36 inches.
- The 3-5 Foot Rule: Place sensors at least 3–5 feet away from windows or skylights. This prevents the sensor from being overwhelmed by direct sun patches (specular glare), which would cause the system to over-dim the interior.
- Avoid Shadow Zones: For closed-loop systems, ensure the sensor is not placed directly under a light fixture or in a persistent shadow caused by racking. Placing a sensor in a shadow renders the feedback loop useless, as it will signal the lights to stay at 100% even when the rest of the room is over-lit.
Integration Challenges: 0-10V Dimming and "Hunting"
A common field error is the mismatch between the LED driver's minimum dimming level and the sensor's output signal.
SPEC CALLOUT: Minimum Dimming Compatibility
- The Issue: Many sensors cannot drive a signal below 10%. If the LED driver is capable of dimming to 1%, but the sensor "snaps off" at 10%, the transition will be jarring for occupants.
- The Solution: Verify that the driver's dimming curve matches the sensor's linear or logarithmic output.
Preventing System "Hunting" Hunting occurs when the system rapidly cycles brightness levels, often due to a response time that is too fast (reactive to passing clouds) or a setpoint that is too narrow.
- Expert Tip: Always commission the system during a partly cloudy day. This allows you to test the controller's response time and adjust the "fade rate." A slow fade (e.g., 30–60 seconds to reach full dimming) is less noticeable to workers and prevents the "strobe effect" during variable weather.
Compliance and ROI: Beyond the Utility Bill
Integrating daylight harvesting is a core strategy for meeting Title 24 Controls for Warehouse High Bay Lighting. Beyond compliance, these systems contribute to Environmental, Social, and Governance (ESG) reporting.
Based on our 50,000 sq. ft. warehouse model, the carbon reduction is significant:
- Annual CO2 Reduction: ~73 metric tons.
- Environmental Equivalent: Removing 16 gasoline-powered cars from the road or planting 1,200 tree seedlings.
For facility managers, these metrics are increasingly used to justify capital expenditure (CAPEX) for lighting upgrades, moving the conversation from "saving on the electric bill" to "corporate sustainability leadership."
Strategic Selection Framework: Which Logic Should You Use?
To make the final decision, evaluate your building's primary architectural features.
Use Open-Loop Logic If:
- You have a high-ceiling warehouse (20–40 ft) with skylights.
- You want to minimize long-term maintenance and sensor cleaning.
- The space has high racking that creates complex interior shadows that would confuse a closed-loop sensor.
- You are looking for the lowest upfront commissioning cost.
Use Closed-Loop Logic If:
- You are designing a perimeter office or manufacturing lab with large windows.
- The task requires precise, consistent illuminance (e.g., electronics assembly).
- The building area is small enough that sensors can be easily reached for annual cleaning.
- You need to comply with multi-zone dimming requirements where different desks have different light needs.
The Hybrid Approach: The Emerging Best Practice
Modern systems are moving toward a hybrid model. This involves using a robust open-loop astronomical timeclock (based on GPS coordinates and solar position algorithms) to set the baseline schedule, combined with wireless, fixture-embedded closed-loop sensors for localized fine-tuning. This overcomes the limitations of both methods: the open-loop clock provides stability, while the local sensor accounts for localized occupancy or temporary obstructions.
Summary of Implementation Steps
- Audit the Geometry: Determine if skylights (Open-Loop) or windows (Closed-Loop) are the primary daylight source.
- Verify Specs: Ensure all fixtures are UL Certified and meet DLC 5.1 Technical Requirements for rebate eligibility.
- Plan the Layout: Use IES LM-63-19 photometric files (.ies) to simulate the daylight contribution before purchasing hardware.
- Commission with Care: Schedule the final tuning for a partly cloudy day to ensure the system does not "hunt" during rapid light changes.
- Schedule Maintenance: Program a bi-annual cleaning for all external sensors and skylights to prevent the 15–30% efficiency loss caused by industrial dust.
For more information on optimizing industrial layouts, see our guide on Achieving Lighting Uniformity in a Warehouse Layout.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Lighting requirements vary by jurisdiction and specific building use. Always consult with a licensed electrical contractor or lighting professional to ensure compliance with local building codes (e.g., NEC, Title 24).
