The ROI of Optical Clarity: Why Salt Crust Removal Matters
In marine and high-moisture environments, such as car washes and coastal facilities, the primary threat to LED performance is not just water ingress—it is the accumulation of salt and mineral crust. Based on observational patterns from technical support cases and warranty reviews (not a controlled lab study), salt crust buildup on LED lenses can reduce light output by around 15% to 30% within the first six months of operation in harsh coastal or wash-bay conditions.
For facility managers, this is more than an aesthetic issue; it is a safety and financial liability. In many layouts, a roughly 30% reduction in lumen output can drop the illumination levels below the safety targets recommended by ANSI/IES RP-7 – Lighting Industrial Facilities, especially if the original design was value‑engineered close to the minimum. Furthermore, improper cleaning techniques—such as using abrasive pads or harsh chemicals—can cause permanent micro-scratches that increase light scattering and make the fixture look “dim” even after cleaning.
The Professional Solution: To restore optical clarity without damaging the fixture, a field-tested option is a cleaning solution of 3:1 distilled water to isopropyl alcohol with a single drop of mild dish soap. This working ratio is widely used in optics cleaning because it helps break down salt deposits while being gentler on common lens materials and coatings than many household glass cleaners.
Safety Note – Isopropyl Alcohol (IPA)
Isopropyl alcohol is flammable. Use this solution only in well‑ventilated areas, keep it away from open flames, sparks, and hot surfaces, and store it in a closed container. Wear basic PPE—such as chemical‑resistant gloves and safety glasses—when mixing and using the solution. Never spray directly onto live electrical equipment.
1. The Physics of Salt Accumulation in Corrosive Environments
Understanding how salt deposits form is the first step toward effective maintenance. Not all "salt" is created equal, and the crystallization patterns influence how much light is scattered and how hard the deposits are to remove.
Marine Environments (NaCl Dominance)
In coastal regions, fixtures within 2 to 3 meters of the waterline experience accelerated buildup due to wave splash and tidal spray. Sodium Chloride (NaCl) typically forms cubic crystals. These crystals are highly effective at scattering light, creating an "invisible haze" that degrades performance even before a thick white crust is visible. According to research on Marine-Grade Finishes, salt air can bypass standard powder coatings if not regularly rinsed, leading to significantly faster corrosion once the surface is compromised.
Car Wash Facilities (Ca/Mg Chlorides)
Car wash operators face a different challenge. The "salt" here is often a combination of road salts (Calcium/Magnesium Chlorides) and high-pressure chemical cleaners. These form needle-like crystals that are more adhesive than marine salt. When combined with wax residues, they create a mineral-polymer bond that is considerably harder to remove.
Methodology Note: Lumen Loss Modeling (Internal Scenario Estimate)
The lumen depreciation figures referenced in this article are based on an internal deterministic scenario model for coastal industrial zones and wash‑bay environments, combined with field observations from support and warranty cases. They are estimates for maintenance planning, not universal guarantees.
Parameter Value / Range Unit Rationale Salt Crust Thickness ~0.1 – 0.5 Microns Approximate threshold where haze becomes noticeable in our field inspections; not a lab‑certified limit Initial Lumen Output ~20,000 Lumens Typical LED high‑bay class used as a modeling baseline Modeled Environment Coastal / High Humidity N/A High‑corrosion risk zones with regular salt exposure Cleaning Interval ~180 Days Common reactive maintenance cycle we see in practice Estimated Output Loss ~15 – 25 % Rule‑of‑thumb estimate based on light‑scattering heuristics and observed dimming complaints These numbers are for illustration and planning. Actual performance will vary with fixture design, mounting angle, chemistry, and local conditions. For project‑critical thresholds, rely on your own measurements or third‑party testing.
2. Maintenance Protocol: The 3:1 Restoration Method
Maintaining Reliable, Bright, and Solid lighting requires a disciplined approach. Based on patterns commonly seen in the field, proactive rinsing and scheduled cleaning tend to perform better than waiting until a thick crust is clearly visible.
Step-by-Step Cleaning Guide
- Safety First (Electrical): Disconnect power at the breaker. Even with an IP66 rating, best practice is to work on de‑energized equipment and allow hot fixtures to cool before cleaning.
- Safety First (Chemical): Mix and use the distilled water/IPA solution away from ignition sources, in a ventilated area, and wear gloves and eye protection. Avoid breathing vapors in confined spaces.
- Initial Rinse: Use low-pressure distilled water to remove loose particulates. Never use a high-pressure washer directly on the lens, as this can force microscopic salt grains into the gasket seals.
- Check Coating Compatibility: Before treating the entire lens, test your cleaning solution on a small, inconspicuous edge area and review the fixture manufacturer’s technical data sheet. If you notice clouding, softening, or color change, stop and consult the manufacturer for approved cleaners.
- Apply Solution: Spray or apply the 3:1 distilled water/isopropyl alcohol mix to the lens, or to the microfiber cloth if spraying is not recommended. Let it sit for up to 60 seconds to soften the salt deposits.

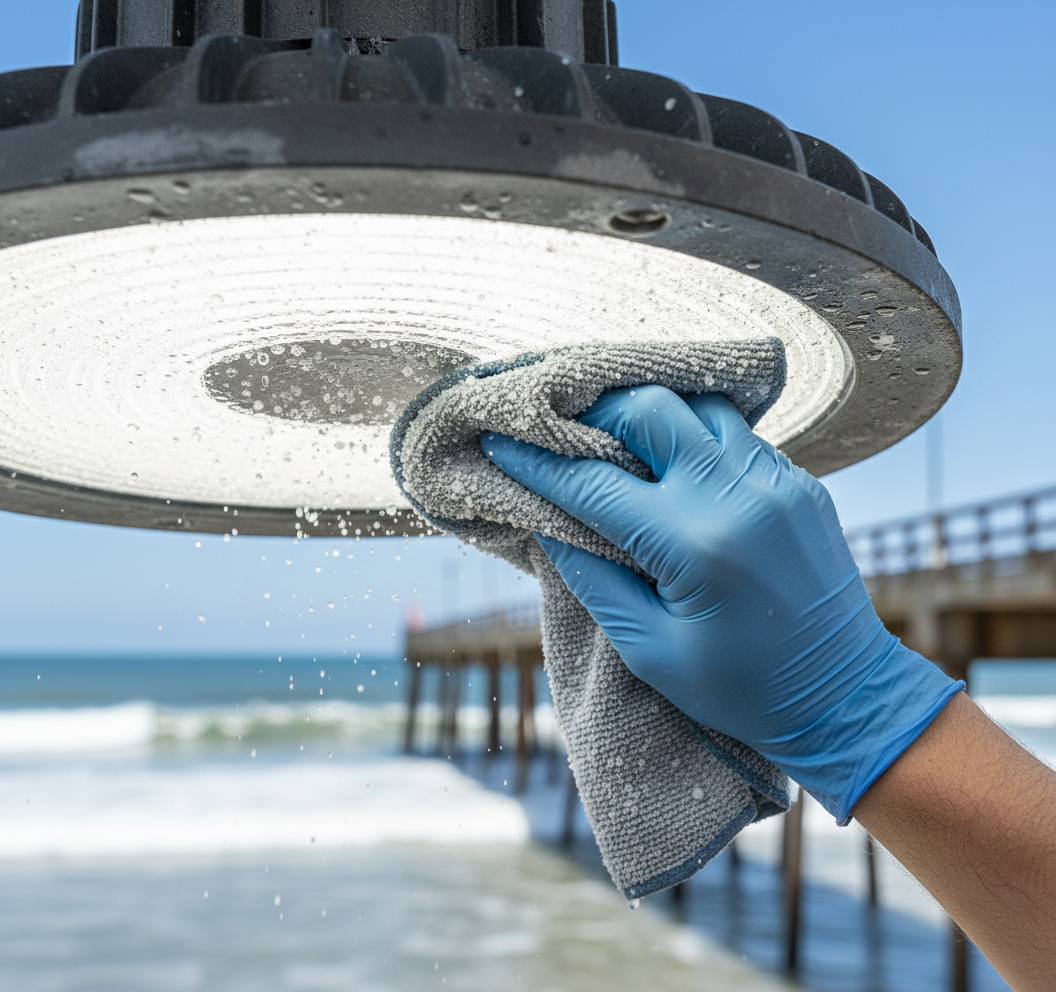

- The Microfiber Technique: Use a clean, optics-grade microfiber cloth. Wipe in a single direction—never in circles. Circular motions trap grit and create the "swirl marks" that permanently scatter light.
- Final Inspection: Use a high-lumen flashlight to check for "haze." If a film remains, repeat the process using light pressure rather than scrubbing.
Common Pitfalls to Avoid
- Abrasive Materials: Avoid paper towels or shop rags. These often contain wood fibers or embedded grit that can scratch polycarbonate lenses.
- Aggressive Window Cleaners: Many commercial window cleaners contain ammonia or other solvents that can cause "crazing" (micro-cracking) in polycarbonate over time. Use only cleaners that your fixture manufacturer lists as compatible.
- Skipping Test Spots: Always test your cleaning solution on a small edge area first and wait a few minutes to observe any reaction. Some proprietary lens coatings react poorly to specific solvents.
3. Technical Standards: Designing for Durability
When selecting fixtures for these environments, facility managers must look beyond the price tag and verify the engineering benchmarks. Authoritative data from the DesignLights Consortium (DLC) Qualified Products List (QPL) and UL Solutions Product iQ provide useful evidence for B2B procurement.
IP Ratings vs. Salt Protection
A common misconception is that an IP65 or IP66 rating protects against salt. As noted in the 2026 Commercial & Industrial LED Lighting Outlook, IP ratings only measure water and dust ingress. They do not account for the mechanical effects of salt crystallization or corrosion.
Instead of assigning a specific pressure range, it is more accurate for most readers to think of salt crystals as exerting significant local stress as they grow inside coatings, paint pores, and small gaps. Over time, this can crack standard paint layers and undermine corrosion protection, especially if the coating system was not designed for marine or heavy wash‑down service.
Key Certification Checkpoints
- UL 1598: The standard for general-purpose luminaires. Ensure the fixture is "UL Listed" for wet locations.
- ASTM B117 (Salt Spray Test): Look for fixtures that have undergone at least 1,000 hours of salt spray testing, or follow manufacturer guidance on equivalent corrosion testing. This is a common benchmark for marine-grade reliability.
- IK10 Rating: Defined by IEC 62262, an IK10 rating ensures the housing can withstand a substantial impact (20 joules)—critical for car washes where high-pressure wands might accidentally strike the fixture.
| Feature | Requirement for Marine/Car Wash | Standard |
|---|---|---|
| Ingress Protection | IP66 or higher | IEC 60529 |
| Impact Resistance | IK08 to IK10 | IEC 62262 |
| Safety Certification | UL Listed (Wet Location) | UL 1598 |
| Corrosion Resistance | 1000+ Hour Salt Spray (or equivalent) | ASTM B117 |
| Efficiency | DLC Premium (for Rebates) | DLC V5.1 |
4. Scenario Analysis: Strategic Fixture Positioning
The rate of salt accumulation is heavily influenced by how and where the fixture is mounted. Two common patterns show up repeatedly in coastal and wash‑bay layouts.
Scenario A: The Under-Dock / Low-Mount Coastal Shop
In these environments, fixtures are subject to "direct splash."
- Observation: Buildup is often noticeably faster on the bottom half of the lens due to splash, pooling, and gravity-driven evaporation.
- Recommendation: Mount fixtures at a modest tilt (for example, around 5–10 degrees when compatible with your photometric design). This encourages water runoff and reduces "pooling," where the thickest salt crusts tend to form.
Scenario B: High-Ceiling Marine Warehouse
In large storage facilities, the primary threat is "salt fog."
- Observation: Buildup is more uniform but thinner. It is often mistaken for a "dimming" fixture rather than a dirty one.
- Recommendation: Use IES LM-79-19 Reports to establish a baseline. If your measured foot-candles in the space drop by roughly 10% or more without any change in wattage or controls settings, it is a good signal to schedule a cleaning cycle, even if the lens only looks slightly hazy.
5. Compliance and Energy Efficiency (Title 24 & ASHRAE)
Maintaining optical clarity is not just about brightness; it is about energy compliance. Standards like California Title 24, Part 6 and ASHRAE 90.1-2022 mandate specific Lighting Power Densities (LPD).
If a fixture's output is significantly reduced by salt crust, the facility is essentially paying for energy it is not getting as usable light. To compensate, some operators over-light their facilities or increase target illuminance levels, which can push them toward or beyond the LPD limits of IECC 2024.
By implementing a rigorous cleaning protocol, you help the fixture operate closer to the peak efficacy (lumens per watt) documented in its IES LM-79 report. This supports ongoing eligibility for many utility rebates, such as those cataloged in the DSIRE Database.
Maximizing Your Investment
The longevity of a marine LED system depends on the synergy between rugged hardware and professional maintenance. While high-quality fixtures are designed to survive the harsh chemistry of coastal air and car wash bays, they still require periodic care.
Optical clarity behaves like a depreciating asset. By using the 3:1 distilled water/alcohol method (or another manufacturer‑approved protocol) and adhering to a proactive maintenance schedule, you support the 5-year warranty conditions and improve the odds that the fixture will achieve its IES TM-21 projected lifespan of 50,000+ hours under real‑world conditions.
For further reading on selecting the right hardware for these challenges, consult our guide on Salt Air & Rust: Choosing Durable Lights for Coastal Shops.
Disclaimer: This article is for informational purposes only. Always consult with a licensed electrical contractor for installation and maintenance. Ensure all cleaning agents are compatible with your specific fixture model by reviewing the manufacturer's technical data sheet and safety data sheet (SDS). Follow local regulations and product labels when handling flammable or hazardous materials.
