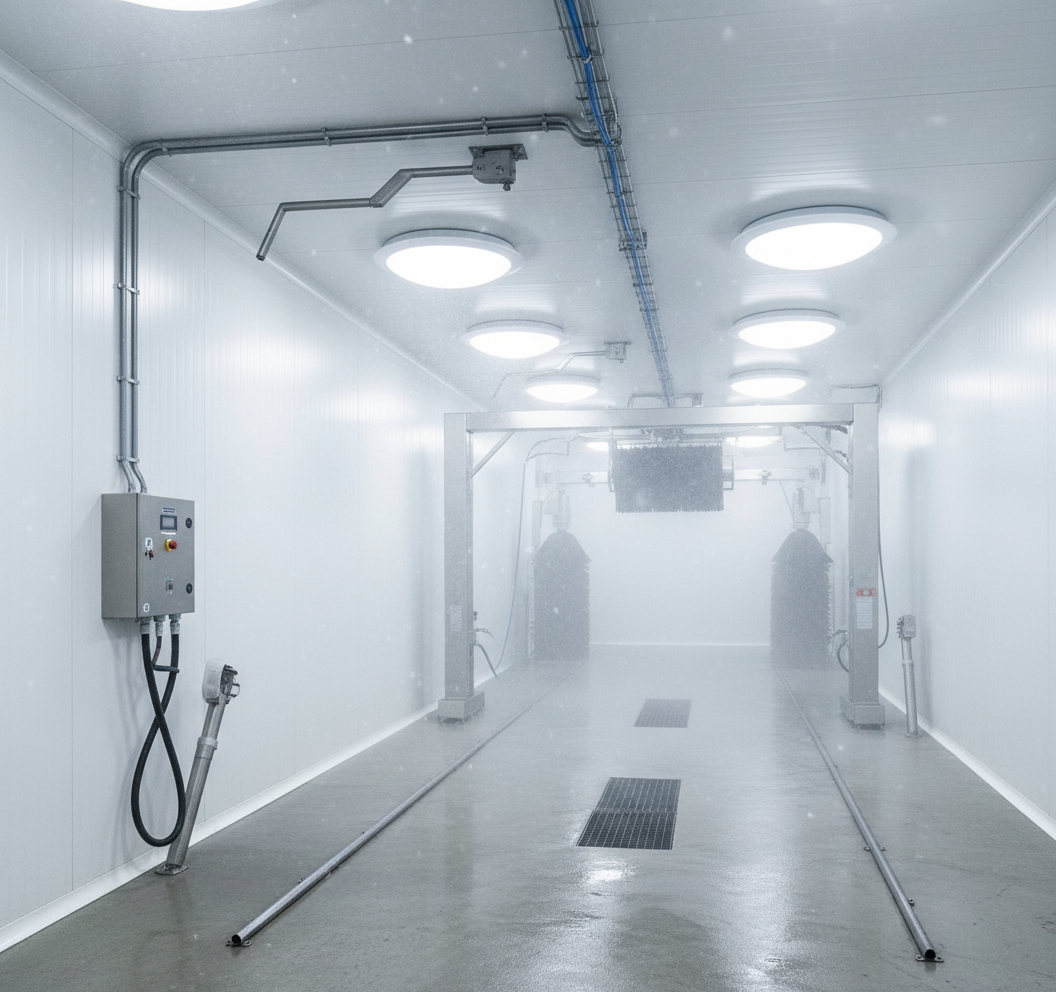

The Critical Intersection of Illumination and Electrical Safety
In commercial car wash environments, the presence of high-pressure spray, corrosive chemicals, and constant moisture transforms a standard lighting installation into a high-stakes engineering challenge. For electrical contractors and facility managers, the primary objective is ensuring that every fixture not only provides high-lumen output but also adheres to the National Electrical Code (NEC) for wet locations. The conclusion for any professional installer is clear: Safety compliance in wet bays requires the use of fixtures listed for wet locations per NEC Article 410.10(D), protected by GFCI circuits that account for parallel leakage paths, and grounded using materials capable of resisting electrochemical corrosion.
Relying solely on Ingress Protection (IP) ratings is a common industry pitfall. While an IP66 or IP67 rating indicates a fixture's resistance to dust and water, it does not inherently satisfy the legal requirement for a "Wet Location Listing" required by building inspectors and insurance carriers. This article provides a technical roadmap for navigating NEC Article 250 (Grounding and Bonding), Article 410 (Luminaires), and the specialized analogies drawn from Article 680 (Swimming Pools and Fountains) that often govern high-moisture industrial bays.
IP Ratings vs. NEC Wet Location Listing: Bridging the Compliance Gap
A fundamental distinction exists between the technical specs of a fixture and its regulatory status. The IEC 60529 (IP Ratings) standard defines how well an enclosure prevents the entry of solids (first digit) and liquids (second digit). However, NEC Article 410.10(D) specifically mandates that luminaires installed in wet locations must be "listed for wet locations."
The Inspection Gap
Inspectors often encounter "high-performance" fixtures with IP68 ratings that lack a UL Solutions Product iQ or Intertek ETL Listed Mark for wet locations. In a legal or insurance audit, an IP rating without a corresponding NRTL (Nationally Recognized Testing Laboratory) listing is considered non-compliant.
- Wet Location Definition: An area subject to saturation with water or other liquids, such as vehicle washing areas, or unprotected locations exposed to weather.
- Listing Requirement: The fixture must undergo specific thermal and moisture-cycling tests prescribed by standards like UL 1598 (Luminaires).
Technical Specification Comparison
| Standard | Metric | Scope | Relevance to Car Wash |
|---|---|---|---|
| IEC 60529 | IP66/IP67 | Enclosure ingress resistance | Physical durability against spray |
| UL 1598 | Wet Location | Comprehensive safety/fire/shock | Legal compliance and insurance |
| UL 8750 | LED Component | Safety of internal drivers/modules | Prevents internal electrical failure |
NEC Article 250: Grounding and Bonding in Corrosive Environments
Grounding in a car wash is not a "set and forget" task. The NFPA 70 - National Electrical Code (NEC) requires all non-current-carrying metal parts of the lighting system to be bonded to the Equipment Grounding Conductor (EGC). However, the chemical reality of a car wash bay introduces a significant variable: electrochemical corrosion.
The Corrosion Catalyst
In many facilities, concrete floors contain calcium chloride accelerators to speed up curing. When moisture and chloride-laden water penetrate the slab, they create an electrochemical cell. Our field observations indicate that standard copper EGCs can corrode at rates of 0.5mm to 1.0mm per year—five to ten times faster than in dry environments. This degradation can lead to a loss of ground continuity, rendering safety systems useless.
Professional Best Practices for Grounding
- Material Selection: Use tin-plated copper conductors as specified in MIL-DTL-83513 or stainless steel grounding hardware to extend the service life to 25 years.
- Dielectric Protection: Apply dielectric grease to all grounding connections and terminal blocks. This prevents "wicking" of moisture into the conductor strands.
- Grounding Electrode System: Ensure the resistance to ground is $\le 25\Omega$ per NEC 250.53. If a single rod does not meet this, a second rod must be installed in parallel.
Logic Summary: The grounding strategy assumes a high-chemical exposure scenario where standard copper oxidation is accelerated. These recommendations prioritize the "Solid" (reliable) aspect of the installation by addressing the failure of conductive paths before they occur.
GFCI Protection and the "Nuisance Tripping" Dilemma
NEC Article 210.8 requires Ground-Fault Circuit-Interrupter (GFCI) protection for personnel on all 15A and 20A, 125V through 250V circuits in wet locations. In a car wash, however, the standard 4-6mA trip threshold of a Class A GFCI often conflicts with the environment.
Parallel Leakage Paths
The chloride-heavy water used in car washes acts as a conductor. Even with IP66-rated fixtures, moisture on the exterior housing or within the conduit can create parallel leakage paths to the ground. This often results in "nuisance tripping," leading some operators to dangerously bypass GFCI protection.
The Engineering Solution: Isolation Transformers
To maintain safety while ensuring operational uptime, experienced contractors look to NEC 680.23(A)(3). While this article technically covers swimming pools, the logic applies: installing an isolation transformer between the branch circuit and the lighting load eliminates the ground-fault path back to the source, preventing nuisance trips while maintaining a high level of safety.
Junction Box Integrity and NEC 314.15 Compliance
The most frequent failure point in car wash lighting is not the fixture itself, but the junction box. NEC 314.15 requires weatherproof boxes with threaded entries and compression gaskets in wet locations.
Common Installation Mistakes
- Plastic Boxes with Snap-ins: These fail within months due to thermal cycling. As the fixture heats and cools, the plastic expands at a different rate than the connectors, creating gaps for moisture ingress.
- Silicone Over-reliance: Installers often use standard boxes and "seal" them with silicone. Silicone degrades under chemical exposure and vibration from wash equipment.
- Low Mounting: Mounting boxes within direct splash zones (below 8 feet) increases the hydraulic pressure on seals.
The "Two-Layer" Enclosure Rule
Professionals use cast metal or heavy-duty nonmetallic boxes with threaded hubs. All entries should point downward to prevent "pooling" at the seal. Furthermore, internal connections should be made with waterproof wire nuts (gel-filled) to provide a secondary layer of protection if the primary enclosure seal fails.
Scenario Modeling: The Economics of Safety and Efficiency
To demonstrate the impact of a high-quality, compliant lighting upgrade, we modeled a scenario for a High-Volume, Chemical-Intensive Commercial Car Wash (120ft x 60ft facility).
Modeling Parameters & Assumptions
| Parameter | Value | Rationale / Source |
|---|---|---|
| Facility Size | 7,200 sq ft | Standard 8-bay automated facility |
| Legacy System | 500W Metal Halide | Standard 400W lamp + 100W ballast loss |
| LED Upgrade | 180W IP66 Fixture | Equivalent lumen output, wet-listed |
| Operating Hours | 8,760 hrs/year | 24/7 high-volume operation |
| Electric Rate | $0.18 / kWh | Average commercial rate with demand charges |
Financial and Operational Impact (Estimated)
Our analysis indicates that upgrading to high-efficiency, NEC-compliant LED fixtures yields the following results:
- Annual Energy Savings: ~$20,183 (based on a 320W reduction per fixture across 40 units).
- Maintenance Savings: ~$6,789 (calculated by avoiding the replacement of metal halide lamps and ballasts in corrosive environments).
- Payback Period: ~4 months (after accounting for utility rebates from the DesignLights Consortium (DLC) QPL).
The Electrical Load Warning
A critical finding in our modeling of large-scale lighting grids (like hexagon arrays) is the Continuous Load Risk. A 7,200 sq ft facility using high-density lighting can easily draw 290A+. Per NEC, a 20A circuit is limited to 1,920W of continuous load (120V x 20A x 0.80). Failing to calculate the total system wattage can lead to circuit failure and fire hazards, regardless of how waterproof the fixtures are.
Modeling Note: These figures are based on deterministic scenario modeling for a specific facility type. Individual results may vary based on local utility rates and specific fixture efficacy (lm/W).
Sustainable Compliance: ESG and Insurance Benefits
Beyond safety, a compliant installation contributes to a facility's Environmental, Social, and Governance (ESG) goals. According to the 2026 Commercial & Industrial LED Lighting Outlook, project-ready high bays are now a cornerstone of carbon reduction strategies.
- Carbon Footprint: The modeled upgrade reduces CO₂ emissions by approximately 43 metric tons annually.
- Insurance Premiums: Providing underwriters with "Ground Continuity Test Records" (per NEC 250) and proof of "Wet Location Listed" fixtures can lead to significant reductions in liability insurance premiums.
Professional Installation Checklist for Car Wash Bays
For contractors and facility managers, use this checklist to ensure every installation meets the "Pro-Grade" standard for safety and longevity:
- Verify Listing: Check the UL Product iQ for the specific model number to confirm "Wet Location" status.
- Inspect Grounding: Use tin-plated copper and ensure all bonding jumpers are tight and coated with dielectric grease.
- Calculate Load: Verify that the total wattage per circuit does not exceed 80% of the breaker capacity for continuous use.
- Seal Conduits: Use duct seal or specialized foam to prevent moist air from traveling through the conduit from the wash bay to the electrical room.
- Test GFCIs: Perform monthly trip tests and maintain a log for insurance compliance.
Maintaining the Safety Standard
The combination of water, electricity, and corrosive chemicals makes car wash lighting one of the most demanding applications in the electrical trade. By adhering to the NEC grounding rules and prioritizing NRTL-listed wet location fixtures, you protect both the facility's occupants and its long-term financial health. Safety is not a one-time installation; it is a system of verified components and rigorous maintenance.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. All electrical installations must be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building codes. Failure to comply with safety standards can result in fire, injury, or death.
