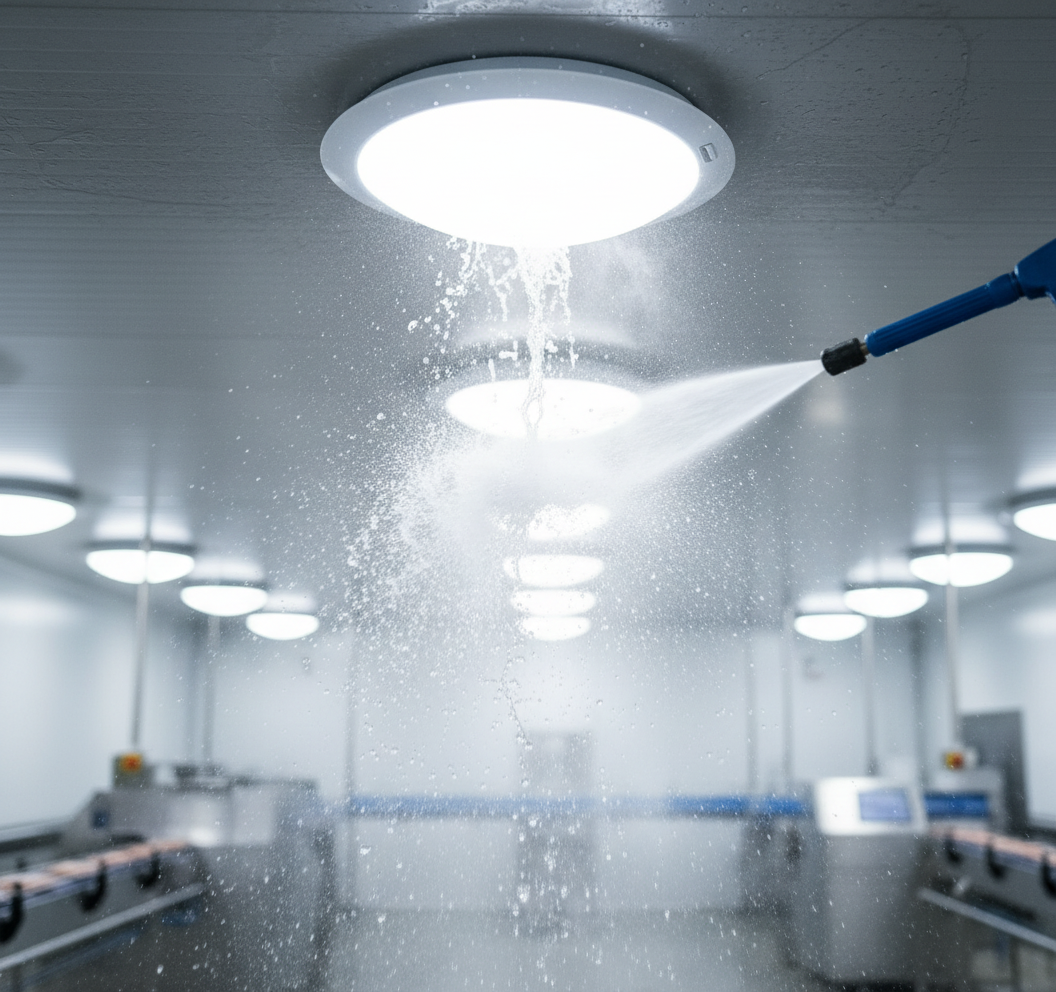

The IP69K Standard: When High-Pressure Washdown Goes Extreme
In industrial environments where hygiene is non-negotiable—such as food processing plants, pharmaceutical labs, and chemical facilities—cleaning protocols are often as rigorous as the production processes themselves. For facility managers and specifiers, the choice of lighting often boils down to a single metric: the Ingress Protection (IP) rating. While IP65 or IP66 fixtures are standard for many wet locations, they frequently fail in environments subjected to high-pressure, high-temperature washdowns.
The IP69K rating represents the highest level of protection defined by the International Electrotechnical Commission (IEC) 60529. It is specifically designed to withstand the "extreme" end of the cleaning spectrum. This guide examines the technical mechanisms of IP69K, provides a pragmatic ROI (Return on Investment) analysis for upgrading, and identifies the common installation "gotchas" that lead to premature fixture failure even in certified products.
Beyond IP66: The Science of High-Pressure Resistance
Many facility operators mistakenly assume that an IP66 or IP67 rating is sufficient for washdown areas. However, these ratings test for different types of water ingress. IP66 protects against "powerful water jets," while IP67 covers temporary immersion. Neither accounts for the combination of high pressure (1,450 PSI) and high temperature (80°C / 176°F) used in sanitary steam cleaning.
The IP69K Testing Protocol
The IP69K test, originally developed for road vehicles and later adopted for industrial equipment, is a brutal assessment of a fixture's integrity. According to the IEC 60529 standards, the testing protocol involves:
- Water Pressure: 8,000–10,000 kPa (approximately 1,160–1,450 PSI).
- Water Temperature: 80°C (176°F).
- Flow Rate: 14–16 liters per minute.
- Distance: 0.1–0.15 meters from the nozzle to the fixture.
- Rotational Angles: The fixture is tested at angles of 0°, 30°, 60°, and 90° for 30 seconds each while rotating on a turntable.
This rotational testing is critical. In real-world food processing installations, washdown nozzles rarely hit fixtures at perfect right angles. Water often deflects off stainless steel conveyors or walls, finding entry points in gaskets or cable glands that standard vertical tests might miss.
Industry-Specific Requirements: Food, Marine, and Automotive
Food Processing and Sanitation
In food-grade facilities, the 80°C water temperature is the primary driver for IP69K. Standard cleaning protocols use hot water and steam to kill bacteria and dissolve fats. We often observe in our support logs that IP66 fixtures fail after 6–12 months in these zones not because of a single blast, but because of thermal cycling. The heat expands the fixture’s air, and the subsequent cold water spray creates a vacuum that "sucks" moisture through the gaskets.
Marine and Coastal Environments
Marine applications face a dual threat: saltwater corrosion and pressure washing to remove salt buildup. For these environments, the 2026 Commercial & Industrial LED Lighting Outlook emphasizes that IP69K certification must be paired with material durability. Stainless steel housings with proper passivation—a chemical process that removes free iron from the surface—show significantly longer service life than standard powder-coated aluminum, which can bubble and flake under high-pressure salt spray.
Automotive Car Wash Bays
Car wash bays are high-cycle environments. Fixtures are subjected to constant chemical exposure and high-pressure spray from automated systems. Here, chemical resistance is as important as the IP rating. A fixture might be waterproof, but if the polycarbonate lens is not resistant to the surfactants used in the wash, it will cloud over (yellowing) within months, reducing light output by up to 30% (based on typical field observations).
Expert Insight: The Thermal and Mechanical "Gotchas"
Even an IP69K-certified fixture can fail if the installer or specifier ignores the physics of sealed enclosures.
1. The Gasket Compression Trap
A common mistake during installation is over-tightening mounting bolts or cable glands. Installers often believe that tighter is better for waterproofing. In reality, over-tightening deforms the silicone gaskets, creating micro-leak paths. Proper gasket compression requires following exact torque specs provided by the manufacturer. If a gasket looks "squished" or is bulging out of the seam, it is no longer providing a reliable seal.
2. Thermal Management and Lumen Derating
Thermal management is inherently more challenging in IP69K fixtures. The heavy-duty seals that keep high-pressure water out also trap heat inside the housing. This typically requires more robust heatsink designs. Designers should note that IP69K-rated fixtures often experience a 10–15% lumen output derating compared to equivalent non-sealed industrial fixtures.
Logic Summary: This derating is a calculated trade-off. To maintain a safe internal temperature for the LED chips and the Class P Driver, manufacturers must either increase the heatsink mass or drive the LEDs at a lower current.
ROI Analysis: The Economic Case for IP69K Upgrades
For a facility manager, the higher upfront cost of IP69K fixtures (often 40–60% more than IP65) can be a hurdle. However, when modeled over a 5-year lifecycle, the "premium" choice often becomes the most cost-effective.
Scenario Modeling: 40,000 sq ft Food Processing Plant
We modeled a scenario for a facility manager overseeing 100 fixtures in a high-pressure washdown zone. We compared legacy 458W Metal Halide (MH) fixtures (IP66) that fail annually against 150W IP69K LED fixtures with a 5-year durability.
Method & Assumptions (Scenario Model)
- Modeling Type: Deterministic TCO (Total Cost of Ownership) analysis.
- Boundary Conditions: Assumes 24/7 operation ($0.18/kWh rate) and daily 80°C washdowns.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Legacy System Watts | 458 | W | 400W MH + Ballast Factor |
| IP69K LED Watts | 150 | W | Equivalent light output |
| Fixture Count | 100 | Qty | Mid-sized facility baseline |
| Annual Maintenance | $26,500 | USD | Labor + Lamp replacement for IP66 failures |
| HVAC Cooling Credit | $2,504 | USD | Energy saved from reduced lighting heat |
Quantitative Insights
- Annual Total Savings: ~$77,570.
- Payback Period: ~7 months.
- 5-Year Cumulative Savings: ~$387,850.
- Carbon Reduction: ~110 metric tons of CO₂ annually (based on EPA eGRID US average intensity of 0.9 lb/kWh).
The HVAC cooling credit is a frequently overlooked factor. In temperature-controlled food facilities, every watt of lighting heat must be removed by the refrigeration system. Reducing lighting wattage from 45.8kW to 15kW significantly lowers the load on industrial chillers, contributing ~3% to the total ROI in this model.
Compliance and Standards Checklist
When specifying lighting for extreme environments, looking for the IP69K mark is only the first step. To ensure building code compliance and safety, verify the following:
- UL 1598 (Luminaires): The core safety standard for fixed lighting in North America. Ensure the fixture is "UL Listed" for wet locations.
- UL 8750 (LED Equipment): Specifically covers the safety of LED drivers and modules, addressing electrical and thermal risks.
- DLC Premium (DesignLights Consortium): Essential for utility rebates. Many utilities require DLC 5.1 certification to qualify for high-tier incentives, which can cover 30–50% of the project cost.
- ASHRAE 90.1-2022 Compliance: Modern codes require lighting controls even in washdown areas. Using IP69K-rated occupancy sensors can add an additional $1,400+ in annual savings with a 2.8-year payback period in intermittently used zones.
Installation Best Practices for Long-Term Integrity
To prevent moisture ingress and ensure the 5-year warranty remains valid, follow these practitioner-vetted steps:
- Drip Loops: Always include a drip loop in the wiring. This prevents water from running down the cable and pooling at the entry point of the cable gland.
- Ventilation Glands: Consider fixtures with integrated "breather" valves. These allow the fixture to equalize pressure during thermal cycles without drawing in moisture.
- Correct Orientation: Ensure the fixture is mounted according to its IES LM-63-19 photometric file orientation. Improper mounting can lead to water pooling on the lens or heatsink fins.
- Chemical Compatibility Check: Before installation, verify that the cleaning agents (e.g., sodium hydroxide or peracetic acid) used in the facility will not degrade the fixture's housing or lens material.
Strategic Selection for Harsh Environments
Choosing an IP69K fixture is not merely about buying a "waterproof" light; it is about engineering for the physics of extreme sanitation. While the initial investment is higher, the elimination of annual replacement cycles, the reduction in maintenance labor, and the energy efficiency gains create a compelling business case.
For facilities operating under the scrutiny of the FDA or USDA, where lighting failure can lead to production shutdowns or safety violations, the IP69K standard is the only pragmatic choice for long-term reliability.
Sources
- IEC 60529: Degrees of protection provided by enclosures (IP Code)
- DesignLights Consortium (DLC) Qualified Products List
- IES LM-79-19: Optical and Electrical Measurements of Solid-State Lighting Products
- U.S. Department of Energy (DOE) - Purchasing Energy-Efficient Commercial LED Luminaires
- ASHRAE Standard 90.1-2022: Energy Standard for Buildings
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Always consult with a licensed electrician and review local building codes (NEC/CEC) before beginning any lighting installation or retrofit project. Performance and ROI figures are based on scenario modeling and may vary depending on specific site conditions and utility rates.
Frequently Asked Questions
Can I use IP65 lights for high-pressure washdown? While IP65 fixtures are "water-resistant," they are not designed for the 1,450 PSI pressure found in industrial washdown systems. Using them in these environments typically leads to failure within 6 months due to seal breach.
What is the difference between IP69 and IP69K? IP69 is the standard IEC rating for high-pressure/high-temperature water. The "K" comes from the German DIN 40050-9 standard, which specifically added the 80°C requirement. In modern practice, they are often used interchangeably in the lighting industry.
Does IP69K protect against saltwater? The IP69K rating only measures water ingress. For saltwater protection, you must also ensure the fixture has a corrosion-resistant housing, such as 304 or 316-grade stainless steel with passivation.
Will IP69K lights work in cold storage? Yes, but you must ensure the fixture is rated for the specific ambient temperature of your cold storage. Many IP69K fixtures are ideal for refrigerated food processing because they handle the moisture and the cold simultaneously.
How often should I replace gaskets on IP69K fixtures? In extreme washdown environments, we recommend a visual inspection every 6 months. While the seals are designed for longevity, chemical exposure can eventually embrittle silicone. Replacement should occur if any cracking or permanent deformation is noted.
