A 500W halogen security flood does not have one guaranteed LED wattage equivalent. The right replacement is the one whose delivered lumens and beam pattern match your existing coverage, not the one with the smallest wattage number on the box. Once you confirm that optical match, you can use wattage to estimate energy and cost savings with reasonable confidence.

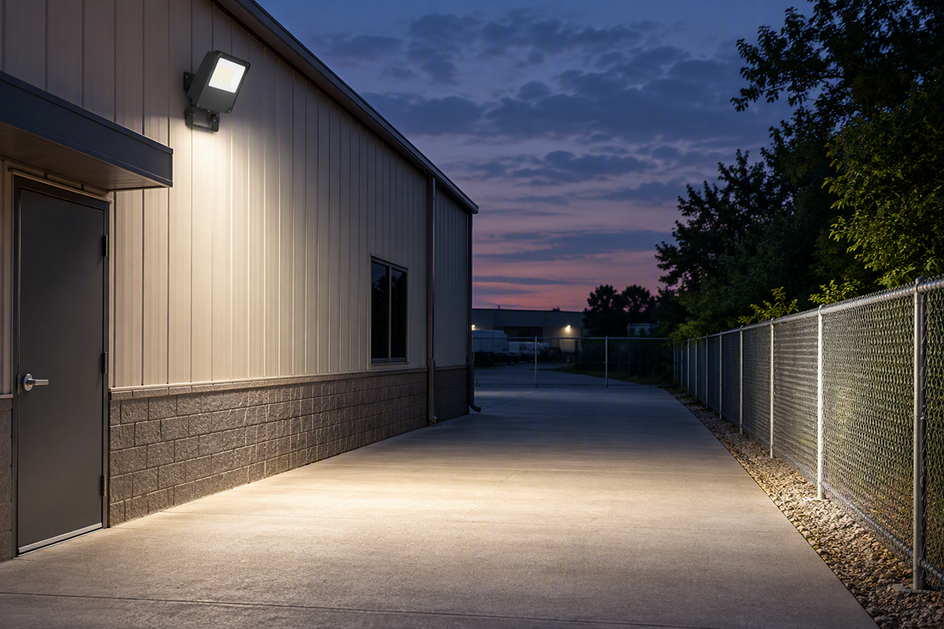

That two-step order matters. Skip the lumen and beam check, and you risk installing a fixture that saves electricity but leaves dark spots at the fence line or parking edge.
What counts as a 500W halogen LED equivalent?
There is no defensible watt-for-watt swap chart for halogen to LED. A credible match depends on delivered lumens and how that light spreads across your target area.
The short answer
Accept a replacement only when its lumen output and luminous-intensity distribution are comparable to your current fixture, according to DOE LED equivalency guidance. Wattage tells you input power, not where the light goes or how much of it reaches the ground.
Accept or verify first
- Proceed to project checks when you have the LED candidate's delivered lumens, a photometric file or beam angle spec, and confirmation that the mounting height and location will produce similar target coverage.
- Verify first when the only evidence is a marketing claim like "50W replaces 500W." That comparison, on its own, tells you nothing about coverage at your site. For a deeper look at whether your existing mounting location can be reused as-is, see our outdoor flood retrofit guide.
Lumen equivalence: why a watt-to-watt table fails
A single conversion number cannot hold up across every 500W halogen and every 50W LED on the market, because lumens, watts, and beam distribution are three separate variables.
Lumens, watts, and efficacy
Lumens measure total light output. Watts measure electrical input. Efficacy (lumens per watt) tells you how efficiently a fixture turns power into light, but a high-efficacy LED can still underperform on your specific target if its beam is too narrow, too wide, or aimed differently than the halogen it replaces. Two fixtures can share a lumen rating and still light a wall or driveway very differently once distribution is added. Our explainer on illuminance terms explained covers how output and distribution combine to produce usable light at ground level.
Evidence-bounded 500W-to-LED table
The table below shows what current evidence actually supports for each scenario. Treat the 500W and 50W rows as an illustrative wattage comparison, not a verified lumen conversion.
| Scenario | Verified lumen evidence | Input-power evidence | Buying conclusion |
|---|---|---|---|
| 500W halogen flood | No universal lumen figure available | 500W (label rating) | Get your exact fixture's delivered lumens before comparing |
| 50W LED flood (as marketed) | Not established by wattage alone | 50W (label rating) | Treat as unverified until photometry is confirmed |
| Illustrative formula | Lumens per watt × candidate wattage, if source-verified | N/A | Use only with a same-scope photometric report |
| HPFD01 series specification example | Manufacturer-listed 19,000 lumens at stated configuration | 35W–120W depending on configuration | Specification-sheet reference only, not a confirmed 500W match |
The available information for our HPFD01 series lists 19,000 lumens at specific wattage configurations, along with 120–277V input and IP65 and DLC 5.1 Premium listings. That is useful as a current specification example, but it does not by itself confirm a match to your particular 500W halogen installation. The exact configuration and a same-scope photometric comparison are what settle that question.
Calculate power, energy, and operating-cost savings
Once your lumen and beam match is confirmed, wattage becomes a reliable input for estimating energy savings. The DOE lighting retrofit calculation protocol bases annual savings on the wattage difference, fixture count, and operating hours.
Use the retrofit formula
- Record your baseline fixture's actual input wattage and the retrofit LED's actual input wattage. Use the complete fixture wattage, not just the halogen lamp's printed rating, since ballasts or transformers can add load.
- Subtract retrofit wattage from baseline wattage, multiply by fixture quantity and annual operating hours, then divide by 1,000 to get annual kilowatt-hours saved.
- Multiply annual kWh saved by your electricity rate in dollars per kWh to estimate annual energy-cost reduction.
Illustrative 500W-to-50W result
For one fixture running 4,000 hours per year at $0.15 per kWh, dropping from 500W to 50W input works out to 450W less draw, a 90% reduction in electrical input for that fixture. Using the formula above, that comparison produces roughly 1,800 kWh saved per year and about $270 in annual energy-cost reduction. This is a labeled example built on assumed inputs, not a guaranteed result for your site. It excludes demand charges, control-related savings, taxes, and maintenance costs, and it changes if your actual schedule, rate, or fixture count differs.
What lower wattage means for heat and thermal risk
Lower electrical input generally means less power converted to heat inside the fixture, but that is a power comparison, not a temperature or fire-risk measurement.
What the wattage comparison supports
- The illustrative example above represents 450W less electrical input at the fixture.
- Less electrical input flowing into a fixture generally means less electrical power available to convert into heat within that fixture, all else equal.
What it does not prove
- No universal fixture-surface-temperature reduction follows automatically from a wattage drop.
- No fire-risk percentage can be derived from wattage alone.
- Any conclusion about nearby combustible materials, enclosures, or mounting surfaces requires the specific product's thermal documentation and installation review, not just an input-power comparison.
UL, ETL, DLC, and IP65: what each check tells you
These four labels answer four different project questions, and none of them alone confirms your retrofit is complete or code-compliant.
Match the label to the question
| Check | Helps establish | Still requires separate verification |
|---|---|---|
| UL Listed | Complete fixture evaluated for safety under UL/IEC luminaire standards, per UL lighting certification guidance | Whether the exact model and configuration you're buying carries that listing |
| ETL Listed | Product-safety certification through an NRTL, explained in the Intertek ETL Listed Mark explanation | Local code acceptance and installation-specific approval |
| DLC Qualified | Commercial LED performance and controllability requirements, per DLC SSL V5.1 technical requirements | Electrical safety listing and photometric fit for your target area |
| IP65 | Dust and water ingress protection at a defined level | Wet-location suitability, which needs its own product documentation, and overall project code compliance |
Why the distinctions matter
A fixture can carry all four labels and still not be the right optical or electrical match for your project. UL or ETL confirms product safety listing. DLC confirms performance-program qualification. IP65 confirms ingress protection. None of them substitutes for the delivered-lumen and distribution check described earlier, and none of them clears your local permitting or AHJ review on its own.
Before buying or installing: verification checklist
Work through these checks before you commit to a purchase, and again before installation, so each step ends in a clear buy, don't buy, or verify-first decision.
Before buying
- Confirm your existing fixture's actual complete input wattage, not just the halogen lamp's printed rating, along with its current beam pattern, mounting height, quantity, and typical operating schedule.
- Request the candidate LED's delivered lumens, photometric file or beam angle, CCT if relevant to your application, voltage range, and mounting dimensions, and compare them against your baseline rather than against the label wattage.
- Check whether the candidate needs specific controls or photocell compatibility for your site, since that affects both fit and any energy-savings estimate involving dusk-to-dawn operation.
Before installation
- Verify the exact model, voltage range, and mounting method against current manufacturer instructions, since documentation can differ by configuration even within the same product series.
- Route mounting, voltage, controls, environmental exposure, and local code or AHJ questions through a qualified electrician or lighting professional rather than resolving them from a spec sheet alone.
- Do not proceed with installation until documentation or professional review covers your exact fixture, voltage, environmental conditions, and mounting method; this article does not provide wiring, breaker-sizing, or live-testing instructions, and those steps belong to a licensed installer.
A practical next step
Put your current fixture's label, its actual operating schedule, and the candidate LED's specification sheet side by side before ordering. For a general starting point, our outdoor lighting collection covers the security-flood category, and the HPFD01 series flood light page shows one current specification example to check against your baseline. If your project involves multiple fixtures or an unfamiliar layout, our lighting design support page can help you plan coverage before you buy.
FAQs
What if the old fixture's 500W label is the lamp rating, not the complete fixture input?
Some halogen fixtures draw more than the lamp's printed wattage once you account for the fixture's transformer or ballast. Before calculating savings, check the fixture's nameplate or documentation for its actual complete input wattage, or have a qualified electrician measure it, since using the lamp rating alone can overstate your energy-savings estimate.
What should I do if the replacement has more lumens but the target area still looks dimmer?
A higher total lumen rating does not guarantee better coverage if the beam angle, mounting height, or optical control differs from your old fixture. Compare the candidate's photometric file or beam distribution against your actual target area, and request a site layout or photometric comparison from the manufacturer or a lighting designer before assuming the higher-lumen unit is underperforming.
Does an IP65 rating mean the LED floodlight is certified for wet locations?
No, an IP65 rating confirms ingress protection against dust and water jets, but it does not replace a designated wet-location safety listing. Review the manufacturer product specification sheet and safety label for complete luminaire certification and suitability before installing it in exposed outdoor environments.
