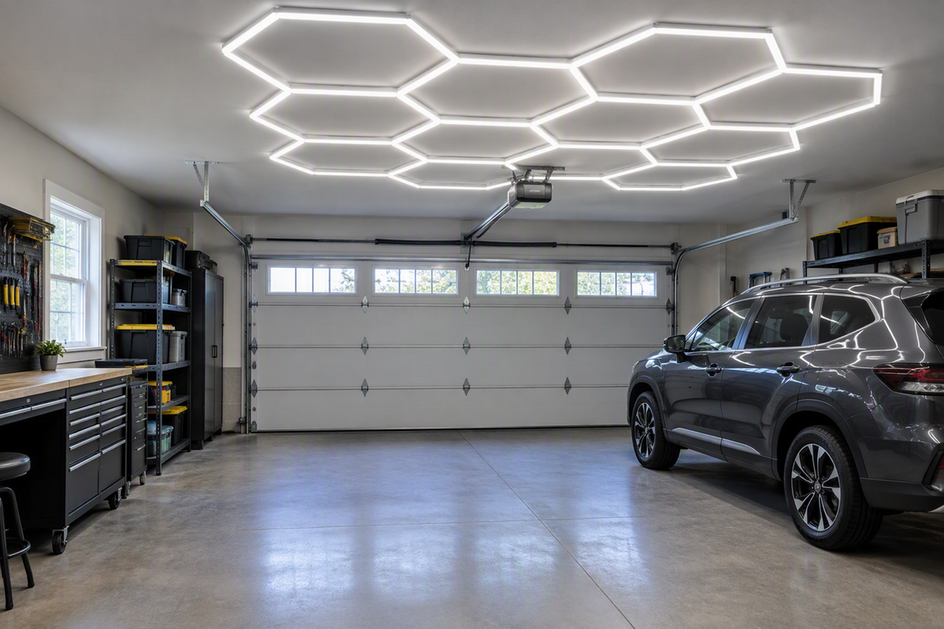

Hexagon LED Ceiling Grids: Structural Mounting into Drywall Joists vs Concrete Anchors

The real difference between mounting a hexagon LED ceiling grid in a garage isn't drywall versus concrete — it's whether the fastener's load actually reaches confirmed structure. Direct fastening into joists is the shortest path only when the grid's approved attachment points line up with framing you've verified. Concrete anchors work only when you match the anchor system to the actual slab condition, and aircraft cable or Unistrut only qualify as documented support assemblies when direct attachment doesn't fit the layout.

Key Takeaways

• The governing factor is the verified structural load path, not whether the ceiling looks like drywall or concrete.
• Direct joist fastening is conditional on confirmed framing and aligned attachment points, not on the presence of drywall alone.
• Toggle bolts and generic hollow-wall fasteners are rated for a specific assembly, not automatically for a complete hexagon grid.
• Concrete anchors must match the actual slab condition and the anchor manufacturer's current technical data.
• Aircraft cable and Unistrut are alternate support paths only when the full assembly, including its overhead structural pickup, is verified.

Choose the verified load path—not the ceiling finish

The choice in one sentence

The support path has to end in confirmed structure, whether that's a joist, a verified concrete member, or a documented suspension or frame assembly. A finish layer, a generic toggle, or a convenient-looking ceiling point isn't enough on its own to carry a full grid's weight.

When to pause before choosing hardware

Stop before picking a fastener if any of the following is true:

• You can't confirm a joist or other structural member behind the ceiling.
• You don't know the actual concrete condition or which anchor system fits it.
• You don't have the complete assembled weight of the grid and support hardware, or the manufacturer's approved attachment points.

If any of these boxes are unchecked, get qualified structural review before you drill anything for hex lights in your garage.

Confirm the substrate, grid load, and attachment geometry

You need a defined set of facts before comparing mounting methods: the actual ceiling material and structure, the complete supported weight, the grid's attachment geometry, nearby obstructions, and current manufacturer documentation. Skipping any of these turns the next comparison into guesswork.

Measure the installation geometry

• Grid footprint and the spacing between its attachment points
• Joist or other structural-member alignment above the ceiling
• Concrete edges, openings, reinforcement concerns, and any visible cracking
• Door tracks, openers, storage, and service clearances that could conflict with fixture placement (our guide to designing around door-track clearance walks through mapping these obstructions before you finalize layout)

Collect the load and product documents

• The complete installed weight, including the grid, drivers, connectors, and any suspension hardware
• The manufacturer's approved attachment points and mounting accessories for your specific grid
• Current installation instructions for the exact product you're installing
• Electrical product information to hand off to your electrician

The base material genuinely changes what a fastener can hold. Hilti's anchor fastening technology manual explains that anchor selection and load capacity depend on the actual base material engaged by the fastener, not on the finish layer you see. Drywall panels are commonly nonstructural for anything beyond light, code-rated wall hardware, so they shouldn't be assumed equivalent to a confirmed joist or a verified concrete member when hanging hex lights in a garage.

Compare the five mounting paths

This table is a planning aid, not a substitute for your product's manual or a structural review. Each row names what actually carries the load and what still needs verification before you rely on it.

Read this table as a filter, not a menu: whichever row fits your confirmed structure and documentation is the one worth pursuing further, and the ones you can't verify should be set aside rather than attempted with a best guess.

Drywall ceilings with confirmed joists

When direct joist fastening is the shortest path

Direct fastening into a joist is conditionally the fastest route when the grid's approved attachment points actually align with framing you've located and confirmed. Alignment matters as much as the framing itself — a joist two feet away from where the grid needs support doesn't help. The complete supported load and the current installation instructions still govern which fasteners and spacing are appropriate.

Why toggles are not an automatic substitute

A toggle bolt's published capacity belongs to a specific hollow-wall assembly and fastener condition; it doesn't transfer automatically to a full hexagon grid with its own weight distribution and multiple attachment points. Treat toggles as relevant only when a named assembly's rated condition genuinely matches your grid's attachment load, not as a general-purpose fix for hanging hex lights in a garage where joists can't be reached. When framing can't be engaged, an engineered alternate support path, such as a documented suspension or frame assembly, is the next step rather than defaulting to more toggles.

Concrete anchors need substrate-specific selection

What concrete changes

A concrete ceiling doesn't automatically make every generic anchor suitable. The fastener has to develop its resistance in the actual concrete member, and factors like cracking, edge distance, reinforcement, slab thickness, and load direction can all change which anchor system is appropriate. Hilti's current anchor technical guides confirm that anchor design and installation depend on the specific base material, product data, and design conditions rather than a generic concrete rating.

When concrete work needs qualified review

Pause and get qualified review before drilling if you might encounter reinforcement, if the slab's geometry or condition is uncertain, or if the connection is overhead and the full load path can't be inspected before installation. These are exactly the conditions where a generic anchor choice, rather than one matched to documented technical data, creates risk that isn't visible until after the grid is hung.

Aircraft cable and Unistrut change the support path

Aircraft cable is a load-path assembly

Aircraft cable changes where the grid attaches but doesn't remove the need for verified structure. The overhead structural pickup, the cable, its terminations, connectors, and the fixture interface all need to work together as one checked assembly, and the grid's alignment and any movement in service should be accounted for at the same time. OSHA's guidance on suspended scaffold guidance makes the underlying point directly, even though it's written for a different application: a suspended system depends on an inspected structural support, not a convenient ceiling point. Cable is not a way to avoid finding structure; it's another path that still has to terminate in it.

When Unistrut earns its extra layer

Unistrut or a similar intermediate frame makes sense when direct attachment points don't line up with the grid's layout and you need to relocate or distribute where the load lands. Even then, the channel, connectors, spacing, and the frame's own attachment to structure above it need verification as one system — the word "Unistrut" by itself doesn't imply a specific capacity. OSHA's suspension connection requirements under scaffold connection requirements reinforce the same principle in a scaffold context: connections need to be suitable for the load and structure involved, and that logic carries over to any intermediate frame supporting a lighting grid. If you're evaluating a suspension accessory such as our Suspension Kit for Hexagon LED Light, check its current specifications and installation instructions against your verified structure and grid weight before treating it as your support path.

Before-installation verification checklist

Work through this sequence once you've chosen a mounting path, and don't proceed to installation or electrical connection until every item resolves:

• Measure the grid footprint, attachment-point spacing, ceiling height, and clearances around doors, openers, and storage.
• Identify and confirm the actual substrate: joists, other structural members, concrete condition, or a documented alternate frame.
• Record the complete supported weight, including the grid, drivers, connectors, and any suspension or frame hardware.
• Match your hardware and connectors to the current manufacturer installation instructions for the exact product.
• Clear obstructions and confirm access for both installation and future maintenance.
• Hand off electrical connection points and product documentation to a licensed electrician; our power and linking guide covers how multiple kits connect once the electrician has verified the circuit.
• Check local permit, inspection, and professional-review requirements before finalizing the installation.

If the structural load path or the electrical scope is still unresolved at the end of this list, stop and bring in the appropriate qualified professional rather than proceeding on an assumption.

FAQs

Can toggle bolts alone support a hexagon light grid on a drywall ceiling?

Not automatically. A toggle bolt's rated capacity applies to the specific hollow-wall assembly and fastener it was tested with, not to a complete lighting grid with its own weight and multiple attachment points. Before relying on toggles, confirm whether the assembly's rated condition actually matches your grid's attachment load, or look for confirmed framing or a documented alternate support path instead.

Does a concrete ceiling make any anchor suitable for a hexagon light grid?

No. Concrete is a different base material than drywall, but anchor suitability still depends on the actual slab condition, the specific anchor system's technical data, load direction, spacing, and installation orientation. A concrete ceiling can be a workable base without making every generic anchor product appropriate for it.

Can I attach aircraft cable to drywall instead of finding structure?

No. Aircraft cable still needs a verified structural pickup above the ceiling, along with compatible terminations and connectors, before it becomes a suitable support path. Attaching cable to drywall or another unverified point just moves the same unsupported-load problem to a different fastener.

When should an electrician handle a garage hex-light installation?

Line-voltage connection and any jurisdiction-specific code review should go to a licensed electrician; this guide covers structural mounting decisions, not wiring steps, breaker sizing, or code compliance conclusions. Hand your electrician the product's electrical documentation alongside your confirmed mounting plan so both pieces of the installation line up.
