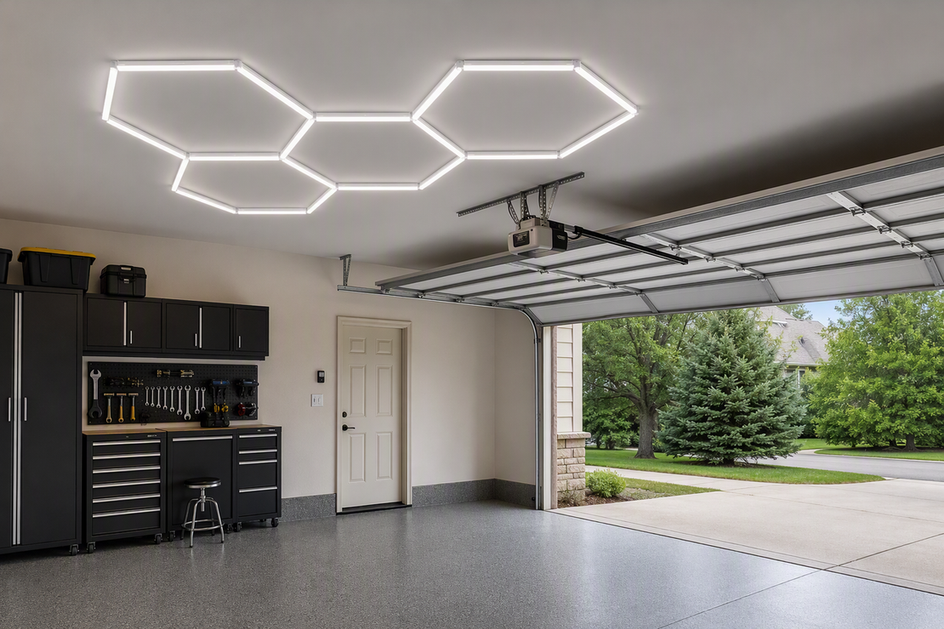

Before picking a spot for the first hexagon panel, map where the garage door and its hardware actually travel. That moving path, not the visible track, sets the real boundary for a hexagon lights garage layout. Once that boundary is marked, the remaining ceiling becomes your usable planning zone, and you can decide whether the grid needs to shift, shrink, split, or gain a separate task-lighting zone.
Skipping this step is the most common way a layout looks fine on paper and then fails during mounting.
Start With the Door's Full Travel Envelope
The door's travel envelope, not the visible track, is the boundary that decides where a hexagon grid can go. Sketch the door closed, open, and moving through its full path, including the rollers, springs, opener rail or trolley, and any support brackets that move with it.
Any fixture, driver, connector, cable, or mounting bracket that lands inside that envelope is not ready to mount, even if it looks clear when the door is shut. A gap that seems fine with the door closed can disappear once the door lifts and the trolley or springs extend into that space. The exact garage door and opener instructions, not a general rule, control this boundary, so check the manufacturer's installation instructions for your specific door and opener before finalizing any placement near it. If anything you plan to mount enters that envelope, stop and move to an adjustment option rather than assuming a small gap will hold.
Map Tracks, Openers, and Fixed Obstructions
Every fixed piece of door hardware needs its own mark on the ceiling sketch, with a measured width, depth, and position. This turns a general "there's a door there" note into coordinates you can test the grid against.
Inventory Fixed Hardware
List every fixed obstruction you can see or touch: track sections, mounting brackets, torsion or extension springs, the opener body, the rail or trolley, support straps, photo-eye sensors, and any structural framing member crossing the ceiling. Note where the driver or control box sits and whether any cable or connector run extends past the light body itself, since that run also needs clearance.
Separate Visible Hardware From the Travel Zone
A track or opener body is only one part of the system. The door panels, rollers, trolley, and support arms occupy more space while the door is actually moving than they do at rest. Use the door and opener's current documentation along with direct observation of the door in motion to confirm that boundary, rather than treating this guide as a substitute for a door-installation procedure.
Measure the Usable Ceiling Zone Before Drawing the Grid
Turn your obstruction map into a bounded usable area before you draw a single hexagon. Work through these steps in order:
- Record the ceiling's length, width, height, and mounting surface, and note the door opening's position along one wall.
- Locate every mapped obstruction from the previous section using measurements from a fixed wall or the door's centerline, not just a rough estimate.
- Mark the door's full travel boundary from the earlier step directly onto the same sketch, using the same reference lines.
- Add your chosen perimeter offset and the fixture's body depth or drop as separate constraints, since a fixture that clears a bracket visually can still be too deep for the available drop.
- Subtract the mapped envelope, offsets, and any area unavailable to your mounting method from the total ceiling area. What remains is your usable zone. Before ordering anything, tape or draw the actual grid footprint onto that zone and confirm every cell lands outside the marked boundaries.
If you're working in a tight or narrow bay, our guide on what to measure before ordering lights walks through the same reference-line approach for constrained spaces.
Choose the Least Disruptive Grid Adjustment
Once you know which cells fall inside the door's boundary, pick one of three fixes: move the pattern, remove or split it, or give the blocked area its own lighting zone.
Shift or Shorten the Grid
Try a shift first. If translating the whole pattern a few inches or a foot keeps it continuous and clear of the travel envelope, that's the simplest fix. Shortening to a smaller footprint only works if the specific configuration's documented assembly instructions support that arrangement; don't assume every kit can be freely resized.
Omit Cells or Split the Pattern
- Omit individual cells only when the exact kit instructions confirm the resulting modular arrangement is supported. Removing a panel from a pattern that wasn't designed for partial configurations can affect how the remaining sections connect or mount.
- Split the pattern into two sections when the obstruction leaves usable ceiling space on both sides and the product system supports separate zones, such as when vehicle access on one side matters as much as coverage on the other.
Add a Separate Task-Lighting Zone
When a workbench, detailing station, or other task area sits under the blocked zone, add a separate lighting fixture there instead of forcing the hexagon grid to reach it. Keep that decision independent from the main grid; a workable footprint elsewhere doesn't mean any specific fixture is confirmed to fit a particular obstructed spot. Our compact 5-grid kit and 8 Grid footprint are useful footprint references to test against your measured zone, not automatic fits for any layout.
Match Ceiling Height, Task, and Fixture Type
Ceiling condition and garage task together point to which layout adjustment to try first and which product detail to check before buying. Use the matrix to pick a starting scenario, then confirm the specific numbers with your own sketch.
| Ceiling condition | Typical task | Fixture/mounting implication | Verify before choosing |
|---|---|---|---|
| Low or irregular ceiling | General parking, storage | Prioritize the shallowest documented mount that stays outside the door envelope | Fixture depth, mounting hardware height |
| Higher ceiling or dropped mount | General workshop use | Compare total drop plus fixture depth against the door's highest travel point | Drop length, hardware clearance at full extension |
| Vehicle-access zone | Daily parking, loading | Keep the full grid pattern outside the swept door path | Door travel boundary, offset choice |
| Workbench or detailing zone | Precision, close work | Consider a separate task-lighting fixture instead of stretching the hex grid | Whether the grid reaches the surface without entering the envelope |
Low ceilings and dropped mounting conditions deserve the most conservative comparison, since fixture depth and door travel both compete for the same limited vertical space. Precision work areas usually fare better with dedicated task lighting than with a decorative grid forced into a mechanically tight spot.
Verify Product Details Before You Buy or Mount
A listed footprint tells you how much ceiling area a configuration covers, not whether it will clear your specific door and opener. Confirm the details below before you order or drill a single hole.
Product Facts That Change the Sketch
The available product information for the 8 Grid configuration lists a 7.6 x 7.3-foot footprint, and the 5 Grid configuration is listed at 7.3 x 5.1 feet with a surface-mount description. Beyond footprint, check the mounting method, driver or control location, connector arrangement, plug type, voltage, and control behavior, since any of these can change how the fixture sits relative to your mapped obstructions. These facts tell you what to compare against your usable zone; they don't confirm that a given configuration clears your particular door or opener.
Pre-Buying and Pre-Installation Checklist
- Sketch: Ceiling dimensions, the full door travel envelope, tracks, springs, opener, supports, and your chosen offsets, all drawn to the same reference lines.
- Product: Exact configuration footprint, fixture depth, mounting hardware, driver or control location, connectors, voltage, controls, and the current product specifications or 8 Grid configuration details for the model you're considering.
- Final review: Confirm the door still operates without obstruction through its full range, verify the intended mounting surface can support the hardware, and get qualified electrical or code review if the installation requires new wiring, unresolved circuit decisions, or conditions the current instructions don't cover.
FAQs
How much clearance should hexagon lights have from a garage-door track?
There's no universal number that applies to every door and opener. The safe approach is to measure your specific door's full travel envelope, including the moving trolley, springs, and rollers, and keep every fixture, connector, and mounting bracket outside that measured boundary rather than relying on a generic clearance figure.
Can I leave out one hexagon panel where a track crosses the pattern?
Only if the exact kit's documented modular instructions support that partial arrangement. Some configurations are built to omit cells cleanly, while others depend on a complete pattern for mounting or wiring. Check the current installation instructions for your specific configuration before removing a panel.
Does a side-mounted garage door opener remove the ceiling obstruction?
A side-mounted opener changes where the opener body sits, but it doesn't remove the need to map the tracks, springs, rollers, and the door's full travel path. Those components still occupy ceiling space during operation, so they still need their own marks on your sketch.
What if my ceiling is too low for the planned grid?
Compare the fixture's body depth and mounting drop against the highest point the door and its hardware reach during travel. If the numbers don't leave enough room, shift the grid to an unobstructed section, shorten it if the kit instructions support that, split the pattern, or add a separate task-lighting fixture instead. If the installation involves wiring or code questions the current product and door instructions don't answer, get a qualified professional to review it before you mount anything.
