When evaluating IP66 vs IP69K wash bay lighting, IP66 and IP69K describe two different documented water exposures, not a simple "better or worse" ranking. IP66 evidence covers dust-tight enclosures exposed to powerful, directed water jets, while an IP69K claim addresses hot, close-range, high-pressure washdown. The right choice depends on your facility's actual cleaning process and on the exact fixture documents that back up the rating claim.
Neither rating alone proves a light is approved for your project. Wet-location suitability, chemical compatibility, and any required project classification still need separate evidence, which the sections below walk through step by step.
Key Takeaways
- IP66 fits documented outdoor moisture and hose-directed water jets; it does not by itself prove suitability for hot, close-range pressure washdown.
- An IP69K claim needs a matching standard and test report tied to the exact fixture, not just "washdown-ready" marketing language.
- Chemical wash bays need separate material and chemical-compatibility documentation; no IP rating certifies chemical resistance.
- A complete purchase file always includes the exact SKU, current spec sheet, and any required wet-location or project classification evidence.
- When a core document is missing, hold the purchase and verify first rather than assuming the lower or higher rating fits.
IP66 vs IP69K: The Decision Split
Choose the rating path that matches your documented cleaning process, not the facility's name. When comparing IP66 vs IP69K wash bay lighting, IP66 is a reasonable evidence path when the harshest exposure is outdoor moisture or a strong hose-directed jet; hot, close-range pressure washdown needs matching high-pressure, high-temperature evidence instead.
| Rating | Exposure represented | Decision implication |
|---|---|---|
| IP66 | Dust-tight enclosure plus powerful water-jet exposure | Fits hose-directed outdoor washing; insufficient alone for routine hot pressure washdown |
| IP69K | High-pressure, high-temperature close-range washdown claim | Fits routine hot washdown only once the exact standard and test report are confirmed |
Either row still leaves wet-location, chemical, and project-classification questions open, which the next section explains.
What IP Codes Do—and Do Not—Prove
An IP code is a defined enclosure test, not a general "waterproof" label. It tells you what a fixture's housing resisted in a lab test, not whether that same fixture is approved for your specific installation.
What the Two Numerals Represent
The first numeral in an IP code rates protection against access to hazardous parts and solid foreign objects, like dust. The second numeral rates protection against harmful water ingress, from light dripping up through powerful jets. Neither numeral says anything about chemical resistance, impact resistance, condensation performance, or long-term corrosion, so a high second digit does not automatically cover every environmental stress a wash bay creates.
What the IP Code Leaves Open
An IP-code classification is an enclosure-protection rating, and NEMA's enclosure guidance notes that NEMA and IP ratings differ regarding interchangeability, which many US installation and equipment specifications still reference. Wet-location suitability is a separate listing decision, explained further in our wet-location guidance. Chemical compatibility, corrosion resistance, installation limits, and hazardous-location suitability each require their own product documentation. Treat the IP rating as one required check in the purchase file, not the final answer.
Waste-Management Areas: When IP66 Evidence May Be Enough
IP66 can be a workable evidence path for a waste-management area when the documented exposure stops at outdoor moisture and hose-directed water. Once the cleaning process adds heat, close-range pressure, or chemical contact, that same IP66 evidence stops being sufficient.
Outdoor Service Areas and Heavy Spray

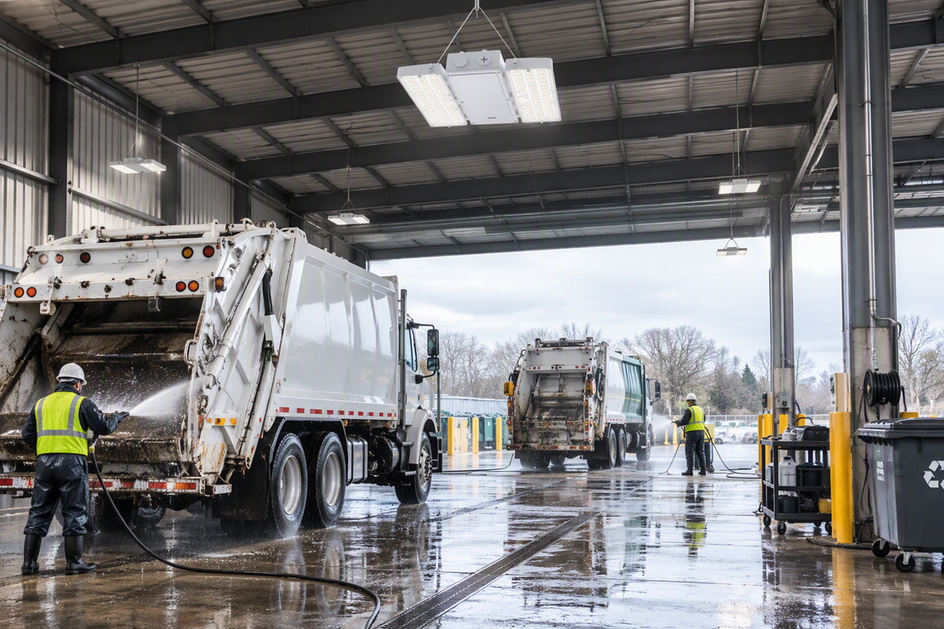

Loading docks, transfer stations, and outdoor service areas that see rain, standing water, or a hose-directed rinse are a reasonable match for IP66-focused evidence, once you confirm the specific fixture's actual rating and its installation and location documents. Don't assume fitness just because the site is labeled a "waste facility"; confirm the fixture's listed rating against the cleaning process it will actually face. Our IP66 washdown guide walks through that kind of hygiene-driven washdown scenario in more detail.
When the Waste Area Crosses into Washdown Territory
If maintenance crews add a pressure washer, use heated water, or introduce degreasers or disinfectants during cleaning, escalate to matching high-pressure, high-temperature evidence instead of staying with IP66 alone. Treat missing exposure records, such as no documented water temperature or pressure, as a reason to verify first, not as permission to default to the lower rating. Location and project classification checks stay separate from this exposure decision.
Chemical Wash Bays: When High-Temperature Pressure-Washdown Evidence Is Required
A chemical wash bay that runs hot, close-range pressure washing as routine cleaning needs evidence matched to that specific exposure, not an IP66 label alone. IP66's water-jet test does not demonstrate performance under the higher heat and pressure that washdown cleaning applies.
The Hot-Pressure-Washdown Boundary
According to NEMA's IP69 and IP69K terminology guidance, an IP69K-style claim is meant to represent close-range, high-pressure, high-temperature washdown resistance, but the claim is only as strong as the standard and test report behind it. Before accepting "washdown-ready" language, ask which standard was used, which lab issued the report, and whether the exact fixture variant you are buying is the one that was tested.
Why Chemicals Require a Separate Check
An IP rating measures ingress protection against water, not resistance to a specific detergent, solvent, disinfectant, or waste-related chemical. Request the fixture's material and gasket specifications, along with any chemical-compatibility and maintenance limits, directly from the manufacturer's documentation. An IP69K claim should never be treated as an automatic corrosion or chemical-resistance certification on its own.
Buyer Verification: Match the Fixture Documents to the Washdown Exposure
Before you commit to a fixture, build a short purchase file that ties the exact product documents to your documented exposure. Each item below should come back as documented, missing, or a mismatch, and a missing or mismatched item is your signal to hold the purchase.
Documents to Request
- Exact fixture SKU, variant, and revision, not just a model family name
- Current specification sheet and installation manual for that exact variant
- The IP test report or certification, naming the specific standard behind any IP66 or IP69K claim
Exposure and Project Conditions to Match
- Water temperature, pressure, nozzle distance, spray direction, duration, and cleaning frequency, where your process documents them
- Cleaning chemical names or classes, checked against the fixture's stated material-compatibility limits
- Installation orientation and limits, wet-location evidence, and any required NEMA, hazardous-location, or local project classification
Grouping these two checklists separately helps you spot exactly which input is missing, instead of treating "pressure washing" as one vague category.
Final Purchase Decision: Approve, Reject, or Verify First
Once the documents and exposure records are in hand, the purchase decision comes down to three outcomes. Approve the fixture for further project selection when its exact IP claim, test basis, and exposure match your documented cleaning process. Reject or swap the candidate when the rating or test basis clearly does not cover your hot-washdown or chemical exposure.
Hold the purchase and verify first when a core document, such as the test report, chemical-compatibility data, or wet-location evidence, is still missing. This purchase-readiness check does not replace a qualified project professional or governing authority for separate code, hazardous-location, or installation-classification decisions on your project.
FAQs
Does an IP66 rating mean a light is waterproof in every installation?
No. IP66 documents dust-tight protection and resistance to powerful water jets in a defined lab test. It does not settle wet-location listing, hazardous-location classification, or overall installation suitability for your specific site.
Does an IP69K claim prove a fixture resists wash bay chemicals?
No. IP69K-style testing addresses high-pressure, high-temperature water exposure, not chemical resistance. Request separate material, gasket, and chemical-compatibility documentation for the exact fixture before assuming it can handle your cleaning chemicals.
Is IP69K always the better choice over IP66 for wash bay lighting?
Not automatically. The better choice is whichever rating's documented test exposure matches your actual cleaning process. A verified IP66 fixture can suit a site with hose-directed washing only, while a site with routine hot pressure washdown needs matching IP69K-level evidence instead.
Can an IP rating replace wet-location or hazardous-location approval?
No. Wet-location listings and hazardous-location classifications are separate project and code decisions. An IP rating is one input into that decision, and a qualified project professional or the governing authority still resolves the classification itself.
