Why Stable Lighting Matters
Pendant-mounted linear lights are a common solution for illuminating large, open areas like warehouses, workshops, and retail spaces. However, their suspended nature makes them susceptible to swaying in environments with significant airflow or structural vibration. This isn't just a minor annoyance; a constantly moving light source can create distracting, almost nauseating visual strobing, reduce the quality of illumination on task surfaces, and pose a significant safety hazard. Over time, the constant motion can fatigue mounting hardware and electrical connections, increasing the risk of failure. Ensuring your fixtures are stable is fundamental to a safe and effective lighting installation.
Pendant-mounted linear lights can be susceptible to swaying in environments with significant airflow or vibration. Discover proven techniques, from using rigid conduits to installing bracing, to keep your fixtures stable, safe, and correctly aligned.
Understanding the Forces: What Causes Lights to Sway?
Before you can stop a light from swaying, you need to understand the forces acting on it. A pendant-mounted fixture is essentially a pendulum. The longer the drop from the ceiling, the more leverage external forces have to create motion.
Key culprits include:
- HVAC Systems: Large blowers and air handlers, especially in commercial buildings, can create powerful, consistent currents of air that push on the broad side of a linear fixture.
- Machinery and Equipment: The operation of heavy machinery, forklifts, or overhead cranes introduces low-frequency vibrations into the building structure, which can travel up to the ceiling and into your mounting points.
- Large Doorways: Opening and closing large bay or hangar doors can cause sudden, significant changes in air pressure and create drafts strong enough to set lights in motion.
I once visited a facility where the lights over a production line would swing in unison every time the main ventilation system kicked on. It was distracting for the workers and caused noticeable wear on the V-hook mounts after only a year. The fix wasn't to replace the lights, but to rethink the mounting.
The Common Mistake That Guarantees Sway
A persistent myth in lighting installation is that a single, flexible support point—like a chain or cable attached to a central hook—is sufficient for a linear fixture. This is the fastest way to create an unstable installation. While it might seem secure initially, this method allows the fixture to pivot and swing freely from a single point, maximizing its pendulum effect.
Separating the electrical feed from the mechanical support is a core principle of safe installation. Per guidelines that align with the National Electrical Code (NEC) Overview, conduits and electrical cables should never be the primary means of support. They are designed to protect wiring, not to bear a mechanical load.
To build a truly stable system, you must move from a single point of failure to a distributed support structure. Here’s how different methods compare:
| Mounting Method | Stability | Best Use Case | Common Pitfall |
|---|---|---|---|
| Single-Point Hook & Chain | Low | Very short drops (< 2 ft) in zero-airflow environments. | Creates a pendulum that amplifies any vibration or airflow. Electrical cord can become tangled or stressed. |
| Two-Point V-Hangers | Good | Standard suspension for linear fixtures up to 8 ft. | Incorrect spacing of hangers can still allow for some twisting or "walking" along the fixture axis. |
| Rigid Pendant (Conduit/Rod) | Excellent | Drops longer than 6 ft or in areas with high airflow/vibration. | Requires precise vertical alignment and secure threaded connections with locknuts to prevent loosening. |
| Direct Surface Mount | Maximum | Low ceilings or when zero movement is permissible. | Not a pendant method, but the ultimate alternative for stability. See our guide on surface mounting linear high bays for details. |
Core Strategies for Rock-Solid Installation
Achieving a stable installation from the start is far more efficient than trying to correct a swaying fixture later. Focus on these three pillars of mechanical stability.
1. Employ Two-Point Suspension for Linear Fixtures
Instead of one central support, always use two distinct suspension points for linear fixtures. This creates a stable plane that inherently resists twisting and swaying.
A proven heuristic for fixtures 4 feet or longer is to position the hangers about 1/6th to 1/4th of the fixture's length in from each end. For a standard 4-foot linear high bay, this means your suspension points would be between 8 and 12 inches from each end. This wider stance provides a robust base that counters rotational forces.
Fixtures like the Linear High Bay LED Lights -HPLH01 Series, which are designed for commercial applications, are built with this type of installation in mind, providing ample structural integrity for secure two-point mounting. For a detailed guide on placement, refer to our article on the proper spacing and layout for linear high bay mounting.
2. Use Rigid Mounting for Long Drops and High Airflow
Once a pendant drop exceeds about 6 feet, flexible options like chains or aircraft cables become less effective at preventing sway. The increased length gives even small forces more leverage.

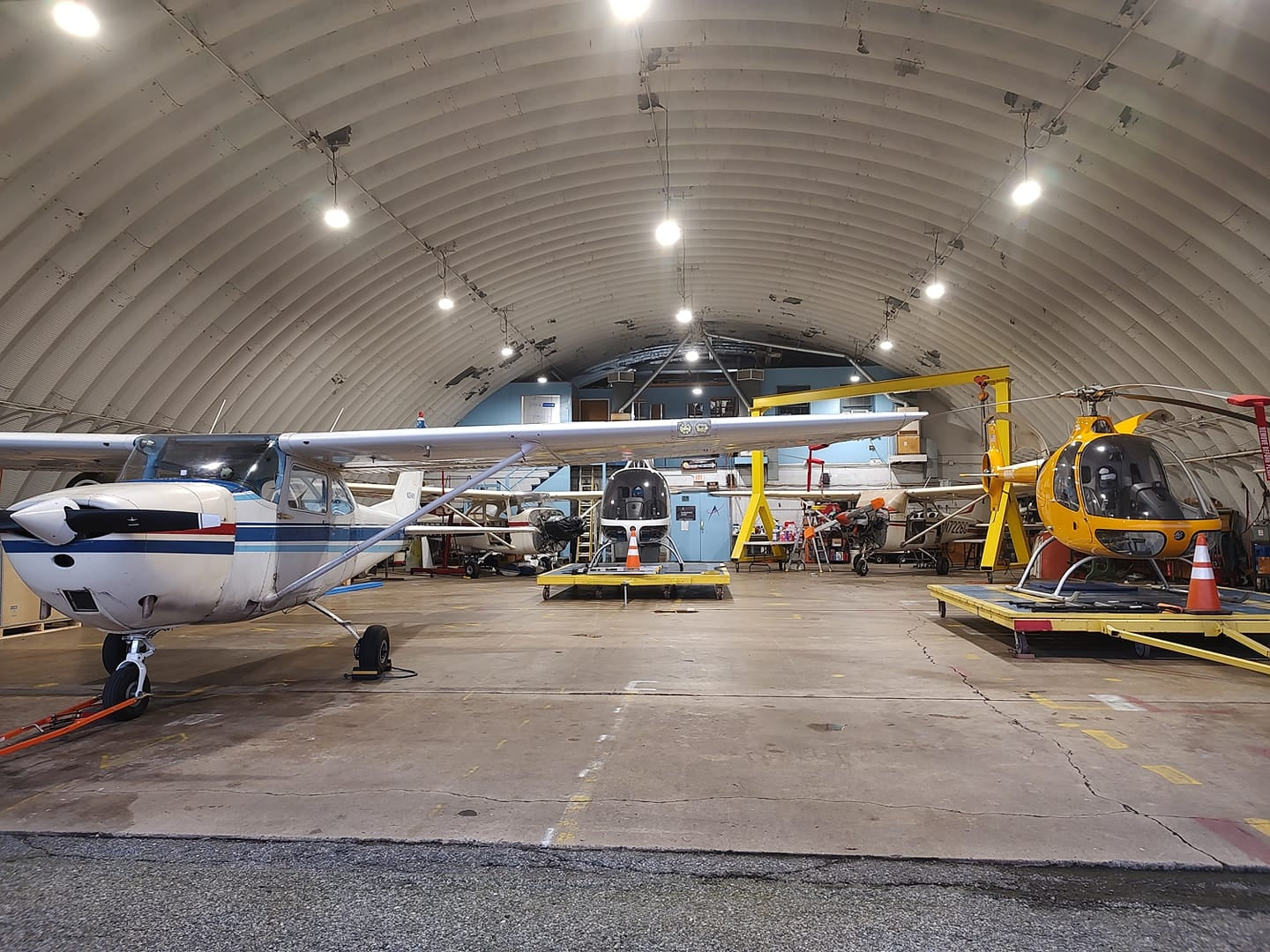

In these situations, switching to a rigid mounting method is the professional solution. This involves using threaded rod or rigid electrical conduit to connect the fixture directly to the ceiling structure. This method effectively eliminates sway by creating a stiff, unmoving arm. It is the standard in demanding environments like aircraft hangars, buildings with powerful ventilation, or facilities with overhead bridge cranes.
When using rigid conduit, always use locknuts and torque all threaded connections properly. I always double-check these connections after 24-48 hours of operation to ensure that building vibrations haven't caused anything to loosen.
3. Install Independent Safety Cables Correctly
Safety cables are a non-negotiable part of any overhead lighting installation, a requirement reinforced by safety standards like UL 1598 – Luminaires. However, their purpose is often misunderstood. A safety cable is a fail-safe; it’s there to catch the fixture if the primary mounting fails, not to prevent sway.
Key rules for safety cables:
- Independent Anchor: The cable must be anchored to the building structure completely independently of the primary mounting hardware.
- Slight Slack: It should be installed with a small amount of slack. If it’s taut, it can interfere with the primary suspension and potentially transmit more vibration.
- Proper Rating: Ensure the cable is rated to support at least twice the fixture's weight.
For a complete walkthrough, our Safety Cable Guide for Linear High Bay Installs provides step-by-step instructions.
Advanced Bracing and Verification
In the most demanding industrial settings, even a robust two-point or rigid installation can benefit from additional reinforcement. This is where you move from standard installation to advanced stabilization.
Anti-Sway Bracing
If you still observe movement, you can add lateral bracing. This involves installing a rigid strut or bracket at an angle from the fixture to an adjacent structural element like a purlin, beam, or wall. This creates a rigid triangle, the strongest shape in structural engineering, and will stop even the most stubborn oscillations.
Pre-Commissioning Stability Checklist
Before signing off on any installation, perform these simple physical tests to verify stability. This five-minute check can save hours of headaches later.
- Perform a Manual "Nudge Test": Give the fixture a firm but gentle push. It should settle and stop moving within 5-10 seconds. If it continues to oscillate for longer, the system is not stable enough and requires additional bracing.
- Conduct an Airflow Test: Turn on the building’s HVAC system to its highest setting. If you have large bay doors, open them. Observe the fixtures for any induced movement.
- Check All Connections: After the initial tests, go back and re-torque all threaded fasteners and locknuts. Vibration, even from testing, can sometimes cause initial settling.
Taking these steps ensures the lighting system is not only bright and efficient but also mechanically sound for the long term, a key consideration in standards like ANSI/IES RP-7 for Lighting Industrial Facilities, where visual performance and safety are paramount.
Key Takeaways
Preventing pendant-mounted lights from swaying is a matter of applying sound mechanical principles. A stable installation enhances safety, improves visual comfort, and protects your investment from premature wear.
- Never Use Single-Point Suspension: Always use two independent support points for linear fixtures to create a stable plane.
- Separate Mechanical and Electrical: The electrical conduit is for wiring, not for bearing the fixture's weight. Use dedicated hangers, chains, or rods.
- Go Rigid for Long Drops: For pendant drops over 6 feet or in high-airflow zones, use threaded rod or rigid conduit instead of flexible cables.
- Test Your Work: A simple "nudge test" before commissioning can confirm the stability of your installation and prevent callbacks.
Following these guidelines will ensure your lighting remains fixed, focused, and safe, no matter the environment.
Frequently Asked Questions (FAQ)
How much sway is considered too much? Any persistent oscillation or movement that is easily noticeable is too much. If a fixture sways for more than 5-10 seconds after being pushed, it indicates an unstable mounting system that needs correction.
Can I use the electrical conduit to support my linear high bay? No. According to NEC principles and safe installation practices, electrical conduit and cables must not be used as the primary mechanical support for a luminaire. You must use separate, dedicated mounting hardware like chains, aircraft cables, or threaded rods.
My lights are installed with V-hangers but still twist. What did I do wrong? This usually happens when the hanger points are spaced too closely together. For optimal stability, ensure your two suspension points are between 1/6th and 1/4th of the fixture's length from each end. For more complex wiring, see our guide on how to wire linear high bays in a series.
Is a safety cable required for all suspended lights? Yes, it is a critical safety measure and often required by local building codes. It serves as a backup to catch the fixture in the event of a primary mounting failure. Always consult our warehouse safety layout guide and local regulations.
Disclaimer: This article is for informational purposes only. All electrical and overhead installation work should be performed by a qualified professional in accordance with the National Electrical Code (NEC) and all applicable local building and safety codes. Always de-energize circuits before beginning work.
