The Unseen Guardian: Why Safety Cables Are Non-Negotiable

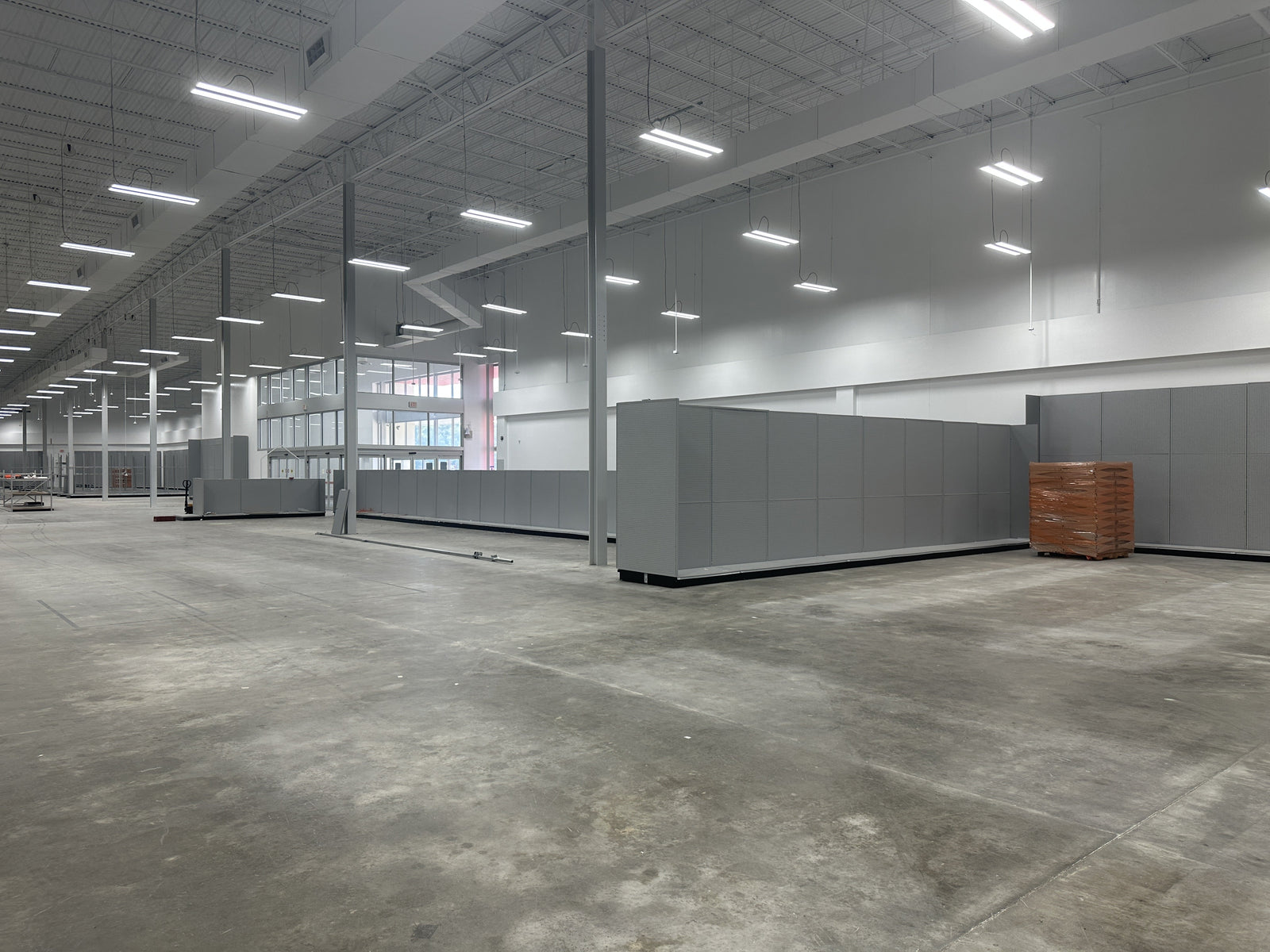

A linear high bay fixture falling from a 20-foot ceiling is not just an equipment loss; it's a severe safety incident. While primary mounting hardware—chains, pendants, or brackets—handles the day-to-day static load, it represents a single point of failure. A safety cable is the mandatory secondary retention system that protects people and property below from unforeseen events like seismic activity, accidental impact, or primary component fatigue.
From a liability and compliance standpoint, this is not optional. Professional installers understand that adherence to safety standards is paramount. While the National Electrical Code (NEC) governs the electrical installation, local building codes and workplace safety regulations often mandate redundant support for any overhead-mounted equipment. A missing safety cable can result in failed inspections, project delays, and significant legal exposure in the event of an accident.
My experience in reviewing installation failures has shown one common thread: underestimating dynamic forces. The primary suspension is rated for a static load. However, a sudden jolt from a forklift clipping a chain or a building tremor can introduce shock loads that far exceed that rating. The safety cable is your engineered failsafe, designed to catch the fixture and prevent a catastrophe.
Selecting Professional-Grade Retention Hardware
The effectiveness of a safety cable is entirely dependent on the integrity of its components. Using underrated or improper hardware is as dangerous as omitting the cable entirely. Every component in the retention system must be specified and rated for overhead lifting and support.
A Linear High Bay LED Light, HPLH01 Series, showing its durable steel housing and mounting points suitable for safety cable attachment.
Cable: The Core Component
A common mistake is grabbing any generic galvanized wire. For professional applications, the standard is stainless steel aircraft cable. There are two primary types to look for:
- 7x19 Construction: This is the most flexible and durable option. It consists of 7 strands, each made of 19 smaller wires. Its flexibility makes it highly resistant to fatigue from vibration and movement, which is common in industrial facilities. It is the preferred choice for most high bay installations.
- 7x7 Construction: Moderately flexible and also very strong, this cable consists of 7 strands of 7 wires each. It's a suitable alternative where extreme flexibility isn't the primary concern.
A critical rule of thumb is to apply a 10:1 safety factor. If a linear high bay fixture weighs 10 pounds, the cable and all associated hardware should have a minimum breaking strength of at least 100 pounds. For a fixture like the Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V, which has models weighing up to 10 lbs, the safety system should be rated for 100 lbs or more. This accounts for shock loads and provides a robust margin of safety.
Terminations and Anchors: The Critical Connections
Even the best cable is useless if its connections fail. This is where I see the most frequent and dangerous shortcuts.
Termination "Do's and Don'ts" Table
| Method | Description | Verdict | Why? |
|---|---|---|---|
| Swaged Loops with Thimbles | The cable is looped around a metal "thimble" and secured with a mechanically compressed "swage" or "ferrule." | Do (Best Practice) | Creates a professional, full-strength termination that protects the cable from wear and maintains its breaking strength. |
| Wire Rope Clips (Fist Grips) | U-bolts or double-saddle clips are tightened to clamp the cable loop. | Do (If Done Correctly) | Must use at least two clips, installed in the correct orientation ("never saddle a dead horse"). Incorrect installation can cut cable strength by over 50%. |
| Knots | The cable is simply tied. | Don't (Critical Risk) | Knots can reduce the breaking strength of aircraft cable by 50-80% and can slip or tighten over time, leading to failure. |
| Unrated Spring Clips | Generic carabiners or spring clips. | Don't (Critical Risk) | These are not rated for overhead loads and can easily deform or break under the shock load of a falling fixture. |
Anchorage points must be made to a structural member. Never anchor a safety cable to non-structural elements. This includes:
- Do: Anchor to steel trusses, I-beams, or concrete ceilings using rated and properly sized eye bolts, through-bolts, or welded attachment points.
- Don't: Anchor to ceiling tiles, conduit, sheet metal, or use plastic anchors. A common error I've seen is using a screw into the metal roof decking. This has almost zero pull-out strength and provides a false sense of security.
Professional Installation Technique: A Step-by-Step Guide
Proper installation technique ensures the safety system functions as designed. Follow these steps for every fixture.
-
Identify Attachment Points: Locate the dedicated safety cable attachment point on the linear high bay. Reputable fixtures certified to standards like UL 1598 often provide a specific, reinforced hole for this purpose. If one isn't present, loop the cable securely around a structural part of the fixture's chassis, away from wiring and optics.
-
Secure the Anchor: Install your rated eye-bolt or other anchor into the building's structure, following the anchor manufacturer's specifications for torque and load capacity. When in doubt, pause the installation and request a review from a structural engineer. It is always faster to double-check than to perform a rework or handle an incident.
-
Attach the Cable: Secure one end of the safety cable to the fixture and the other to the structural anchor using proper termination methods (e.g., swaged loops).
-
Set the Slack: This is a step that is often misunderstood. The cable should have minimal, controlled slack—typically 1 to 3 inches.
- Too little slack: Normal building expansion/contraction or fixture vibration could put constant tension on the safety cable, leading to premature fatigue.
- Too much slack: This increases the potential drop distance, which in turn dramatically increases the shock load on the system when it is called upon to arrest the fall.
-
Manage Proximity: The structural anchor point for the safety cable should be within 6-12 inches of the fixture's primary suspension anchor. This minimizes the swing radius and leverage if the fixture falls, reducing the risk of it colliding with other objects.
-
Independent Retention: For runs of multiple fixtures, each high bay must have its own independent safety cable. Never run a single "daisy-chained" cable from fixture to fixture. This creates a domino effect if one anchor or cable fails.
Debunking a Common and Dangerous Myth
Myth: "The included V-hooks and chains are strong enough. A safety cable is overkill."
This is a fundamental misunderstanding of safety engineering. The primary suspension hardware is designed to hold the static weight of the fixture. It is not designed to withstand a sudden shock load or to account for unforeseen failures like a flawed chain link, an improperly closed hook, or corrosion.
In reality, the safety cable is a redundant system, a principle core to all professional rigging and overhead safety. According to industrial lighting guidelines like ANSI/IES RP-7, ensuring safe and secure installations is a key part of the process. The safety cable assumes that the primary system will fail at some point, whether due to improper installation, material defect, or external forces. It is your facility's insurance policy against that failure.
Inspection and Maintenance Checklist
A "set it and forget it" mentality is not acceptable for overhead safety equipment. A documented inspection routine is crucial for long-term security.
- Post-Installation (Day 1): Immediately after commissioning, visually inspect every safety cable connection. Verify anchor seating and hardware integrity. Document the installation with photos, noting fixture serial numbers and locations.
- 30-Day Follow-up: After 30 days of operation, perform another visual inspection. This can reveal any initial settling or loosening of components.
- Quarterly Inspection: For most commercial sites, a quarterly visual check is sufficient. Look for any signs of corrosion, kinking in the cable, or loosening of hardware.
- High-Risk Environments: In facilities with high vibration (e.g., stamping plants) or corrosive atmospheres, inspections should be increased to a monthly rhythm.
Log every inspection. If a fixture fails and requires an RMA, the issue should be recorded against the specific hardware used to help identify any potential batch issues with safety components.
Key Takeaways
Securing a linear high bay fixture is a task that demands professional diligence. The use of a secondary safety cable is not just a best practice; it is a critical component of a responsible installation.
- Always Use a Redundant System: Never rely solely on the primary suspension hardware.
- Specify Rated Components: Use stainless steel aircraft cable and professionally terminated, load-rated hardware with a minimum 10:1 safety factor.
- Anchor to Structure: Fasten safety cables only to verified structural members of the building.
- Inspect Regularly: Implement and document a recurring inspection schedule to ensure the long-term integrity of the system.
By following these professional guidelines, you ensure not only the longevity of the lighting installation but also the safety of everyone who works beneath it.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or installation advice. All overhead rigging and electrical work should be performed by qualified, licensed, and insured professionals in accordance with all applicable national and local building and electrical codes. Always consult a structural engineer to verify the load-bearing capacity of the structure.
