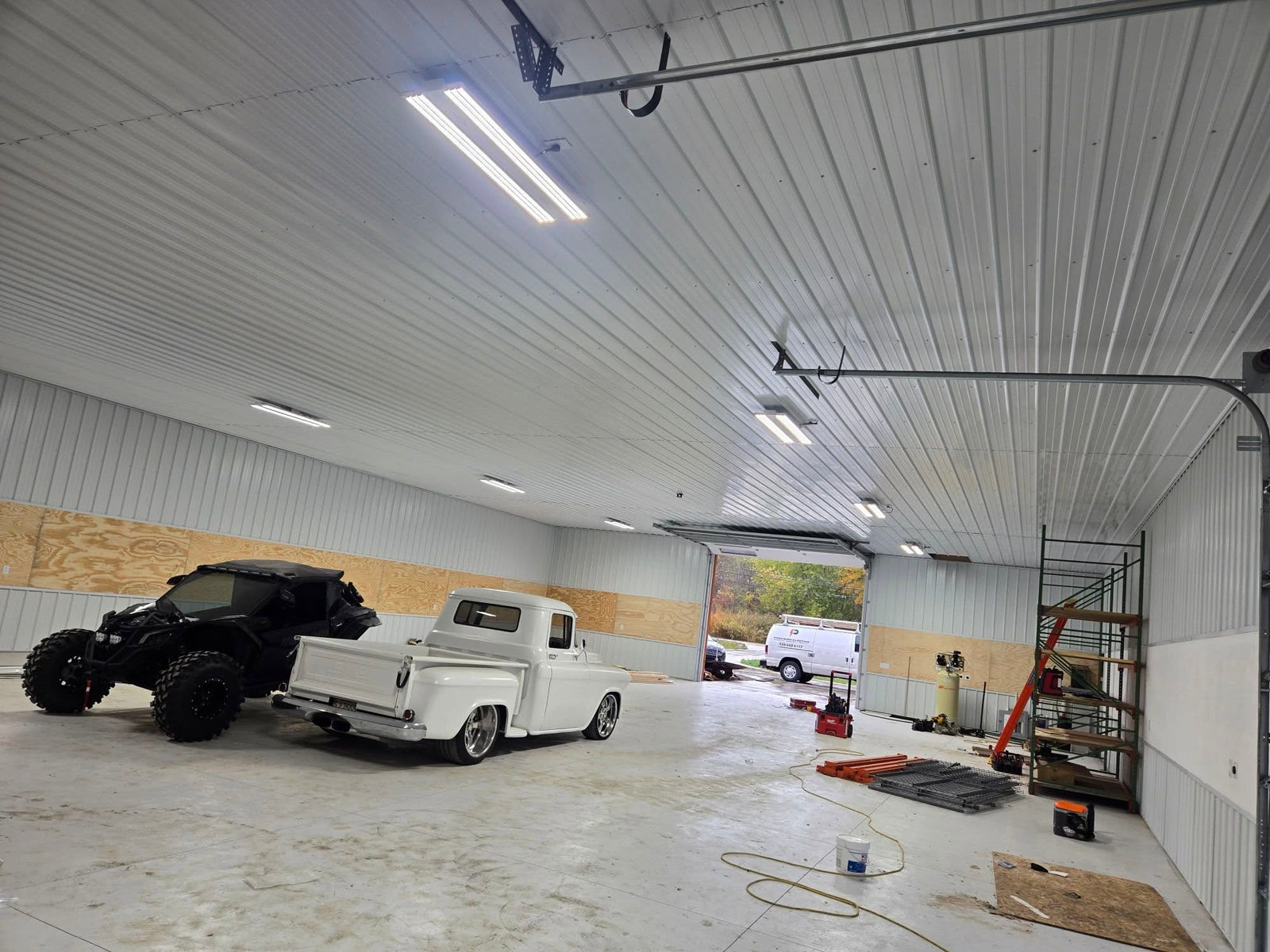

When suspension mounting isn't feasible due to limited overhead space, surface mounting is an ideal solution for linear high bays. This method allows you to properly secure fixtures directly to the ceiling for a clean, stable installation in workshops, garages, and other low-profile spaces between 8 and 15 feet. A successful surface mount project depends on meticulous planning, correct hardware selection, and a commitment to safety.
This guide provides a comprehensive walkthrough for contractors, electricians, and skilled DIYers. We will cover everything from assessing your ceiling structure to final wiring and commissioning, ensuring your lighting is not only bright and efficient but also securely and safely installed.
Pre-Installation Planning and Safety
Proper preparation is the foundation of a safe and effective installation. Rushing this stage often leads to mistakes, poor performance, and safety hazards. Before you drill a single hole, take the time to evaluate your space, plan your layout, and gather the correct tools.
Safety First: Code and Compliance
Working with electricity demands the utmost caution. Always assume a circuit is live until you have personally verified it is de-energized.
- De-energize the Circuit: Locate the correct breaker in your electrical panel and switch it to the "OFF" position. Use a non-contact voltage tester to confirm there is no power at the junction box or existing fixture wires where you plan to work.
- Adhere to Electrical Codes: All wiring practices must comply with local regulations and the NFPA 70 – National Electrical Code (NEC). Specifically, refer to NEC Article 410 (Luminaires, Lampholders, and Lamps) for mounting requirements and NEC 300.3(C)(1) regarding conductor insulation ratings.
- Circuit Sizing: Ensure your circuit can handle the inrush current and continuous load of the fixtures. As a rule of thumb, use the 80% rule for continuous loads (e.g., a 20A breaker should only carry 16A of continuous load).
- Use Personal Protective Equipment (PPE): Always wear safety glasses to protect your eyes from debris during drilling and installation.
Assessing Your Ceiling Structure for Secure Anchorage
A common point of failure we observe in field support is using the wrong anchor for the ceiling material. A high bay fixture has significant weight (often 10–25 lbs) that requires a robust mounting point. NEC 410.36(B) requires that luminaires supported by a suspended ceiling must be securely fastened to the ceiling framing member. For surface mounting, the pull-out strength of your fastener is the critical metric.
Heuristic Safety Factor: Aim for a fastener pull-out strength of at least 4x the fixture weight.
| Ceiling Material | Recommended Fastener | Est. Pull-Out Capacity (Heuristic) | Key Installation Notes |
|---|---|---|---|
| Plywood / Wood Joists | #10 or #12 Self-Tapping Lag Screws | 150+ lbs (in solid wood) | Ensure at least 1.5" of thread embedment. Avoid "strip-out" by using appropriate pilot holes (approx. 75% of screw shank diameter). |
| Metal Deck / Purlins | 1/4" Toggle Bolts or Self-Drilling Screws | 80–120 lbs (18ga steel) | Toggle bolts distribute load over a wider area. For heavy-duty commercial jobs, welding studs directly to the structure provides the most secure attachment. |
| Concrete | 1/4" Sleeve or Wedge Anchors | 200+ lbs (at 2" depth) | Drill to specified diameter. Clean hole of dust. Torque wedge anchors to approx. 5–10 lb-ft (refer to manufacturer technical tables). |
Before committing to a layout, mark and test a single anchor point. A manual "firm pull" test is a basic field check, but for critical commercial installs, a pull-test with a tension meter is recommended.
Layout and Spacing for Uniform Illumination
Poor spacing leads to "cave effect" or harsh shadows. The goal is even, overlapping light distribution at the task plane (typically 36" above the floor).
-
Spacing Rule of Thumb: For fixtures with a standard 110°-120° beam angle, center-to-center spacing should be 0.9 to 1.1 times the mounting height (MH).
- Example: For a 12-foot ceiling, space fixtures 10.8 to 13.2 feet apart.
- Orientation: Orient linear fixtures perpendicular to primary workbenches. This minimizes shadows cast by the user's body.
- Validate with Data: Refer to the manufacturer's photometric data. These .ies files can be used in design software. Per IES RP-7-21 (Recommended Practice for Lighting Industrial Facilities), a general workshop typically requires 30–50 foot-candles (lux/10.76).
Step-by-Step Installation Guide
Step 1: Gather Tools and Materials
- Drill with masonry/metal/wood bits
- Torque wrench (for concrete anchors)
- Tape measure and chalk line/laser level
- Non-contact voltage tester
-
Wire/Breaker Selection:
- 15A Circuit: Use 14 AWG Copper Wire (Min)
- 20A Circuit: Use 12 AWG Copper Wire (Min)
Step 2: Prepare the Fixture
Unbox the fixture. Models like the Linear High Bay LED Lights -HPLH01 Series offer adjustable wattage and CCT. Set these switches before mounting to avoid awkward adjustments on a ladder.
Step 3: Mark and Pre-Drill
Transfer your layout to the ceiling. Use a laser level for precision. Mark bracket locations and pre-drill pilot holes. For concrete, ensure the hole depth is at least 1/2" deeper than the anchor embedment to allow for dust settlement.
Step 4: Install Mounting Brackets and Safety Cables
Secure brackets to the ceiling. Crucially, do not skip the safety cables. NEC 410.36(B) and many local building codes require a redundant support system. Anchor the safety cable to a structural member (joist or purlin), never to the mounting bracket or the electrical box itself.
Step 5: Mount the Fixture
Lift the fixture and secure it to the brackets. Once mechanically secured, attach the safety cables. Ensure the fixture is level; an unlevel fixture can cause uneven beam distribution and increased glare.
Step 6: Wiring the Fixture
- Run Power: Route AC lines into the wiring compartment.
- Connect Wires: Use UL-listed wire nuts or lever connectors. Connect Hot (Black), Neutral (White), and Ground (Green/Bare).
- Dimming (0-10V): Connect Purple (+) and Gray/Pink (-) wires. Per NEC 725.136, maintain separation between Class 1 (Power) and Class 2 (Dimming) circuits unless using cables specifically rated for combined use (like Type MC-PCS).
- Seal: Ensure gaskets are seated to maintain the IP rating (e.g., IP65 for damp/dusty environments).
Critical Post-Installation Checks and Common Pitfalls
The Suspension Hook Myth
A dangerous mistake is using V-hooks or chains for a flush-mount application. These are designed for tensile loads only. Surface mounting subjects them to shear forces they are not rated for. Always use the manufacturer-specified surface mount brackets to comply with UL 1598 standards.
Heat Management and Clearances
LED drivers are sensitive to thermal buildup. When surface mounting on insulated ceilings:
- Maintain at least 2 inches of free air space around the driver housing.
- Do not cover the fixture with fiberglass batts or spray foam insulation unless the fixture is specifically "IC-Rated" (Insulation Contact).
- Observation: Fixtures installed flush against unvented metal roofs in hot climates can see driver temperatures exceed 90°C, significantly reducing the 50,000-hour rated lifespan.
Final Commissioning: Verify Your Layout
Use a handheld lux meter to take readings at the workbench surface.
- Target: 500–750 lux for general assembly; 1000+ lux for fine detail work.
- If readings are ±20% off target, adjust the wattage settings or check for voltage drop if using long wire runs (keep voltage drop below 3% per NEC recommendations).
Key Takeaways
- Fastener Match: Use a 4x safety factor for pull-out strength.
- Code Compliance: Follow NEC Article 410 and 725.
- Redundancy: Always install independent safety cables.
- Thermal Care: Ensure 2" clearance for driver heat dissipation.
Frequently Asked Questions (FAQ)
Can I surface mount any linear high bay? No. Only mount fixtures explicitly rated for surface mounting. Using suspension-only fixtures in a surface mount configuration voids the warranty and UL/ETL safety certifications.
What is 0-10V dimming? It is a low-voltage protocol where 10V is 100% brightness and 1V is minimum. Ensure you use a 0-10V compatible dimmer; standard Triac (incandescent) dimmers will not work and can damage the driver.
Do I really need safety cables? Yes. They are a redundant safety measure required by many local codes to prevent the fixture from falling due to vibration, seismic activity, or fastener failure.
Why is my LED fixture flickering? Common causes include:
- Incompatible dimmer (not 0-10V).
- Loose neutral connection.
- Interference from high-power machinery on the same circuit.
Disclaimer: This article is for informational purposes only. Electrical work involves risks of fire and shock. Always adhere to local electrical codes (NEC/CEC) and safety standards. If you are not a licensed professional, please consult one before beginning installation.
