A walkway can look well lit to you while your camera still records glare, washed-out patches, or missing areas. What you see from the path and what the camera records are two separate results, so check each one on its own after dark.
If you use outdoor security lights with motion sensor control, there's a third check. Make sure the light turns on for the movement and the area it's meant to serve. This guide shows you how to map both tasks, test each one at night, and fix only the check that failed.

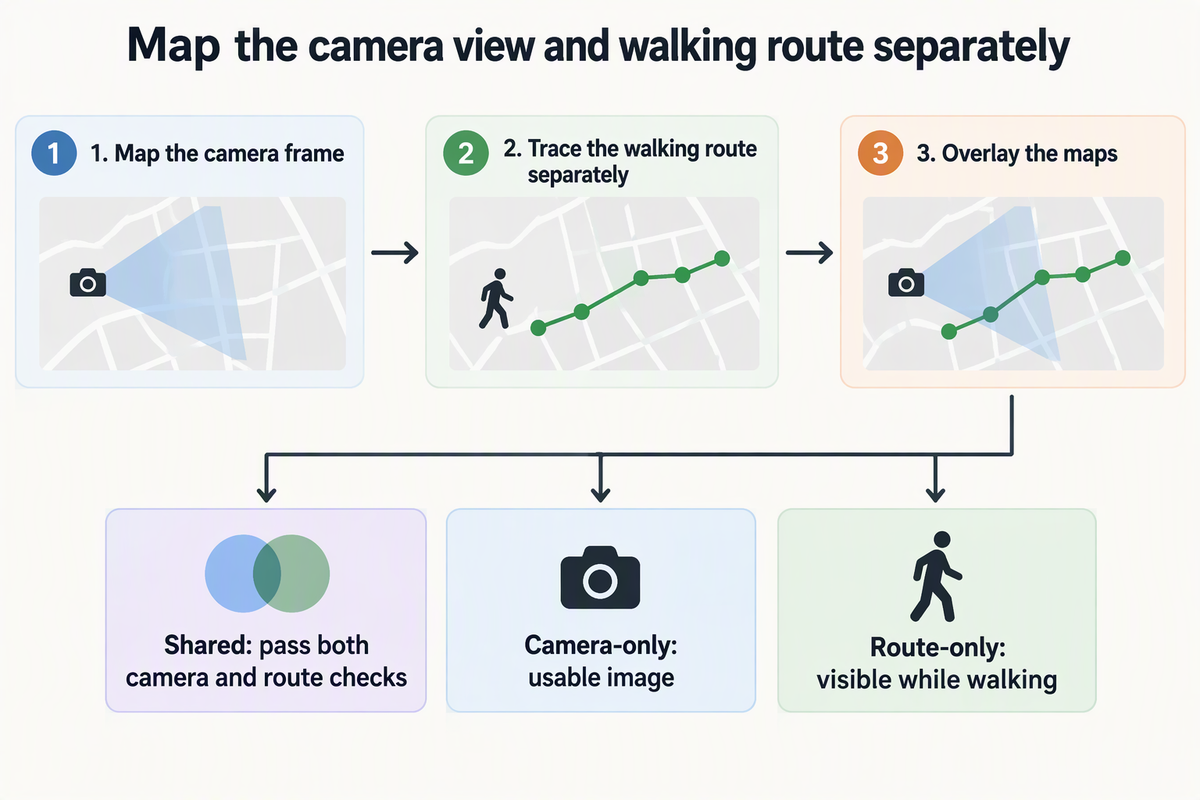

Map the Camera View and Walking Route Separately
Start with two maps instead of one. The camera map shows what the lens actually frames. The route map shows where people actually walk.
- Capture the camera frame. Take a screenshot of the camera's live view, or sketch its frame on a simple site plan. Mark only what appears in the image, not how far the light seems to reach.
- Draw the walking route on a separate copy. Trace the full path people use, from the street or parking spot to the door, gate, or side entrance. Include steps, turns, and any stretch the camera never sees.
- Overlay the two and label three zone types. Give each zone its own mark: one for shared areas (in frame and on the route), one for camera-only areas such as a driveway edge, and one for route-only segments such as a side path outside the frame.
- Write down what each zone has to pass. Shared zones must pass both the camera check and the route check. Camera-only zones need a usable image. Route-only segments need to be visible to someone walking them.
These two maps become your answer key for the night tests. On a long approach, splitting the site into zones first, as in our long driveway lighting plan, gives each segment one clear job before you choose any fixtures.
Review the Camera's Night View After Dark
Judge the camera by its own live or recorded night image, not by what you see from the path. A scene can look fine to you and still give the camera trouble. Axis Communications explains how extreme bright and dark contrasts can make people harder to identify, because parts of the picture may end up overexposed or underexposed.
- Open the live view or a recent clip after dark, with the lights in their normal nighttime state. If a light is motion-activated, trigger it so you see both states.
- Compare the image with your camera map. Mark any shared or camera-only zone that is cut off, missing, or too dark to show detail.
- Look for bright patches, washed-out areas, or a fixture shining toward the lens. Note where each one sits. Don't assume every bright spot has the same cause.
- Have a helper walk through the frame. Check whether you can make out the person, not just whether the scene looks bright.
- If your camera's night mode behavior is unclear, check that model's documentation before you change its settings or position.
Google Nest gives a model-specific example. For its own cameras, it advises users to test the recorded view in darkness and to adjust the camera position or add lighting if needed. Nest also notes that nearby infrared reflections can wash out part of the image in night vision. These details apply to Nest cameras. Other models switch modes and respond to light in their own ways. If a fixture is throwing glare into the frame, our guide to floodlight aiming and glare covers re-aiming to prevent washout.
Walk the Route as Its Own Visibility Check
The route passes only when the person walking it can see every segment from start to finish. A clean camera image can't tell you that, so walk the path yourself.
- Walk the full mapped route after dark, using the lighting the site will really use. With outdoor security lights with motion sensor control, pay attention to the stretch you cover before the light switches on.
- Walk it in both directions. Arriving and leaving put different parts of the path in front of you.
- Slow down at transitions: steps, curbs, turns, gate thresholds, and spots where one lit area ends and the next has not started.
- Mark the exact segment on your route map where the path is hard to see. Pay extra attention to route-only segments the camera never covers.
- Keep these notes on the route map, separate from your camera notes, so the next change goes to the task that actually failed.
If one segment needs its own light, compare outdoor lighting options by how each one could be aimed at that marked stretch. For a low walkway or garden path, path and landscape lights are another category to look at.
Match the Fix to the Failed Check
Use whichever check failed to decide what to change. That way you don't adjust the camera, the route lighting, and the sensor all at once.
| Observed result | Task to revisit | Next check |
|---|---|---|
| Route walk is fine; image has gaps, glare, or washout | Camera view | Recheck frame and image at night; consult model guide |
| Image is usable; a route segment is hard to see | Route lighting | Re-aim at the marked segment; walk it again |
| Expected movement leaves light off, or wrong area lights | Motion activation | Repeat the movement; compare with fixture's documented setup |
For route fixes, DarkSky International recommends that you direct light where needed, use the lowest light level required, and use controls such as motion detectors so light is on when needed and off when not. In practice, that means aiming at the dark segment rather than adding brightness across the whole site.
Activation problems depend on the fixture. Detection areas and adjustment options vary by model, so the fixture's own instructions decide what you can change. Our motion-sensor approach planning guide shows how to match sensor coverage to each approach. If a fixture can't be set to cover the movement you need, compare other motion sensor lighting using its detection details. Leave any wiring changes to a qualified electrician.
After a fix, rerun the check that failed. Then do a quick pass of the other check, because re-aiming a light for the path can change what the camera records.
FAQs
Can one fixture serve both the camera view and the walking route?
Yes, as long as the shared zones pass both night checks with that fixture in place. Camera-only areas and route-only segments sit outside the overlap. If one of them fails, it may need its own aimed light instead of a brighter shared one.
Why does my camera's night image look so different from what I see?
The camera uses its own night mode and sensor, not your eyes. Google Nest notes that night-vision range depends on the camera and the light available. Other brands work differently, so your model's documentation explains what its image should look like.
When should I repeat the after-dark checks?
Repeat them after you move a camera, re-aim or add a fixture, or change sensor settings. Also repeat them when the scene changes. New plantings, a fence, or vehicles parked in a new spot can block light or bounce glare toward the lens.
Are motion-activated lights a good fit for camera coverage?
Outdoor security lights with motion sensor control fit when they turn on for the movement you care about and the camera image is still usable once the light comes on. Check clips recorded at the moment of activation, not just a scene that is already lit, before you count on that light for camera coverage.
