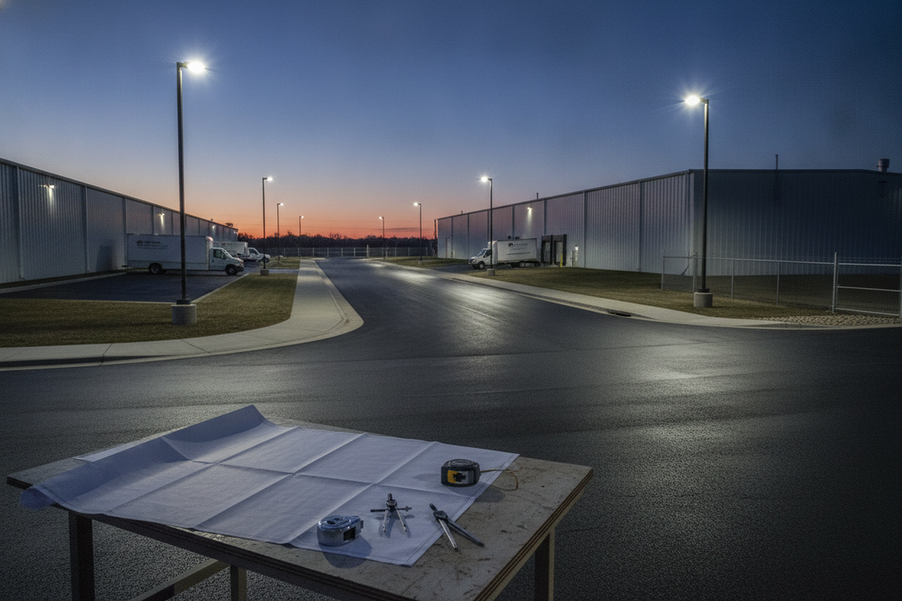

Map the entire commercial driveway before choosing an outdoor lighting fixture. Draw the route to scale, divide it into coverage zones, and mark vehicle movement, pedestrian edges, gates, turns, mounting points, glare exposure, service access, and unresolved site conditions. Then assign each zone a preliminary role: broad route coverage, targeted coverage, or a layered combination. There is no universal spacing number, so use the map to guide site-specific photometric analysis and professional review rather than treating a fixture category as a finished design.
Build the Driveway Coverage Map Before Choosing Outdoor Lighting Fixtures
The first deliverable is a zone-by-zone coverage brief, not a fixture count. A scaled plan lets you compare candidate locations with the driveway’s geometry and traffic patterns. The 2023 FHWA Lighting Handbook is a planning reference for route visibility, not a final commercial-driveway design or compliance determination.
Start with a scaled plan or site sketch showing the full driveway, width changes, curves, grades, branches, entrances, gates, loading areas, turning areas, destination points, and vehicle direction. Mark where traffic is continuous and where drivers slow, turn, stop, or cross another route. A straight route may be one continuous zone, while a curve, branch, or wide loading area deserves a separate label when its visibility task changes.
Add vehicle lanes, pedestrian edges and crossings, gates, intersections, trees, structures, neighboring properties, and direct sightlines toward approaching vehicles. Separate pedestrian-edge coverage from pavement-only coverage; pedestrian edges and crossings need a distinct visibility review, without applying state roadway criteria to a commercial-site requirement.
Record existing poles, candidate mounting points, electrical locations, pole condition, obstructions, seasonal tree changes, and the access equipment available for inspection or replacement. Do not assume an existing pole can support a new fixture or that an electrical location is usable. Name the zones as continuous travel segments, entrances, intersections, gates, loading or turning areas, pedestrian edges, branches, or other areas with distinct visibility tasks.
For each zone, record a preliminary role such as broad route coverage, targeted coverage, or a layered need. Note likely dark areas, excessive overlap, glare exposure, spill-light concerns, maintenance constraints, controls, and questions about structural, electrical, local, or approval requirements. The map should expose missing inputs, not assign fixture count, spacing, electrical details, or compliance status.
If the site plan is unavailable, create a preliminary sketch and label every missing dimension, mounting condition, service constraint, and visibility question. The supplied fixture-count planning guidance can provide related context, but the sketch remains a planning aid rather than evidence of a final fixture count.
Assign Area, Post-Top, Flood, or Layered Lighting by Zone
Choose a preliminary approach based on the job assigned to each mapped zone, not the brightest product page or the number of fixtures in stock. Area, post-top, and flood lights are fixture categories; layered lighting is a layout strategy that combines different roles. Distribution and shielding determine where light goes, so compare photometric distribution and shielding against the mapped route instead of choosing by output alone.
| Approach | Strongest mapped driveway role | Main trade-off | Verify before buying |
|---|---|---|---|
| Area lights | Broad, distributed coverage along a route from planned mounting locations | The pattern can change at curves, width transitions, branches, and edges | Photometry, mounting conditions, glare, controls, and service access |
| Post-top lights | A distributed pole-based route or pedestrian-edge treatment where planned poles support it | Pole condition, interfaces, sightlines, and maintenance access may control placement | Pole structure and interface, photometry, sightlines, controls, and replacement access |
| Flood lights | Defined targets such as entrances, gates, turns, loading points, or branches | Aiming, spill, and glare require closer review than a broad category label | Target geometry, aiming, shielding, mounting stability, spill, and operating periods |
| Layered lighting strategy | A route where broad coverage, conflict points, and edges have materially different jobs | Overlap, control interaction, and added maintenance responsibility become more complex | Zone interaction, photometry, glare, controls, and service access |
For a mostly continuous route, area lighting is the first category to investigate when the brief calls for distributed coverage, but that label does not prove driveway fit. A planned pole route may point toward post-top lighting when pole condition, interface, sightlines, and service access support it. Flood lighting belongs with defined targets rather than an assumption of uniform route coverage. Use a layered strategy only when separate zones genuinely require different roles; if the map does not show those differences, finish labeling the zones before selecting a model.
Test Spacing, Sightlines, and Service Access on the Map
Spacing is a site-design output, not a universal distance. Test each candidate location against driveway geometry, candidate photometry, user sightlines, and service conditions before finalizing the layout; FHWA application guidance provides background for treating spacing as a site-design question, not as a roadway ratio to transfer to this driveway.
Test Spacing Against Geometry and Photometry
Compare driveway width, curves, grades, mounting height and position, distribution, obstructions, edge needs, overlap, and dark gaps together. Test manufacturer photometric information against the site plan at width changes, turns, branches, and loading areas. If the required geometry, mounting data, or photometry is missing, mark placement unresolved and request a site-specific lighting plan instead of supplying a spacing number.
Check Glare From Driver and Pedestrian Sightlines
Glare is a visibility issue for drivers and pedestrians, so inspect proposed locations from the positions where people actually approach, turn, exit, and cross. FHWA guidance on lighting application and visibility supports checking those approaching and turning sightlines without establishing a numeric glare limit for this project.
At a curve, gate, or grade, look for direct views into intense sources and spill toward neighboring properties or sensitive edges. Review aiming, shielding, distribution, and mounting position from each user position, then reassess whether the assigned fixture role still works. A source that remains in direct view after those adjustments is a purchase blocker until the layout receives appropriate review.
Confirm Maintenance Access Before Finalizing Locations
Record pole condition, mounting interfaces, service clearances, trees, seasonal obstructions, and likely replacement access. Compare each location with the traffic pattern and equipment the site can actually provide. A visually convenient location is not usable if inspection or replacement would obstruct traffic or depend on unavailable equipment. Escalate electrical, structural, photometric, glare, and local-review questions that exceed a preliminary shopping brief.
Use the Coverage Brief as the Before-Buying Decision Gate
Proceed to category-level shopping only when each proposed fixture role and location connects to a named zone and the decision-changing verification fields are documented. Mark the brief verify-first when coverage, mounting, power, controls, glare, maintenance, documentation, or local requirements remain unresolved; request qualified review when calculations or approvals control the decision.
For coverage, compare candidate photometry with the mapped route, edges, transitions, and defined targets. Dark gaps, excessive overlap, edge spill, or missing calculations keep the brief from clearing the gate. For mounting, record the interface, pole condition, structural questions, and replacement access; unknown compatibility or service access also keeps the decision at verify-first.
Controls belong in the design conversation, not as an afterthought. The DOE parking-lot lighting guide supports documenting operating intent and considering compatibility, commissioning, and maintenance before purchase. It does not guarantee a specific energy result or control outcome. Record operating periods and control zones, and escalate unresolved questions about electrical systems, dimming, photocells, schedules, or occupancy behavior.
The same gate applies to glare and maintenance. Review approaching, turning, exiting, and crossing sightlines, and resolve direct views or spill toward neighboring properties before purchase. Inspection and replacement access must fit the site’s traffic pattern and available equipment. Manufacturer documents and applicable project requirements should be ready for comparison when the purchase depends on formal calculations, glare limits, approvals, or qualified review. The IES recommended practice for roadway and parking facilities identifies professional design domains relevant to that escalation, without supplying a project-specific result here.
After assigning the role, use the relevant navigation path: browse LED area lights for a broad route-coverage investigation, or review post-top options when a planned pole route calls for that category. The post-top page lists selectable wattage and CCT, AC 120-277V operation, 8,400 lumens, and a 5-year warranty; those are documentation fields to compare with the project, not proof of coverage, compatibility, approval, or suitability. For defined targets, investigate flood-light categories and verify aiming, mounting, spill, and layout documentation separately.
Frequently Asked Questions
These questions address the conditions that most often change the preliminary plan for a long commercial driveway.
What condition changes the preliminary fixture approach?
A continuous route points toward a broad-coverage investigation, while a gate, branch, loading area, or pedestrian edge with a different visibility task may require a targeted role. Label that condition as its own zone before comparing area, post-top, or flood options. If several distinct roles occur together, compare them as a layered lighting strategy rather than treating layered lighting as a fourth fixture category.
When should I stop using a spacing assumption?
Stop when the route changes width or direction, when obstructions interrupt the pattern, or when manufacturer photometry is unavailable for the proposed mounting position. Those conditions make a simple distance unable to show continuity or dark gaps. The next action is to obtain the missing site and photometric inputs for a site-specific lighting plan.
What makes glare a purchase blocker?
Glare becomes a blocker when a driver or pedestrian still has a direct view of an intense source, or when spill remains directed toward a sensitive edge, after aiming, shielding, distribution, and mounting position have been reviewed. Do not use a general category label to resolve that condition. Hold the purchase until the unresolved sightline or spill question receives appropriate qualified review.
Complete the coverage brief, then use the matched category path only when no decision-changing field remains unresolved. If calculations, structural or electrical conditions, glare limits, or local approvals control the decision, request qualified design review before placing the order.
