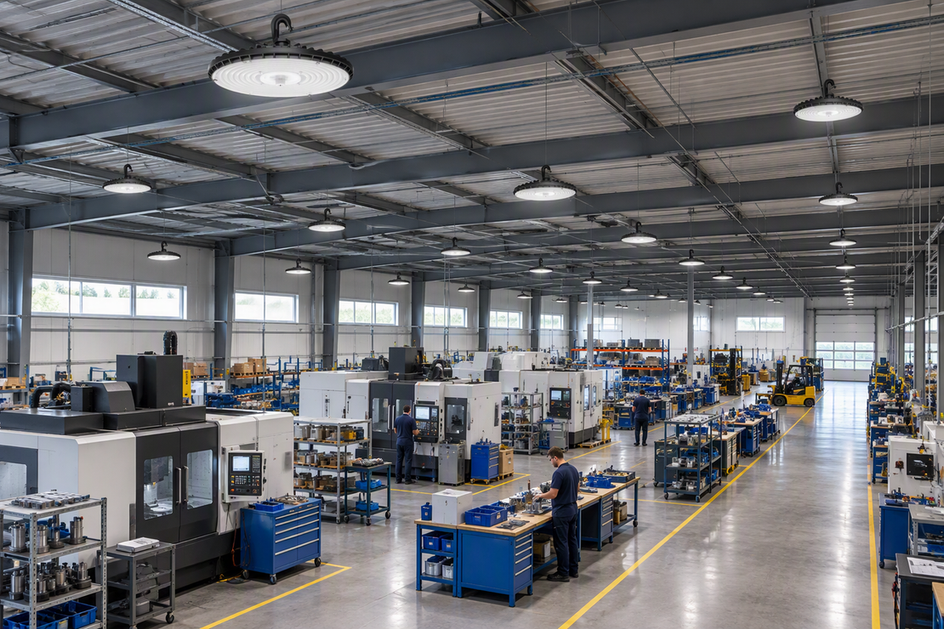

Lighting a manufacturing floor starts with the visual task, not the fixture. Assembly lines need low-glare, high-uniformity light at the actual workbench, while machining areas need a design that accounts for equipment shadows and polished-metal reflection. The right fixture, mounting height, and distribution follow from those task demands, then get confirmed with a project-specific photometric calculation.
Because assembly and machining floors put different demands on the same ceiling, a single foot-candle number or generic high-bay pick cannot cover both scenes reliably. This guide on how to light a manufacturing floor and assembly lines separates the two conditions, then walks through the standards, layout, glare, color, and maintenance decisions that turn a task requirement into a purchase-ready specification.
Key Takeaways
- Separate assembly and inspection work from machining before comparing fixtures; each scene has a different glare, shadow, and color-visibility problem.
- A sector-specific foot-candle example, such as a shipyard machine-shop value, is not a general manufacturing target; use the governing workplace rule and project specification instead.
- Mounting height and equipment layout change the usable work-plane result, so distribution choices need a photometric file at actual conditions, not nominal lumens.
- Reflected glare is usually reduced by changing source geometry, shielding, or diffusion, not by adding more light output.
- A rated life such as 50,000 hours typically describes lumen maintenance, not guaranteed total luminaire life, so maintenance and controls still need separate planning.
Start With the Visual Task, Not the Fixture
Assembly and machining floors put different demands on the same ceiling, so the design should split by task before it splits by fixture category. The table below shows how each visual task changes the lighting priority and what still needs field verification.
| Task/scenario | Lighting consideration | Fixture/layout implication | Verification need |
|---|---|---|---|
| Detailed assembly/inspection | Task-plane visibility, color cues, low reflected glare | Even distribution over the bench, shielded sources | Task-plane photometric check |
| Machining | Equipment shadows, polished-metal reflection, sightlines | Fixture placement around machines, not just aisle center | Vertical-plane and glare review |
| General circulation/support | Adequate wayfinding light, lower task precision | Standard high-bay spacing | Room-average illuminance check |
| Localized task point | Task fails under overhead-only coverage | Supplemental task light at the point | Confirm need after overhead model |
Assembly Floors and Inspection Points
Detailed assembly and inspection work should be characterized by where the task actually happens, not by a room average. Part size, label or color dependence, and the direction an operator faces the work all change what "enough light" means at that bench. A low-glare, well-distributed source over the task plane, verified at that exact plane, matters more than a higher lumen rating aimed at the floor.
Because operators shift position along a line, the same fixture layout can serve one station well and underperform at the next. Any station where color, small defects, or fine parts are judged should get its own verification pass rather than relying on the line-wide average.
Machining Floors and Reflective Equipment
Machining areas need a separate check because metal equipment and workpieces create specular reflection, shadows, and obstructed sightlines that assembly benches usually do not have. A fixture that lights an open aisle well can still leave the inside of a machine enclosure dark or throw a hot reflection off a polished surface.
Fixture placement should be judged around the equipment footprint, vertical machine faces, and the operator's actual viewing angle, not only down the center of the aisle. Where a machine blocks overhead light from reaching a work surface, that blocked area needs its own layout check before the design is finalized.
Translate Tasks Into Illuminance and Standards
Foot-candles describe the light level measured at the work plane, and that number changes with mounting distance, atmosphere, and the color and sheen of nearby surfaces. OSHA's guidance on work-plane illumination notes that the existing illumination at any work surface is best measured directly with a light meter rather than assumed from a fixture's rated output.
A specific number from one sector does not automatically apply to another. OSHA's shipyard guidance lists 10 foot-candles for landside work areas such as machine shops, and separately flags that precision work may need elevated levels, but this is a sector-specific lighting example tied to shipyard rules, not a general manufacturing assembly-line target. The applicable foot-candle requirement for a given facility comes from its governing workplace rule and the current industrial lighting recommended practice, such as ANSI/IES RP-7, reviewed against the specific task class.
Uniformity, glare, CRI, and CCT are not abstract definitions; they are inputs the design still has to verify. A layout that passes an average illuminance check can still fail if brightness swings sharply across the task plane, or if the color rendering does not match what an inspection task requires. Each of these should be confirmed for the actual facility and task before a fixture order is placed.
Match Distribution to Ceiling Height and Equipment
Ceiling height changes the work-plane result even when the fixture's rated lumen output stays the same, so mounting height belongs in the layout decision before a fixture category is chosen. A photometric file built for the actual mounting height, not a nominal lumen figure, is what shows whether coverage and contrast will be acceptable.
Linear fixtures spread light along a run and can suit assembly aisles with continuous task benches, while point-source high-bay fixtures concentrate light over a defined area and can suit open machining bays with taller equipment. Neither form is automatically correct; the choice depends on equipment footprints, aisle geometry, and how much of the work plane each distribution pattern actually reaches once obstructions are accounted for. Facilities comparing these approaches can review linear high bay options or UFO high bay options as a starting point for available forms, then confirm the specific configuration against a project photometric plan rather than a category label.
Maintenance and sensor access should be checked at the same time as distribution. A layout that looks correct on paper can still create a service problem if fixtures are mounted where lifts or ladders cannot reach them safely.
Control Glare, Reflection, and Visual Fatigue
Reflected direct light, not simply low light levels, is usually what makes a bright machining or assembly area hard to see clearly. OSHA's guidance on workstation lighting notes that shielded or indirect sources and diffuse, well-distributed light create fewer hot spots and softer contrast than a single intense point source aimed at a reflective surface.
The practical fix is almost always a geometry or shielding change, not a higher-output fixture. Moving the source, angling it away from the operator's typical viewing direction, adding diffusion, or adjusting fixture spacing can reduce a reflected hot spot on a polished machine face or an inspection screen. Adding more lumens to a poorly aimed layout tends to make the same hot spot worse rather than solving it.
Where polished metal, screens, or inspection surfaces produce an uncertain reflection pattern, a physical mock-up or field trial at the actual station is the most reliable check. Sustained glare and harsh contrast are a legitimate design concern for operator comfort over a shift, even without a universal numeric limit to cite.
Use Color Quality for the Actual Process
CRI and CCT only become fixture-selection constraints when the task itself depends on judging color: reading labels, checking wire coatings, spotting a defect, or matching a finish. For tasks that do not involve color judgment, illuminance and glare control still matter more than pushing CRI or CCT higher than the process requires.
CCT affects how consistent a space looks and how it interacts with existing daylight, other fixtures, cameras, or displays already in use on that floor. A specified 8-foot linear strip record available in our catalog lists a CRI above 80 and selectable CCT options, which is a manufacturer-stated fact for that configuration only; it does not by itself establish that the fixture suits a specific color-critical inspection task. Any color-sensitive station should have its exact-SKU color documentation and consistency reviewed alongside the rest of the photometric plan, not assumed from a general product description.
Plan Controls, Maintenance, and Useful Life
Controls, environment, and maintenance access decide whether a fixture keeps performing near its rated output over years of operation, not just on installation day. Dimming protocol, sensor behavior, and control wiring should be verified against the exact fixture's documentation and the facility's operating schedule before the layout is finalized.
A stated LED lifespan is usually a lumen-maintenance projection, and DOE guidance on LED luminaire lifetime makes clear that complete luminaire life also depends on drivers, optics, thermal conditions, and the surrounding environment, not the LED source alone. A specified UFO high bay record available in our catalog lists an up to 50,000-hour LED lifespan and a 5-year warranty; those are manufacturer-stated facts for that record and are not a guarantee of installed performance in a dusty or high-heat machining bay. Dirt accumulation, heat buildup, and driver condition should be part of the maintenance plan regardless of the rated hours on the spec sheet.
Verify the Design Before Purchase or Installation
Before ordering or installing fixtures, confirm the following inputs are complete rather than assumed:
- Map each visual task and its actual work plane, including inspection points and machine faces.
- Document ceiling height, structural mounting points, equipment footprints, and aisle layout.
- Identify the governing workplace rule and current project lighting specification.
- Obtain current photometric (IES/LDT) files and cut sheets for the exact fixture configuration under consideration.
- Verify control protocol, driver compatibility, and environmental rating against the fixture's documentation.
- Set a maintenance and cleaning baseline, including access for future service.
- Route the completed package through a qualified lighting or electrical professional and the local authority before ordering or installing.
Pause the selection for any hazardous, classified, or otherwise specially regulated area until a qualified project professional verifies the location classification against the exact fixture documentation; a general-purpose fixture record is not evidence of suitability for that kind of space. If all task planes, mounting elevations, and glare paths are clearly documented, proceed with a computer-modeled layout review before issuing a purchase order. When the layout, retrofit constraints, or documentation cannot be resolved through self-service review, a professional lighting layout service can model the actual space and confirm the photometric result before you buy.
FAQs
How do I verify the correct foot-candle requirement for a manufacturing floor?
A foot-candle figure from another sector, such as OSHA's shipyard machine-shop example, cannot be transferred directly to a general manufacturing assembly or machining floor. Identify the governing workplace rule for your facility, the current industrial lighting recommended practice, and the task class involved, then confirm the result with a work-plane calculation and field measurement rather than an online number alone.
Does a 50,000-hour LED rating mean the entire fixture will last 50,000 hours?
Not necessarily. A stated 50,000-hour or similar figure usually describes a lumen-maintenance projection for the LED source, while total luminaire life also depends on the driver, optics, thermal design, and installed environment. Review the manufacturer's test basis, warranty terms, and operating assumptions before treating that number as the expected service life of the whole fixture.
What maintenance should a manufacturing lighting plan include?
Set a measured baseline shortly after installation, then schedule periodic visual and work-plane checks rather than waiting for a visible failure. Inspect for dirt buildup, physical damage, and color or output shift, and reassess the layout if the process visibility requirements change or if equipment is added near existing fixtures.
