The best lighting setup for working on cars in a garage combines three layers instead of one bright ceiling fixture: overhead lighting for general visibility, perimeter or side lighting for the vehicle's blocked flanks, and movable task lighting for engine bays, wheel wells, and under-vehicle work. Each layer solves a different shadow problem created by the vehicle itself. This guide breaks down where to place each layer and what to check before buying or installing fixed fixtures.
The Best Setup Uses Three Lighting Layers
Assigning each layer to a specific shadow problem keeps the plan practical instead of just piling on more brightness. The framework below follows a task-based lighting plan that maps light to the job rather than to fixture style.
Overhead lighting sets the base
Overhead fixtures give the garage its general visibility. They let you move around safely, find tools, and see the whole vehicle at once. Keep this layer's job qualitative: it establishes broad orientation, not a guaranteed shadow-free result, because the vehicle itself will still block light from reaching certain areas no matter how bright the ceiling grid is.
Perimeter lighting reaches blocked vehicle sides
A vehicle's hood, fenders, and body constantly block overhead light from its own flanks and wheel wells. Perimeter or side-mounted lighting fills those gaps by aiming light from a lower angle toward the areas the ceiling grid cannot reach. Place these fixtures based on where your specific vehicle and storage actually cast shadows, not on a fixed spacing rule.
Movable task lighting follows the work
A repair point moves as you work: from the top of the engine to a bolt underneath it, or from one wheel well to the next. Movable task lighting follows that shifting viewpoint. Before relying on one, check its reach, cord routing, access path, and storage so it does not become an obstruction between uses.
Map Lighting to Engine Bays, Wheel Wells, and Under-Lift Work
Each mechanical scene has its own obstruction pattern, so the right layer changes with the task. Our mechanic workshop lighting guide covers bench-level detail if you also need to light a work surface beside the vehicle.
Open engine bays
- Shadow source: the raised hood and engine block cut off overhead light from the lower and rear parts of the bay.
- Primary layer: keep overhead coverage for orientation, then bring in movable task lighting for the specific component you are inspecting.
- Viewpoint check: test the light's position with the hood fully open before committing to a mounting spot, since the shadow pattern changes once the hood is raised.
Wheel wells and vehicle sides
- Blocked area: the tire, fender, and rocker panel block overhead light from reaching the wheel well and lower body panels.
- Side support: perimeter or side lighting aimed at the vehicle's flank fills this gap better than adding more ceiling fixtures.
- Access-path check: keep any fixture or cord clear of the space you need to kneel, crouch, or roll a creeper through.
Under a vehicle or lift
- Obstruction: the vehicle or lift deck blocks nearly all overhead and perimeter light from the underbody, so this zone depends almost entirely on a dedicated light source.
- Movable supplement: use a task light rated for the conditions you expect, and confirm its placement, reach, and storage before starting work under a raised vehicle.
- Product boundary: an overhead grid fixture, including the 11-grid configuration discussed later in this guide, is not a documented under-vehicle or portable light; treat overhead and under-vehicle lighting as separate purchases.
Adjust the Grid for Garage Size and Ceiling Height
Ceiling height changes how far light has to travel and how much clearance you have for a lift; garage size changes how many work zones and vehicle positions you need to cover. Use the table below to sketch a starting layout, then confirm it against your actual bays, doors, and lift travel.
| Ceiling Height | Garage Size | Task Focus | Fixture Focus & Site Check |
|---|---|---|---|
| Lower ceiling | Single-car | Broad orientation plus close inspection | Overhead layer close to work height; verify lift and hood clearance before mounting |
| Lower ceiling | Larger or multi-bay | Multiple vehicle positions | Repeat the overhead-plus-perimeter pattern per bay; map each bay's doors and storage separately |
| Higher ceiling | Single-car | Wider light spread, more mounting options | Higher mounting changes distribution and shadow angle; still verify with the hood open |
| Higher ceiling | Larger or multi-bay | Coverage across several vehicles or lifts | Plan perimeter runs along each bay's flank; do not assume one grid layout covers every bay |
A single-car garage generally needs one coordinated grid, while a larger or multi-bay garage benefits from repeating the same three-layer pattern per work zone rather than scaling up one central fixture. Our hexagon garage layouts guide walks through sketching a grid for one, two, or three-car footprints in more detail.
Use Specifications to Choose the Right Fixture
Lumens, color temperature (CCT), and color rendering (CRI) are useful for comparing fixtures side by side, but none of them proves that a specific fixture will fit your mounting location or clear your lift. Treat every other spec, from mounting style to input voltage, as something to verify against your garage before buying.
Turn specifications into buying decisions
- Lumen output compares how much light a fixture is rated to produce, but it does not measure how that light reaches a blocked wheel well or engine bay; use it to compare products, not to predict coverage in your specific layout.
- CCT and CRI describe color temperature and how accurately colors render under the light, which matters for spotting fluid color, rust, or wiring insulation, but neither replaces checking glare and shadow at your actual working angle.
- Mounting, distribution, controls, input voltage, and any environmental or certification information should be confirmed in current product documentation rather than assumed from a category label, especially for locations near a pit, lift, or floor level.
A bounded overhead example

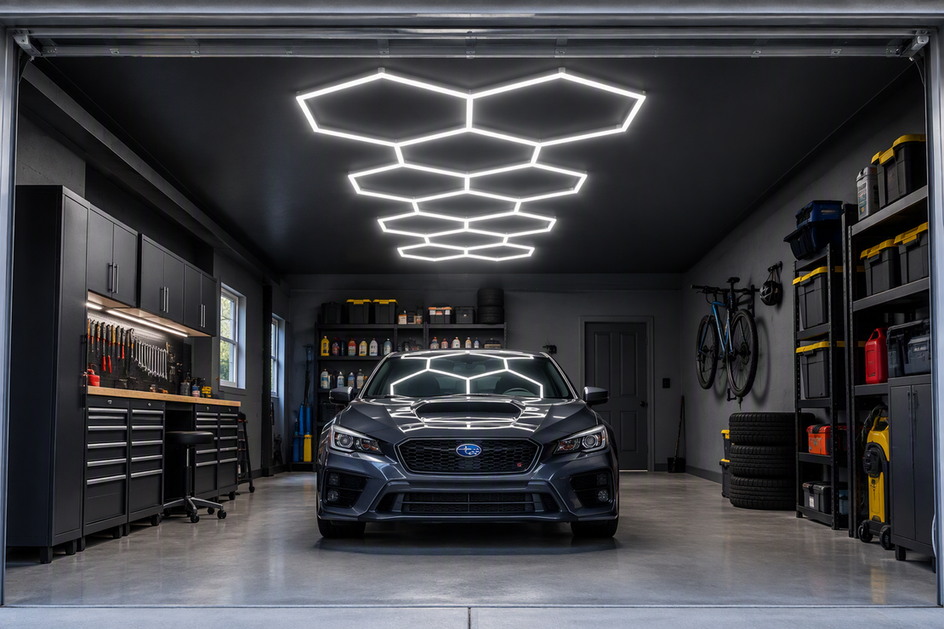

Our Hexagon Garage Lights Gen 2 - 11 Grid (15.9 x 5.1ft) Long is one overhead candidate worth comparing on paper. The supplied information for this exact configuration lists 35,000 lumens, high CRI, a 6,500K color temperature, 350W wattage, AC 100–277V input, polycarbonate construction, a 25,000-hour rated lifetime, and a 24-month warranty. That information supports considering this 11-grid overhead fixture for the overhead or general layer only; it does not establish suitability for perimeter mounting, under-vehicle or wheel-well use, portable placement, wet locations, or lift-clearance situations, so verify those points against your own garage before installing it.
Fixed or Movable: Choose the Layer That Follows the Job
Choose fixed lighting for zones where the vehicle and work position stay put, and choose movable lighting for zones where the inspection point keeps changing. The two layers work together rather than replacing each other.
Choose fixed coverage for recurring zones
Fixed overhead or perimeter fixtures make sense where the vehicle parks in roughly the same spot and the work zone does not move, such as a dedicated lift bay or a fixed workbench area. Before mounting anything permanently, check that the fixture's position will not conflict with lift travel, door swing, or stored equipment. Fixed coverage should still act as a base layer, not a replacement for close inspection light when you are working on a specific component.
Choose movable light for changing viewpoints
A movable task light earns its place when the dark spot follows you, such as around a wheel well or under a shifting work position. Check its placement stability, cord routing, reach, and storage plan, and follow the manufacturer's instructions for where it is intended to be used. Portability alone does not tell you whether a light is suited to a wet, dusty, or otherwise demanding location, so confirm that separately.
Before You Install Fixed Garage Lighting
Work through this checklist before mounting any fixed fixture, and stop to bring in a qualified electrician if any electrical, load, or compatibility question stays unresolved.
- Layout: confirm garage dimensions, vehicle or lift position, and the specific shadows you are trying to eliminate.
- Mounting and clearance: check the proposed mounting location against lift travel, door swing, and storage, and confirm the fixture's total wattage against the circuit's existing load.
- Controls and power access: verify how the fixture will be switched or dimmed and confirm an accessible, code-appropriate power source is already in place.
- Documentation: review the current manufacturer instructions and any certification or environmental information for the exact model you plan to install.
Vehicle service garages are sometimes treated as special locations near pits and floor level under industry guidance for portable lamps, which is a useful reminder to check labeling and intended conditions rather than a rule that automatically applies to every home garage. Stop and get qualified professional review before proceeding if the installation involves altered electrical connections or any unresolved load, control, compatibility, or local-requirement question. Our lighting design support page is one option if you want help sketching the layout before you buy or mount anything.
FAQs
Can the same lighting layout work in a one-car and a two-car garage?
The three-layer approach scales, but each additional bay or vehicle position needs its own obstruction and viewpoint check rather than a copied fixture count. Mark each bay's doors, storage, and walking paths separately before duplicating the layout from one bay to the next.
Does an under-vehicle task light need to be permanently mounted?
No single rule requires a permanent mount for under-vehicle lighting. A portable option can work well when the work point changes, as long as you confirm stable placement, a clear access path, adequate reach, a storage plan, and the manufacturer's intended conditions of use.
Does high CRI guarantee better visibility for every car repair?
No. High CRI is a useful comparison field for judging how accurately a light renders color, which helps with tasks like spotting fluid discoloration, but it does not guarantee full coverage or eliminate glare and shadow. Distribution and your actual working viewpoint still determine the result.
What should I change when a vehicle or lift moves to a different position?
Remap the blocked viewpoints and walking or lift paths whenever the vehicle or lift changes position. Reposition or add movable task lighting for the new work zone instead of assuming your original fixed layout still covers it.
