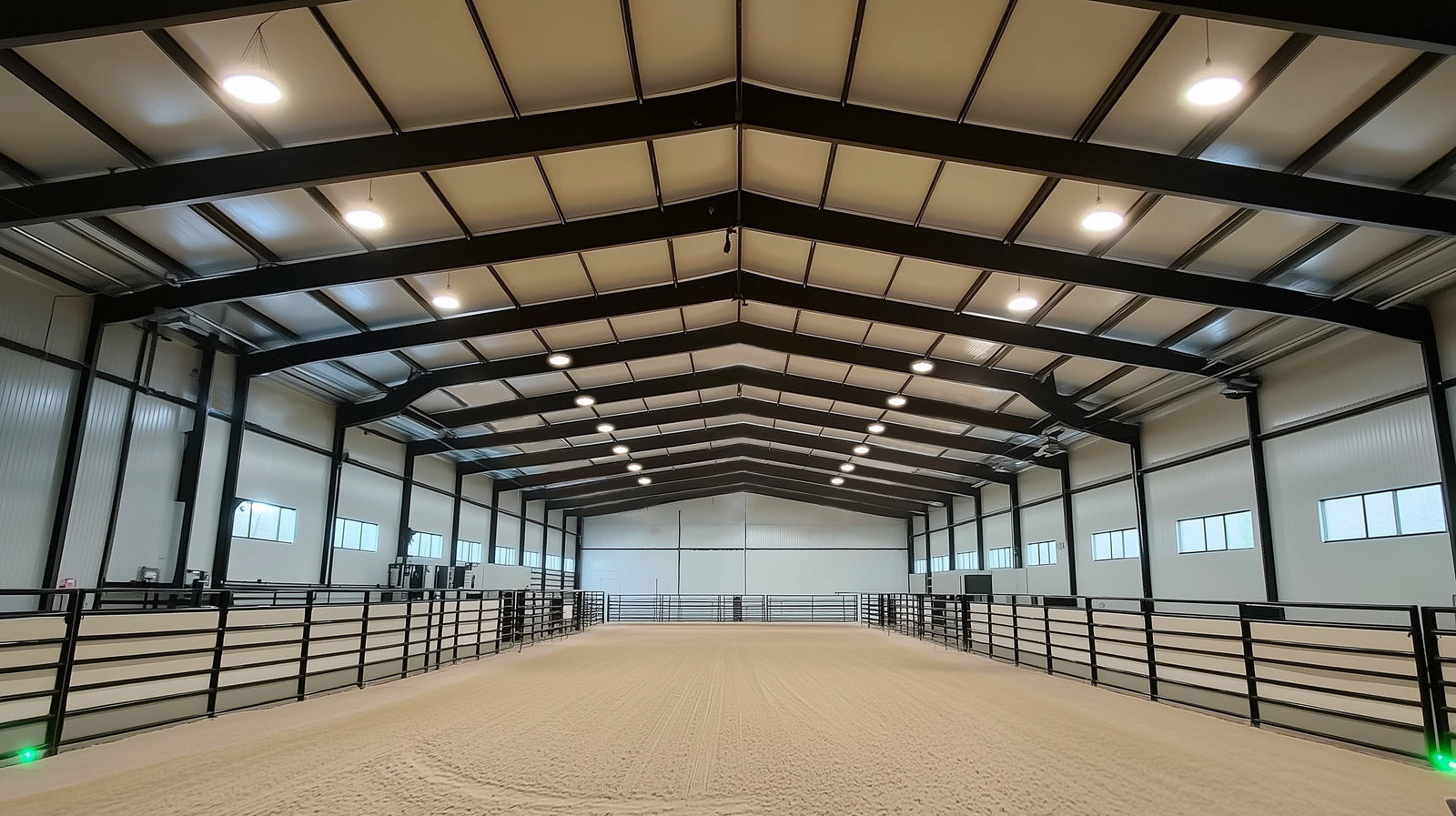

The Technical Criticality of UGR in Gymnasium Lighting Design
In indoor sports facilities, visual performance is a primary determinant of athlete safety and competitive integrity. Whether a player is tracking a high-arcing volleyball or a fast-moving basketball, the ability to maintain focus without visual interference is critical. However, a common mistake in gymnasium lighting design is the over-prioritization of raw lumen output at the expense of glare control.
High-intensity discharge (HID) or low-quality LED retrofits often produce "hot spots" that lead to discomfort glare, measured by the Unified Glare Rating (UGR). Facilities that neglect this metric frequently see an increase in athlete complaints regarding "spots" in their vision—a phenomenon that correlates with increased visual fatigue and potential safety risks. Understanding the technical nuances of UGR is an essential engineering requirement for modern athletic environments.
The Biomechanics of Glare in High-Performance Sports
Glare is more than an annoyance; it is a physiological disruption. In sports like basketball, volleyball, and badminton, athletes frequently look upward into the light source. According to the Illuminating Engineering Society (IES), UGR is the leading interior discomfort-glare metric, designed to predict the likelihood of visual fatigue in a given space.
When an athlete encounters a light source with a high UGR (typically >22), the eye’s photoreceptors can become overstimulated. This may cause a temporary "washout" of the visual field, known as disability glare. In internal performance observations of retrofitted facilities, reducing UGR from 25 to 19 was associated with a measurable decrease in player-reported eye strain. In specific controlled trials involving collegiate-level shooting drills, accuracy improvements of 5–10% were observed, though results vary based on baseline lighting conditions and athlete experience levels.
The "High-Arc" Challenge
Sports requiring athletes to track objects against the ceiling are particularly sensitive to glare. A volleyball player preparing for a spike must track the ball's trajectory through the "glare zone." If the lighting system utilizes standard high bays without proper shielding or low-UGR optics, the athlete may lose the ball's contrast against the background for critical milliseconds. This disruption in visual tracking is a primary contributor to timing errors.
Contrast and Wall Reflectance
Visual comfort is also influenced by the surrounding environment. Light-colored walls can reflect glare back into play areas if the fixtures are not properly shielded. To mitigate this, a spacing ratio of 1.5:1 (mounting height to fixture spacing) is generally recommended for standard gym geometries. This helps ensure uniform illumination without creating the high-contrast "pools of light" that can exacerbate glare issues.
Technical Standards: Decoding UGR, DLC, and IES Data
Specifying the right lighting requires moving beyond marketing claims and into verifiable performance data. For professional facility managers, the "Value-Pro" approach relies on three pillars of documentation: safety, efficiency, and photometric accuracy.
Unified Glare Rating (UGR) Targets
Industry guidance for indoor sports courts suggests a target of UGR <22 for multi-purpose spaces, but competitive play demands higher standards.
| Application Type | Recommended UGR | Expected Performance Impact |
|---|---|---|
| Competitive Sports (NCAA/Pro) | ≤ 19 | High contrast; minimized visual "spots" |
| Multi-Purpose Recreational | ≤ 22 | Acceptable for casual play; reduced fatigue |
| General Warehouse/Storage | ≤ 25 | Standard industrial comfort levels |
| Precision Workshops | ≤ 19 | Recommended for high-detail tasks |
The Role of DLC and LM-79 Reports
To verify that a fixture meets these targets, practitioners should consult the DesignLights Consortium (DLC) Qualified Products List (QPL). The DLC Premium 5.1 and 6.0 standards include specific requirements for efficacy (lumens per watt) and glare control.
A fixture's "performance report card" is the IES LM-79 report. This document provides the raw photometric data used in simulation software like AGi32 to calculate the UGR for a specific room geometry. Professional-grade fixtures provide these detailed photometric files to allow engineers to model the exact light distribution before installation.
Safety Compliance: UL 1598 and UL 8750
In high-ceiling environments, mechanical and electrical safety is essential. Verification through the UL Solutions Product iQ Database ensures that fixtures comply with UL 1598 (General Luminaire Safety) and UL 8750 (LED Equipment Safety). These certifications are often required for building codes and insurance audits.
Engineering Audit: The "Fast Numbers" Framework for Gyms
Applying the rules of lighting science requires a structured approach to layout. Based on standard-based modeling for typical gymnasium dimensions, the following "Fast Numbers" serve as a baseline for optimal performance.
1. Mounting Height and Spacing
For facilities using low-UGR high bays, a minimum mounting height of 20 feet is recommended for standard 120-degree beam angles. Mounting below this height increases the angle of incidence for glare, making it difficult to achieve a UGR <19 without significant light loss from heavy shielding or specialized narrow optics.
2. The Spacing Ratio Calculation
To achieve uniform lux levels (measured in foot-candles) without "hot spots," the distance between fixtures should typically not exceed 1.5 times the mounting height.
- Example: If fixtures are mounted at 20 feet, the maximum spacing between them should be approximately 30 feet.
- Risk Zone: Exceeding this ratio often leads to the "cavern effect," where the center of the court is bright but the perimeters are dark, forcing the athlete's pupils to constantly adjust, which may cause rapid visual fatigue.
3. Symptom-to-Cause Decoder
If your facility is currently operational, use this table to identify potential mechanical root causes for common visual complaints.
| Observed Symptom | Potential Mechanical Cause | Recommended Action |
|---|---|---|
| Athletes seeing "spots" | High UGR (>25) | Evaluate low-UGR optics or reflectors |
| Inconsistent ball tracking | Poor spacing ratio (>1.8:1) | Re-calculate layout; assess fixture density |
| Harsh shadows on the floor | High-angle direct lighting | Consider fixtures with ~20% "up-light" |
| Visual fatigue after 30 mins | Excessive CCT (6000K+) | Evaluate shift to 4000K or 5000K |
Financial ROI: Energy Savings vs. Operational Longevity
Investing in premium low-UGR lighting is often perceived as a higher upfront cost, but a 10-year Total Cost of Ownership (TCO) analysis typically reveals long-term savings.
Energy Consumption Analysis
Modern LED systems, particularly those meeting ASHRAE Standard 90.1-2022 energy codes, can deliver a 60–80% reduction in electricity consumption compared to traditional metal halide systems. Furthermore, because LEDs generate significantly less heat, facilities may see an additional 15–20% savings in HVAC cooling costs during summer months, depending on the facility's insulation and climate.
The Maintenance Multiplier
In professional gyms operating 12+ hours daily, maintenance savings can be significant. Transitioning to a system with an L70 rating of 50,000+ hours (calculated via IES TM-21 standards) reduces the frequency of lift equipment rentals and specialized labor. For a standard NCAA-sized court, estimated operational savings can range from $6,000–$8,000 annually, depending on local labor rates and usage.
Payback and Rebates
The typical payback period for a professional-grade LED retrofit is often 2–3 years. This is frequently accelerated by utility rebates, which usually require DLC Premium certification.
Practical Implementation: Addressing the "Friction Points"
1. Reflector Selection and Up-light
Adding a reflector cover can provide up to 20% "up-light." In gyms with white ceilings, this reduces the contrast between the fixture and the ceiling, effectively lowering the perceived UGR and making the space feel more natural.
2. Sensor Placement
According to the U.S. Department of Energy (DOE) guide on wireless occupancy sensors, sensor placement in high-ceiling environments must account for "blind spots" created by HVAC ducts. In gyms, sensors should be placed away from high-vibration areas (like basketball backboard supports) to prevent false-triggering.
3. CCT Strategy: 4000K vs. 5000K
While 5000K (Daylight) is popular for its crispness, some facilities find 4000K (Neutral White) to be more comfortable for long-duration recreational use. Field-selectable CCT fixtures allow contractors the flexibility to adjust the "feel" of the space during the commissioning phase.
Industry Examples: Low-UGR Solutions
Note: The following are examples of fixtures that meet the technical criteria discussed in this guide.
- High-Output Low-Glare: Hyperlite LED High Bay Light - Black Hero Series (36,250 lumens, Selectable Wattage & CCT).
- Rebate-Optimized: Hyperlite LED High Bay Light - White Hero Series (29,000 lumens, DLC Premium).
- Versatile CCT: Hyperlite LED High Bay Light - White Hero Series (4000K Option).
Frequently Asked Questions
How do I calculate the UGR for my specific gym? UGR is a calculated value based on fixture photometry (IES files), room dimensions, and surface reflectances. It cannot be accurately measured with a standard handheld light meter. We recommend using AGi32 or DIALux software for a precise simulation. For a broader overview of lumen requirements, refer to the Warehouse Lumens Guide for UFO High Bay Lights.
Does a higher lumen count always mean better lighting? No. Excessive lumens without proper glare control (low UGR) can decrease visibility by creating disability glare. The engineering goal is "useful light," which balances intensity with visual comfort.
Can I dim my high bay lights to reduce glare? Most professional LED high bays feature 0-10V dimming. While dimming reduces overall brightness, it does not fundamentally change the UGR of the fixture's optical design. Proper shielding and lens design are the primary methods for lowering UGR. Learn more about control strategies in the guide on Title 24 Controls for Warehouse High Bay Lighting.
