Retrofitting HID High Bays: Solving the LED Glare Shock

In high-ceiling industrial environments, the transition from legacy High-Intensity Discharge (HID) systems to Light Emitting Diode (LED) technology is often driven by the potential for significant energy savings, often reaching 50% to 75%. However, in our work supporting facility managers and contractors, we frequently encounter an immediate post-installation hurdle: "Glare Shock." While a project may meet the targeted foot-candle (fc) requirements on the work plane, the increased intensity and point-source nature of LEDs can cause visual discomfort, safety hazards, and productivity declines.

The key to a successful retrofit lies in understanding that illuminance (the amount of light hitting a surface) is not the same as visual comfort. To ensure a project-ready installation, professionals must look beyond raw lumen counts and prioritize the Unified Glare Rating (UGR) and photometric distribution. As noted in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, balancing high efficacy with visual ergonomics is essential for professional-grade lighting design.

The Physics of Glare: Why LEDs Feel "Harsher"

Traditional HID lamps, such as Metal Halide (MH) or High-Pressure Sodium (HPS), utilize a large arc tube or bulb that naturally diffuses light. In contrast, an LED fixture consists of dozens of tiny, high-intensity diodes. Without proper optics, these point sources can create high-contrast "hot spots" that the human eye perceives as glare.

Understanding UGR (Unified Glare Rating)

The industry standard for measuring this discomfort is the Unified Glare Rating (UGR), as defined by the International Commission on Illumination (CIE). While specific needs vary by task, UGR values typically follow these general heuristics:

• UGR < 19: Often preferred for precision tasks, offices, and low-ceiling workshops where visual comfort is paramount.
• UGR 22–25: Generally acceptable for common industrial warehouse applications.
• UGR > 28: High discomfort range; frequently associated with eye strain and occupant complaints.

A common pitfall in "value-engineered" projects is selecting fixtures based solely on lumens-per-watt (lm/W) without reviewing the UGR data provided in the IES LM-79-19 test report. A fixture can be highly efficient but have a UGR of 28, which may make it unsuitable for environments where workers must frequently look upward, such as in racking aisles or manufacturing floors.

Logic Summary: UGR Modeling Assumptions Based on common patterns from industrial projects, our analysis of visual comfort assumes the following practical parameters. These should be treated as a heuristic model for typical clean environments:

Parameter	Value or Range	Unit	Rationale / Source Category
Mounting Height	20 - 35	Feet	Standard industrial ceiling height (aligned with IES RP-7)
Reflectance (C/W/F)	70/50/20	%	Standard indoor report assumptions for clean environments
Fixture Lumens	14,000 - 30,000	lm	Typical replacement range for 250W-400W HID lamps
Observer Position	4	Feet	Typical eye level for standing task analysis
Spacing Criterion	1.1 - 1.3	Ratio	Aimed for uniformity (max 4:1 ratio) based on common layout goals

Field-Proven Troubleshooting for Post-Retrofit Glare

If a facility is already experiencing glare complaints after a retrofit, several field-adjustable strategies can often mitigate the issue without requiring a full fixture replacement. Based on observations from customer support and field repairs, these three interventions typically provide the highest impact:

1. Increase Mounting Height

In our experience, simply swapping HID fixtures for same-wattage LEDs often results in glare because the LED's initial lumens are significantly more directional. If the building structure allows, increasing the mounting height by even 2 to 3 feet can help reduce the direct glare angle for workers. This adjustment increases the distance between the source and the eye, spreading the light over a larger area and softening the perceived intensity of the point sources.

2. Implement Secondary Optics or Diffusers

For fixtures that cannot be raised, adding a prismatic diffuser or a specialized louver is often more effective than a standard frosted lens. While a frosted lens might reduce glare by scattering light, it can also lead to a noticeable drop in light output. A prismatic diffuser, however, is designed to redirect light to reduce the high-angle "stray" light that enters the eye directly, maintaining necessary foot-candles on the work surface while lowering the UGR.

3. Strategic Aiming and Aisle Alignment

In warehouses with high-density racking, a practical rule of thumb is to aim the fixture's beam center between the aisles rather than directly down the center of the aisle. This can minimize "veiling reflections" off polished concrete floors and plastic-wrapped pallets. Utilizing aisle-specific optics—often found in linear high bay fixtures—can help achieve significant energy savings by focusing light exactly where it is needed, as noted by research on lighting power density.

Compliance and Documentation: The B2B Standard

For lighting contractors and facility managers, "Project-Ready" means more than just a working light; it means verifiable compliance with safety and energy standards. Before purchasing, professionals should verify the following evidence of quality:

• DLC Premium Listing: Always check the DesignLights Consortium (DLC) Qualified Products List (QPL). A DLC Premium rating indicates the fixture meets specific efficacy and glare control standards, which is often a prerequisite for utility rebates through databases like DSIRE.
• Safety Certifications: Verify the UL or ETL listing through the UL Product iQ Database or the Intertek ETL Directory. This is critical for building codes, insurance compliance, and electrical inspections.
• LM-80 and TM-21 Reports: These documents provide data regarding the long-term reliability of the LED chips. IES LM-80-21 measures lumen maintenance, while TM-21-21 provides the mathematical projection for the $L_{70}$ life (e.g., 60,000 hours).

Scenario Analysis: Selecting the Right Optic

The choice between a circular (pendant) high bay and a linear high bay depends heavily on the facility's geometry and the nature of the tasks performed.

Scenario A: Open Manufacturing Floor

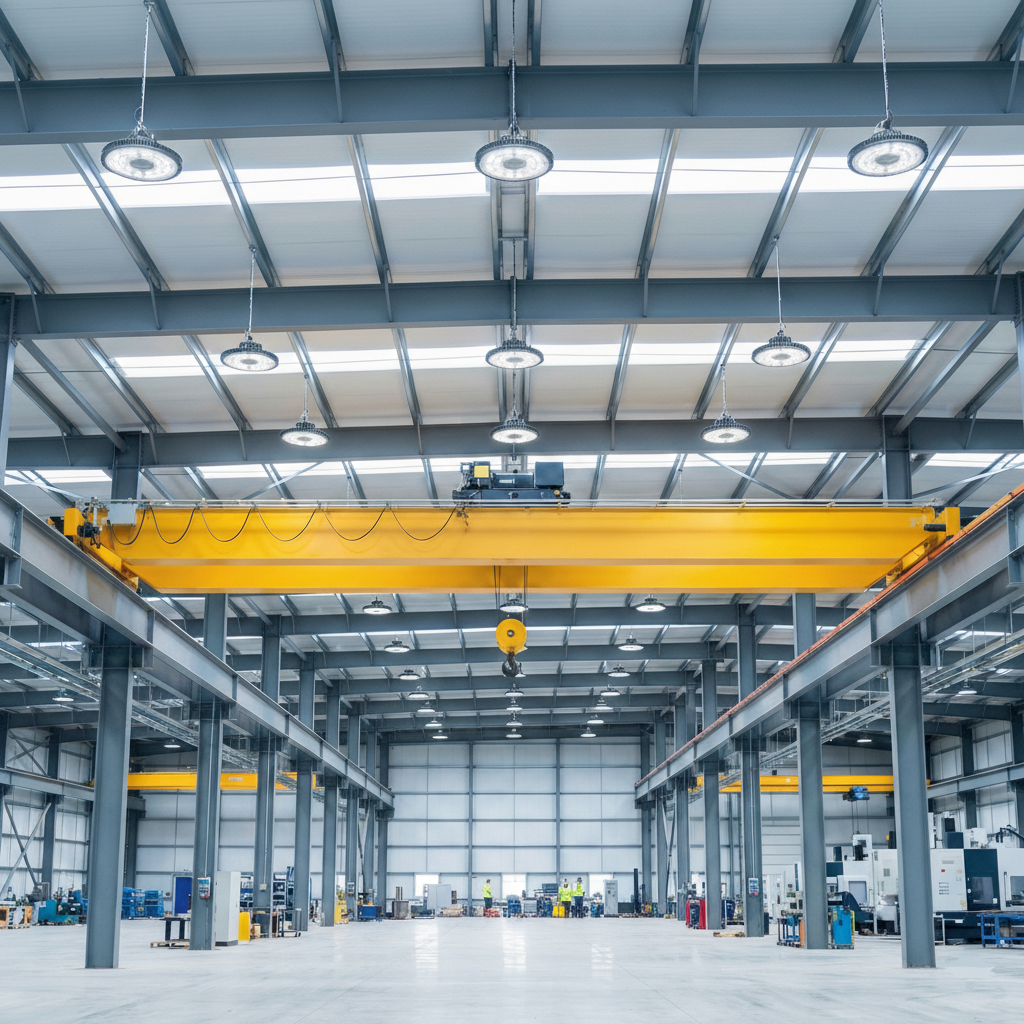

In wide-open spaces with high ceilings (30ft+), circular high bays with a standard 90° or 120° beam spread are typically an efficient choice for achieving uniform lux levels. To manage glare here, consider fixtures with a deep-set COB (Chip on Board) or those compatible with aluminum reflectors that provide a physical cut-off angle.

Scenario B: Racked Warehouse Aisle

For narrow aisles, linear high bays with specialized 30°x70° or 60°x90° optics are often superior. These fixtures are designed to "pipe" the light down into the aisle, preventing wasted light on the tops of racks and reducing the direct glare for forklift operators looking up at high-level pallets.

Energy Codes and ROI Justification

Beyond glare control, professional retrofits must comply with regional energy codes. ASHRAE Standard 90.1-2022 and IECC 2024 have introduced stricter Lighting Power Density (LPD) limits and requirements for lighting controls, such as occupancy sensors.

Implementing 0-10V dimming—a standard in many pro-grade LED drivers—not only helps meet these codes but also serves as a final "fail-safe" for glare. If a specific area is over-lit, the light levels can be tuned down to the exact requirement, potentially extending the fixture's life. When calculating the payback period, it is also important to consider the maintenance savings derived from the fixture's IP65 (dust/water) and IK08+ (impact) ratings, which are designed for harsh industrial environments.

Final Checklist for a Glare-Free Retrofit

To avoid "Glare Shock" and help ensure a high-performance installation, we recommend this professional workflow:

1. Request IES Files: Do not rely on generic spec sheets. Download the .ies files and consider running a photometric simulation in software like AGi32 to verify uniformity and UGR.
2. Verify Color Consistency: Check that the product adheres to ANSI C78.377-2017 for chromaticity. This helps prevent the "checkerboard" effect where different fixtures show slightly different shades of 4000K or 5000K.
3. Check for Flicker: High-quality drivers should be "Flicker-Free" (often meeting IEEE 1789 standards) to help prevent stroboscopic effects around rotating machinery, which can be a safety concern in manufacturing.
4. Audit with a Lux Meter: Post-installation, use a calibrated lux meter to check for uniformity. A ratio exceeding 4:1 (brightest spot vs. dimmest spot) is a common heuristic indicating a layout issue that may lead to visual fatigue.

By prioritizing these technical benchmarks, lighting professionals can deliver retrofits that provide not just energy savings, but a safer and more comfortable environment for the long term.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Always consult with a licensed electrician and local building authorities to ensure compliance with the National Electrical Code (NEC) and regional safety regulations.
