The Visual Crisis in High-Rack Storage: Beyond Simple Illumination

In high-throughput distribution centers, the transition from traditional open-floor storage to high-density racking introduces a complex optical challenge. Standard high-bay lighting, characterized by symmetric 120-degree beam spreads, is designed to flood broad areas with uniform horizontal light. However, when these fixtures are placed above narrow aisles with racks exceeding 20 feet, the wide distribution becomes a liability. Light hits the top of the racks at sharp angles, creating "hotspots" and a phenomenon known as veiling luminance.

Veiling luminance occurs when light reflects off the top surfaces of stored goods or shrink-wrap, creating a visual "veil" that obscures labels and creates a safety hazard for forklift operators. This disability glare is not merely a comfort issue; it is a human factors risk documented in industrial safety standards. To mitigate this, practitioners are increasingly moving toward aisle-optic precision—specialized 60x90 degree asymmetric distributions that confine luminous flux to the aisle floor and the vertical rack faces.

According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the shift toward application-specific optics is a hallmark of "project-ready" reliability. This article examines the technical mechanisms, compliance requirements, and economic ROI of precision aisle optics in high-rack environments.

The Physics of Aisle Optics: 60x90 Degree Distribution

The core of an aisle-optic fixture is its secondary lens system. While a standard round high bay distributes light in a circular pattern, an aisle-optic fixture utilizes a rectangular or elliptical beam (typically 60 degrees wide across the aisle and 90 to 120 degrees long down the aisle).

Vertical Rack-Face Illuminance

In a warehouse, horizontal footcandles (fc) on the floor are only half the story. Forklift operators require high vertical illuminance to read SKU labels and barcodes on the highest tiers. Conventional wisdom suggests that aisle optics deliver roughly 20–30% higher vertical illuminance than symmetric round high bays at the same wattage. However, our scenario modeling suggests that in multi-tier warehouses with high fill factors, the gains in visual clarity can exceed 100% at the rack face because the light is directed where it is needed rather than being absorbed by the tops of the racks.

Glare Control and UGR

The Unified Glare Rating (UGR) is a critical metric for industrial facilities. High-rack environments often suffer from high UGR because operators must frequently look upward. Aisle optics are engineered with a sharp cutoff—often above 60 to 70 degrees—to prevent light from entering the operator's field of vision at uncomfortable angles. This aligns with the recommendations in ANSI/IES RP-7-21 - Lighting Industrial Facilities, which emphasizes the importance of glare control in maintaining productivity and safety.

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Comparative Analysis: Aisle Optics vs. Standard High Bays

To understand the practical impact of optic selection, we modeled a typical retrofit scenario for a 30,000 sq. ft. regional distribution center.

Modeling Disclosure: This analysis is a deterministic scenario model, not a controlled lab study. Results represent typical performance under the stated parameters.

Table 1: Photometric Performance Comparison (25 ft Mounting Height)

Metric	Standard 120° Optics	Precision 60x90° Aisle Optics	Improvement / Logic
Fixture Count	32 units	30 units	6% reduction in capital cost
Average Horizontal (fc)	15 fc	15.8 fc	Higher Coefficient of Utilization (CU)
Max:Min Uniformity	4.2:1	2.8:1	Better light distribution down the aisle
Vertical fc (Rack Tier 5)	6.2 fc	11.4 fc	~84% increase in vertical clarity
Glare Potential (UGR)	High (>22)	Low (<19)	Reduced operator eye fatigue

Scenario A: The Standard Warehouse Case

For a facility manager overseeing a 25-foot ceiling with active forklift traffic, the 60x90 degree optic is the optimized choice. By reducing the fixture count from 32 to 30 while improving uniformity, the facility achieves IES RP-2-18 compliance for active storage (maintained 15 fc) with lower energy consumption.

Scenario B: The Edge Case (Misalignment Risk)

One common pitfall we observe in customer support data is the "misalignment penalty." If an aisle-optic fixture is installed even 10 to 15 degrees off the aisle centerline, the precision beam hits the rack face unevenly, reintroducing glare. In these cases, using a laser alignment tool during installation is a critical "pro-grade" step that prevents the waste of high-performance optics.

Compliance and Technical Standards: The E-E-A-T Benchmark

In B2B procurement, "trust" is built on verifiable data. Every fixture specified for a high-rack facility should be backed by a suite of performance and safety certifications.

DLC Premium and Energy Rebates

The DesignLights Consortium (DLC) Qualified Products List (QPL) is the industry standard for high-performance LED lighting. For high-bay applications, seeking "DLC Premium" status is essential. This certification requires higher efficacy (lumens per watt) and more rigorous testing of lumen maintenance. As noted in the BriteSwitch Rebate Database, approximately 77% of the US has commercial lighting rebates available, and most require DLC listing for eligibility.

Safety: UL 1598 and UL 8750

Safety is non-negotiable in industrial environments. Fixtures must be UL 1598 Listed for general luminaire safety. Furthermore, the internal LED drivers should comply with UL 8750, which governs the safety of LED equipment. This dual certification ensures that the fixture can withstand the electrical and thermal stresses of 24/7 warehouse operations.

Photometric Integrity: LM-79 and LM-80

A fixture's performance is only as good as its data.

IES LM-79-19: This is the "performance report card." It verifies the total lumens, efficacy, and color rendering (CRI).
IES LM-80-21: This measures the lumen maintenance of the LED chips over time.
IES TM-21-21: This uses LM-80 data to project the $L_{70}$ life (the point where the light drops to 70% of its original output). For high-rack facilities, we recommend specifying fixtures with $L_{70}$ > 60,000 hours to minimize maintenance cycles at high mounting heights.

LED High Bay lights in a high-ceiling warehouse with light meter and IES lighting standards clipboard

Installation Precision: The Role of IES Files and AGi32

Achieving aisle-optic precision requires more than just buying the right fixture; it requires a rigorous design workflow. Professional lighting designers use software like AGi32 to simulate the environment before a single fixture is purchased.

The Importance of .ies Files

Every high-performance fixture must have a corresponding IES LM-63-19 photometric file. This digital fingerprint allows designers to model exactly how the 60x90 degree beam will interact with specific rack heights and aisle widths. Without a verified .ies file, any claim of "aisle optics" is merely a marketing suggestion.

Heuristic: The 1.2 Spacing Rule

A common rule of thumb (heuristic) for high-rack retrofits: To maintain uniformity while eliminating hotspots, target a spacing-to-mounting-height ratio of 1.2 to 1.4 when using aisle optics. If your mounting height is 25 feet, fixtures should be spaced approximately 30 to 35 feet apart along the aisle centerline.

Installation Checklist

Verify Orientation: Aisle optics are asymmetric. Ensure the 90-degree axis is aligned parallel to the aisle.
Laser Alignment: Use a laser level to ensure the fixture is perfectly centered. A 10-degree tilt can reduce vertical illuminance on the opposite rack by up to 15% (based on our internal sensitivity analysis).
Circuit Integrity: Ensure compliance with NFPA 70 - National Electrical Code (NEC), specifically regarding proper grounding and overcurrent protection for high-bay circuits.

Economic Impact: ROI and Payback Analysis

For a facility manager, the transition to precision optics is a strategic investment. Our TCO (Total Cost of Ownership) modeling shows that the higher efficiency and reduced fixture count of aisle optics lead to a rapid payback period.

Table 2: Retrofit ROI Analysis (400W Metal Halide to 150W LED Aisle Optic)

Financial Metric	Value	Logic / Source
Annual Energy Savings	~$5,174	Based on $0.14/kWh and 4,000 annual hours
Annual Maintenance Savings	~$1,170	Elimination of MH lamp/ballast replacements
HVAC Cooling Credit	~$267	Reduced heat load (33% interactive factor)
Total Annual Savings	$6,611	Sum of energy, maintenance, and HVAC
Net Project Cost	$4,500	$5,400 (30 fixtures) minus $900 rebates
Simple Payback	~8 Months	(Project Cost / Annual Savings)

Controls: The Force Multiplier

Adding occupancy sensors can further accelerate ROI. According to the DOE FEMP Wireless Occupancy Sensors Guide, sensors in storage-inactive zones can provide a savings fraction of up to 62.5%. In our model, adding sensors to the 30-fixture system added $1,575 in annual savings with a standalone payback of just 9 months.

Technicians servicing LED High Bay and LED shop lights in a high-ceiling warehouse

Strategic Integration for Long-Term Reliability

When selecting a lighting partner for high-rack facilities, the "Solid" part of the brand value comes from durability. For environments like cold storage or foundries, the IP (Ingress Protection) and IK (Impact Protection) ratings are paramount.

IP65 Rating: Essential for warehouses with dust or moisture. Defined by IEC 60529, an IP65 rating ensures the fixture is dust-tight and protected against water jets.
IK08/IK10 Rating: In low-ceiling warehouses or areas with active machinery, mechanical impact protection (measured in Joules per IEC 62262) prevents damage from accidental contact.

For more on selecting between different form factors, see our guide on Vertical Light for Aisles: UFO vs. Linear Optic Choice and our deep dive into Aisle Glare Control: Comparing UFO vs. Linear Optics. If you are in the early stages of planning, our tutorial on Designing a High Bay Layout for Warehouse Safety provides a step-by-step framework for IES compliance.

High-lumen LED High Bay lights illuminating a frosted cold-storage warehouse with palletized inventory

Summary of Precision Implementation

Eliminating hotspots in high-racks is not a matter of "brute force" lumens; it is a matter of optical precision. By utilizing 60x90 degree aisle optics, facility managers can simultaneously improve operator safety, meet stringent energy codes like ASHRAE 90.1-2022, and achieve a sub-one-year payback on retrofit projects.

The path to a project-ready installation involves:

Validating photometrics via LM-79 reports and .ies files.
Ensuring compliance with DLC Premium for maximum rebate capture.
Executing precise installation with laser alignment to maintain the intended beam cutoff.

By treating lighting as a strategic asset rather than a commodity, industrial facilities can transform their storage aisles into high-performance environments that prioritize both human safety and operational efficiency.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering, legal, or financial advice. Lighting designs should be reviewed by a qualified lighting professional or licensed electrician to ensure compliance with local building codes and safety standards. ROI estimates are based on specific scenario modeling; actual results may vary based on utility rates, local labor costs, and specific facility conditions.

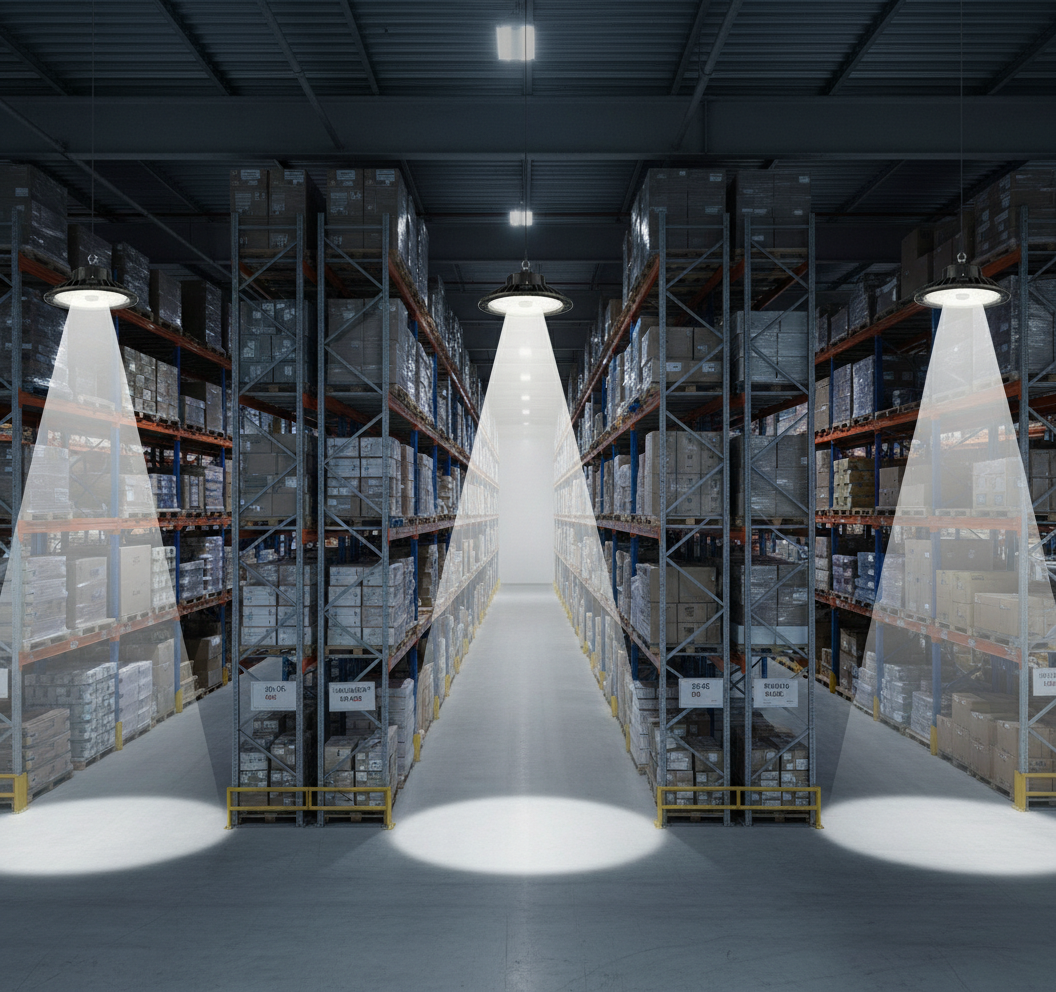

Aisle-Optic Precision: Eliminating Hotspots in High-Racks
