The Glare Challenge in Modern Industrial Lighting

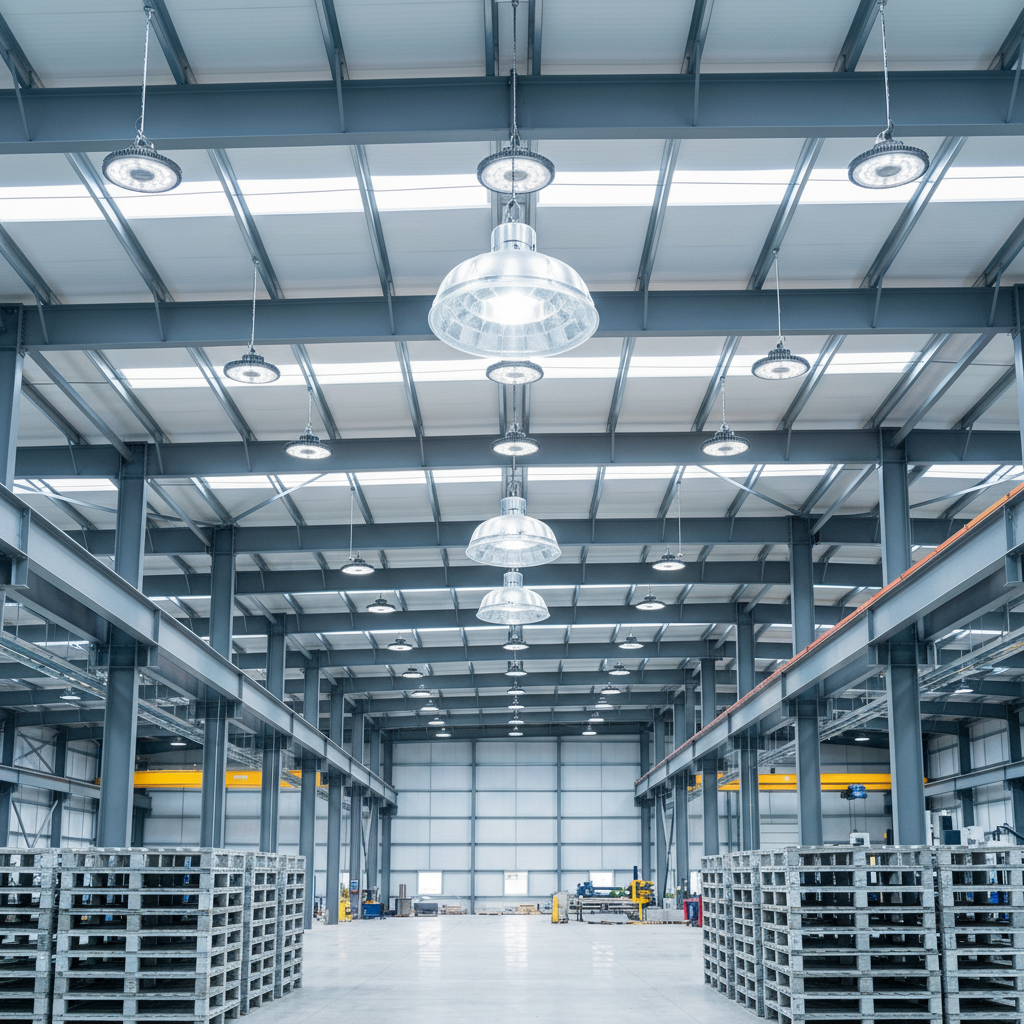

In high-volume warehouse and manufacturing environments, the transition to round LED high bays—commonly referred to in the industry as "UFO" fixtures due to their compact, circular design—has delivered unprecedented energy efficiency. However, a common technical friction point emerges when these high-lumen fixtures are mounted at lower heights (typically 15 to 22 feet). Without proper shielding, the concentrated intensity of the LED array can create significant veiling glare, impacting forklift operator safety and overall worker productivity.
Adding an external refractor or shroud is a pragmatic solution to optimize visual comfort after an installation is complete or during the design phase of a low-mount project. This guide analyzes the technical thresholds for adding shielding, the photometric implications of these accessories, and the financial logic behind glare-control investments.
The 1.5x Spacing Heuristic: When to Add Shielding
The decision to add an external refractor often occurs after a post-installation glare complaint or a failed facility inspection. However, proactive facility managers use specific heuristics to determine if shielding is necessary before the first fixture is hung.
A common shop-level heuristic is to consider shielding if the fixture mounting height is below 1.5 times the spacing between fixtures. For example, if fixtures are spaced 25 feet apart, shielding should be evaluated if the mounting height is below 37.5 feet. This is especially critical over active workstations or aisles where operators must frequently look upward.
Unified Glare Rating (UGR) Thresholds
For professional lighting designers, the decision is data-driven. According to the ANSI/IES RP-7-21 - Lighting Industrial Facilities, industrial tasks generally require a Unified Glare Rating (UGR) below 22 to 25, while precision assembly may require a UGR below 19. Standard wide-beam round high bays often produce a UGR of 28 or higher in low-mount scenarios. Adding a polycarbonate refractor can typically reduce this rating by approximately 9 points (e.g., from 28 down to 19), bringing the facility into compliance with recommended safety practices.
Photometric Impact and Compliance Verification
Integrating external optics isn't just about comfort; it fundamentally changes the light distribution of the fixture. When adding a refractor, the wide 120-degree beam typically associated with round high bays is often narrowed to a 60 or 90-degree spread, depending on the refractor's geometry.
The Role of LM-79 and IES Files
Every professional-grade fixture should have an IES LM-79-19 report, which serves as the "performance report card" for the light. It measures total lumens, efficacy (lm/W), and color rendering. However, facility managers must be aware that adding an external refractor invalidates the original .ies photometric file.
Expertise Note: Based on our patterns from customer support and project audits, using a standard IES file in simulation software (like AGi32) to predict the performance of a fixture with an aftermarket refractor can lead to calculation errors of 20-40%. For accurate results, always request the specific .ies file for the fixture-refractor combination from the manufacturer.
Safety Certifications (UL/ETL)
When modifying a fixture with an accessory, compliance with UL 1598 - Luminaires is paramount. Adding non-OEM components can technically void a product's safety listing. It is essential to use refractors specifically designed and tested for the fixture's housing to ensure the thermal management system remains within the parameters defined by UL 8750.
Modeling the Financial Impact: TCO and ROI
Adding refractors is often viewed as an added cost, but scenario modeling suggests it is a value-adding investment that pays for itself through improved productivity and compliance.
Scenario: The 10,000 Sq Ft Warehouse Zone
In this model, we analyzed a medium-sized warehouse zone (40 fixtures) where round high bays are mounted at 15-18 feet. The primary goal was to justify the cost of adding polycarbonate refractors to meet a UGR target of <19.
Analysis: Total Cost of Ownership (TCO) & Payback
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Fixture Count | 40 | count | 10,000 sq ft zone |
| LED System Watts | 150 | W | Standard UFO high bay |
| Annual Operation | 4000 | hours | Two-shift operation |
| Electricity Rate | 0.14 | $/kWh | US Industrial Average |
| Refractor Unit Cost | 30 | $ | Estimated accessory cost |
| Annual Energy Savings | ~6,899 | $ | vs. 400W Metal Halide |
| Simple Payback | ~7 months | years | Including refractor cost |
Logic Summary: This analysis assumes a legacy 400W metal halide system (458W with ballast loss) being replaced by 150W LED fixtures. The payback period of ~7 months accounts for the fixture cost, the refractor accessory, and typical utility rebates.
Based on the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the integration of glare-control accessories is becoming a standard requirement for "Project-Ready" B2B retrofits, as it balances high lumen output with the visual comfort required by modern safety codes.
HVAC and ESG Benefits
Beyond direct energy savings, the reduction in heat load from switching to LED high bays provides a secondary financial benefit. Our modeling shows an annual HVAC cooling credit of approximately $356 for this 40-fixture zone. Furthermore, the 10-year cumulative carbon reduction is estimated at 201 metric tons of CO2, providing significant data for corporate ESG (Environmental, Social, and Governance) reporting.
Maintenance Realities: The Dust Factor
A common pitfall in industrial environments—particularly woodshops, grain elevators, or high-particulate warehouses—is the accumulation of dust on the interior and exterior surfaces of polycarbonate refractors.
The 15-20% Output Loss
Practitioners note that polycarbonate refractors can accumulate enough dust to reduce light output by 15-20% over a six-month period if not included in a regular cleaning schedule. In high-dust environments, this can lead to a violation of OSHA 1910.333(a)(1) illumination standards if the light levels drop below the minimum required for the task.
Mechanical Load and Safety
Before attaching an external refractor, always verify the mechanical load rating of the fixture's housing. An improperly supported refractor can stress mounting points over time. For installations in high-vibration environments (near bridge cranes or heavy machinery), ensure the refractor is secured with secondary safety cables or locking clips as recommended by the National Electrical Code (NEC).
Alignment with Energy Codes and Incentives
For B2B projects, shielding can also influence eligibility for utility rebates. Many utility companies require products to be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL).
DLC Premium vs. Standard
DLC Premium certification often requires higher efficacy and stricter glare control. While the refractor itself might reduce the absolute efficacy (lm/W) of the fixture by 3-5% due to light absorption, the improved light directionality often results in higher foot-candles on the work plane, which is what inspectors and facility managers ultimately care about.
State-Specific Requirements (Title 24)
In jurisdictions like California, Title 24, Part 6 mandates specific lighting controls and glare limits for new construction and large retrofits. Using a shielded high-bay solution is often the most cost-effective way to meet these stringent requirements without resorting to more expensive, specialized fixtures.
Summary of the "Project-Ready" Shielding Approach
Adding external refractors to round high bays is a strategic move for facility managers who need to solve glare issues without sacrificing the ROI of an LED upgrade. By adhering to the 1.5x spacing rule and verifying performance through LM-79 data, contractors can deliver a "Value-Pro" installation that meets both safety codes and budgetary constraints.
Key Takeaways for Contractors
- Audit Early: Check mounting heights against spacing criteria before ordering.
- Verify Compliance: Ensure the refractor-fixture combination maintains UL/ETL safety standards.
- Factor in Maintenance: Warn clients about dust accumulation in high-particle environments.
- Maximize ROI: Use rebates (via DLC QPL) and energy savings to offset the cost of glare-control accessories.
Modeling Transparency (Method & Assumptions)
The data presented in this article is based on a deterministic scenario model for a medium-sized warehouse zone. It is intended for illustrative purposes and not as a substitute for a professional lighting design.
| Parameter | Value | Unit | Source / Assumption |
|---|---|---|---|
| Model Type | Scenario Analysis | - | Deterministic Parameterized Model |
| Legacy Watts | 458 | W | 400W Metal Halide + Ballast |
| LED Watts | 150 | W | Standard 150W Round High Bay |
| Annual Hours | 4,000 | hrs | 16 hours/day, 250 days/year |
| Electricity Rate | 0.14 | $/kWh | US Industrial Average (EIA) |
| Cooling COP | 3.2 | ratio | Standard Rooftop Unit |
Boundary Conditions:
- Payback periods are simple payback and do not include the time value of money or inflation.
- Utility rebates vary significantly by region; we assumed a baseline of $50 per fixture.
- HVAC interactive effects depend on the specific climate zone and building envelope.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or legal advice. Always consult with a licensed electrical contractor and local building authorities to ensure compliance with the National Electrical Code (NEC) and regional safety standards.
References
- DesignLights Consortium (DLC) Qualified Products List
- IES LM-79-19 Standard for Optical/Electrical Measurement
- ANSI/IES RP-7-21 - Lighting Industrial Facilities
- ASHRAE Standard 90.1-2022 - Energy Standard for Buildings
- UL 1598 - Safety Standard for Luminaires
- US EPA Greenhouse Gas Equivalencies Calculator
