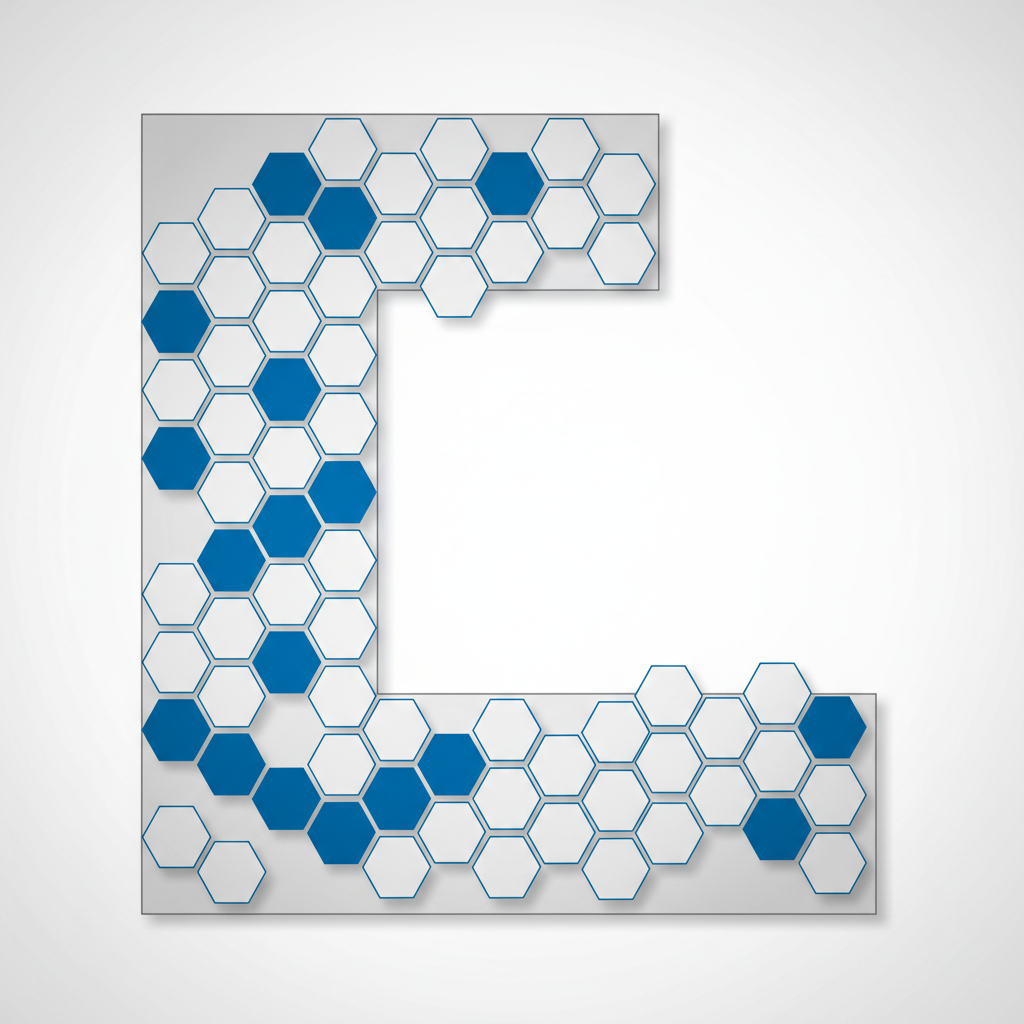

The Modular Mindset: Mapping Your "Unit Cells"
The most effective way to light an irregular space isn't simply buying a larger kit; it’s understanding that each hexagon acts as a discrete module. We refer to these as "unit cells." Instead of viewing a 22-grid kit as a single monolithic fixture, treat it as 22 individual building blocks that can be rearranged to follow the contours of your floor plan.
Step 1: The Graph Paper Blueprint
Before assembling a single light bar, create a scaled drawing. Attempting to "eyeball" a modular grid on a ceiling often leads to alignment errors or "dead zones" where light cannot reach.
- Measure your floor plan: Draw your garage to scale on graph paper (e.g., 1 square = 1 foot).
- Define your zones: In an L-shaped garage, identify two distinct zones—the "Main Bay" and the "Extension."
- Map the grid: Use each hexagon as a unit. A standard full-size hexagon kit typically has a footprint of roughly 8 x 14 feet for a small grid. On your paper, determine how many "cells" fit into the Main Bay versus the Extension.
- Identify the split point: For a large 22-grid kit, you might allocate a 14-grid section to the main work area and an 8-grid section for the L-junction and extension.
By mapping the layout first, you can avoid common issues like "awkward gap" syndrome. Many professional installers treat the junction—the corner where the "L" meets—as its own lighting zone to ensure a seamless transition.
The Electrical Backbone: Safety and Load Planning
When transitioning from a few standard bulbs to a massive hexagon array, your electrical requirements increase significantly. This is a primary safety consideration. Failing to account for total wattage can lead to flickering, tripped breakers, or potential fire hazards.
The "Continuous Load" Rule
According to NEC Article 210.20(A), lighting in a commercial or workshop setting is often considered a "continuous load" if it remains on for three hours or more. This requires that the circuit be loaded to no more than 80% of its rated capacity.
- 15A Circuit (120V): 1,800W total capacity → 1,440W safe continuous limit.
- 20A Circuit (120V): 2,400W total capacity → 1,920W safe continuous limit.
Worked Example: The 750 Sq. Ft. L-Shop
To illustrate, consider a simulation of a 750 sq. ft. L-shaped workshop using a high-density grid:
| Metric | Value (Calculated) | Basis / Assumption |
|---|---|---|
| Total Tubes | 420 Tubes | High-density 70-hex layout |
| Total Wattage | 3,360W | Based on 8W per LED tube |
| Amperage Draw | 28A | 3,360W / 120V |
| Circuits Required | 2 (20A) | To stay under the NEC 80% limit |
| Power Injections | 8–9 Points | Based on 400W max per power feed |
| Est. Annual Savings | $320 – $550 | Replacing 1000W legacy HID/Fluorescent* |
*Assumes 2,000 annual operating hours at $0.15/kWh. Individual results will vary based on local utility rates and previous fixture efficiency.
Manufacturer Constraints: Most high-quality modular kits specify a maximum number of tubes per power feed (typically 60-62 tubes or ~480W). Exceeding this limit can cause voltage drop, resulting in dimmer light or flickering at the end of the chain. Always use the provided Y-splitters to create multiple injection points back to your junction box.
Designing for "Dark Spots": The Junction Strategy
The most significant challenge in an L-shaped garage is the "inside corner." Light behaves like a physical substance—it reflects off walls to fill a space. In an L-shape, the junction area has less wall surface directly opposite it to bounce light back, which can create a perceived "dim spot."
The 15% Heuristic
To combat this, a common workshop heuristic is to aim for 10-15% higher lumen density in the corridor where the two sections of the "L" meet.
- The Logic: The junction acts as a transition zone. By slightly tightening the spacing of the hexagons as they approach the corner, you compensate for the lack of reflective surfaces.
- Uniformity Over Brightness: This approach aligns with IES RP-7-21 (Recommended Practice for Industrial Facilities), which emphasizes that visual comfort is achieved through uniformity rather than raw, uneven brightness.
Installation Guide: From Blueprint to Brightness
Once your plan is on paper and your electrical load is verified, follow this sequence to ensure a straight and stable installation.
Materials Checklist
- Modular Hexagon Kit: Sized for your total square footage (plus 10% for spare parts).
- Laser Level: Essential for maintaining a straight grid across long spans.
- Y-Splitters: For creating multiple power injection points.
- Mounting Hardware: Zip ties for grid ceilings or mounting clips for drywall.
The Step-by-Step Process
- Establish the Centerline: Start in the largest rectangular section (the Main Bay). Use a laser level to snap a line down the center of the ceiling.
- The "Unit Cell" Test: Assemble one hexagon on the floor first. Ensure connectors are fully seated; a loose connection is the leading cause of "dead" tubes post-install.
- Mount the Anchor Row: Install the first row of hexagons along your laser line. This row dictates the alignment for the entire irregular space.
- Transition at the Junction: When you reach the "L" split, use a Y-connector to branch the grid into the extension.
- Cable Management: Run power feeds through ceiling joists or conduit. Avoid straining cables across sharp corners of the mounting brackets.
- The "Live" Test: Power the system on before installing the final row. It is significantly easier to reseat a connector while the grid is partially accessible.
Compliance and Quality: What to Verify
For shop owners or homeowners looking to maintain property value and safety, certification is a critical factor.
UL vs. ETL Certification
Look for marks from UL Solutions or Intertek (ETL). Both are Nationally Recognized Testing Laboratories (NRTLs).
- UL/ETL Listed: Indicates the product has been tested to meet North American safety standards (such as UL 1598 for luminaires).
- Safety Risk: Non-certified kits may lack proper heat dissipation or over-current protection, which can lead to premature failure or electrical hazards.
Efficiency and Rebates
For commercial applications, check for the DesignLights Consortium (DLC) Qualified Products List.
- Utility Rebates: Many utility providers offer financial incentives for installing DLC-certified lighting, which can sometimes offset 30% or more of the initial hardware cost.
- Title 24 Compliance: In regions like California, ensure your installation meets Title 24, Part 6 standards, which may require occupancy sensors or specific dimming capabilities for non-residential spaces.
Troubleshooting and Maintenance
- The "Burn-In" Period: It is common for a connection to settle within the first 48 hours. If a single tube fails, check the seated depth of the pins in the connector.
- Voltage Drop: If the end of a long run appears dimmer than the start, you likely need an additional power injection point.
- Dust Accumulation: In woodworking shops, dust on the top surface of the tubes can reduce light output. Use a microfiber duster or low-pressure compressed air every few months to maintain the Color Rendering Index (CRI) and light quality.
Field Insight: "We once attempted a T-shaped install by starting from a side wall rather than the center. By the time we reached the junction, the grid was nearly 3 inches out of alignment with the opposite wall. Always start from the center of your largest bay and work outward."
Final Checklist for Irregular Spaces
- Scaled Drawing: Is the layout confirmed on graph paper?
- Wattage Check: Is the total draw under 1,920W for a 20A circuit?
- Certification: Do the components carry UL or ETL marks?
- Injection Points: Is there a power feed for approximately every 60 tubes?
- CCT Consistency: Are all kits 5000K or 6500K for consistent color?
Safety Disclaimer: This article is for informational purposes only. Electrical work involves risks of fire and shock. Always consult with a licensed electrician before modifying your home's wiring or installing high-wattage lighting systems. Ensure all installations comply with local building codes and the National Electrical Code (NEC).
