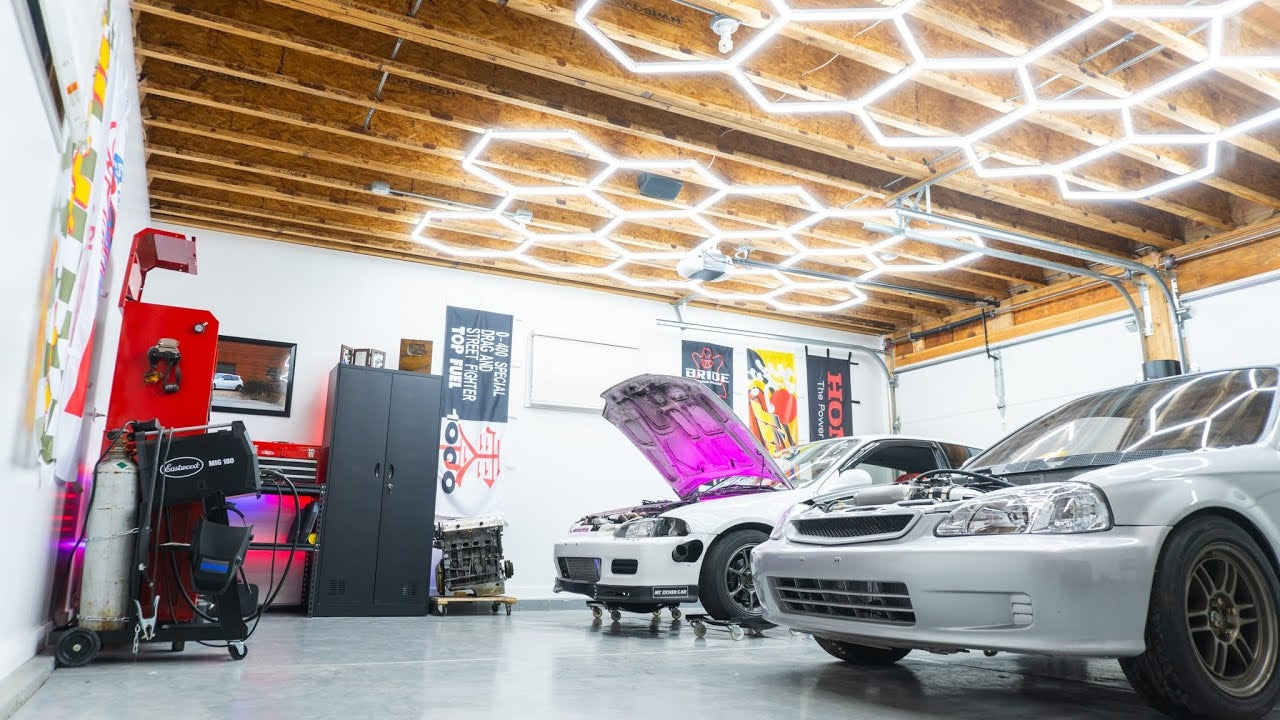

You’ve probably seen the photos: a pristine, multi-bay garage where the lighting looks like it was pulled straight from a high-end automotive showroom. The hexagon grids are perfectly centered over the vehicles, the glow is uniform, and every angle feels intentional. Then, you look up at your own ceiling and realize that "eyeballing it" isn't going to cut it.
Achieving that level of visual perfection isn't about luck; it’s about geometry. Most DIYers make the mistake of measuring from their walls, only to find that their 40-year-old garage isn't actually square. When you're installing a high-precision hexagon kit, a two-inch deviation at one end can look like a foot by the time you reach the other side.
In this guide, we’re going to walk through the exact professional workflow for centering hexagon lighting kits in multi-bay garages. We’ll cover why the "True Centerline" matters more than your walls, how to manage the electrical load for large grids, and the non-obvious tricks—like the "floor-first" assembly—that save your neck and your sanity.
Why Symmetry Trumps Everything
In a multi-bay garage, your eyes naturally look for alignment between the garage doors and the vehicles parked inside. This is known as visual parallax. If your light kit is centered to the room but the room itself is wider on one side, the lights will appear "off" every time you pull your car in.
According to the IES RP-7-21 Recommended Practice for Industrial Facilities, uniform illumination and proper luminaire placement are critical for reducing shadows and improving task performance in workspaces. In a detailing or workshop environment, symmetry isn't just about "looking cool"—it ensures that the light distribution (photometrics) is consistent across the entire work surface of your vehicle.
The Pro’s Measuring Toolkit
Before you climb the ladder, you need the right tools to establish your grid. Relying on a standard tape measure alone is how most "crooked" installations begin.
- Chalk Line: Essential for snapping long, perfectly straight reference lines across the ceiling.
- Laser Level: Ideally a 360-degree cross-line laser. This allows you to project your floor layout directly onto the ceiling.
- Painter’s Tape: For marking corners and "ghosting" the layout before drilling.
- Stud Finder: To ensure your main support hooks are biting into ceiling joists, not just drywall.
Step 1: Finding the "True Centerline"
Here is the secret: Ignore your walls. In older garages, walls can bow or be out of plumb by several inches. Instead, we use the garage door openings as our fixed anchors.
- Snap the Vertical Axis: Find the center point of each garage door opening. Snap a chalk line from the center of the door back to the rear wall of the garage. These are your "Vehicle Centerlines."
- Establish the Horizontal Axis: Measure the depth of your usable space. If you want the kit centered over the hood of the car, mark that distance on your vertical lines.
- Find the Intersection: Connect these marks with a horizontal chalk line. The point where the door centerline meets the horizontal depth line is your "True Center."
By aligning your hexagon kit to these lines, the lights will be perfectly centered over your cars as you pull in, regardless of whether the side walls are perfectly parallel.
Step 2: The "Floor-First" Strategy
One of the most common friction points in a DIY install is trying to figure out connector orientations while reaching overhead. This leads to "neck fatigue" and increased errors.
The Expert Approach: Lay the entire hexagon kit out on the garage floor first.
- Assemble the tubes and connectors exactly where they will go.
- This allows you to walk around the grid and visualize the final look from the driver's seat perspective.
- Pro Tip: If you realize the kit is slightly too large for the bay, it is much easier to remove a row of hexagons on the ground than it is once they are half-mounted to the ceiling.
Step 3: Managing the Electrical Load (The "NEC" Reality)
When you scale up to a large multi-bay grid, you aren't just adding lights; you’re adding a significant electrical draw. Many homeowners assume they can just "daisy-chain" 300 tubes together. This is a fire hazard and a violation of the National Electrical Code (NEC).
Based on our technical simulations for a large 3-car garage (approx. 32' x 34'), a high-density grid can require up to 349 tube segments. At roughly 7W per tube, that’s a total draw of 2443W.
| Feature | Standard 2-Bay Setup | Oversized 3-Bay Grid |
|---|---|---|
| Total Tube Count | ~120 - 150 Tubes | 300 - 350+ Tubes |
| Total Wattage | 840W - 1050W | 2100W - 2450W |
| Amperage Draw (120V) | 7A - 8.75A | 17.5A - 20.4A |
| NEC Circuit Requirement | 15A Standard Circuit | Dedicated 30A or Split Circuits |
| Power Injection Points | 2 - 3 Points | 6+ Points Recommended |
Note: Amperage values are estimated based on common 7W LED tube specifications.
According to NFPA 70 - National Electrical Code (NEC), for a continuous load (anything running for 3 hours or more), you should only utilize 80% of a circuit's capacity. For a standard 20A breaker, that limit is 1920W. As shown in the table above, a large 3-bay grid can easily exceed this, meaning you must split the load across multiple circuits or install a dedicated high-capacity line.
Step 4: Projecting and Mounting
Once your floor layout is perfect and your power plan is set, it’s time to move up.
- Laser Projection: Place your laser level on the center point of your floor layout. Project the cross-hairs onto the ceiling.
- Mark the Corners: Use the laser lines to mark the outer boundaries of your grid with painter's tape.
- Find the Joists: Use a stud finder to locate the ceiling joists within your marked area. Whenever possible, position your main support hooks or cable grippers directly into a joist. If you are mounting between joists, ensure you use high-quality toggle bolts rated for the weight of the entire assembly.
- The "Center-Out" Install: Start mounting from the center of your grid and work your way out. This prevents cumulative errors from pushing the edges of the kit out of alignment with your chalk lines.
Visual Performance: CCT and CRI Matters
When you are aiming for "visual perfection," the technical specs of the light itself are just as important as the placement. If you buy multiple kits at different times, you might run into "color mismatching."
To ensure a seamless look, look for products that adhere to ANSI C78.377-2017, which defines the chromaticity specifications for solid-state lighting. This standard ensures that "6500K" from one batch looks exactly like "6500K" from another. Furthermore, for a detailing garage, a high Color Rendering Index (CRI) of 90+ is essential. A high CRI allows you to see the true color of the paint and identify "swirl marks" or imperfections that lower-quality lights (CRI 70-80) would hide.
Common Pitfalls and "Gotchas"
- The Garage Door Opener Obstruction: Before you finalize your horizontal depth, pull your garage doors all the way up. Many DIYers center their kit in the room, only to realize the open garage door covers half the lights when they are actually working on a car.
- Voltage Drop: In very long daisy-chains, the tubes at the far end may appear dimmer or flicker. This is why we recommend multiple power injection points (one for every 60-62 tubes).
- Parallax Error: When measuring from a ladder, your angle of view can distort your perception of "straight." Always climb down and check your alignment from the garage entrance every 10 minutes.
What to Expect: The Final Reveal
Once the power is flipped on, you’ll immediately notice the difference. A perfectly centered kit creates a "halo" effect around the vehicle, providing 360-degree illumination that standard shop lights can't match.
Beyond the aesthetics, the efficiency gains are real. By switching from legacy 400W metal halide fixtures to a modern LED hexagon system, homeowners can see significant energy savings. Our simulations show that a typical 3-car garage upgrade can result in over $160 in annual savings when factoring in energy reduction and lower maintenance costs.
Frequently Asked Questions
How many power points do I need? For most standard kits, one power cable can handle up to 62 tubes (max 440W). If your multi-bay design uses more than this, you must distribute the input lines evenly to prevent overloading the internal wiring of the tubes.
Can I install these on a sloped ceiling? Yes, but you will need to use a suspension cable system rather than direct surface mounting. This allows you to "level" the grid horizontally even if the ceiling is angled.
What is the best color temperature for a garage? Most enthusiasts prefer 6500K (Cool White). It mimics natural daylight and provides the high contrast needed for mechanical work and detailing.
How do I clean the tubes? Because they are polycarbonate, avoid harsh chemicals. A simple microfiber cloth and a mild soap solution are usually enough to keep the "glow" at its peak.
Disclaimer: This article is for informational purposes only. Electrical installations involve risks of fire and shock. Always consult with a licensed electrician to ensure your project meets local building codes and National Electrical Code (NEC) standards, especially regarding circuit loads and grounding.
