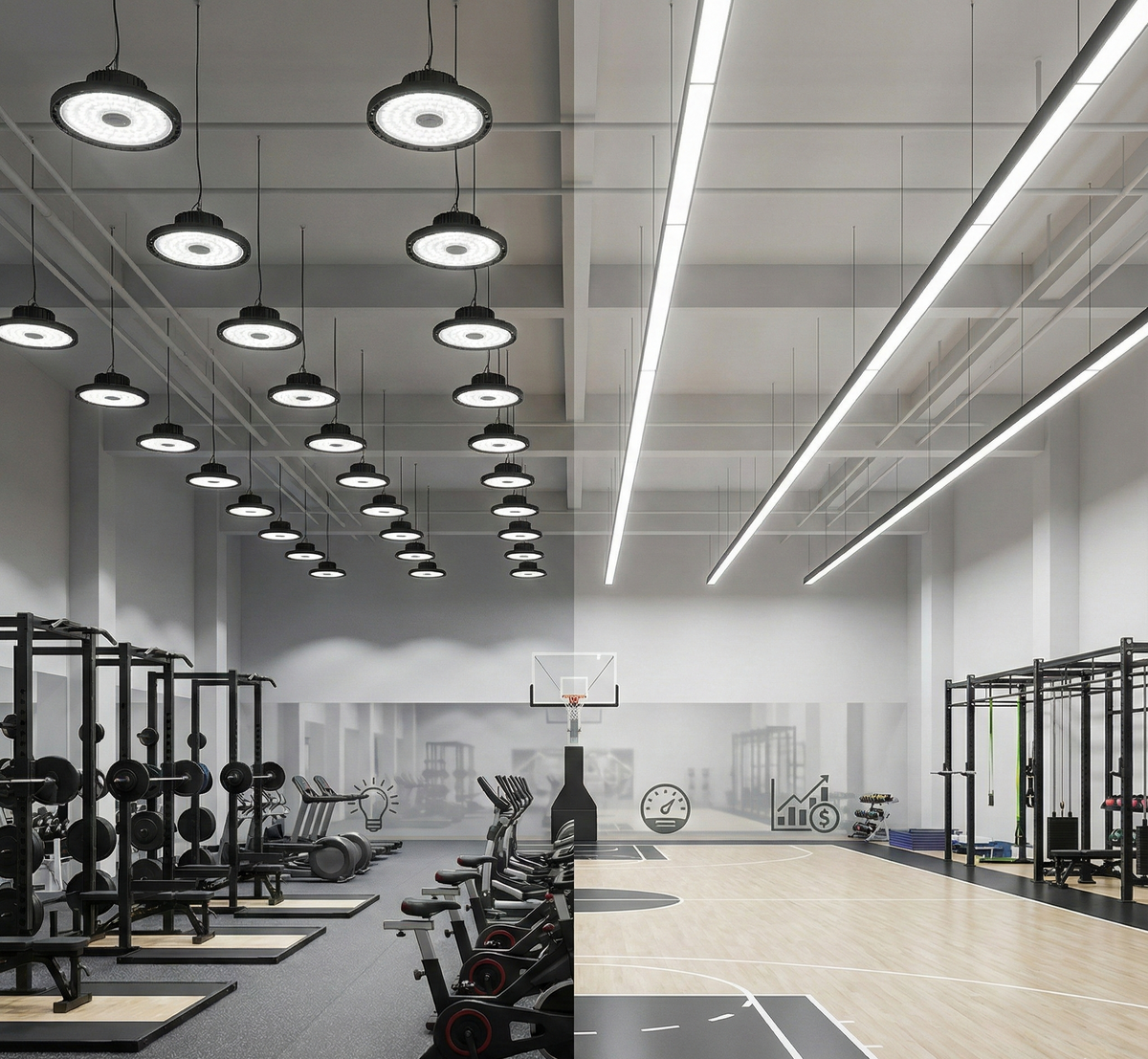

Mounting a high-intensity industrial light directly over a bench press is perhaps the most common mistake in home gym design. While UFO-style high bays provide the professional-grade brightness required for safety and focus, their high-lumen output can become a source of "disabling glare" when your line of sight is fixed upward during floor exercises or heavy lifts.
Achieving a professional gym environment requires more than just raw power; it requires a strategic blueprint that balances light uniformity with visual comfort. By understanding the intersection of photometry and human ergonomics, you can create a high-performance space that mimics the quality of elite training facilities while maintaining the value-driven approach of a DIY project.
The Mechanism of Glare: Understanding UGR and Beam Angles
In technical lighting design, glare is quantified by the Unified Glare Rating (UGR). According to the Acuity Brands guide on UGR fundamentals, UGR is an "approximate model of the psychological pain or discomfort caused by lighting in an indoor environment." For gyms, where users often occupy supine (lying down) positions, maintaining a UGR below 19 is considered the gold standard for comfort.
Most standard UFO high bays feature a 120-degree beam angle. While this is excellent for broad coverage in a warehouse, it creates a wide "glare cone" that can easily intersect with an athlete's eyes. To mitigate this, practitioners often look toward the IES LM-79-19 Standard, which defines the optical measurements of a fixture. By reviewing a product’s LM-79 report, you can identify the candela distribution—specifically how much light is emitted at high angles (60 to 90 degrees from the vertical). High intensity at these angles is the primary culprit for eye strain during floor-based movements.
The Blueprint: Strategic Offsets and Spacing Ratios
The most effective way to eliminate glare is not to dim the lights, but to move them. A common "gotcha" in DIY setups is following the "30-degree rule" for mirror positioning while ignoring the vertical angle of incidence. In reality, for ceilings between 10 and 14 feet, a horizontal rule is insufficient.
The 5-Foot Lateral Offset Rule
We recommend a mandatory lateral offset of at least 4 to 5 feet from the center of any primary workout station (e.g., the center of a power rack or a yoga mat). By positioning the fixture to the side of your direct line of sight, you ensure that the "hot spot" of the LED array is outside your foveal vision (the central part of your field of view). If your fixture is adjustable, a 30 to 45-degree tilt away from the exercise station can further reduce direct exposure.
Spacing-to-Mounting-Height (S/MH) Ratio
To maintain uniform illumination without creating "hot spots" or dark zones, you must calculate your fixture spacing based on your ceiling height. For most residential garages and small gyms, a ratio of 1.2:1 to 1.5:1 is ideal.
| Ceiling Height (ft) | Recommended Spacing (ft) | Target Footcandles (Avg) |
|---|---|---|
| 10 ft | 12 - 15 ft | 30 - 50 fc |
| 12 ft | 14 - 18 ft | 30 - 45 fc |
| 14 ft | 17 - 21 ft | 25 - 40 fc |
Values estimated based on standard 150W UFO high bay performance and IES RP-7 industrial lighting recommendations.
Technical Specs for Gym Comfort: CCT and Reflectors
Beyond placement, the technical specifications of your light source dictate how your eyes perceive the environment.
4000K vs. 5000K: The Physiological Difference
While 5000K (Daylight) is popular for its high energy feel, it often increases glare perception due to a higher scotopic/photopic (S/P) ratio and increased blue light content. According to the ANSI C78.377 standard for chromaticity, color consistency is vital for visual comfort. For gym environments where sessions exceed 60 minutes, 4000K (Neutral White) is frequently the preferred choice. It provides a crisp, focused environment while reducing the "harshness" that can lead to eye fatigue during high-intensity training.
The Role of PC Reflectors
Using a 60-degree Polycarbonate (PC) Reflector can be a double-edged sword. While it narrows the beam to reduce spill light and glare from the side, it concentrates the light directly downward. If you use reflectors, you must tighten your spacing (moving closer to the 1.2:1 ratio) to avoid a "checkerboard" effect of light and shadow. For more on this, see our guide on Low UGR in Sports Facility Lighting.
Safety and Compliance: Beyond the Brightness
In a gym environment, fixtures are subject to unique stresses, such as vibrations from dropped weights or dynamic movements. Ensuring your setup is "Solid" requires adherence to safety standards.
- UL 1598 Certification: Always verify that your fixtures are UL Listed. As defined by UL 1598, this ensures the luminaire meets rigorous safety requirements for electrical and mechanical construction.
- Safety Cables: Standard mounting hooks are the primary support, but a safety cable is non-negotiable in a gym. Vibration can loosen threaded mounts over time; a secondary steel safety cable provides the redundant protection necessary for overhead equipment.
- IP65 Rating: Even in an indoor gym, dust from chalk and moisture from high humidity (sweat) can accumulate. An IP65-rated fixture, as defined by IEC 60529, ensures the internal components are protected from these environmental factors, extending the life of the LED driver.
The Economic Case: ROI and Energy Efficiency
Upgrading to professional-grade LED high bays is not just a functional decision; it is a savvy financial move. We simulated a scenario for a 400-square-foot garage gym upgrading from legacy 400W metal halide fixtures to modern 150W LED UFOs.
Theoretical ROI Simulation
- Fixture Count: 4 units.
- Annual Usage: 1,500 hours (typical for a dedicated enthusiast).
- Energy Savings: Replacing 400W (458W with ballast) with 150W LEDs.
| Metric | Annual Impact | 5-Year Impact |
|---|---|---|
| Energy Cost Savings | $277 | $1,385 |
| Maintenance Avoidance | $65 | $325 |
| Carbon Reduction | 1,663 lbs CO₂ | 8,315 lbs CO₂ |
| Net HVAC Benefit | $6 | $30 |
| Total Operational Savings | $348 | $1,740 |
Calculations based on $0.14/kWh and US average grid emission factors. Individual results vary by region and utility rates.
By choosing fixtures listed on the DesignLights Consortium (DLC) Qualified Products List, you may also qualify for utility rebates. In many jurisdictions, a DLC Premium-certified fixture can receive a rebate of $100 to $150 per unit, often covering over 60% of the initial purchase price. This can result in a total project payback period of under 10 months.
Pattern Recognition: Solving Common Gym Layout Frustrations
Through observing hundreds of DIY gym installs, we have identified two recurring patterns that separate "good" lighting from "expert" lighting:
- The Mirror Reflection Trap: Users often position lights to illuminate themselves in the mirror. However, if the light is behind you, your face will be in shadow. If it is directly above the mirror, you will see the reflection of the LED array while doing standing exercises. The solution is to place the light slightly in front of your standing position but angled toward you, ensuring the reflection is directed toward the floor, not your eyes.
- The "Shadow Zone" in Power Racks: Placing a single light directly over a power rack creates a shadow inside the cage where you need to see your plate markings and safety pins. Use a two-fixture "flanking" approach, placing lights 3 feet to the left and right of the rack's center. This cross-lighting eliminates shadows and provides superior visibility for technical lifts.
For those dealing with lower ceilings or specialized shop tasks, refer to our Dimensional Guide for Linear High Bays or explore Why Mechanics Prefer UFO High Bays.
Summary Checklist for a Glare-Free Gym
To ensure your gym layout meets professional standards, follow this final verification list:
- [ ] Offset: Fixtures are at least 4-5 feet laterally from the center of bench press/yoga areas.
- [ ] CCT: 4000K selected to reduce blue-light glare and eye strain.
- [ ] Safety: All fixtures include a safety cable and are UL Listed.
- [ ] Efficiency: Products are DLC-qualified to maximize ROI and rebate potential.
- [ ] Uniformity: Spacing-to-mounting-height ratio is between 1.2 and 1.5.
For a deeper dive into upcoming industry standards and how to future-proof your installation, consult the 2026 Commercial & Industrial LED Lighting Outlook.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, engineering, or fitness advice. Always consult with a licensed electrician for installation and a qualified fitness professional before beginning a new exercise program. Lighting requirements may vary based on specific building codes and individual health conditions.
