Fixture Weight vs. Structural Integrity Guide

Mounting LED high bays and hexagon kits is not just an electrical task—it is a structural decision. Fixture weight, mounting hardware, and the ceiling substrate all interact. If you miss any part of that picture, you risk sagging framing, pulled‑out anchors, or in the worst case, a dropped fixture over an occupied floor.

This guide walks through a practical, code‑aware way to match fixture weight to structural capacity, so contractors, facility managers, electricians, and advanced DIY users can make safe, defendable choices.

1. Start with the Right Mindset: Loads, Not Just Watts

For mounting, fixture weight and load path matter more than wattage.

Typical weight bands in real projects:

Fixture type	Typical weight (including hardware)	Typical mounting style
Small hexagon kit section / light panel	1–3 lb (0.5–1.5 kg) per module	Direct surface mount, light anchors, or adhesive (where permitted)
Full consumer hexagon kit (6–10 tiles)	5–10 lb (2.3–4.5 kg) distributed	Multiple light anchors into framing or concrete
Compact linear high bay / shop light	6–12 lb (2.7–5.4 kg)	Chain, cable, or bracket to structure
Round high bay (single‑point hanger)	10–30 lb (4.5–13.6 kg)	Hook, shackle, or stem to beam/purlin, often with safety cable
Heavy industrial fixture / large high bay	30–50+ lb (13.6–22.7+ kg)	Engineered mounting, distributed points, structural engineer review recommended

The core principle: always route load to primary structure—joists, trusses, purlins, or beams—not just drywall, paneling, or tile grids. This is aligned with the role of structural framing in documents like the National Electrical Code overview, which treats electrical equipment support as part of a safe installation.

Common misconception: “If the box says 50 lb, I’m fine”

A frequent field assumption is that a ceiling box marked for 50 lb can safely support any fixture under that weight. In reality, NEC 314.27 (summarized in training resources such as Electrical License Renewal) caps standard ceiling boxes at 50 lb for static luminaires and requires special fan‑rated assemblies for dynamic loads. Research on fan/fixture boxes shows that real capacity often depends on the assembly—box, screws, and framing—not the box alone.

One research insight based on NEC 314.27 commentary highlights that the “50–70 lb” rating assumes sound framing and plate contact. In degraded or unknown substrates, crushing of old wood or screw pull‑out can reduce real capacity by 30–50%. For older buildings, treat printed ratings as upper limits under ideal conditions, not a guaranteed field capacity.

2. Establish Conservative Working Loads and Safety Factors

For lighting, loads are usually static (dead load only) but overhead risk is high. A simple decision framework keeps things predictable.

Recommended safety factors

These align with common structural practice (for example, the 3:1 ratio between test ultimate and allowable load used in the National Design Specification (NDS) for Wood Construction):

• Static fixtures not over regular occupied areas (storage rooms, back‑of‑house):
  • Target 3× safety factor between estimated failure load and working load.
• Fixtures over occupied areas or circulation paths (shops, warehouses, gyms):
  • Target 5× safety factor to account for impact if something fails.

In practice:

• If a single anchor is rated for 100 lb allowable tension in its ICC‑ES report, cap the working fixture load at 20–30 lb per anchor depending on occupancy and layout.
• For suspended runs or continuous rails, consider cumulative load and add intermediate supports.

Working heuristics for fasteners and anchors

Industry testing summarized in ICC‑ES reports (for example, Red Head Trubolt data) shows typical allowable loads for common anchors in good substrates:

• A 1/4 in carbon‑steel wedge anchor with roughly 1‑1/8 in embedment in 2500‑psi concrete is often limited to about 250–350 lb allowable tension.
• Light‑gauge ceiling clip fasteners driven into normal‑weight concrete may be limited to 50–90 lb per fastener.

Using the 5× safety factor rule for occupied areas:

• Treat a 250 lb allowable wedge anchor as suitable for roughly 50 lb of sustained lighting load.
• Treat a 70 lb ceiling clip as suitable for 14 lb of sustained load.

These are conservative starting points; always check the specific product’s ICC‑ES or manufacturer data.

Wood framing: screw capacities

Based on the safety margins encoded in the NDS wood fastener design guidance, a practical field rule is:

• Limit sustained fixture load on a single #10 wood screw in dry SPF (spruce‑pine‑fir) framing to about 80–100 lb in shear.
• Halve that to 40–50 lb when framing quality is unknown, service is damp, or you see splits/knots.
• For any fixture over 50 lb total, require at least two independent supports tied to framing.

This is not a replacement for engineering but provides repeatable, defensible rules for most shop and warehouse lighting work.

3. Match Mounting Methods to Fixture Weight and Ceiling Type

3.1 Concrete ceilings and beams

Concrete is usually the simplest substrate structurally, assuming you avoid cracked or spalled zones.

Preferred options for high bays (10–30 lb range):

• Mechanical wedge anchors (e.g., 1/4 in, 3/8 in): good for single‑point high bays, threaded‑rod suspensions, and trapeze racks.
• Drop‑in anchors with threaded rod for adjustable height and leveling.

Decision tips:

• Use at least two anchors per trapeze bracket or rail section when mounting multiple fixtures.
• For a single 20 lb high bay over an occupied floor, target an anchor capacity of 100 lb allowable or higher and a 5× safety factor.
• Space anchors to keep edge distance ≥ 4× anchor diameter and away from control joints.

Do not:

• Rely on powder‑actuated “ceiling clips” as the sole support for fixtures heavier than roughly 10–15 lb unless the specific clip is rated and listed for that use.

3.2 Steel purlins and metal buildings

Metal buildings with exposed purlins are common in warehouses, barns, and big garages.

Preferred options:

• Self‑drilling screws into purlin flanges for brackets or light rails.
• Beam clamps with eye nuts for threaded rod or chain suspensions.

Heuristics:

• Use structural‑rated self‑drilling screws, not thin sheet‑metal screws, when supporting more than 10–15 lb per fastener.
• Where forklifts or cranes cause vibration, add locknuts and safety cables; torque fasteners and recheck after about 30 days in service.

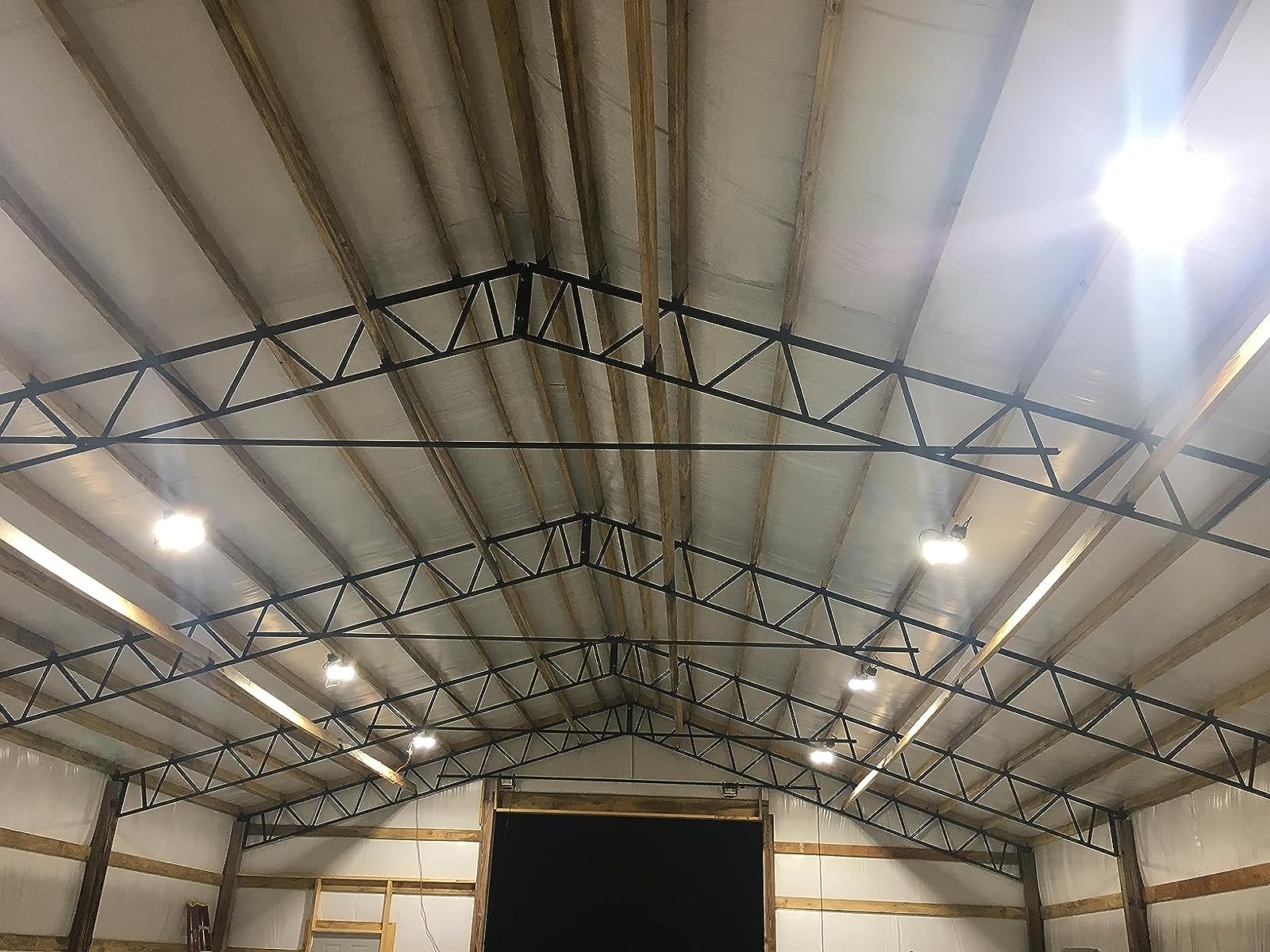

3.3 Wood joists, trusses, and pole‑barn framing

In timber‑frame shops and pole barns, routing loads to joists or truss chords is essential.

Preferred options:

• Lag screws or structural screws into side or bottom faces of joists.
• Through‑bolts with washers when accessible from both sides.

Avoid:

• Hanging 20–30 lb high bays from thin furring strips, ceiling paneling, or decorative beams that are not part of the primary structure.

When multiple fixtures run in a line, a common “pro move” is to install a continuous trapeze rail or unistrut‑style channel spanning several framing members. This spreads load and simplifies proof for inspectors and utility reviewers, a practice also encouraged in high‑performance building guidance such as the NREL best practices manual where systems thinking about loads and supports is emphasized.

3.4 Suspended ceilings (T‑grid)

Suspended (T‑grid) ceilings are not structural. They are designed to carry tiles and very light accessories.

For hexagon kits and light shop fixtures:

• Use dedicated hanger wires (typically 12‑gauge galvanized) from the fixture or rail up to the deck or framing above, at least every 4 ft for continuous runs.
• Tie into the T‑grid only for lateral positioning, not to carry weight.

For single 10–20 lb high bays, run individual hanger wires or threaded rod from structure to a small cross‑rail just above the grid. Never hang a high bay solely from the T‑bar.

4. Lightweight Hexagon Kits vs. Heavy High Bays

Hexagon kits and industrial high bays commonly share a ceiling, but the structural logic is different.

4.1 Hexagon kits (distributed, low load)

Consumer hexagon kits are typically 5–10 lb total, spread across a large pattern.

Mounting characteristics:

• Load is distributed across many small contact points.
• Individual anchors often carry less than 1 lb each.
• Some systems allow adhesive‑only mounting on smooth substrates.

Good practice:

• Treat manufacturer’s “adhesive‑only” recommendations as suitable for smooth, sound drywall or concrete in low‑vibration spaces.
• In garages and shops, back up adhesive with light anchors or screws into framing at pattern intersections.
• Avoid mounting large hexagon grids directly to old, chalking paint or crumbly plaster; clean and test a small area first.

4.2 High bays (concentrated, higher load)

Round high bays in the 10–30 lb band create concentrated loads at a single point or small bracket.

Implications:

• Adhesive is never acceptable as the primary support.
• Mounting must be directly to structural elements with quantified fasteners.
• In spaces with people or equipment below, assume a 5× safety factor and at least one independent safety tether from fixture to structure.

To go deeper on when and where to place these heavier fixtures, pair this structural guide with layout resources such as the warehouse layout discussion in Designing a High Bay Layout for Warehouse Safety and beam‑angle selection in Choosing a Beam Angle for Your Ceiling Height.

5. Pro Tip: Ceiling Boxes and “Code‑Compliant” Assemblies

A counter‑intuitive field reality is how limited standard ceiling boxes are.

The myth: “Any listed ceiling box is fine for most lights.”

The reality, as documented in NEC 314.27 and explained in resources such as NEC training content, is:

• Standard ceiling boxes are capped at 50 lb for static luminaires.
• Paddle fans require boxes tested specifically for dynamic loads.

Research‑based insight shows that hanging a 35 lb chandelier or compact high bay from a decades‑old, non‑fan‑rated box set in cracked plaster can be non‑compliant, even if the fixture is under 50 lb. The assembly (box + mounting screws + substrate) was never tested for that type of eccentric, vibrating or cyclic load.

Practical rule:

• Use fan‑rated or heavy‑duty boxes only when you can positively verify the framing condition.
• In unknown or compromised substrates, relocate to new framing or add a spanning bar between joists to create a fresh, reliable mounting base.

6. Accounting for Corrosion, Vibration, and Service Life

Many shops and warehouses are damp, dusty, or near coastal environments. In these spaces, anchor and hanger performance changes over time.

6.1 Corrosion and long‑term capacity

ICC‑ES reports for anchors (such as ESR‑1799 corrosion commentary) highlight that published capacities are based on short‑duration tests in ideal concrete or wood. Field observations show that zinc‑plated carbon steel anchors in damp or coastal environments can lose 30–60% of cross‑section over 20–30 years.

For critical fixtures (over exits, assembly areas, or expensive equipment):

• Prefer hot‑dip galvanized or stainless hangers and anchors.
• Treat supports similar to fire‑protection systems: plan 5–10 year re‑inspections of visible hangers, especially near loading docks or wash‑down areas.

6.2 Vibration and dynamic loads

In warehouses with forklifts, overhead doors, or suspended conveyors, vibration can work threads loose.

Practical measures:

• Use locknuts, lock washers, or thread‑locking compounds on threaded connections.
• Add secondary safety cables from fixture housings to structure for any suspended light over roughly 15–20 lb.
• After the first 30 days of operation, re‑check torque on critical connections as part of your punch‑list.

These steps align with the intent of safety codes like the National Electrical Code overview, which view electrical equipment not in isolation but as part of a durable system in a real building.

7. When to Involve a Structural Engineer

Not every lighting project requires engineering calculations, but some conditions clearly do.

7.1 Clear triggers for engineering review

Engage a structural engineer when:

• Any single fixture exceeds ~40–50 lb, especially in older or lightly framed buildings.
• You plan to cluster several high bays on a single beam, rail, or truss panel so the total added load exceeds 150–200 lb in one bay.
• The ceiling structure shows deflection, cracking, rot, corrosion, or unknown modifications.
• You are adding heavy lighting in conjunction with other suspended systems (ductwork, sprinklers, conveyors) on shared framing.

7.2 Gray areas: use judgment plus documentation

Even below these thresholds, consider consultation if:

• The space is public‑facing (gyms, retail, arenas) where occupant density is high.
• You are deviating from standard mounting patterns—long spans, cantilevers, or mixed substrates.

In all cases, document:

• Fixture weights (from spec sheets or LM‑79 reports when available—LM‑79 is explained by ANSI/IES as the standard for measuring LED luminaire performance in documents like the IES LM‑79 overview).
• Anchor types, sizes, and ICC‑ES report numbers.
• Safety factors assumed and any engineering input received.

This documentation not only supports code compliance but also satisfies utility programs and rebate reviewers who may request proof of proper installation for incentive projects, consistent with practices described in DOE’s guidance on energy‑efficient luminaires.

8. Quick Decision Matrix: Fixture Weight vs. Mounting Strategy

Use this table as a field reference. It does not replace engineering but gives a defensible starting point.

Fixture weight (per fixture)	Typical applications	Recommended mounting approach	Safety/checks
≤ 5 lb	Small hex modules, light strips	Adhesive or light screws into drywall or concrete; follow manufacturer limits	Verify substrate soundness; avoid loose plaster or chalking paint
5–10 lb	Full hex kits, light linear shop lights	Screws into framing or concrete anchors; for T‑grid, add hanger wires to structure	At least 2 screws/anchors per unit; basic inspection of framing/anchors
10–20 lb	Compact round or linear high bays	Beam clamps, threaded rod to concrete or steel; lags into joists; hanger wires in T‑grid tied to deck	Use 3×–5× safety factor; consider safety cable over occupied areas
20–40 lb	Larger industrial high bays, multi‑head fixtures	Multiple anchors, trapeze rails, or distributed brackets to framing or concrete	Strongly consider engineering review in older/light structures; require safety cables
> 40 lb	Heavy industrial luminaires, combined racks	Engineered support, often with multiple distributed anchors or dedicated steel	Structural engineer review required; full documentation package

9. Step‑by‑Step Checklist for a Safe High Bay Install

Use this process for each mounting location.

1. Confirm fixture weight
   • Check spec sheet, packaging, or manufacturer data.
   • Include brackets, drivers, junction boxes, and typical ice/dust buildup if relevant.
2. Identify the real structure
   • Locate joists, truss chords, purlins, or concrete deck.
   • Ignore finishes (drywall, T‑grid, decorative panels) as structural supports.
3. Choose fastening method
   • Concrete: wedge/drop‑in anchors sized to at least 3×–5× working load.
   • Steel: beam clamps or structural self‑drilling screws into purlins.
   • Wood: lags or structural screws into solid framing.
4. Check ratings and safety factor
   • Pull allowable loads from anchor ICC‑ES or manufacturer data.
   • Apply 3× safety factor for low‑risk areas; 5× over occupied floor.
5. Evaluate environment
   • Damp/corrosive? Upgrade to stainless or hot‑dip galvanized.
   • Vibrating equipment? Add locknuts and safety cables.
6. Install and torque
   • Follow manufacturer torque and embedment instructions.
   • Avoid over‑tightening in wood, which can crush fibers and reduce capacity.
7. Inspect and document
   • Take photos of anchors, rails, and safety cables before closing ceilings.
   • Record anchor types, quantities, and approximate locations on a floor plan.
   • Schedule a 30‑day re‑check of hangers in busy industrial spaces.

For additional planning context—fixture count, layout, and light levels—pair this checklist with layout‑focused resources like Warehouse Lumens Guide for UFO High Bay Lights and the comparison of fixture forms in UFO vs. Linear High Bay for Warehouse Racking Aisles.

10. Key Takeaways for Contractors and Facility Managers

• Think in loads, not labels. Nameplate weight and box ratings assume ideal conditions. Aging framing, cracked plaster, and corrosion can cut real capacity by 30–50%, as training resources on NEC 314.27 and ICC‑ES corrosion data show.
• Use conservative safety factors. A 3× factor is a good baseline; use 5× over occupied areas and for suspended systems.
• Route every load to real structure. Drywall, T‑grid, and thin paneling are finish materials, not supports.
• Distinguish low‑load hex kits from heavy high bays. Adhesive‑plus‑light anchors can be appropriate for distributed 5–10 lb hex grids; 10–30 lb high bays demand structural anchorage and often safety cables.
• Know when to call an engineer. Any fixture above ~40–50 lb, any large cumulative load on one member, or any visibly compromised structure warrants professional review.
• Document everything. Photos, anchor specs, safety factor assumptions, and light‑level calculations (from LM‑79/IES files or layout tools) create a defensible record for inspectors, insurers, and owners.

By approaching fixture mounting as a structural decision backed by standards and evaluation reports, pros can deliver lighting upgrades that are not only bright and efficient but also structurally sound for decades.

---

Safety Disclaimer

This guide is for informational purposes only and does not replace professional engineering, electrical, or safety advice. Always follow applicable codes and standards, including the National Electrical Code (NEC), local building regulations, and manufacturer instructions. For heavy fixtures, unusual structures, or any condition where structural capacity is uncertain, consult a licensed structural engineer and qualified electrician before proceeding.
