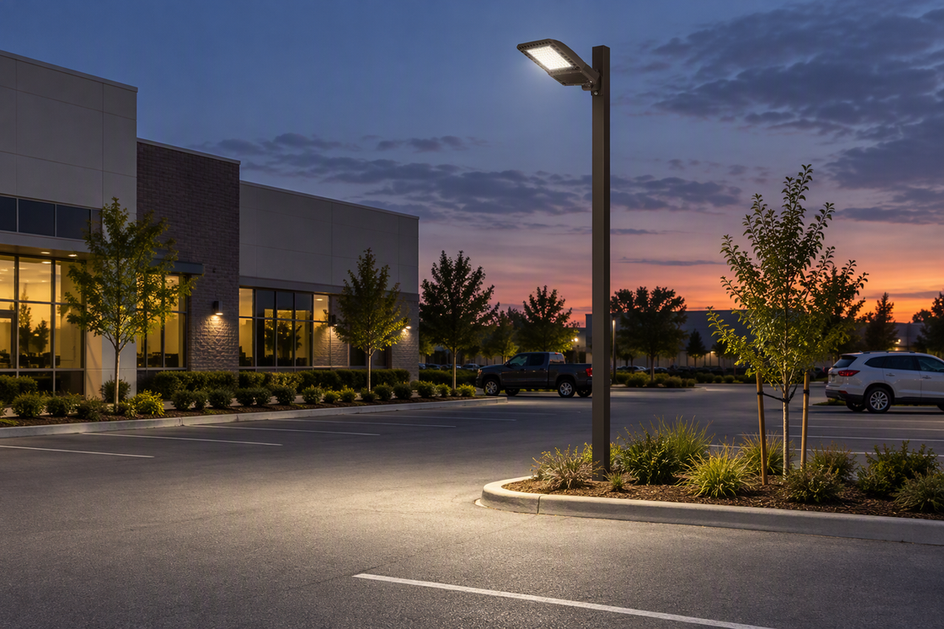

Plan commercial site lighting against two layers instead of one: the fixed site that will stay the same, and the landscape plan that will keep growing. Before you lock in any fixture position, compare it and its intended light path with both layers. A clear view today tells you only part of the story, because a young tree planted near a pole may grow across that path later.
The comparison gives each position one of three outcomes. You can retain it as a candidate, flag it for review, or keep it provisional until the planting details arrive. This is a planning screen. It narrows your decisions, but it does not confirm light levels or code compliance.
How to Decide Whether Planned Growth Changes a Light Path
Sort each proposed fixture position by what the coordinated plans show about its light path. Take one position at a time. Name the area it should serve, such as a drive aisle or an entrance walk, then trace its intended distribution across the planting layer.
Roadway lighting offers a useful model for this overlay. In highmast roadway design, the FHWA Lighting Handbook describes arranging lighting contours on a site plan at approximate pole locations. Designers then refine that rough layout through trial and adjustment. A commercial parking lot is a different setting. The same visual screen still shows you where a planting outline and a light path overlap before anyone runs a calculation.
| What the plans show | What it means | Next action |
|---|---|---|
| No apparent overlap with documented planting | Candidate, not confirmed coverage | Retain for the next planning stage |
| Documented planting may cross the light path | Possible future obstruction | Flag the position or path for review |
| Planting location or mature size missing | Path can't be assessed yet | Keep provisional until details arrive |
A flag tells you to look closer. It doesn't mean the pole has to move. The review decides whether the fixture should change, the planting should change, or neither needs to change. Retained candidates move on to photometric calculation. That's where fixture distribution and coverage shape on large sites get tested against the real layout. If you want that step run on your own site, you can request our free light simulation service using your project layout.
Mark the Fixed Site and Intended Coverage First
Build a stable reference layer first, so planned growth has something fixed to compare against. Keep the proposed fixtures on a separate layer so you can move them without redrawing the site. You can draw these layers in CAD or in an online lighting layout tool.
- Intended coverage areas: Outline the parking areas, drive aisles, walkways, and entrances the lighting should serve. You don't need a light-level target at this step.
- Permanent site geometry: Mark building faces, curbs, islands, and other features that will stay in place.
- Existing obstructions: Note structures and retained trees that already sit in or near a light path.
- Existing lighting: Show current poles and wall-mounted fixtures with a symbol that differs from the one for proposed positions.
- Proposed fixture positions: Place them on their own layer so a change is easy to compare with the current layout.
Scale matters when the lighting and landscape layers come from different consultants. Rockville's coordinated-plan example comes from the Maryland city's Landscaping, Screening and Lighting Manual. It requires the landscape plan to be drawn at the same scale as the related site plan. That plan must also show trees to remain, landscaping materials, and all existing and proposed lighting. Other jurisdictions set their own plan rules, so use Rockville as a model for coordination, not as a nationwide requirement. If your coverage zones aren't defined yet, first map commercial lighting zones before you place any fixture symbols.
Use Documented Planting Details—Not Guessed Mature Sizes
Only screen for future overlaps with planting data that someone has documented. Where that data is missing, the honest result is "not yet assessable," not "clear."
Landscape plans often already carry the inputs you need. The UF/IFAS guide to drawing a planting plan describes preliminary plans that use simple circles and free-form lines to show each plant's location and size. It also notes that the plant list can include mature height and spread. Those documented mature plant dimensions let you draw future plant extent on your commercial site lighting plan without guessing.
- Ask the landscape designer for the current planting plan and plant list, with proposed locations drawn at site-plan scale.
- Match each plant symbol near a light path to its plant-list entry so you know which plant it is.
- Use the documented mature height and spread to draw the plant's future extent on the plan.
- Mark any plant missing a location, an identification, or a mature size as unresolved, and keep nearby fixture positions provisional.
Don't fill gaps with an estimate. A generic label like "shade tree" or "evergreen shrub" doesn't give you a mature spread. A guessed number can make a path look clear when it isn't. Keep in mind that an overlap on paper doesn't prove a light will be blocked. It shows you where the review should focus.
FAQs
Does a plan overlay confirm final light levels?
No. An overlay of light paths and planting is a screening step. It shows where future growth and intended distribution may meet, but it doesn't measure illuminance or decide code compliance. Final performance comes from photometric calculations on the actual fixtures and layout, plus any approvals your project needs.
What should I do if the planting plan changes after lighting review?
Compare the revised planting against the light paths it could affect before you treat those fixture positions as settled. Moving a tree near the entrance reopens the review only for the positions whose paths cross that area. Positions far from the change keep their earlier result unless the new plan affects them too.
Should existing lighting be included when reviewing a new layout?
Yes, if the site already has lights. Show existing fixtures separately from proposed ones so reviewers can see what stays and what changes. One local example is Rockville's landscaping and lighting manual, which asks for existing and proposed lighting to appear on the same plan as trees and planting. Check your own jurisdiction's plan requirements.
Who makes the final coverage and code decisions?
The plan screen helps you prepare the layout. Final coverage and code-compliance calls belong to your lighting designer, engineer, or the authority having jurisdiction. Circuit design and wiring belong to a licensed electrician. Bring them the coordinated plans with your retained, flagged, and provisional positions marked, so their review can start from the open questions.
