Choose the fixture type based on coverage shape and the target surface, not wattage or acreage. A defined wall, dock edge, gate, or work face may call for outdoor LED flood lights when the mount and aiming direction can serve it. A broad yard may call for area lighting when the verified distribution fits the zone. Use a mixed layout when the property contains materially different zones, and request design support when the site map, viewpoints, obstructions, or current product files cannot validate the choice. No universal fixture count or useful reach can be determined responsibly from site size alone.
Choose Flood, Area, Mixed, or Design Support by Coverage Shape
Start by identifying what needs light and where the fixture could be mounted. The best approach is the one whose distribution, aiming, access, and boundary behavior match that geometry.
| Starting path | Coverage shape and target surface | Plausible mount | Glare, spill, and maintenance checks | Use this path when |
|---|---|---|---|---|
| Flood lights | Defined directional targets such as a wall, dock edge, gate, sign, or specific work face | A mount with a workable aiming direction toward the target | Check direct views of the source, high-angle output, light beyond the target, shadows, and service access | The target is clearly defined and the mount and aiming position can serve it. |
| Area lights | Broader horizontal or open-site zones where the verified distribution reaches the intended surfaces | A pole, building, or other mount that provides the required geometry without blocked views | Review uniformity separately from brightness, along with nearby roads, neighboring property, cameras, and maintenance access | The zone is broad and current product photometry shows that the proposed distribution fits it. |
| Mixed layout | Different shapes in one property, such as an open yard plus loading doors and a perimeter path | More than one mounting approach or aiming direction | Review each zone, then check overlap, dark transitions, glare, spill, and service routes across the complete site | A single category would force the same distribution onto zones with different target surfaces or viewpoints. |
| Photometric design support | Any shape where count, spacing, aiming, boundaries, or target results remain uncertain | The actual proposed mounts, heights, and fixture locations shown on a site plan | Include sensitive viewpoints, obstructions, moving equipment, access, boundary behavior, and the project's review requirements | Current site information and product files cannot validate the layout, or uniformity, glare, spill, and maintenance access materially affect the decision. |
Review forward light, backlight, and uplight behavior, including high-angle output that may affect glare, spill, trespass, or sky glow. Use these as review dimensions rather than as a universal flood-versus-area rule for every commercial site.

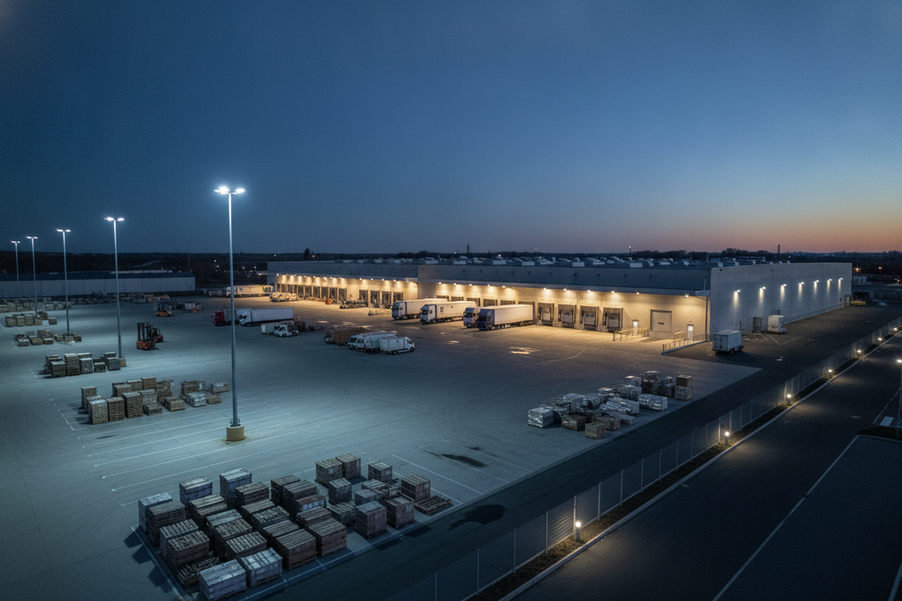

Map Each Large-Site Zone to Its Target Surface and Mount
Divide the property into zones that can be evaluated separately. For each one, record the target surface, plausible mount and height, aiming direction, obstructions, viewing positions, maintenance access, and sensitive boundaries. Uniformity, visibility, glare, and spill are separate layout checks; more output alone does not resolve them.
Open Yards and Storage Areas
For an open yard, mark usable work surfaces, travel paths, storage changes, likely mounting points, nearby roads, and neighboring properties. Record moving stacks, parked vehicles, fences, trees, and equipment that could block or redirect useful light. Include lift access and the route needed to service each proposed mount. A large open rectangle may still contain separate work and travel zones, so apply the flood, area, or mixed path only after comparing each target surface with the available mount.
Loading and Service Areas
Map loading surfaces, doors, dock edges, vehicle approaches, canopies, trailers, rooflines, and operator sightlines. Separate the work surface from the circulation route when they may need different aiming or distribution. Mark any position from which workers or drivers would look toward a bright source, and flag mounts that would block a maintenance route.
Building Edges and Entrances
Identify whether the target is a wall, doorway, dock edge, entry approach, or adjacent ground area. Compare close-in and outward-facing mounting positions for shadows, glare, spill, security sightlines, neighboring windows, roads, and service access. Do not assume that a fixture mounted on the building serves every nearby surface. Record the intended target and the relevant viewpoints before selecting a distribution.
Perimeters and Access Paths
Trace property boundaries, gates, pedestrian paths, drive aisles, camera views, and sensitive neighboring areas separately. Note whether coverage should follow the boundary, project inward, or serve a distinct gate or path. Spill light is light that falls outside the intended area, while glare is source brightness viewed in a way that reduces visibility. The FHWA lighting definitions support reviewing both conditions from the viewpoints of workers, drivers, pedestrians, neighbors, and cameras. The FHWA material is a general planning caution here, not a commercial-site compliance determination.
For vehicle and pedestrian approaches, review uniformity and glare alongside the light reaching the target surface. The FHWA Lighting Handbook treats these as distinct visibility considerations, so a bright spot or higher average value should not replace a layout that preserves sightlines.
Decide When Fixture Count and Reach for Outdoor LED Flood Lights Need a Photometric Layout
No responsible universal fixture count or commercial flood-light reach can be calculated from acreage, wattage, lumens, or a category label alone. Treat count, spacing, aiming, and useful reach as outputs of the actual mounting geometry, target surfaces, obstructions, product distribution, and project requirements.
Before accepting a count or reach estimate, assemble:
- A scaled site plan or dimensioned sketch with zone boundaries, property lines, work areas, travel routes, and sensitive edges.
- Proposed mounting locations, mounting heights, aiming directions, and access for installation or maintenance.
- Target surfaces, including horizontal work areas and any relevant vertical walls, doors, boundaries, or faces.
- Current obstructions such as buildings, canopies, trailers, vehicles, storage, trees, fences, and equipment that may move.
- Operating conditions or controls that affect when the lighting operates, plus the project's coverage, visibility, or uniformity requirements.
- Current product documentation, including a standard IES photometric file based on the actual working product rather than a prototype or computer model.
The DOE outdoor-area guidance supports reviewing horizontal and vertical illuminance on target areas with lighting-design software and actual site information. A lumen number is not a layout, and a product category does not establish how far useful light reaches from a particular mount.
Request a project-specific photometric analysis when zones overlap, mounting types vary, obstructions move, neighboring properties are sensitive, uniformity matters, or the proposed count cannot be checked against the actual plan. A photometric analysis example can include computer-generated results for proposed luminaires, target-surface calculations, and site-boundary checks. That government-hosted specification is an example of documentation a project may request, not a universal code or threshold.
Complete the Pre-Order Site Brief and Choose the Next Action
Turn the zone map into a single brief that a purchasing team, contractor, lighting supplier, or design reviewer can evaluate.
- Confirm each zone's target surface, required coverage shape, proposed mounting point and height, aiming direction, and installation or maintenance access.
- Update the obstruction record for buildings, canopies, trailers, vehicles, storage, trees, fences, neighboring property, and roadway exposure.
- Mark viewpoints for workers, drivers, pedestrians, neighbors, and cameras. Review where the source is visible and where light could leave the intended zone; adjust placement, aiming, distribution, shielding, or the complete layout rather than simply increasing output.
- Verify electrical compatibility against current product documentation. Leave wiring, installation, permitting, life-safety, and local code decisions to the responsible qualified professional.
- Check current product pages, installation instructions, downloadable files, and the exact markings or certification documentation the project requires. OSHA's NRTL guidance explains that certification applies within a defined scope and is not an endorsement of a particular product, so a generic certification statement should not replace review of the exact documents.
- Record any unresolved question about count, spacing, aiming, uniformity, glare, spill, obstructions, or maintenance access for design or photometric review.
Choose one route after the brief is complete: if the mapped zone and current files validate the category, browse outdoor lighting; if a decision-critical input remains unresolved, submit the brief for design or photometric review. Outdoor LED flood lights remain a starting category for a defined directional target, not a substitute for site geometry.
FAQs
These questions address exceptions and next steps that can change how a mapped commercial site proceeds.
Can One Large Property Use Both Flood and Area Lighting?
Yes, when separate zones have materially different target surfaces or mounting geometry. Treat the combination as a mixed layout only after mapping the zones; an unresolved transition between them is a reason to send the complete plan for review.
Can More Output Solve a Glare Problem?
Not necessarily. Increasing output can leave the source visible and add spill, so change placement, aiming, distribution, or shielding first. If those changes cannot be evaluated against the relevant viewpoints, request a photometric review.
What Should I Send With a Photometric Review Request?
Send the scaled plan, zone boundaries, proposed mounts and heights, aiming directions, target surfaces, obstructions, sensitive viewpoints, and the current product IES file. Identify any missing item so the reviewer can distinguish an unavailable input from a layout result.
