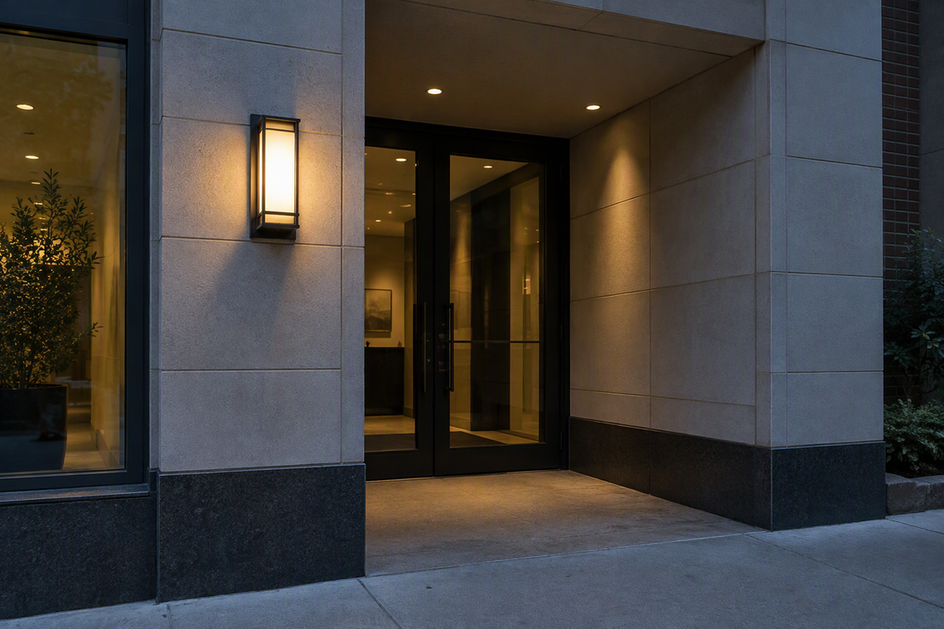

To choose recessed exterior lighting, start by recording the recess. Note its width, depth, and height, the planes where a fixture could mount, anything in the way, and every surface that needs light. Then shortlist only fixtures whose documented light distribution, from the position you plan to use, can be checked against those surfaces, because a standard facade placement doesn't show that light will reach the back wall or sides of an entrance set behind the main wall.
This applies to wall-mounted and overhead options alike, and no fixture form wins by default. Our current product information doesn't show that any specific fixture we offer fits a particular recess, so treat every model, ours included, as a candidate until its own documents answer the coverage question. If they can't, get a project-specific lighting review before you buy.
Map the Recess Before Shortlisting a Fixture
Measure the site before you open a catalog. A federal exterior lighting guide from the DOE's FEMP program recommends defining design goals first, then notes that determining physical space dimensions is necessary before layout work begins. For a recessed entrance or building return, record these four things:
- Recess size: the width across the opening, the depth from the facade line to the back wall, and the height to any ceiling or soffit. Feet and inches are fine.
- Mounting planes: the main facade beside the opening, the side returns, the back wall, and any overhead soffit that could hold a fixture.
- Obstructions: door frames, canopies, signs, columns, or projecting trim that could block light from a given position.
- Target surfaces: the back wall, side returns, doorway area, walking surface, or signage. List only the surfaces this site actually needs lit.
With that record in hand, keep a fixture on the shortlist only if you can compare its documented distribution, from one specific proposed position, against each listed target. If you can't assess a fixture that way, it isn't a real candidate yet. A deep, narrow recess and a shallow, wide one may give different answers for the same mounting position. That's why the record comes before the shortlist.
This record is a planning input. It is not a light-level calculation or a code determination. If you're also tracking power, controls, and exposure, our fixture project inputs checklist shows how to record them alongside site geometry.
Match Mounting Position and Light Distribution to Each Surface
Judge distribution and position together, one target surface at a time. The same federal guide lists beam distribution and luminaire positioning as design elements, including setback, spacing, and vertical and horizontal aiming. It also recommends modeling designs to check light levels and uniformity.
Use this table to turn each recess condition into a question a candidate fixture must answer.
| Recess condition or plane | Question to resolve |
|---|---|
| Facade mount, target set back in recess | Does the distribution reach the back wall and doorway from this setback? |
| Side return or alcove | Is each return surface covered from its own position? |
| Usable soffit plane | Do install instructions allow this mount? Does the light cover the targets? |
| Obstruction in the light path | Does it block or shadow a target from this position and aim? |
| Several fixtures along a long return | Does the spacing leave gaps between target areas? |
If documents answer a row, that position and fixture stay on the shortlist. If they can't, the row stays open and moves to the verification step below. A wall isn't automatically better than a soffit, or the other way around. A soffit becomes a candidate plane only when the exact model's installation information supports that mount.
Spacing and aiming are position choices you can work out. For a row of fixtures along a long facade or return, our wall pack spacing guide works through spacing based on mounting height and beam angle. If you plan to light the recess from a distance, our floodlight setback and tilt method gives you a starting aim to test.
Verify the Shortlist With Model-Specific Documents
Before you buy, check the documents for the exact model or variant you'd order, not for the series or a category page. Data from another model doesn't carry over, even within the same product family.
- Photometry: DOE's outdoor area lighting fact sheet notes that standard photometric files help compare candidate luminaires. Use model-specific photometry to check how each candidate's light spreads toward your recorded targets from your planned mounting position.
- Installation instructions: Confirm that the instructions cover the mounting plane you plan to use, whether that's a facade, a return wall, or a soffit.
- Environmental ratings: Compare the conditions on the label and spec sheet with what the recess actually faces. An ingress rating such as IP65 is not the same thing as a wet location listing, so check for the specific rating your site needs.
- Performance, cost, and reliability: FEMP's exterior lighting purchasing guidance says an informed choice depends on accurate data about performance, cost, and reliability. Those figures help you rank candidates. They don't tell you whether light reaches into the recess.
A photometric file helps you compare fixtures, but it can't prove coverage on its own. DOE describes the next step as analyzing horizontal and vertical illuminance on the target areas with lighting-design software and actual site measurements. The federal guide also recommends modeling the layout to validate light levels and uniformity.
If the documents still leave a target surface open, get a project-specific review before you choose. You can send your recess record and shortlist through our project lighting review page. You can also check current outdoor wall light options or our broader commercial lighting range against the same checklist. Circuit design and code compliance are decisions for your electrician and the local authority.
FAQs
Can a standard wall-mounted fixture light an entrance recess?
You can't tell from the mounting location alone. A fixture on the main facade may or may not reach the back wall and side returns of a recess, depending on its distribution, setback, and aim. Federal exterior lighting guidance says to evaluate distribution and position rather than assume coverage. If the documents don't settle it, have the layout modeled.
Does a usable soffit automatically make an overhead fixture the better choice?
No. A soffit is one more candidate mounting plane, not an automatic fix. It's worth considering only if the exact model's installation instructions support that mount. Even then, the fixture's documented distribution still has to cover the surfaces you need lit, such as the doorway and side walls.
What should I do if product information does not resolve coverage?
Don't assume the fixture will work. Ask the seller for current documents for that exact model, especially an IES photometric file and the installation instructions. If those still don't show whether light reaches each target surface from your planned position, get a project-specific lighting review before you place the order.
